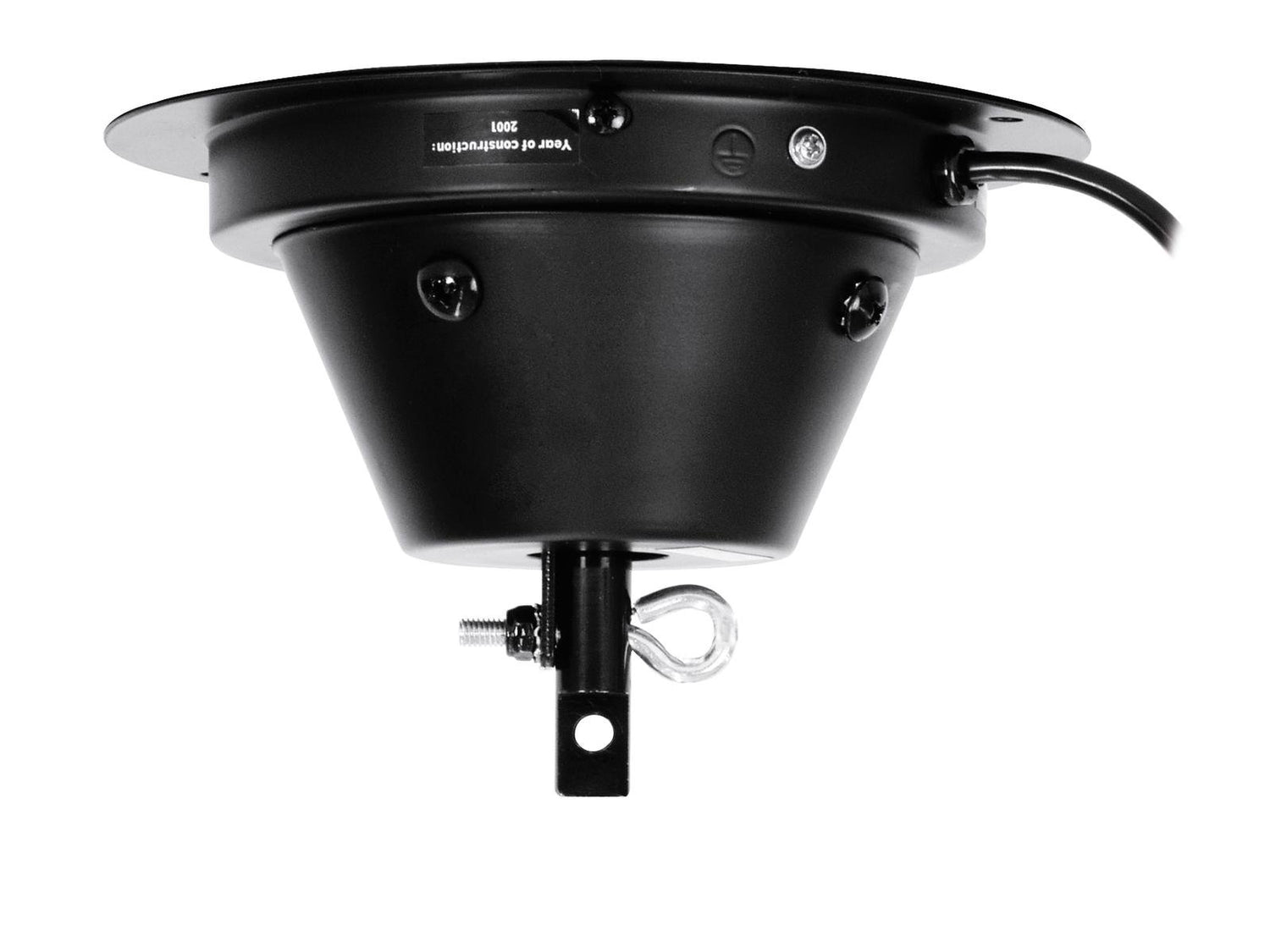

Mirror Ball Motor (50cm, 10kg)
€40,00
Stückpreis
/
Nicht verfügbar
Beschreibung
Beschreibung
- Mirror ball motor for 50 cm. mirror ball.
- Revolutions per minute: 1
- Supplied with power cable without plug!!
- Suitable for driving mirror balls up to a maximum weight of 10 kg
- This weight corresponds with a diameter of 50 cm for the EUROLITE mirror balls
- The maximum load always means the mirror ball weight including the mirror ball chain, the safety chain and the fixation material
- 2 chains and 4 quick links must be ordered separately
- 1 rotation per minute
- Delivered with open cable-ends
- For professional use, e.g. in discotheques and in public places, the EN DIN 15560 norms have to be considered
- The motor always has to be installed with a secondary safety attachment
- Before taking into operation for the first time, the installation has to be approved by an expert
Spezifikationen
Spezifikationen
-
Weight (kg)
More specifications
More specifications
| Power supply: | 230 V AC, 50 Hz ~ |
| Power consumption: | 3.5 W |
| Max. load WLL (4-fold): | 30 kg |
| Max. load load BGV C1 (8-fold): | 15 kg |
| Max. load load BGV C1 (10-fold): | 12 kg |
| Max. load load BGV C1 (12-fold): | 10 kg |
| Max. diameter of mirror ball: | 50 cm (EUROLITE) |
| Rotation-speed: | approx. 1 RPM |
| Diameter of base plate: | 190 mm |
| Height: | 130 mm |
| Weight: | 1 kg |
Brand: Eurolite
SKU: EUR-50301500
