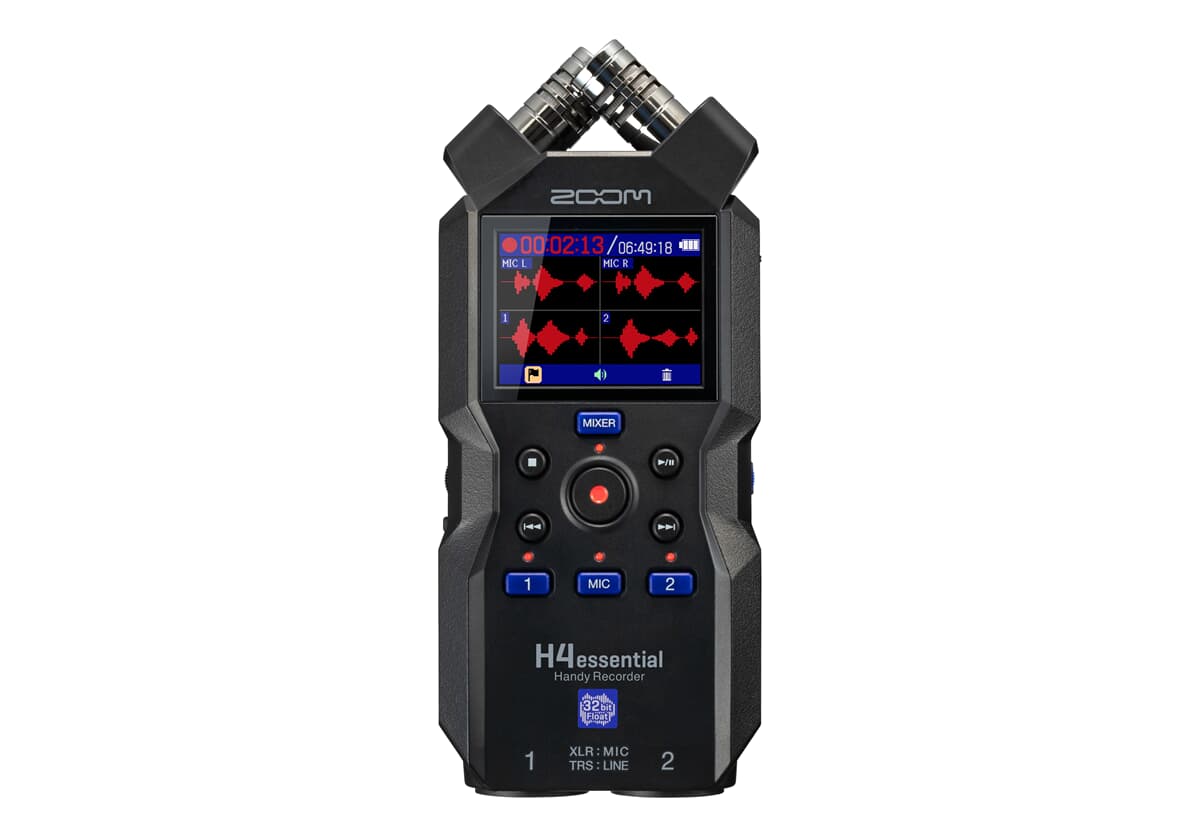

Zoom H4e Essential Handy Recorder

• Zoom 4-track, 32-bit handheld recorder with 2 XLR/TRS inputs
• Designed to record audio in an easy-to-use, yet user-friendly way Inputs and outputs
  Inputs
  Built-in microphone (stereo): 1
  XLR/TRS: 2
  MIC/LINE IN: 1
  Outputs
  Headphones: 1
  Built-in speaker (mono): 1
  Inputs
  Built-in microphone: 90º XY stereo format
  Omnidirectional: Unidirectional
  Sensitivity: -43 dB/1 Pa at 1 kHz
  Maximum sound pressure input: 130 dB SPL
  XLR/TRS connector
  XLR/TRS combo jacks × 2 (XLR: 2 HOT TRS: TIP HOT)
  Input gain: Adjustment unnecessary
  Input impedance
  XLR: 3 k or more
  TRS: 3 k or more
  Maximum input level
  XLR: +4 dBu
  TRS: +24 dBu
  Phantom voltage: +48 V, channel total 10 mA or less
  Equivalent input noise -120 dBu or less (IHF-A) @150 input
  MIC/LINE IN jack
  Stereo mini jack ×1 (supports plug-in power)
  Input gain: No adjustment required
  Input impedance: 2 k or more
  Outputs
  Headphone jack: Stereo mini jack ×1
  Maximum output level: 20 mW + 20 mW (into 32 load)
  Output impedance: 15 or less
  Built-in speaker: 250 mW 8 mono speaker
  Recorder
  Maximum simultaneous recording tracks: 4
  Maximum simultaneous playback tracks: 4
  Recording formats: WAV
  44.1/48/96 kHz,
  32-bit float mono/stereo
  BWF and iXML formats supported.
  Recording media
  4-32GB card compatible with microSDHC specification
  64GB-1TB card compatible with microSDXC specification
  Display: 2.0-inch full color LCD (360 x 240)
  USB connector: USB Type-C
  Use a USB cable that supports data transfer.
  USB bus power is supported.
  USB microphone: USB2.0 High Speed
  44.1/48 kHz
  24-bit/32-bit float
  4-in/2-out
  File transfer: USB2.0 High Speed
  Remote control: Dedicated wireless adapter (ZOOM BTA-1)
  Power
  4 AA batteries (alkaline, NiMH or lithium)
  AC adapter ZOOM AD-17): DC 5V/1A
  USB bus power supported.
  Expected continuous operating time when using 2-track recording (built-in XY microphone), 48 kHz/32-bit float phantom power off, no headphones, no remote control, monitor power savers on:
  Alkaline batteries: Approx. 9 hours
  NiMH batteries (1900 mAh): Approx. 14 hours
  Lithium batteries: Approx. 20 hours
  These values are approximate. Continuous battery runtimes were determined using internal testing methods. They will vary greatly depending on conditions of use.
  Power consumption: Maximum 3 W
  Dimensions: 66.9 mm (W) × 156.1 mm (D) × 38.0 mm (H)
  Weight (incl. batteries): 226geffective way
• Very good sound quality

Zoom H4e Essential Handy Recorder

• With fire tracks, 32-bit float recording, advanced X/Y microphones and 2 XLR/TRS inputs, this Zoom recorder is ideal for recording your music, podcasts and audio to video.
• 32-bit float recording provides consistently high quality without the need for level adjustment.
• It features ultra-clean preamps and X/Y microphones for impressive sound quality.
• Record and stream simultaneously in 32-bit float via SD card or USB-C.
• Use the built-in mixer to adjust the sound level and see the waveform during recording.
• Perfect for music, interviews and location sound with XLR inputs and built-in microphones.
• Use the optional Bluetooth adapter for remote control and timecode synchronization.
• The H4essential is compact yet powerful, with long battery life and large storage space.

Inputs and outputs channels

• Built-in microphone (stereo): 1
• XLR/TRS: 2
• MIC/LINE IN: 1
• Headphones: 1
• Built-in speaker (mono): 1

Inputs

• Built-in microphone: 90º XY stereo format
• Directionality: Unidirectional
• Sensitivity: -43 dB/1 Pa at 1 kHz
• Maximum sound pressure input: 130 dB SPL
• XLR/TRS connector
• XLR/TRS combo jacks × 2 (XLR: 2 HOT TRS: TIP HOT)
• Input gain: No adjustment needed
• Input impedance
• XLR: 3 k or more
• TRS: 3 k or more
• Maximum input level
• XLR: +4 dBu
• TRS: +24 dBu
• Phantom voltage: +48 V, channel total 10 mA or less
• Equivalent input noise -120 dBu or less (IHF-A) @150 input
• MIC/LINE IN connector
• Stereo mini jack ×1 (supports plug-in power)
• Input gain: No adjustment required
• Input impedance: 2 k or more

Outputs

• Headphone jack: Stereo mini jack ×1
• Maximum output level: 20 mW + 20 mW (into 32 load)
• Output impedance: 15 or less
• Built-in speaker: 250 mW 8 mono speaker

Recorder

• Maximum simultaneous recording tracks: 4
• Maximum simultaneous playback tracks: 4
• Recording formats: WAV
• 44.1/48/96 kHz,
• 32-bit float mono/stereo
• BWF and iXML formats are supported.

Recording media

• 4-32GB card compatible with microSDHC specification
• 64GB-1TB card compatible with microSDXC specification
• Display: 2.0-inch full color LCD (360 x 240)
• USB connector: USB Type-C
• Use a USB cable that supports data transfer.
• USB bus power is supported.
• USB microphone: USB2.0 High Speed
• 44.1/48 kHz
• 24-bit /32-bit float
• 4-in/2-out
• File transfer: USB2.0 High Speed
• Remote control: Dedicated wireless adapter (ZOOM BTA-1)

Power supply

• 4 AA batteries (alkaline, NiMH or lithium)
• AC adapter ZOOM AD-17): DC 5V/1A
• USB bus power is supported.
• Expected continuous runtime when using 2-track recording (built-in XY microphone), 48 kHz/32-bit float phantom power off, no headphones, no remote control, monitor power savers on:
• Alkaline batteries: Approx. 9 hours
• NiMH batteries (1900 mAh): Approx. 14 hours
• Lithium batteries: Approx. 20 hours
• Power consumption: Maximum 3 W
• Dimensions: 66.9 mm (W) × 156.1 mm (D) × 38.0 mm (H)
• Weight (including batteries): 226g
