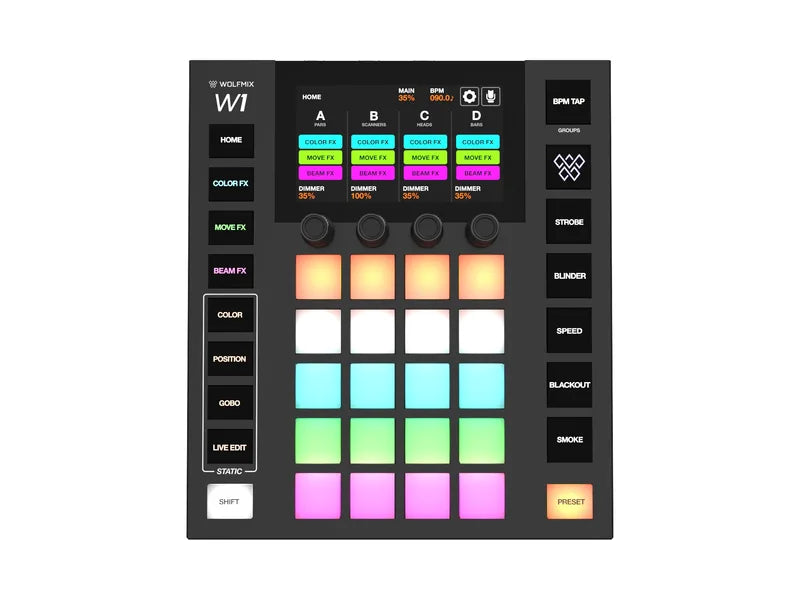

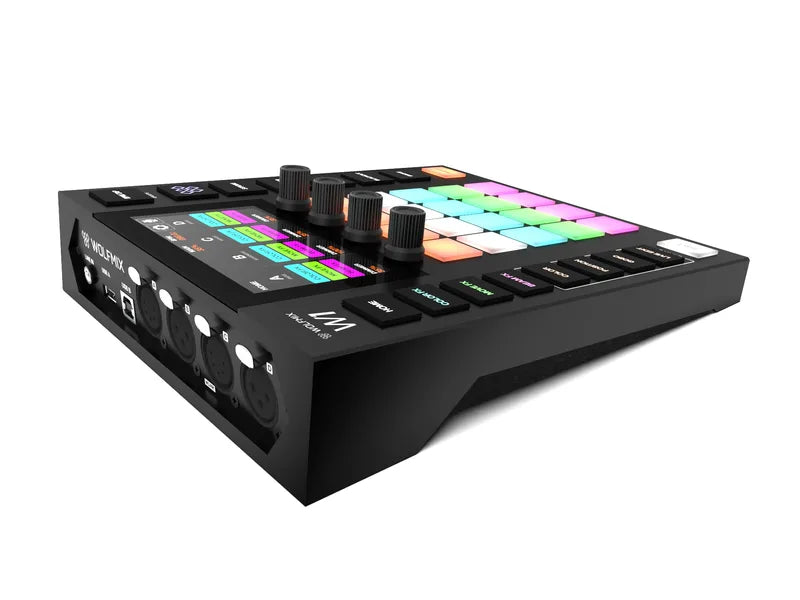

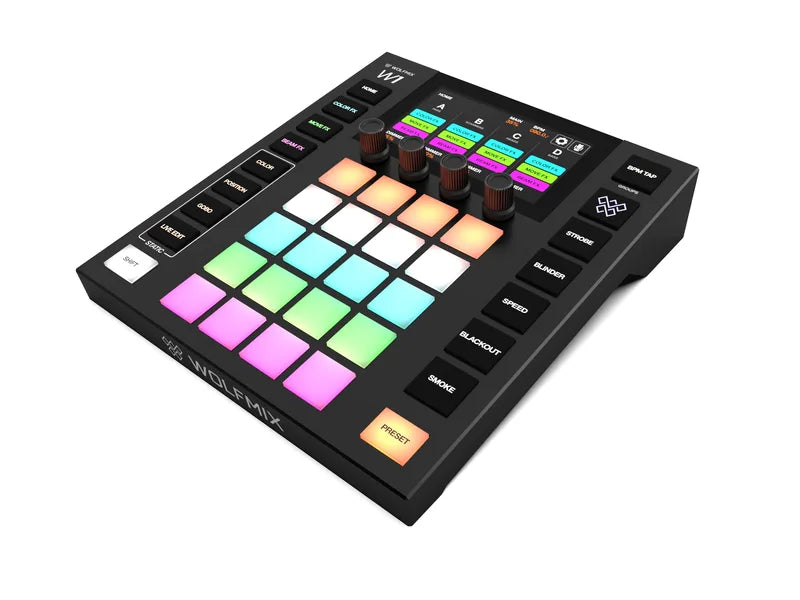

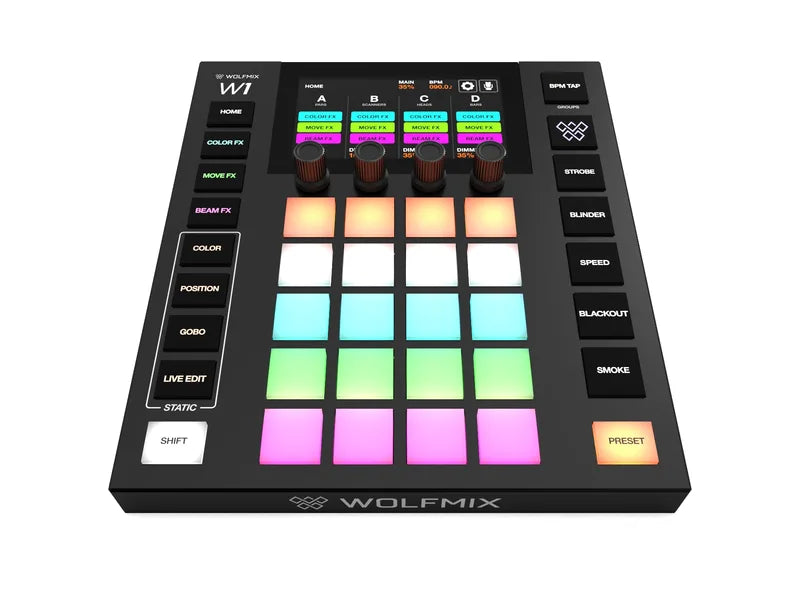

Wolfmix W1-MK2 DMX Light mixer

• Standalone DMX light mixer for use without computer
• FX modules, music sync, up to 4 DMX universes (2048 channels, add-on required for U3+4)
• Compatible with all DMX devices
• Up to 680 fixtures and beams, up to 50 fixture types, up to 5000 fixture features (color/gobo etc.)
• 8 fixture groups, 6 projects
• More than 15000 available fixtures (3500+ on the controller)
• Color FX module with 8 effect types and 16 definable colors
• Move FX module with 8 effect types
• Beam FX module with 8 effect types
• Packed with features in Palettes and FX, Control and Sync, Built-in tools

Wolfmix W1-MK2 DMX Light Mixer

• Standalone DMX light mixer designed to create light shows without a computer.
• A compact toolbox with FX modules, music sync, up to 4 DMX universes (2048 channels, add-on required for U3+4).
• Compatible with all DMX devices.
• Up to 680 fixtures and beams, up to 50 fixture types, up to 5000 fixture features (color/gobo etc.)
• 8 fixture groups, 6 projects.
• More than 15000 available fixtures (3500+ on the controller).
• DMX address, fixture and group setup.
• Can be used as a DMX splitter with DMX universe mapping.
• Connect a USB memory stick to backup and load projects and fixtures.
• Color FX module with 8 effect types and 16 definable colors.
• Move FX module with 8 effect types.
• Beam FX module with 8 effect types.
• 6 flashing buttons to control Special FX, Strobe, Blinder, Speed, Blackout and Smoke.
• Packed with features in Palettes and FX, Control and Sync, Built-in tools.
• See "Additional Specifications" for a complete list of all features.

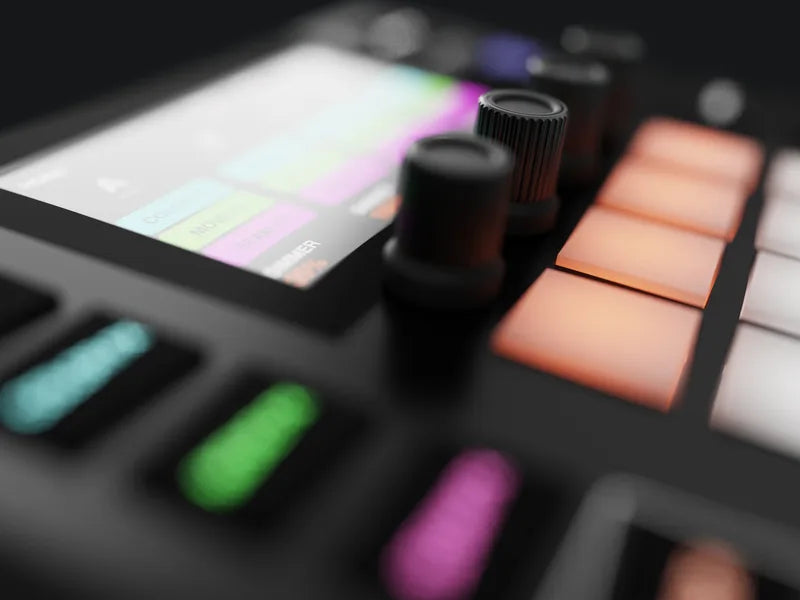

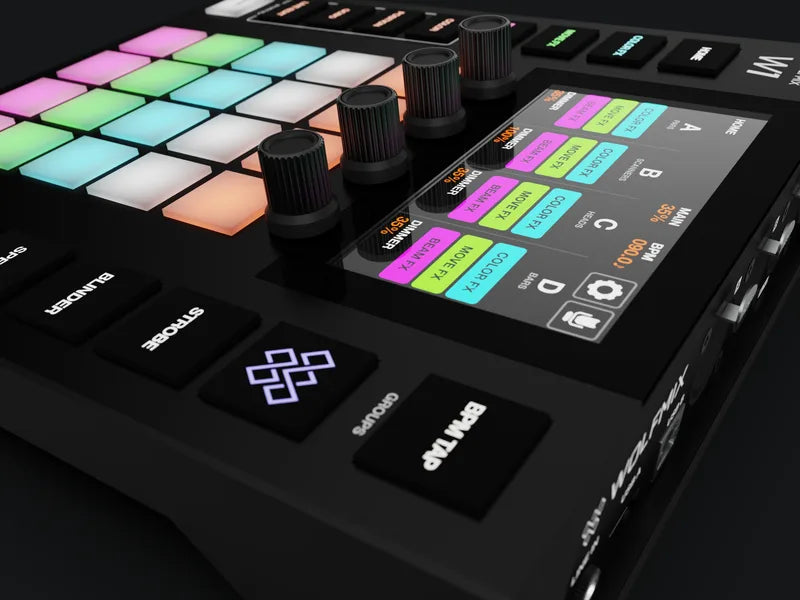

• Beautiful 4.3" color display with tinted glass (capacitive touch).
• 37 LED illuminated silicone buttons.
• A powerhouse DMX mixer that has you covered on all fronts.

Palettes & FX

- Color FX module with 8 effect types & 16 definable colors
- Move FX module with 8 effect types
- Beam FX module with 8 effect types
- 6 Flash buttons for controlling Special FX, Strobe, Blinder, Speed, Blackout & Smoke
- Static color palette with 10 user definable colors per group & gradient control
- Static position palette with 5 user definable positions per group with fade & fanning
- Gobo palette with 5 user definable gobos per group
- 40 namable live edit buttons with flash triggering mode and 'Park' function
- 100 namable presets for storing snapshots with hold and fade timings
- Preset playback cue list-. all presets or per page of 20 presets

Control & Sync

- Group and master dimming with encoder acceleration
- Group FLASH, FULL and Blackout
- 16 bit Pan/Tilt control
- Multi-beam LED bar control
- FX music pulse sync from Microphone or Line-In
- FX BPM sync with Ableton Link, OS2L, BPM TAP & MIDI Clock
- Effect Speed, Phase, Order, Size, Fade, Fan & Flick
- Live control of move FX registration point
- Global FX speed and freeze control
- Map DMX IN with group dimmer and patch to output channels (add-on required)*
- WLINK - sync with another Wolfmix controller (add-on required)*
- Trigger presets and control group dimmers with a MIDI controller

Built-in tools

- Fixture Builder
- Fixture calibration tool, to limit the area of moving fixtures
- X-Y touch controlled positioning grid
- RGBW touch controlled color picker
- 8-step real time sequencer for creating beam and move FX
- Live view of DMX levels with default value override and DMX channel tester
- Beam Editor to override Min and Max values used in generated FX

Other neat features

- Calibrate and RGB, White, Amber, UV mixing with automatic fixed color wheel translation
- Timed release of flash and preset buttons
- Fixture FLIP function, for reversing beam order
- Fixture SPLIT function, for splitting up multi-FX bars
- Lock full controller, or lock editing with a password
- Project & fixture backup with WTOOLS app
- Offline 3D visualization with Easy View & WTOOLS over USB (add-on required)*
- Auto-recovery of active project (no manual saving needed)
- Import different fixture setups into the same project
- Starts in under 2 seconds. Starts sending DMX in under 1 second
- Factory firmware startup recovery mode for times of crisis

*Some features require an add-on purchase available through the WTOOLS appTechnical:

Housing

- ABS Plastic
- Powder-coated steel base plate with 100mm VESA (M4 6mm max)
- Powder-coated steel reinforced back plate

Display

- 4.3" Color TFT with tinted glass
- Capacitive touch

Encoders

- Alloy encoder caps
- Incremental push with acceleration

Button pads

- 37 Silicone buttons with matt oil finishing
- LED color backlit

Processing

- 220Mhz CPU with ARM core
- 8MB RAM
- 16MB Flash

Audio

- Omnidirectional electret mic
- 3.5mm Jack Line-In
- Analog adaptive peak detector

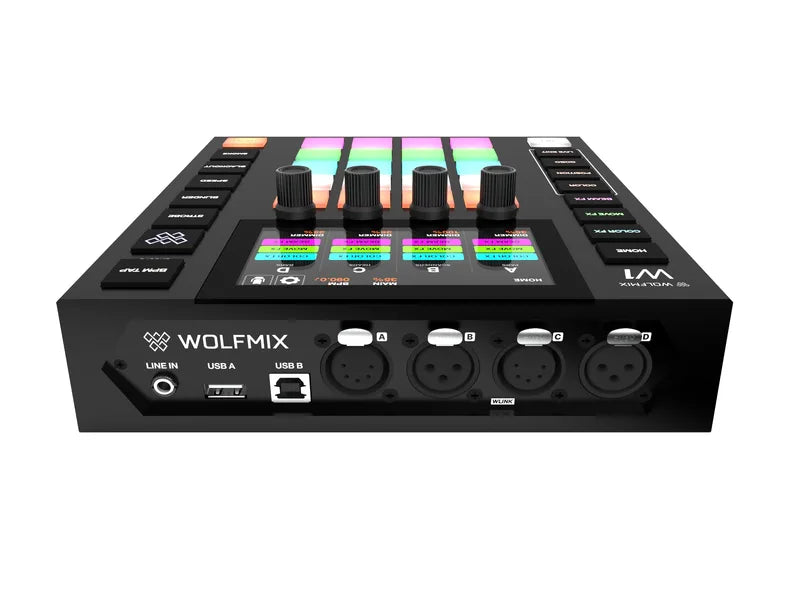

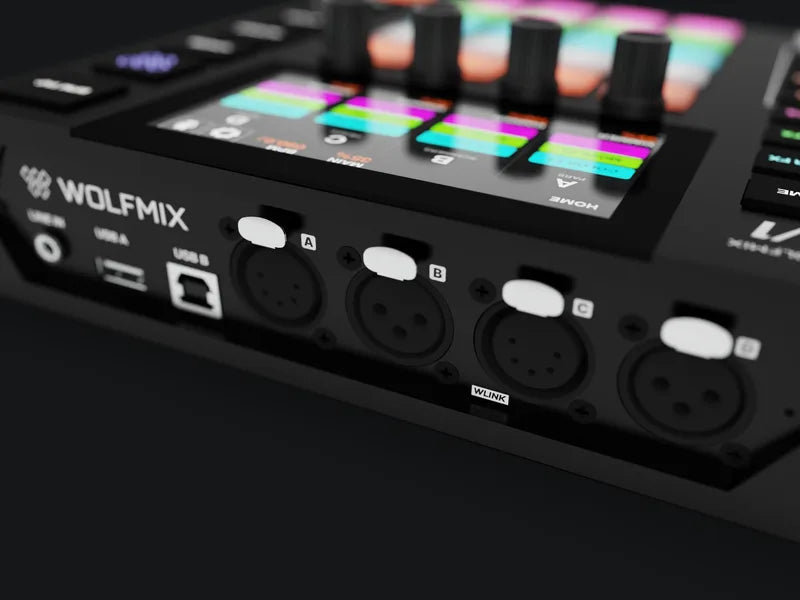

DMX

- 2x 3pin DMX OUT XLR connectors
- 1x 5pin DMX OUT XLR connector
- 1x 5pin DMX IN/OUT XLR connector with WLINK

USB

- USB-B connector- 900ma required (USB3 rating)
- USB-A connector (MIDI/MSD)

Size & weight

- 195 x 220 x 62 mm / 7.68 x 8.66 x 2.44 in
- 1070g / 2.36lb
