Boss SDE-3000D Dual Delay

• Recreation of the legendary Roland SDE-3000 digital delay from 1983
• Two independent channels and extended MIDI support
• Versatile internal routing, expanded I/O for all kinds of mono and stereo setups
• 100 memories to store your settings
• Cool features like phase switches, low-cut, high-cut, series/parallel operation
• Connect up to fire external footswitches, two expression pedals or GA-FC/GA-FC EX foot controllers

Boss SDE-3000D Dual Delay

• Recreation of the legendary Roland SDE-3000 digital delay from 1983.
• Extremely musical and warm character, long delays and the ability to save and load presets.
• Here in pedal format with two independent channels and extended MIDI support.
• Versatile internal routing, extended I/O for all kinds of mono and stereo setups.
• Enhanced modulation section and more options to tweak your sound.
• 100 memories to save your settings.
• Retro display and buttons based on the original SDE-3000.
• Cool features like phase switches, low-cut, high-cut, series/parallel operation.
• Footswitch assignable to tap tempo, hold, etc.
• Connect up to fire external footswitches, two expression pedals or GA-FC/GA-FC EX foot controllers.
• MIDI I/O via the small mini TRS jacks.

Sampling Frequency 48 kHz
AD Conversion:
24 bits + AF method
* AF method (Adaptive Focus method) This is a proprietary
method from Roland & BOSS that vastly improves the signalto-noise (SN) ratio of the AD and DA converters
DA Conversion 32 bits
Processing 32-bit floating point
Effects:
SDE-3000 STEREO DELAY x 2
FOOT VOLUME
Memory 100
Nominal Input Level INPUT (L/MONO, R): -10 dBu
Maximum Input Level INPUT (L/MONO, R): +12 dBu
Input Impedance INPUT (L/MONO, R): 1 M
Nominal Output Level OUTPUT (L/MONO, R): -10 dBu
Output Impedance OUTPUT (L/MONO, R): 1 k
Recommended Load
Impedance:
OUTPUT (L/MONO, R): 10 k or greater

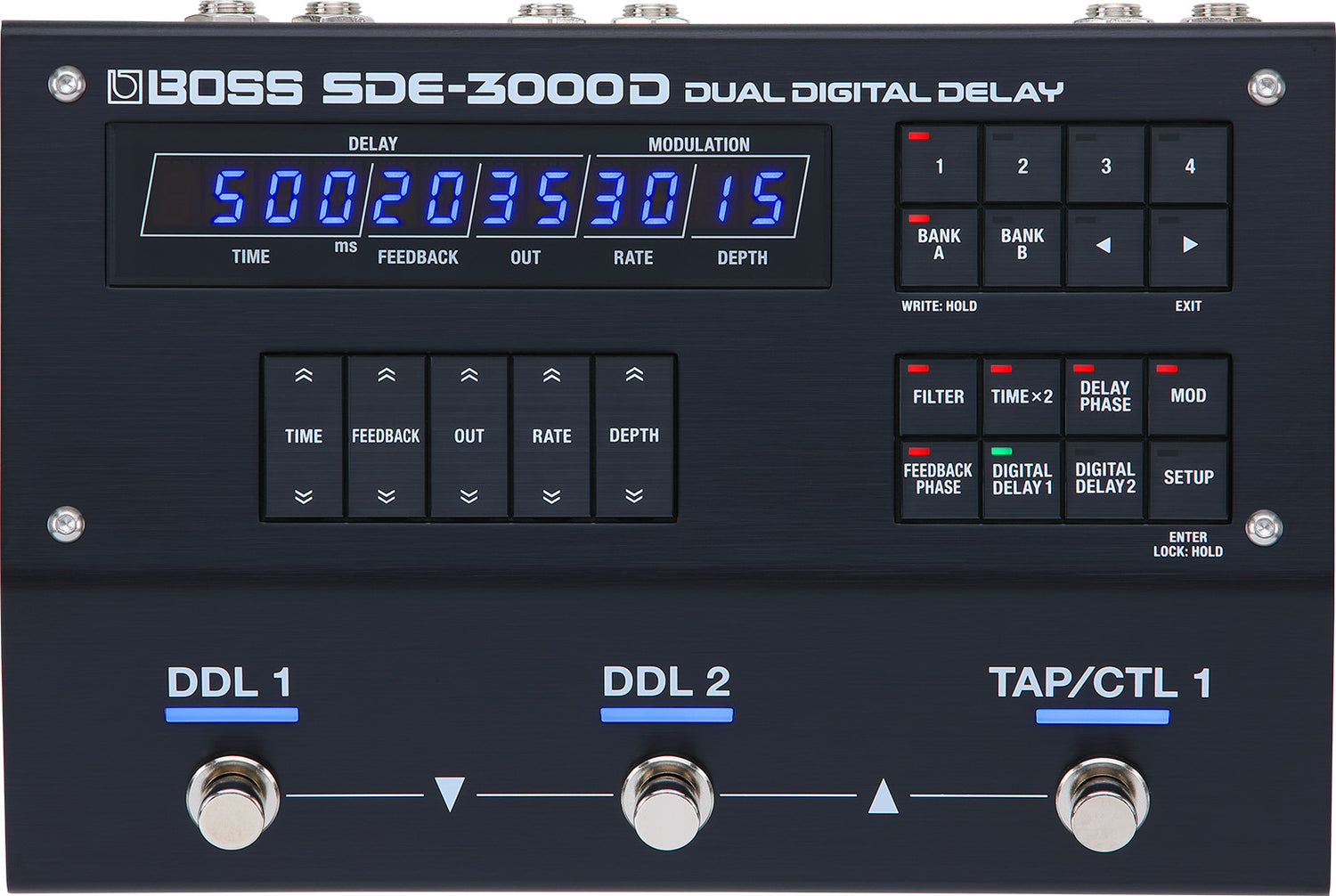

Controls:
[TIME] buttons
[FEEDBACK] buttons
[OUT] buttons
[RATE] buttons
[DEPTH] buttons
[1]-[4] buttons
[BANK A] button
[BANK B] button
[ã] button
[â] button
[FILTER] button
[TIME×2] button
[DELAY PHASE] button
[MOD] button
[FEEDBACK PHASE] button
[DIGITAL DELAY1] button
[DIGITAL DELAY2] button
[SETUP] button
Display 7 segments, 12 digits LED

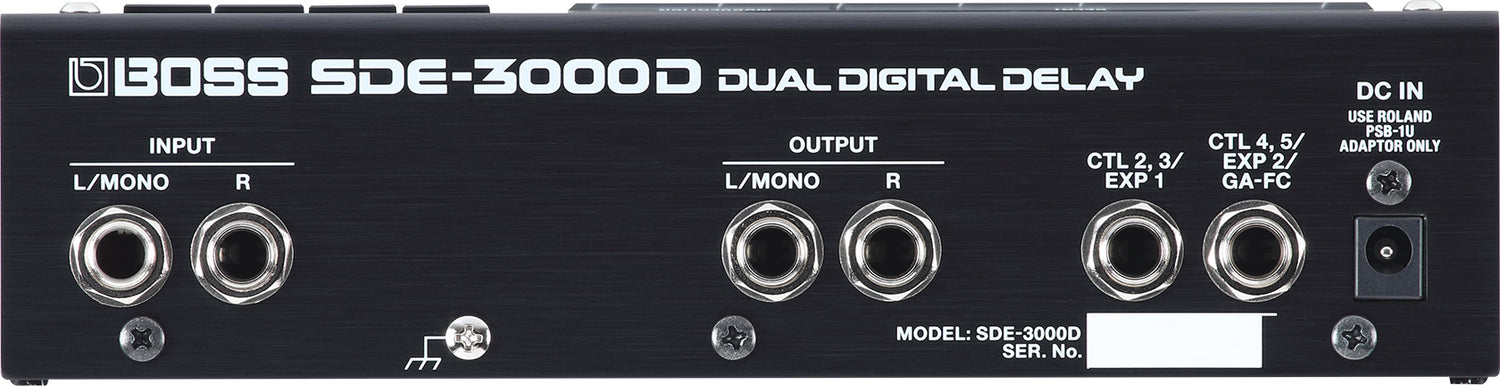

Connectors:
INPUT (L/MONO, R) jack: 1/4-inch phone type
OUTPUT (L/MONO, R) jacks: 1/4-inch phone type
CTL2,3/EXP1 jack: 1/4-inch TRS phone type
CTL4,5/EXP2/GA-FC jack: 1/4-inch TRS phone type

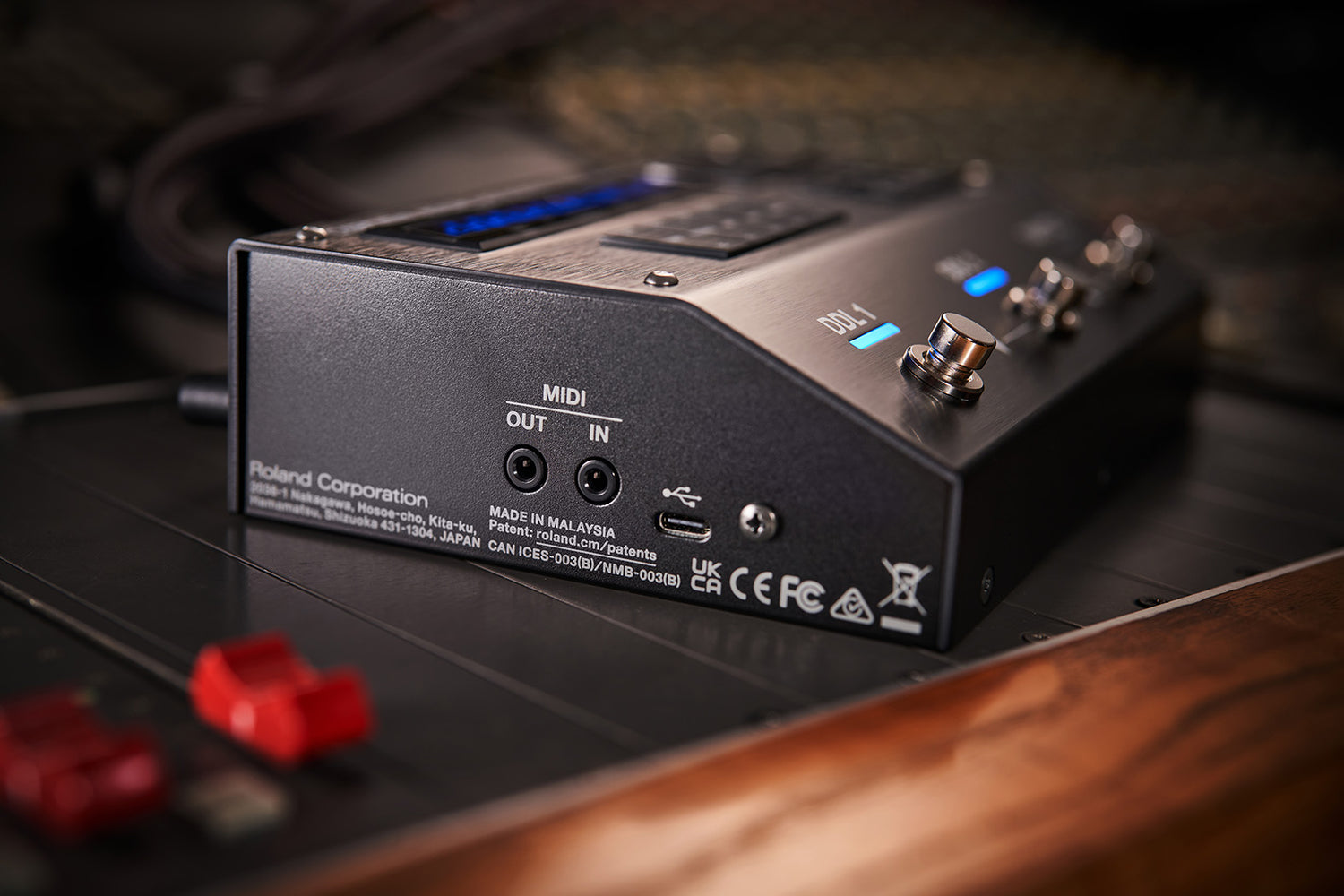

MIDI (IN, OUT) jacks: Stereo miniature phone type
USB port: USB Type-C®
DC IN jack
Power Supply AC Adaptor
Current Draw 450 mA
Dimensions:
199 (W) x 135 (D) x 54 (H) mm (including rubber
foot)
7-7/8 (W) x 5-3/8 (D) x 2-1/8 (H) inches (including
rubber foot)
Weight (excluding AC adaptor):
1.1 kg
2 lbs 7 oz
Accessories:
AC adaptor (PSB-1U + AC Cord Set)
STARTUP GUIDE
Leaflet "USING THE UNIT SAFELY"
Rubber foot x 4
Options:
Footswitch: FS-5U, FS-5L
Dual footswitch: FS-6, FS-7
Expression Pedal: EV-30, FV-500L, FV-500H, Roland
EV-5
Foot Controller :GA-FC, GA-FC EX

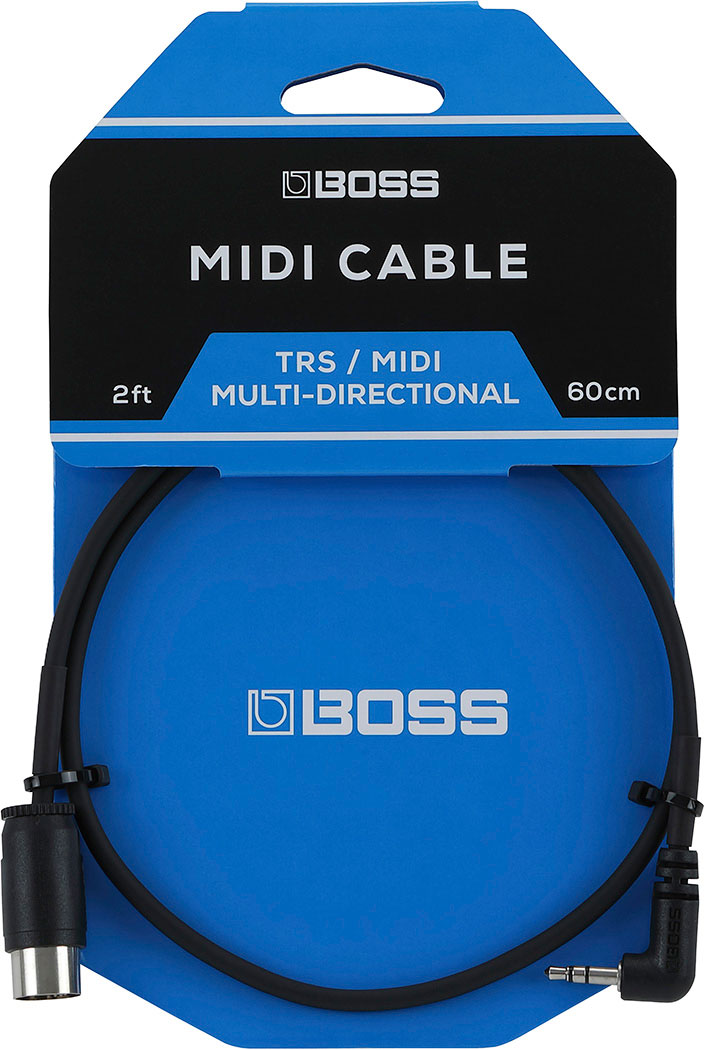

MIDI/TRS connecting cable: BMIDI-5-35,
BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535

For optimal performance, stay up to date with the current SDE-3000D system software.
