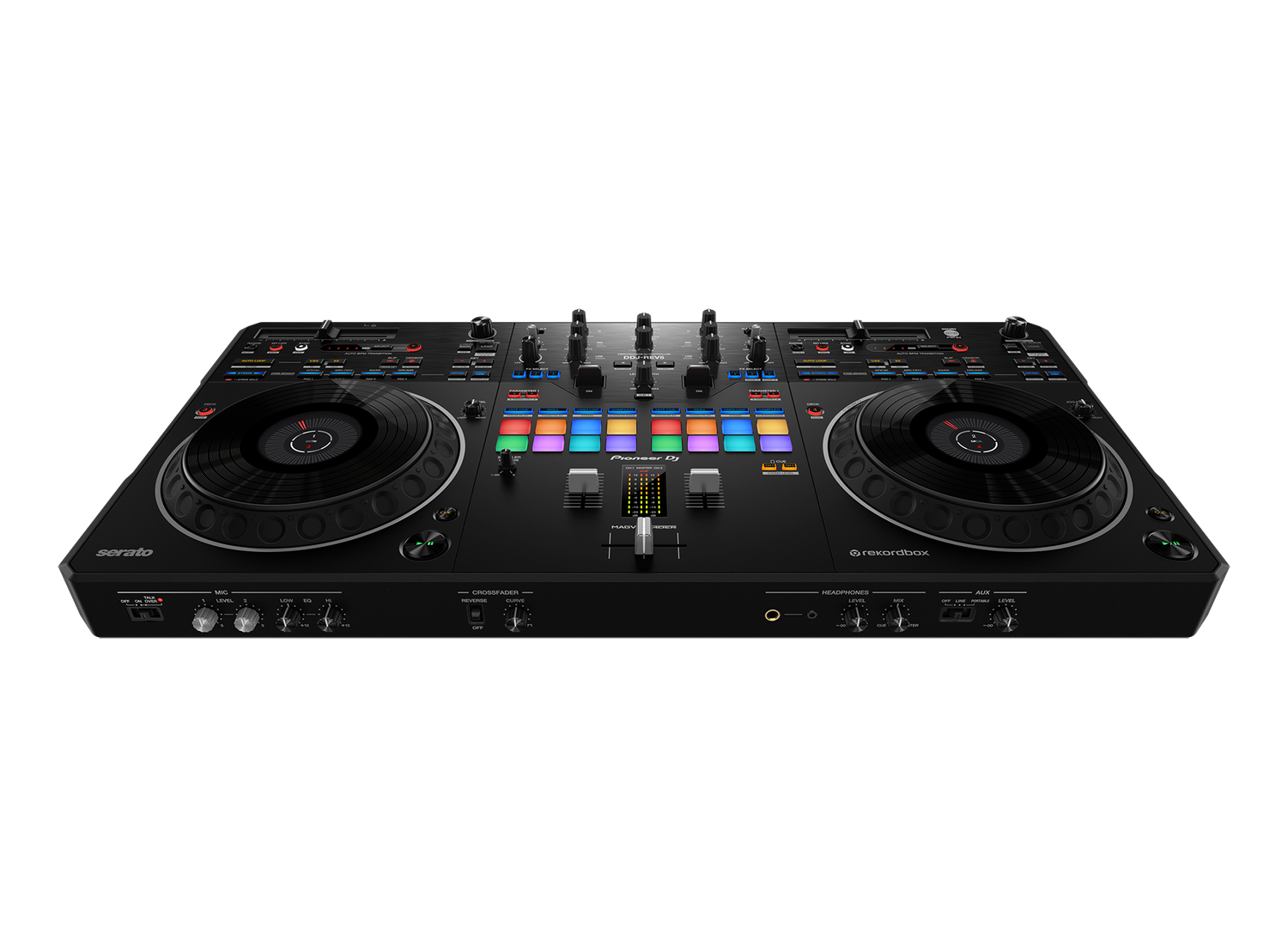

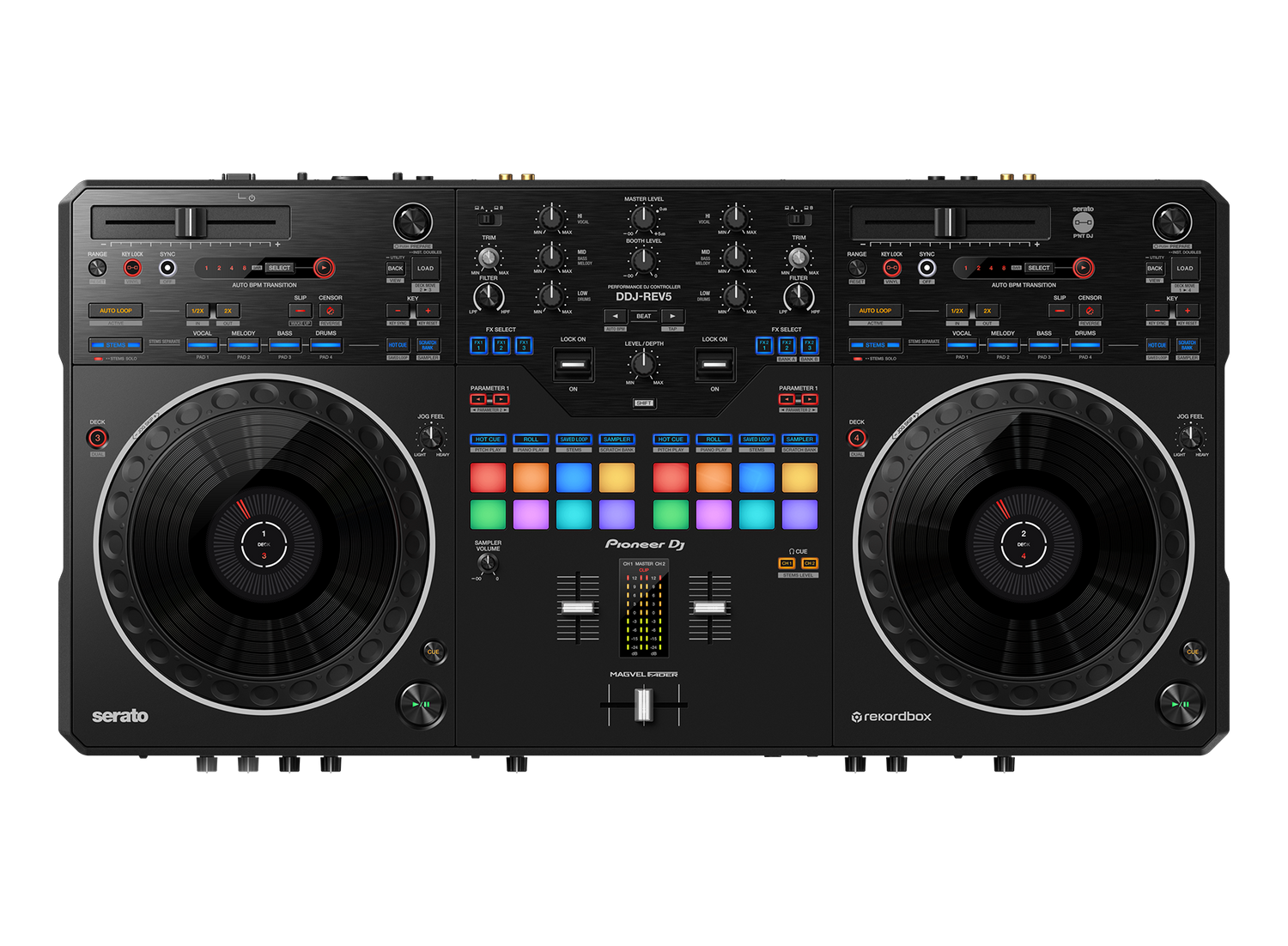

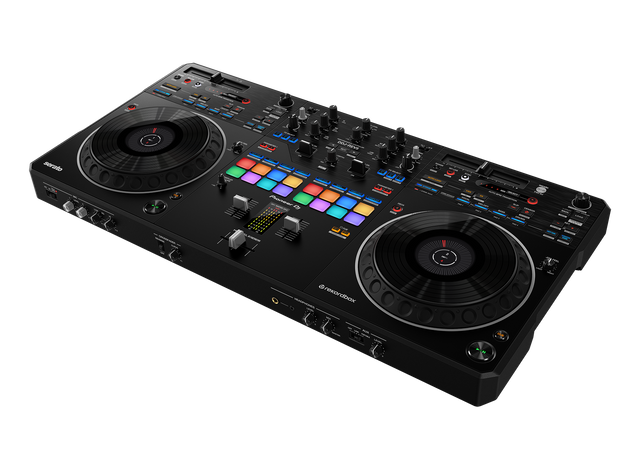

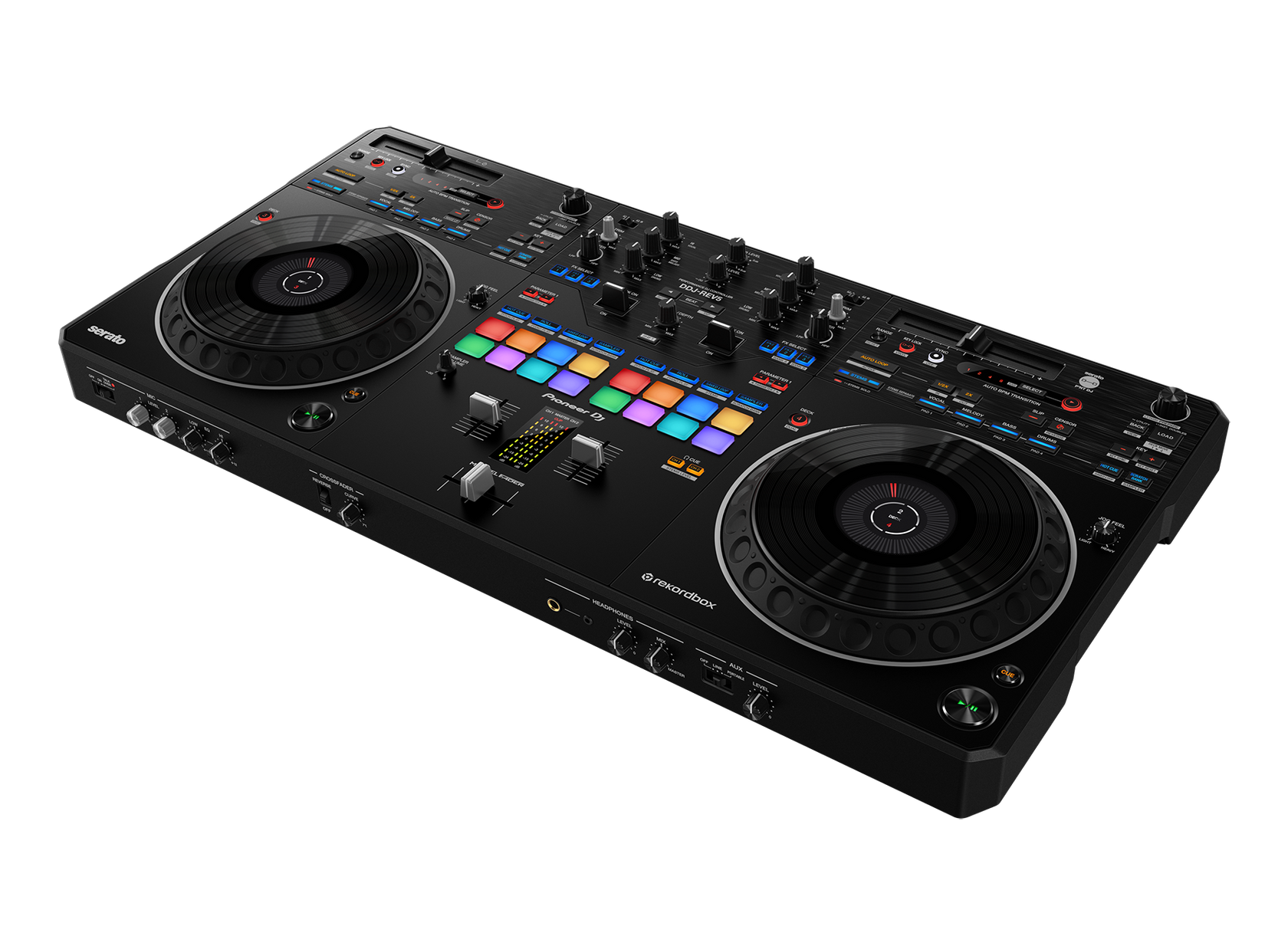

Pioneer DJ DDJ-REV5 Controller

• 2-channel scratch-style performance DJ controller with Serato DJ Pro and rekordbox compatibility
• Authentic scratch experience and innovative features
• Large jogs and Magvel Fader for dynamic scratching
• Dedicated Stems control buttons for live mashups and remixes
• New Auto BPM transition for smooth mixing
• Piano Play mode
• 16 performance pads
• Scratch-style layout

Pioneer DJ DDJ-REV5 Controller

• 2-channel scratch-style performance DJ controller with Serato DJ Pro and rekordbox compatibility.
• Authentic scratch experience and innovative features.
• Large jogs and Magvel Fader for dynamic scratching - very responsive and easy to control.
• Jogs can be adjusted in "weight".
• Dedicated Stems control buttons for live mashups and remixes - including smart eq, solo, mute and separate buttons for stems.
• Stems can be combined with Deck Move.
• New Auto BPM transition for smooth mixing.
• Piano Play mode for intuitive performances via the 16 performance pads.
• 16 performance pads also work for the classic stuff like cue points
• Scratch-style layout with buttons, pads and controls close together for more creative possibilities.
• Many inputs and outputs plus 2 USB C ports.
• Compatible with Serato DJ Pro and rekordbox - you can run the programs for free without a license key
• Includes discount coupon for Serato Pitch 'n Time DJ expansion pack.

Compatible DJ Software

• Serato DJ Pro
• rekordbox
• Software System Requirements
• Visit serato.com for its specifications.
• Visit rekordbox.com for its specifications.

Accessories

• DDJ-REV5
• AC adaptor
• Power cord
• USB cable
• Warranty (for some regions)
• Quick Start Guide
• Precautions for use
• Serato DJ Pro Pitch ’n Time DJ voucher

Specifications

• Width: 736 mm
• Height: 73.4 mm
• Depth:377.2 mm
• Weight: 6.2 kg
• Soundcard: 24 bit/48 kHz
• Signal-to-Noise Ratio: 110 dB
• Distortion: < 0.003 % (USB)
• Power Consumption: DC 5 V, 3 000 mA
• Frequency Range: 20 - 20000 Hz

Performance Control

• Channels: 2
• Deck Control: 4 / Dual
• Jog Wheel (Maximum Dimensions): 206 mm
• Sampler: 8slot x 4bank
• Hot Cues: 8
• Auto Loop/Auto Beat Loop: Yes

Pad Modes rekordbox:

• Hot Cue
• Pad FX 1
• Beat Jump
• Sampler
• Keyboard
• Piano Play
• Beat Loop
• Sample Scratch (rekordbox)

Pad Modes Serato:

• Hot Cue
• Roll
• Saved Loop
• Sampler
• Pitch Play
• Piano Play
• Stems
• Scratch Bank
• Saved Flip
• Slicer Loop

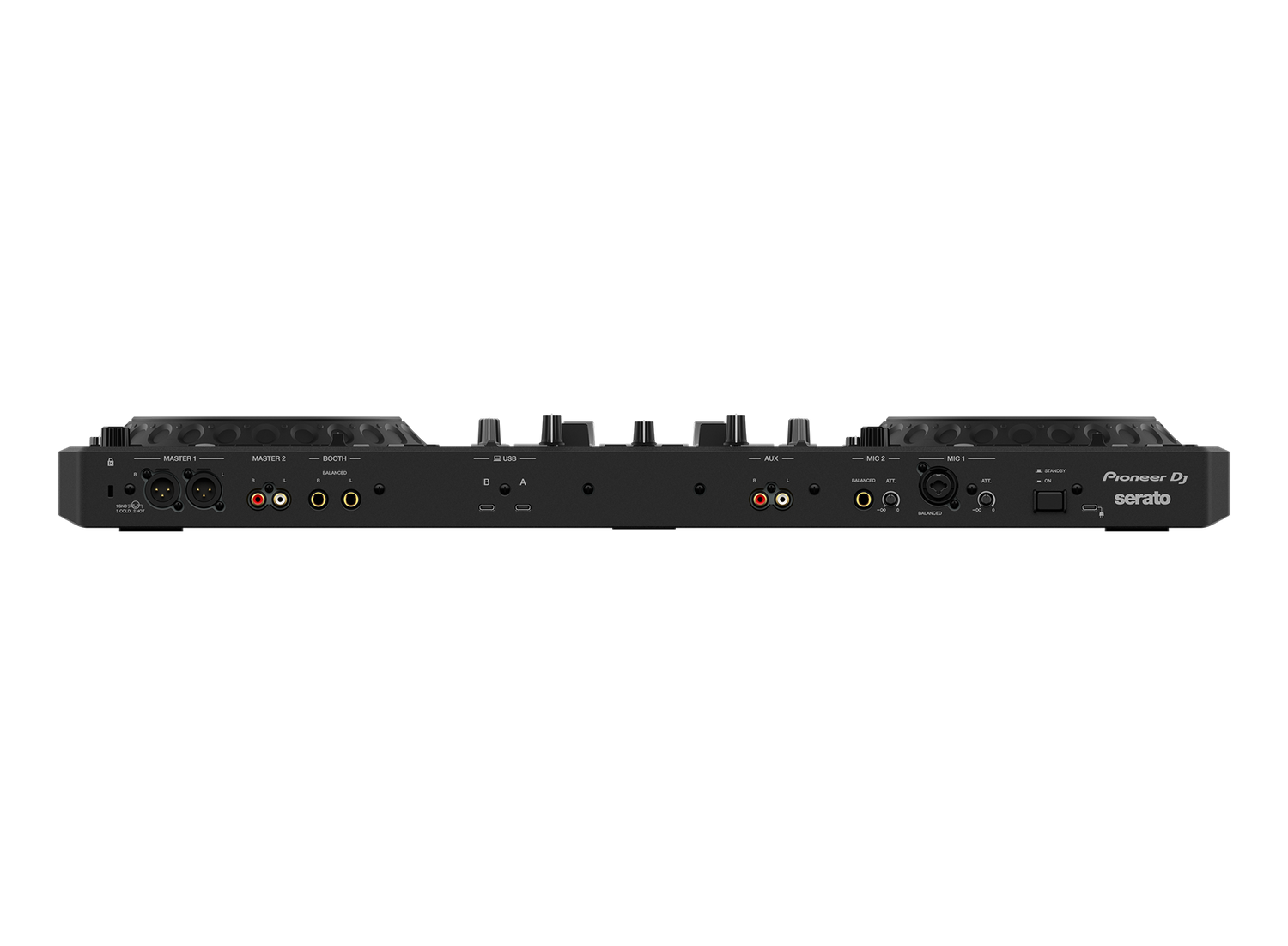

Terminals
Inputs:

• 2 MIC (XLR & 1/4 inch TRS Jack, 1/4 inch TRS Jack)
• 1 AUX (RCA)

Outputs:

• 2 MASTER (XLR, RCA)
• 1 BOOTH (1/4 inch TRS Jack)
• 2 PHONES (1/4-inch stereo jack, 3.5-mm stereo mini-jack)

USB:

• 3 USB Type-C ports　(PC/Mac connection x 2, power supply x 1)
