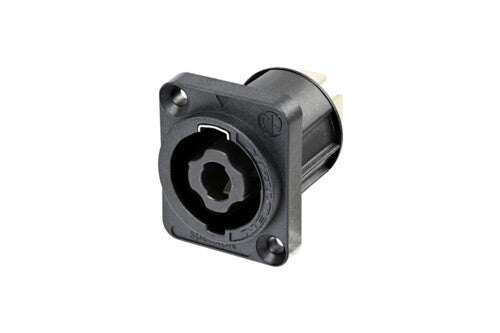

Neutrik NL4MPXX SpeakON Chassis connector (4-pin)

• SpeakON 4-pin standard chassis connector
• Solidly constructed in Neutrik's usual high quality

Neutrik NL4MPXX SpeakON Chassis Connector (4-pin)

• SpeakON 4-pin standard chassis connector fully compatible with the IEC 62368-1 device standard.
• For speakers, amplifiers.
• Black D-size flange, recessed mounting holes.
• Unique metal locking system that only allows a hole through when the speakon connector is fully locked.
• Solidly constructed in Neutrik's usual high quality.

Gender     male
Electrical:
Contact resistance     ≤ 2 mΩ
Dielectric strength     2.8 kVac
Insulation resistance     >0.1 GΩ (after dampheat)
Rated current per contact     25 A rms continuous (audio rating significantly higher, depending on signal)
Rated voltage     250 V ac
Attention     speakON is NOT to be used as an AC mains or power supply connector!
Mechanical:
Lifetime     > 5000 mating cycles
Termination     3/16" flat tabs (e.g. NLFASTON) Locking NLFASTON)
Locking device     Quick Lock
Chassis shape     D
Layout     standard hole position, thru holes
Material
Contact plating     Ag
Locking element     Stainless Steel
Shell       Polyamide (PA 6.6)
Contacts      Copper Alloy
Environmental
Flammability     UL94 V-0
Temperature range     -30 °C to +80 °C
