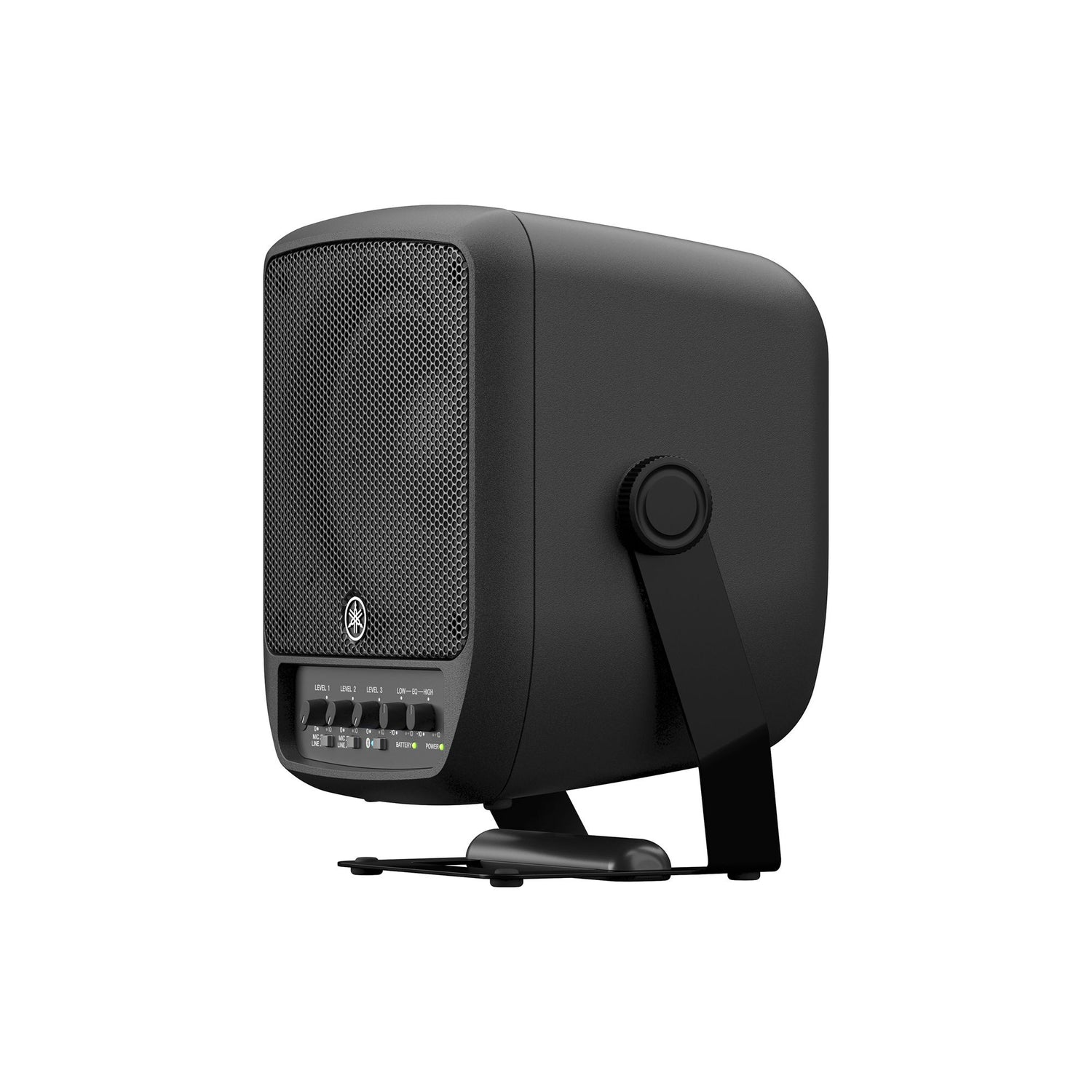

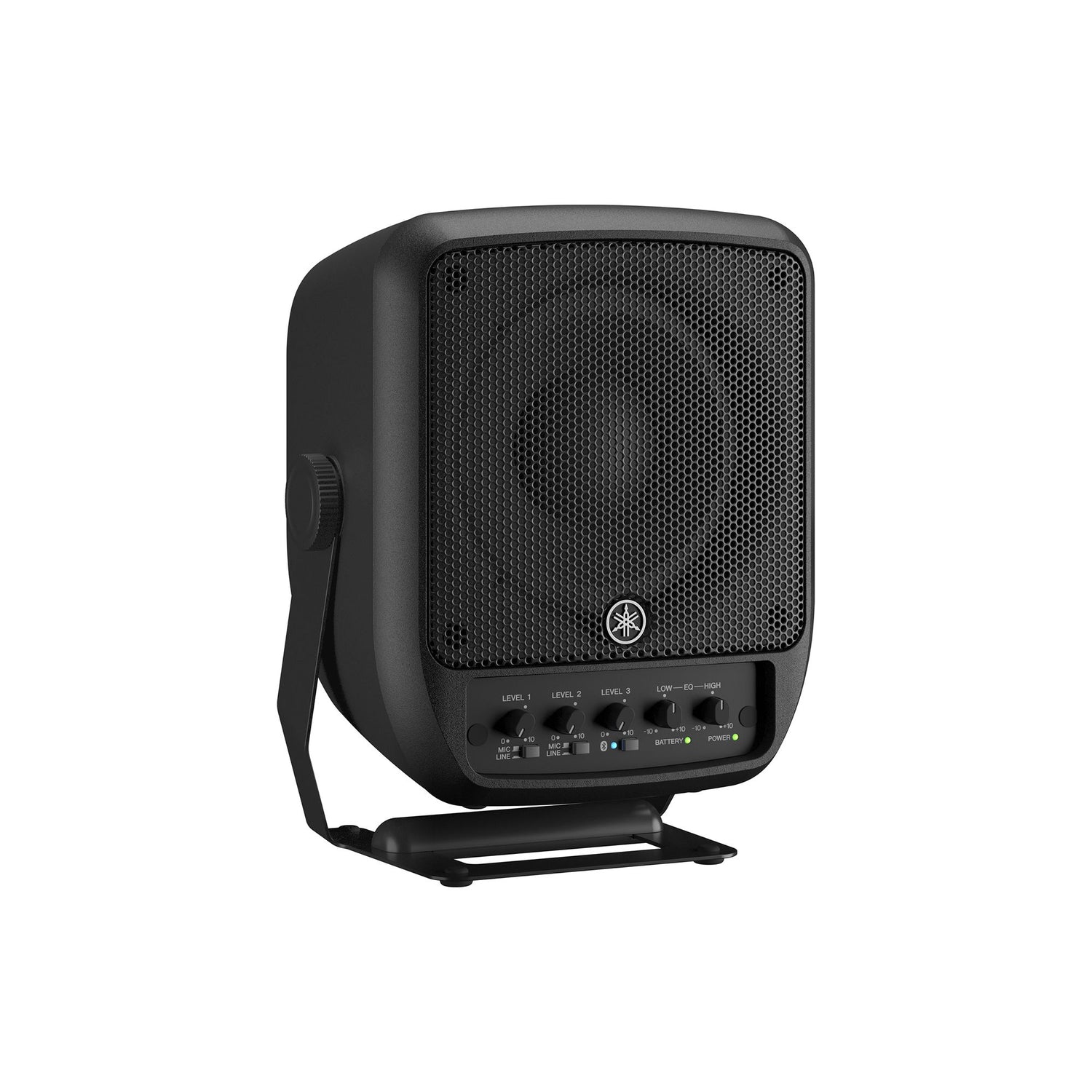

Yamaha Stagepas 100 Compact Battery Speaker

• Battery-powered compact portable active speaker with built-in 3-channel mixer
• 100 W Class-D amplifier
• 1.4" HF and 6.5" LF coaxial compression driver with FIR crossover filter
• 2 mic/line inputs, 1 stereo line input
• Battery runtime of up to 6 hours
• Built-in Bluetooth

Yamaha Stagepas 100 Compact Battery Speaker

• Battery-powered portable active speaker in a compact size with built-in 3-channel mixer.
• 100 W Class-D amplifier with plenty of power.
• 1.4" HF and 6.5" LF coaxial compression driver with FIR crossover filter.
• 2 mic/line inputs, 1 stereo line input.
• 2-band master EQ.
• Channel 2 is Hi-Z compatible.
• Built-in rechargeable Lithium Ion battery with up to 6 hours runtime.
• Mix-out.

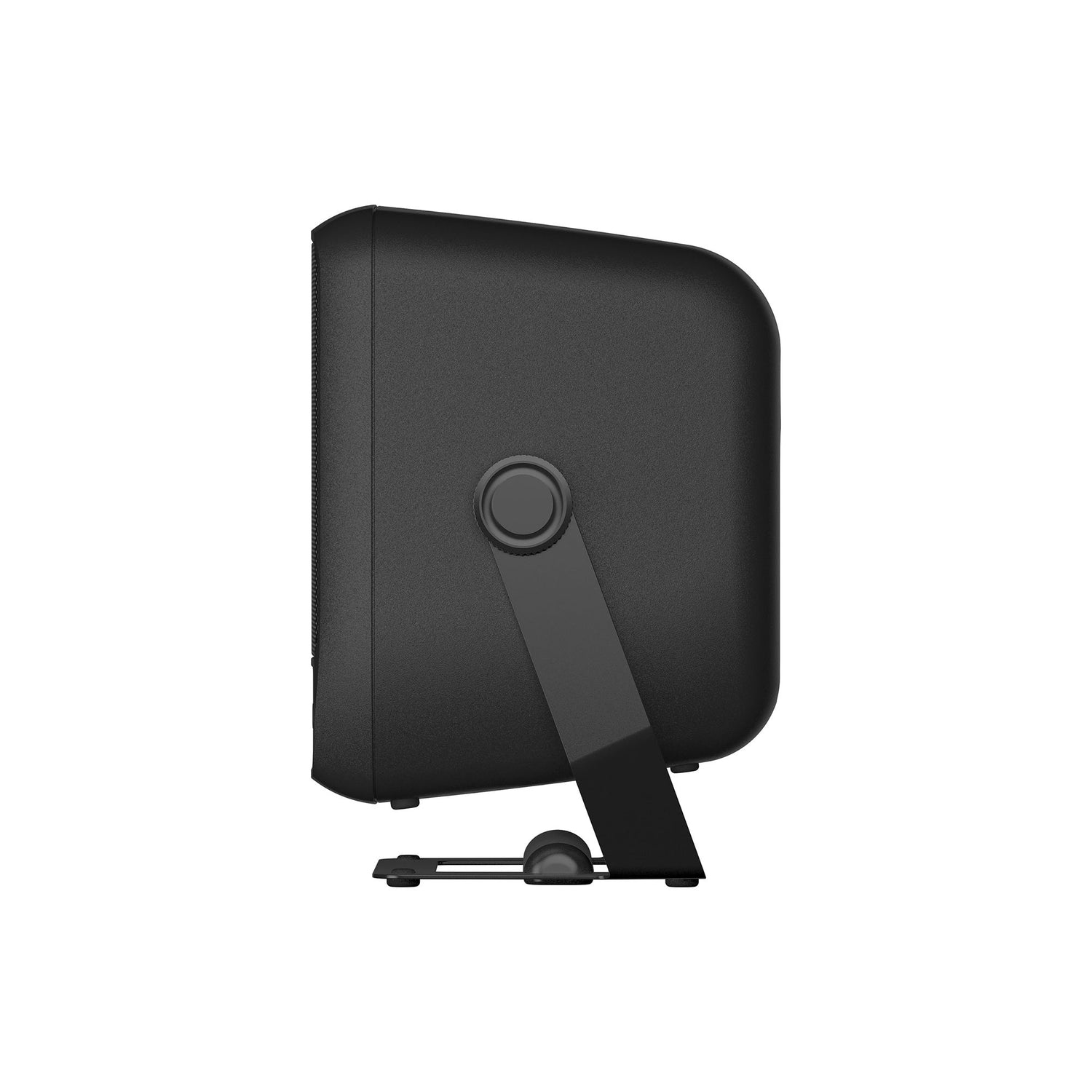

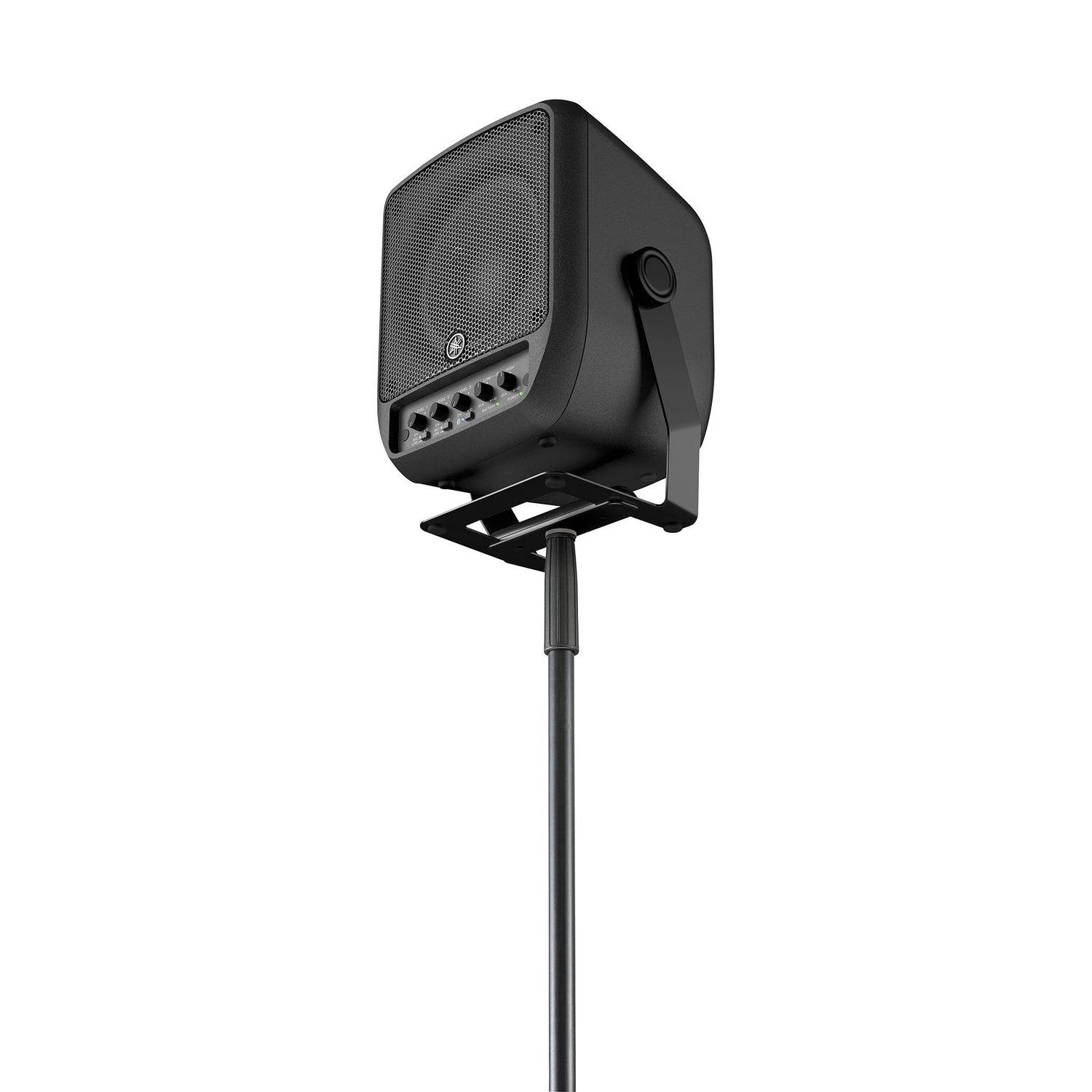

• Carrying handle also has stand function.
• Built-in Bluetooth so you can run with accompaniment.
• An ideal mini PA system for the musician on the go.

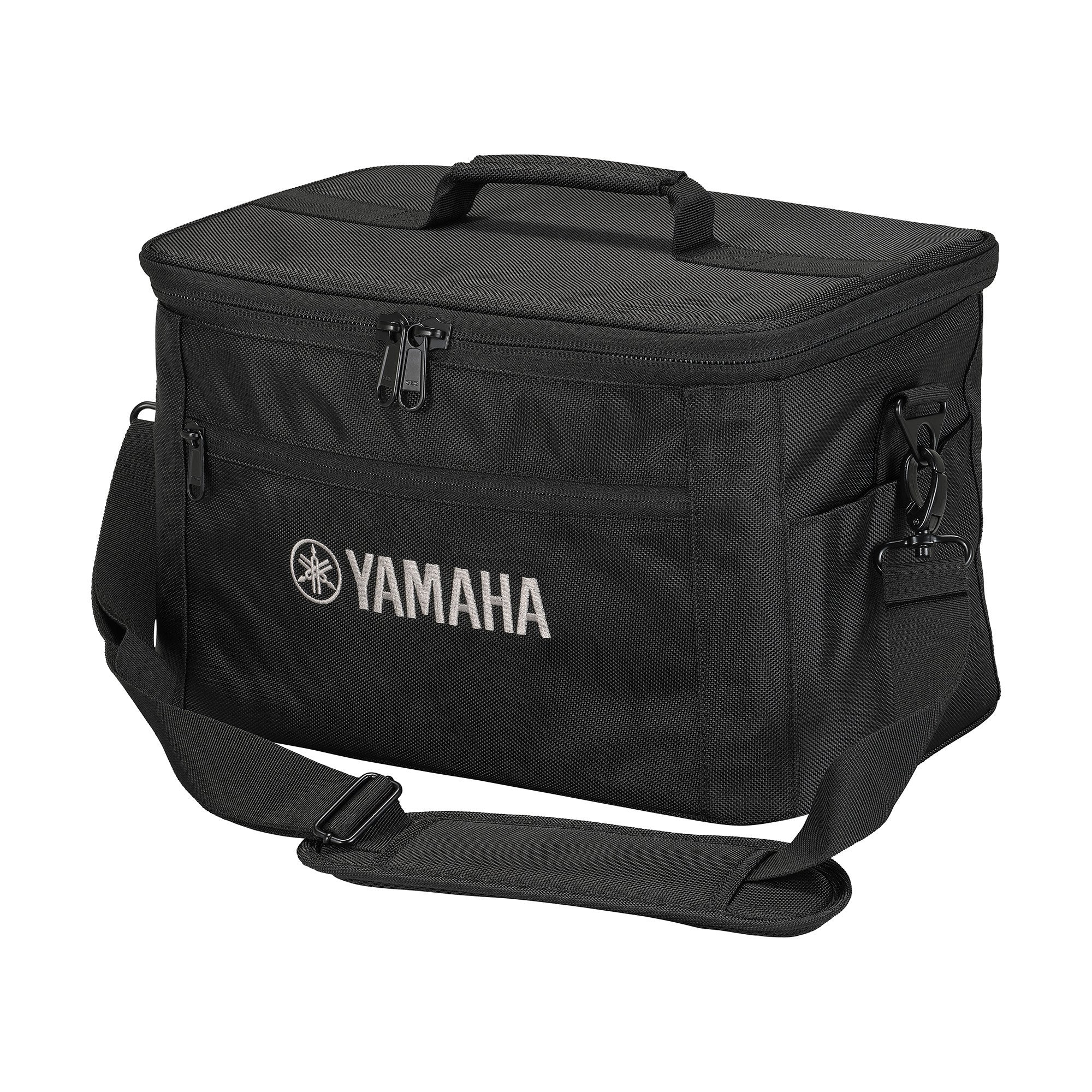

• Transport bag can be purchased.

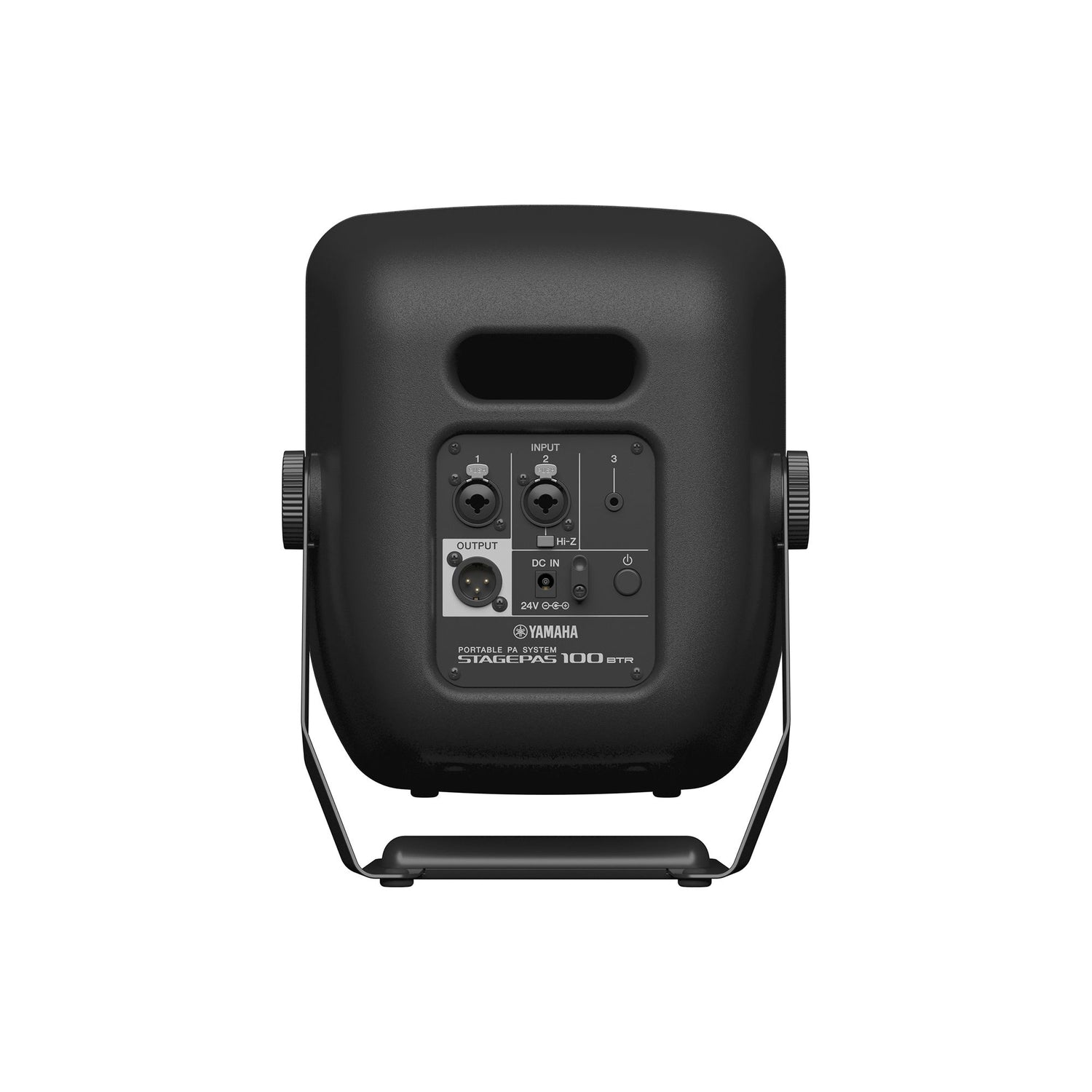

• INPUT 1: Combo (mic/line), INPUT 2: Combo (mic/line), INPUT 3: Stereo Mini x1 (line)
• OUTPUT: XLR3-32 (INPUT 1-3 mix)
• Bluetooth Ver.5.0, A2DP (SBC, AAC), Class 1
• Frequency range (-10dB) 70 Hz - 20 kHz
• Coverage area H90ﾟ x V90ﾟ
• Crossover 1.8 kHz (FIR-X)
• Maximum output level (1m; on axis) 120 dB SPL *1
• LF 6.5" Cone, 1.7" voice coil
• HF 1" throat compression driver, 1.4" voice coil
• Power rating Amp 100 W (LF: 93 W, HF: 7 W)
• Power consumption 10 W (Idle), 30 W (1/8 power)
• Cabinet material Plastic (PP)
• Dimensions (W x H x D) 239 x 310 x 215 mm (9.5" x 12.3" x 8.5"), with handle
• Weight 5.2 kg (11.5 lbs), without AC adaptor
• Accessories Power cord x 1, AC adaptor (PA-500) x 1
• Battery:
• Rechargeable Lithium ion battery pack
• Capacity 60 Wh
• Operating Time Maximum 6 hours, 1/16 power continuous 5 hours
• Charging Time Approx. 2.5 hours
