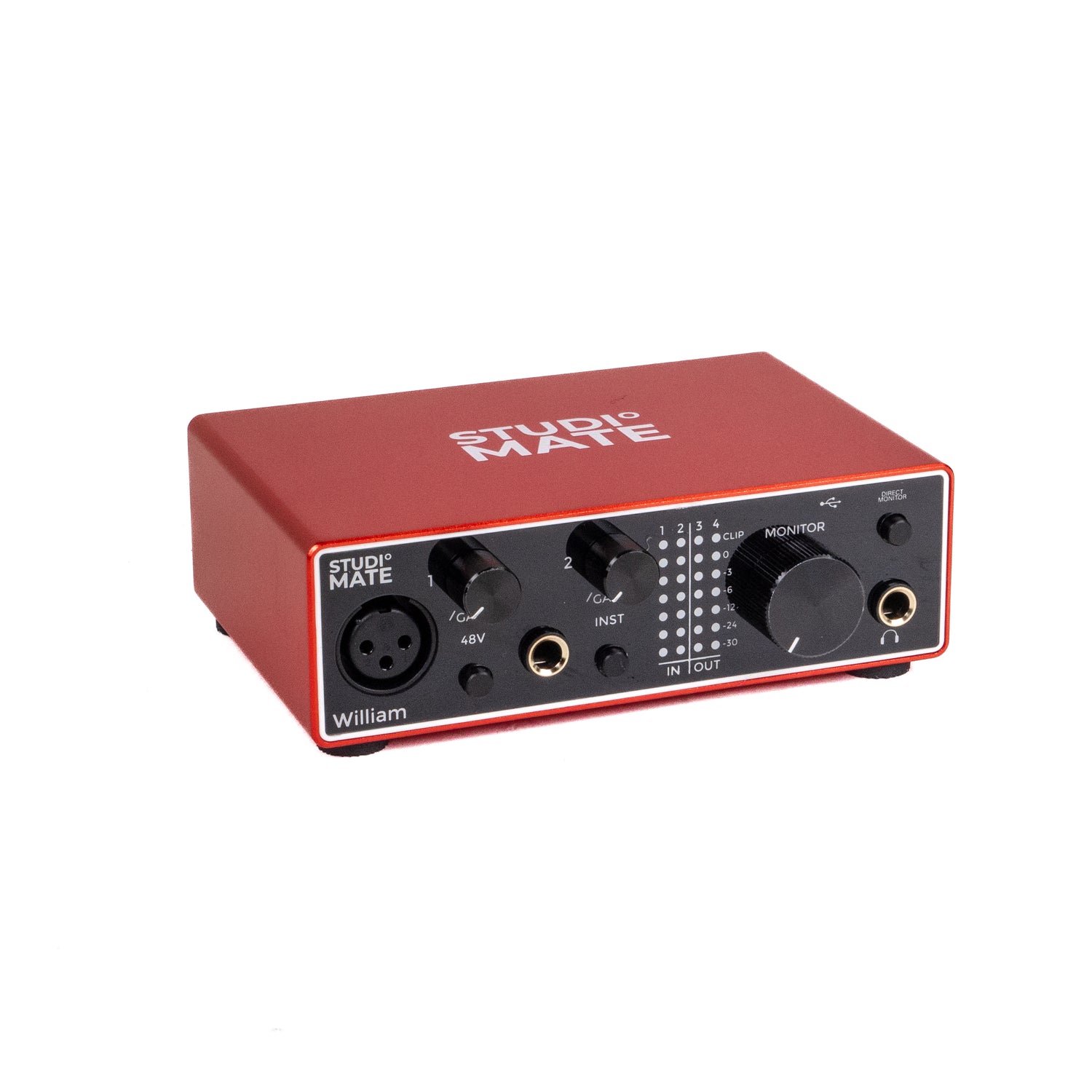

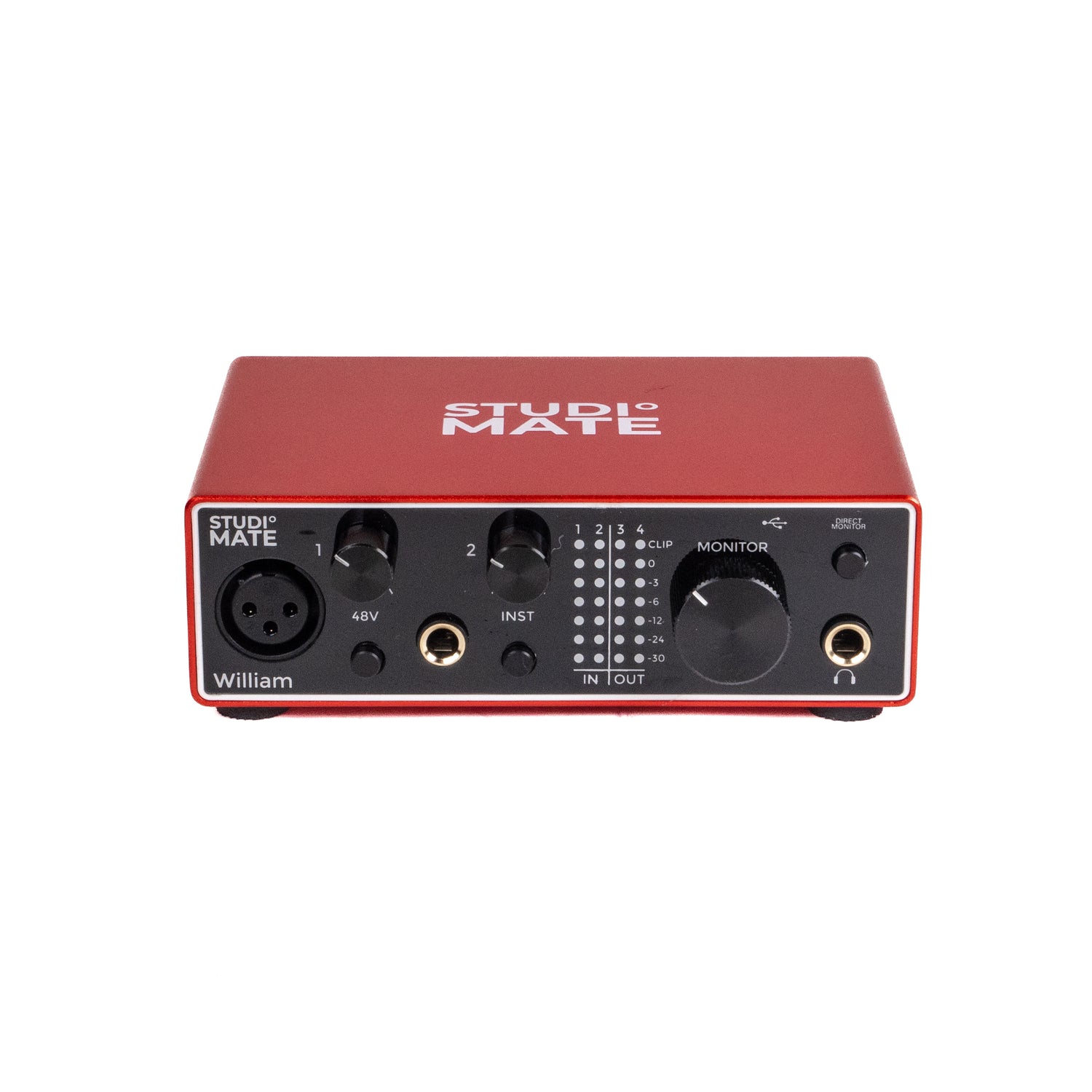

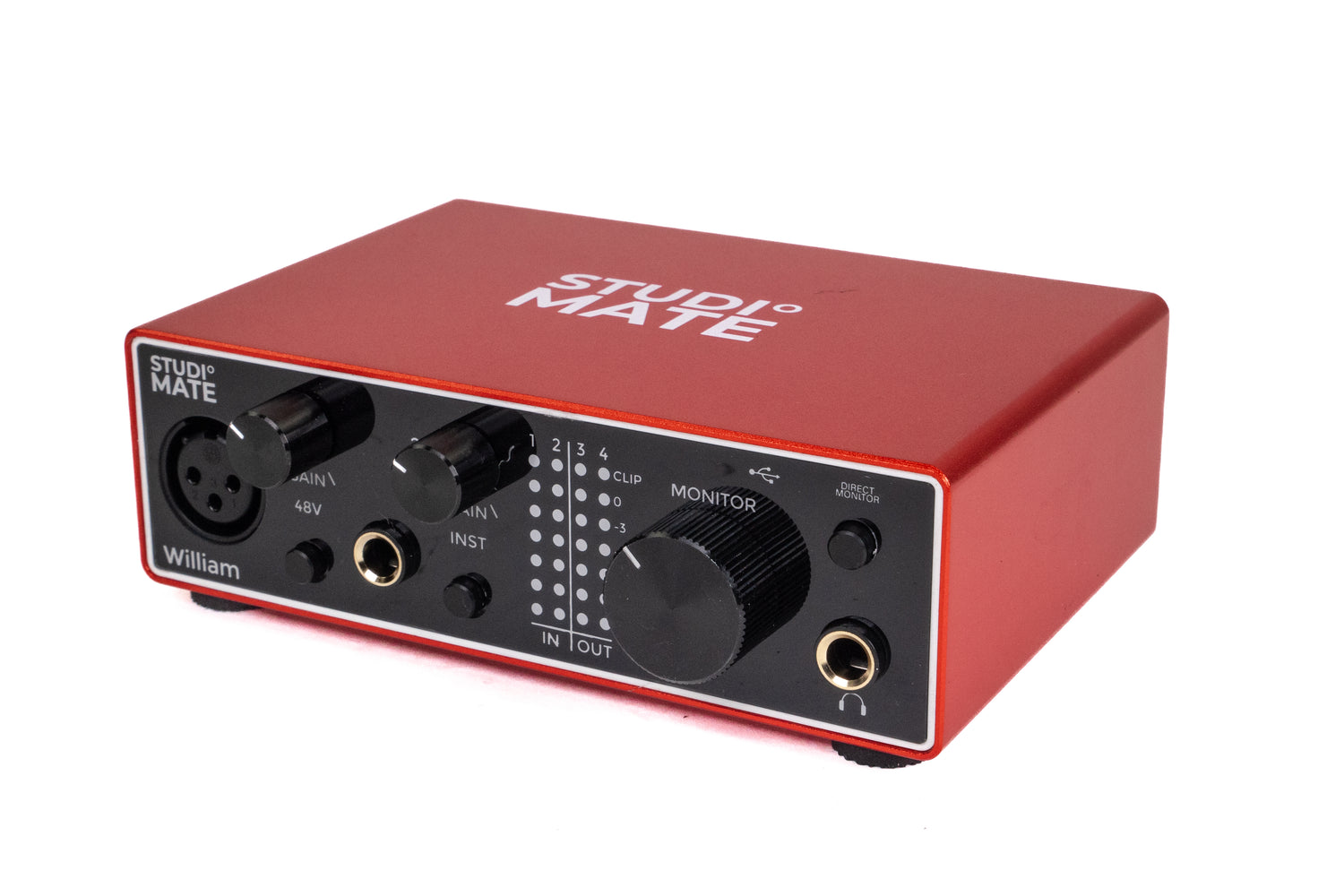

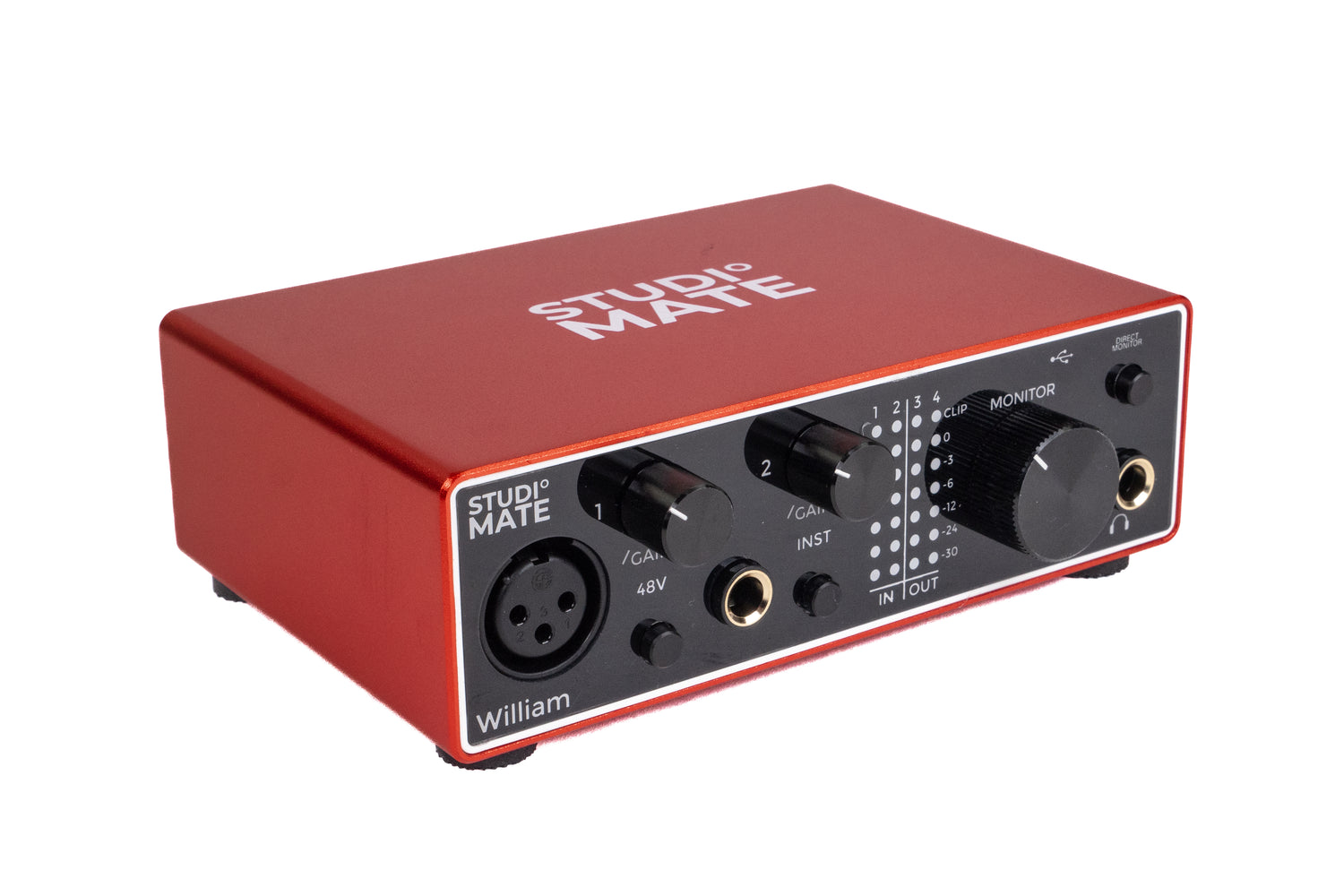

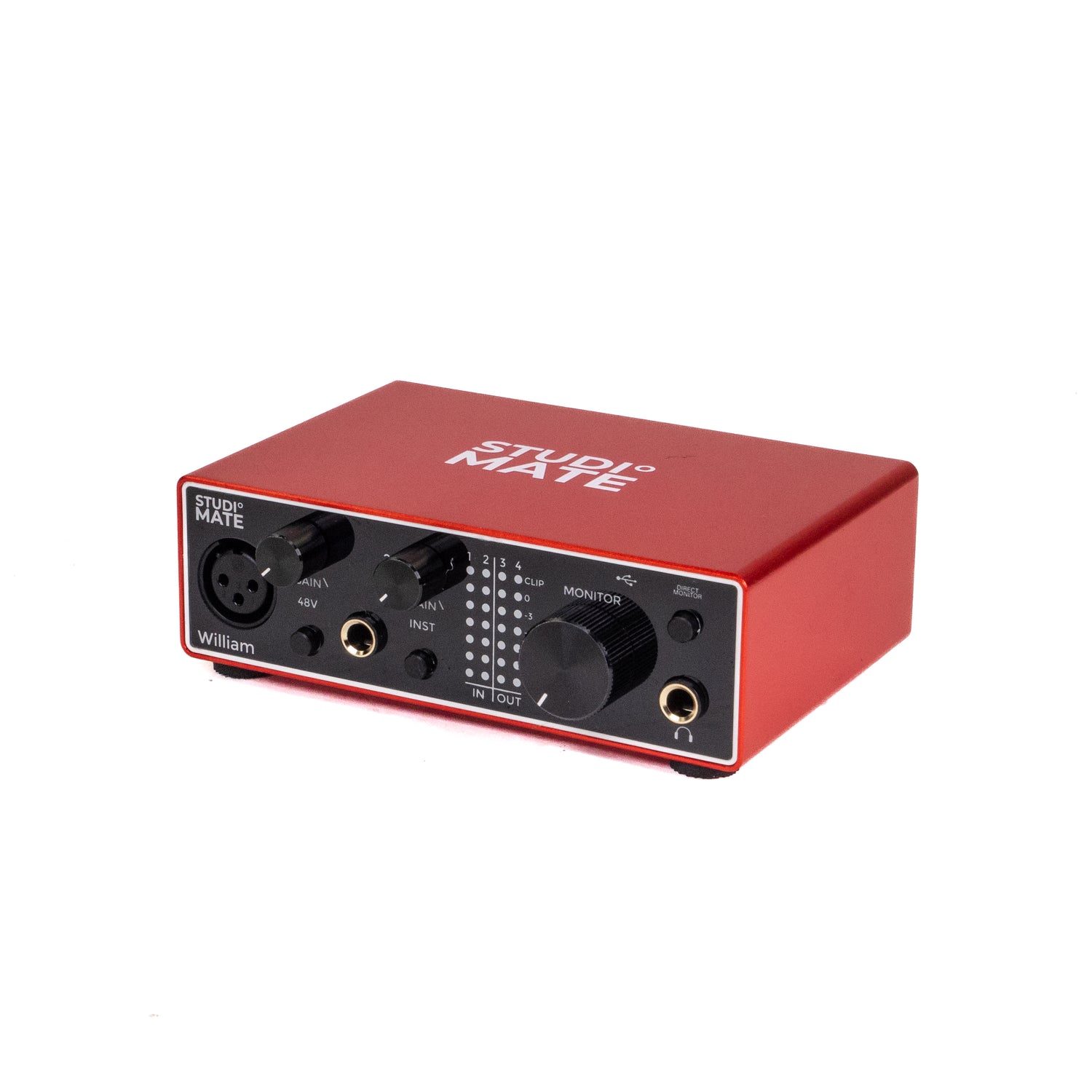

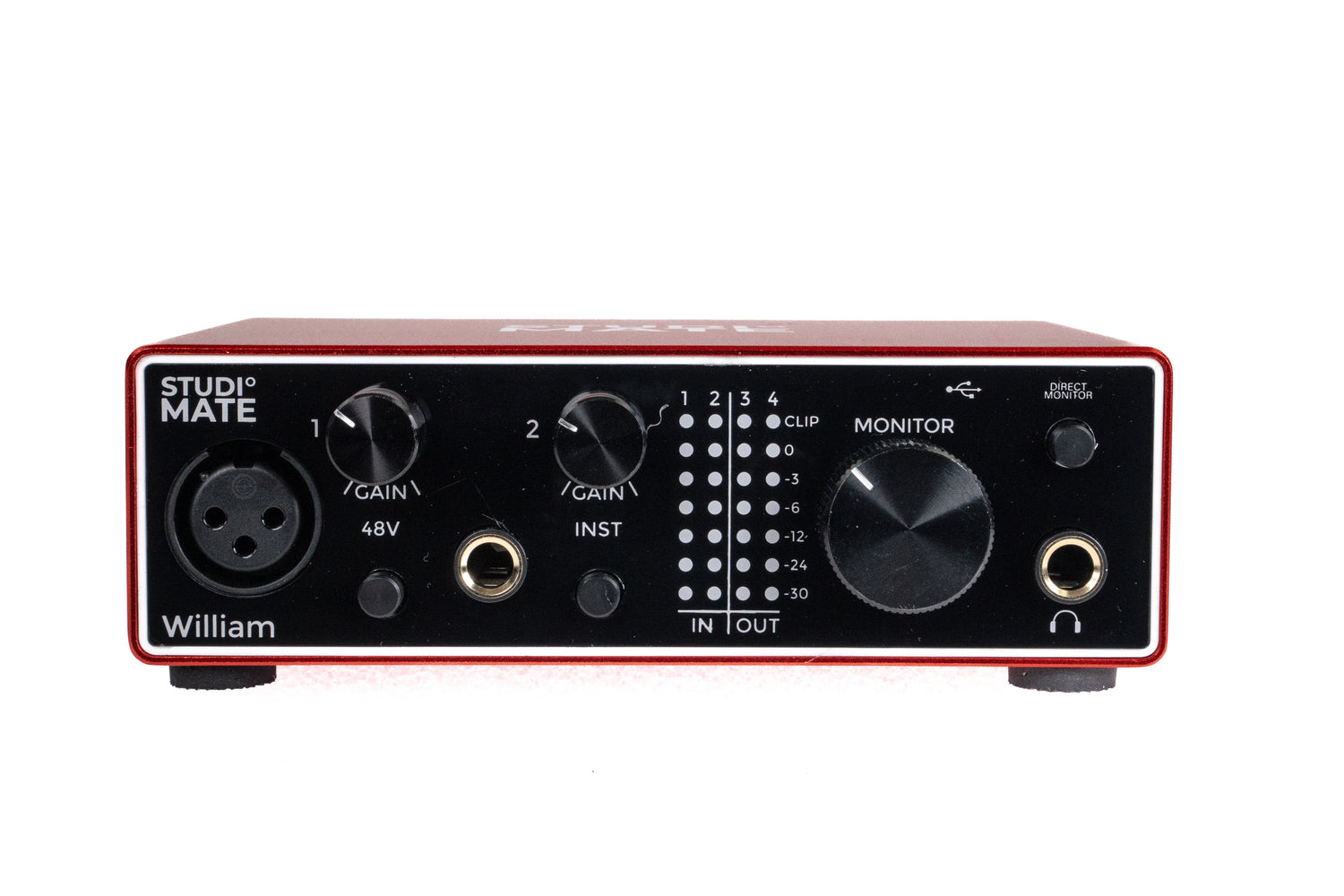

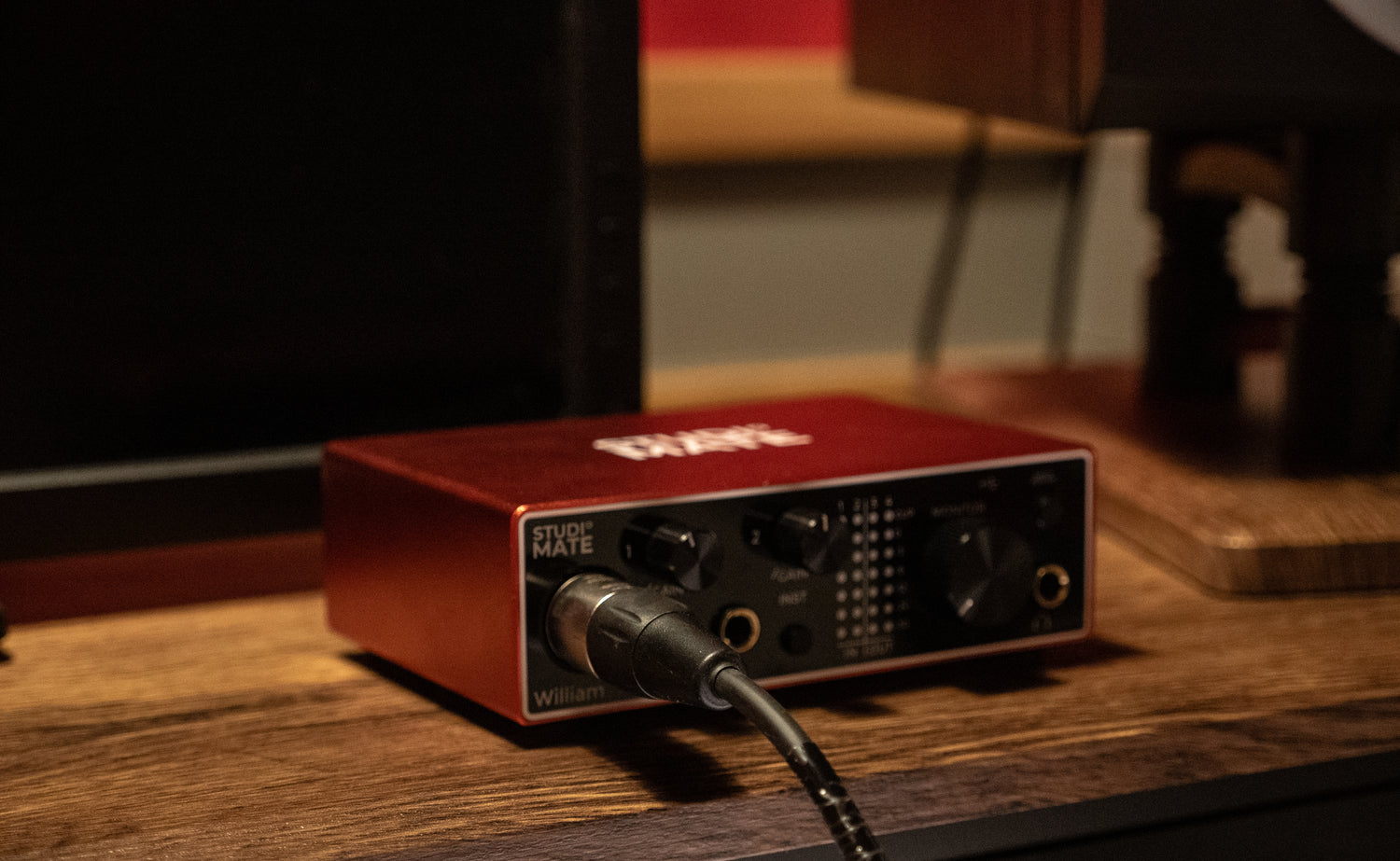

StudioMate William Sound Card

• USB audio interface with one microphone input and one line input for e.g. guitar or keyboard.
• The sound card has a unique gain halo that lights up to indicate the signal strength around the gain knobs to avoid overdriving the signal.
• The HI-Z function makes it possible to use the line input with electric guitars and basses.
• Plug'n'Play installation makes it easy to get started quickly.
• 48V phantom power for condenser microphones.
• With 'direct monitoring' you can listen directly to the incoming signal before it reaches the computer, allowing you to monitor without delay.
• Connects via USB-C to PC or Mac and does not require a power supply.

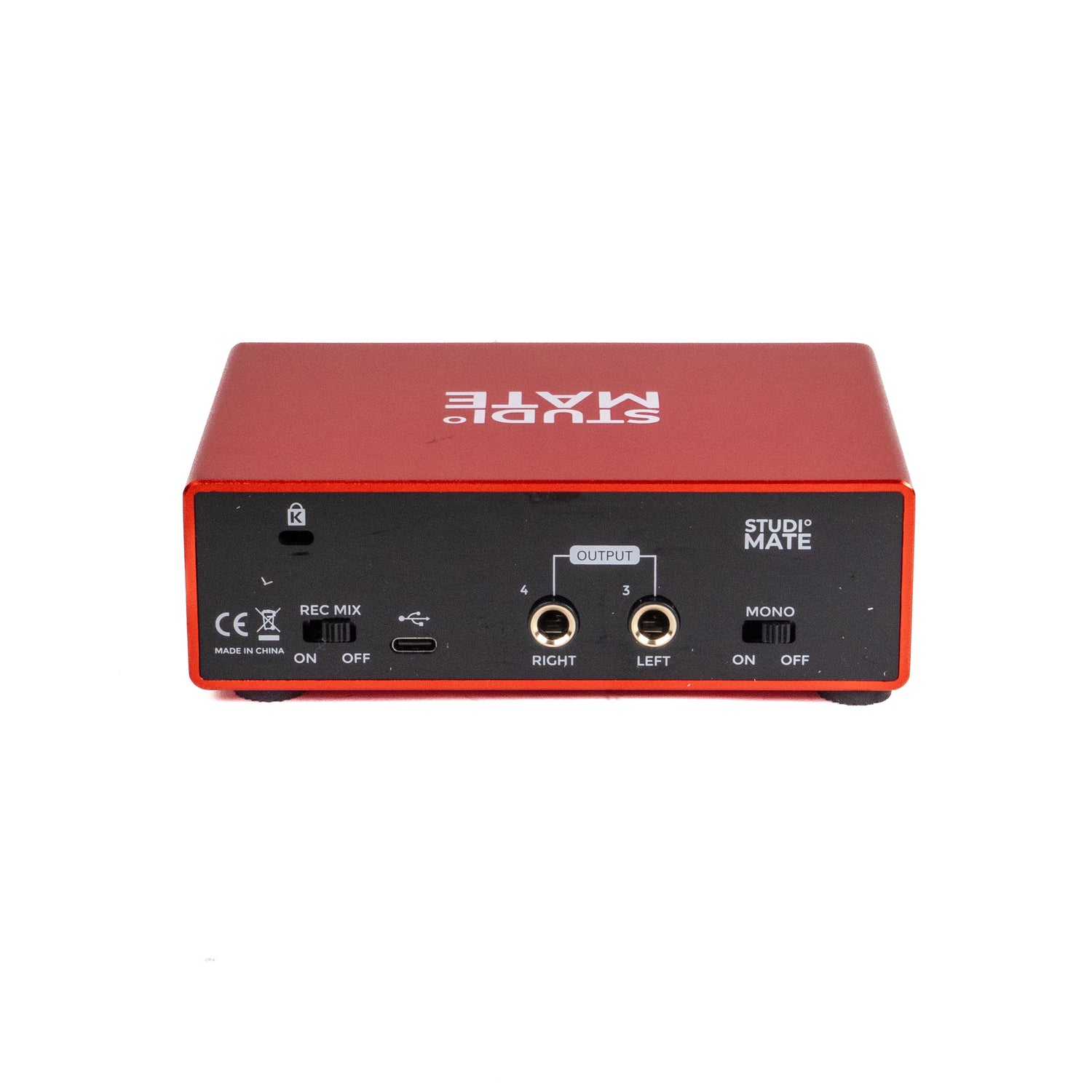

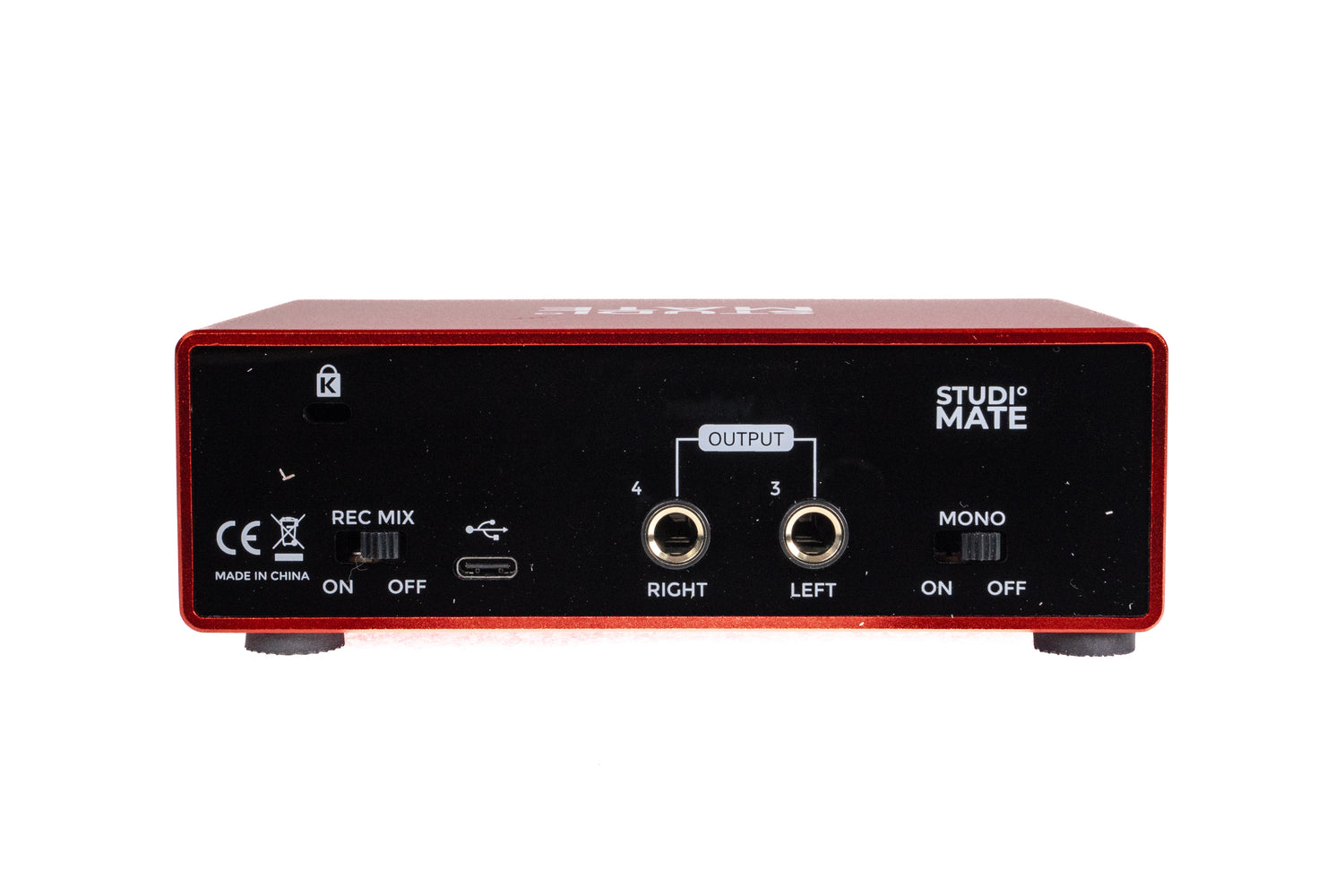

• Two TRS jack outputs for studio monitors.
• Headphone output with dedicated gain control.
• Mono button allows you to check your mixes in mono on the connected monitor speakers.
• Compatible with PC and Mac.

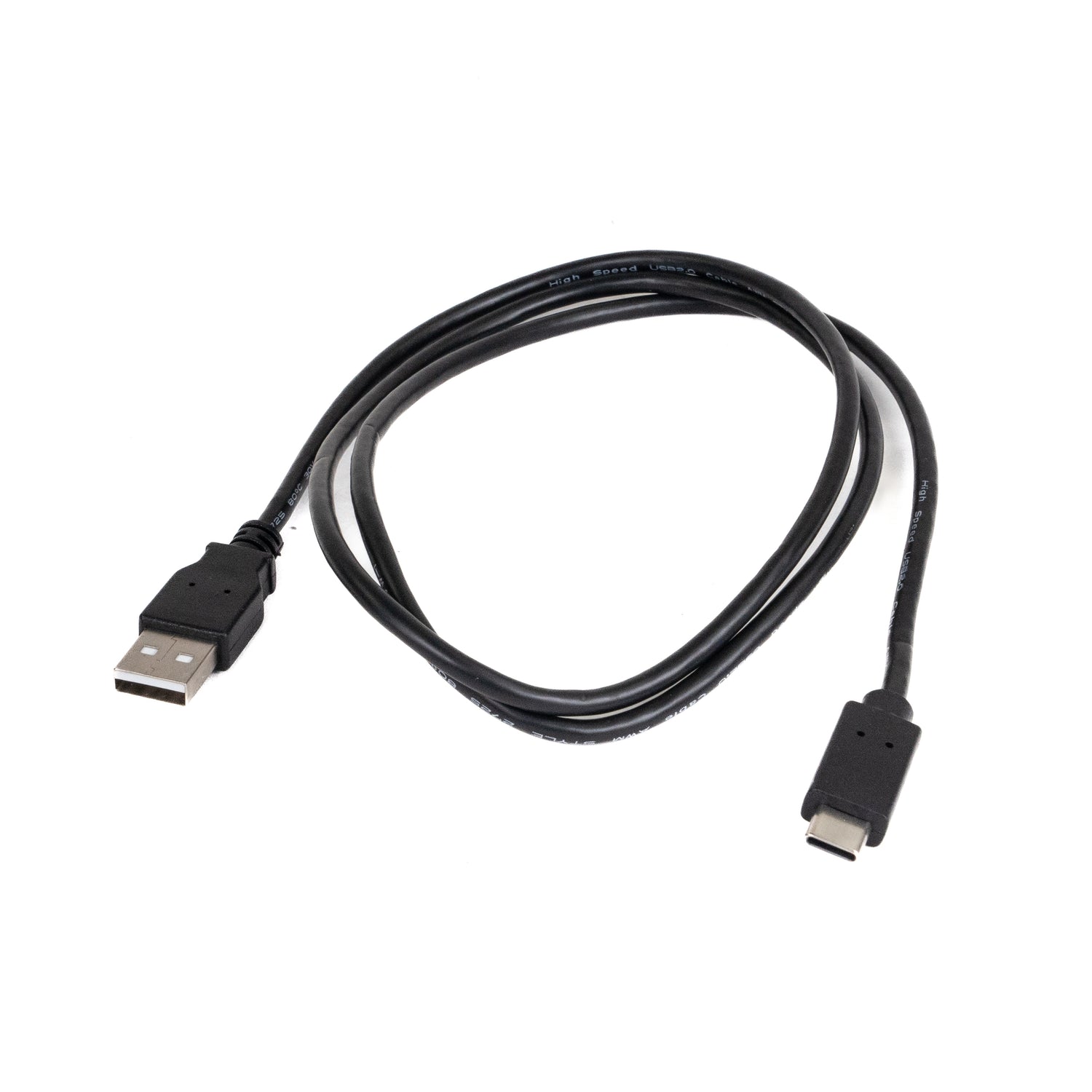

• Includes USB-C to USB-A cable.

Microphone input:

• Frequency response: 20 Hz - 20 kHz +/- 0.1 dB
• THD + N: 0.006% (min. gain, input: 400 mV, A-weighted)
• Noise: -86 dBu
• Gain range: 18 dB - 48 dB

Instrument input:

• Frequency response: 20 Hz - 20 kHz +/- 0.1 dB
• THD + N: 0.01% (min. gain, input: 400 mV, A-weighted)
• Noise: -94 dBu
• Maximum input level: +11.5 dBu

Line input:

• Frequency response: 20 Hz ± 0.5 dB, ± 0.1 dB
• THD + N: 0.006% (min. gain, input: 400 mV, A-weighted)
• Noise: -95 dBu
• Maximum input level: +18.5 dBu

Line output:

• Maximum output level: +13 dBu balanced
• THD + N: -0.006%

Material: Aluminum

Net weight: 439 g

Box contains: 1x William Sound Card, 1x USB-USB-C, 1x User Manual

Manual:  U24MKIIManual
