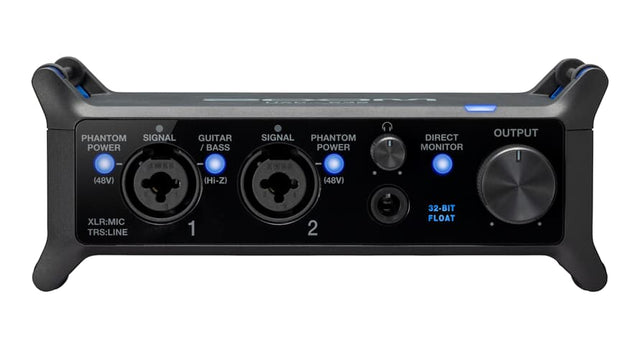

Zoom UAC-232 Sound card

• 32-bit sound card with a wealth of possibilities
• Experience professional quality where every detail has been thought of
• Easy to use with the device's many user-friendly features

Zoom UAC-232 Sound Card

• Take your music productions to the next level with ZOOM UAC-232 USB Audio Converter!
• The dedicated 32-bit float audio interface allows you to record low-level audio recordings without having to adjust gain
• With the same clean and low noise amplifiers used in professional F-series recorders, the UAC-232 guarantees high quality recordings in any environment
• Mix Control software lets you adjust I/O routing, enable loopback, and control input and monitoring levels
• Music mode to route the music to your DAW or Streaming mode to combine all inputs into a single signal for streaming software

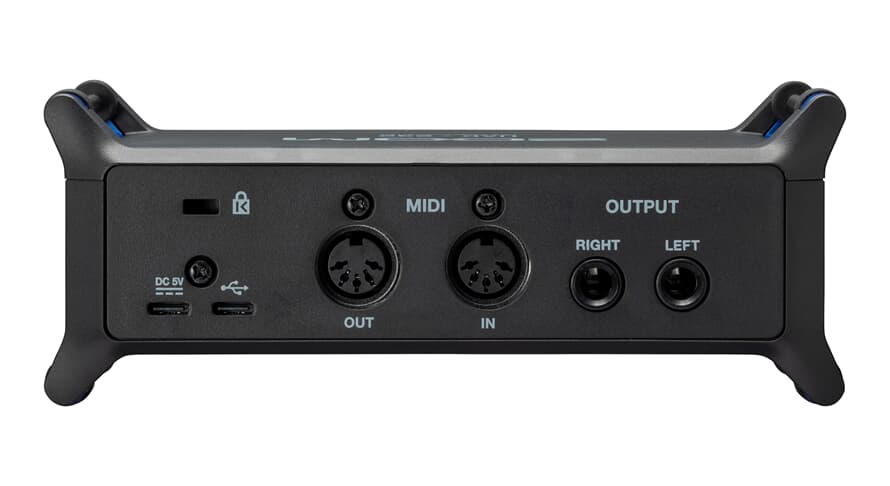

• Compatible with Windows, Mac and iOS devices and features MIDI IN/OUT for connecting external MIDI peripherals
• With the UAC-232, you can record and stream in 24-bit and get a powerful 100 milliwatts of headphone output

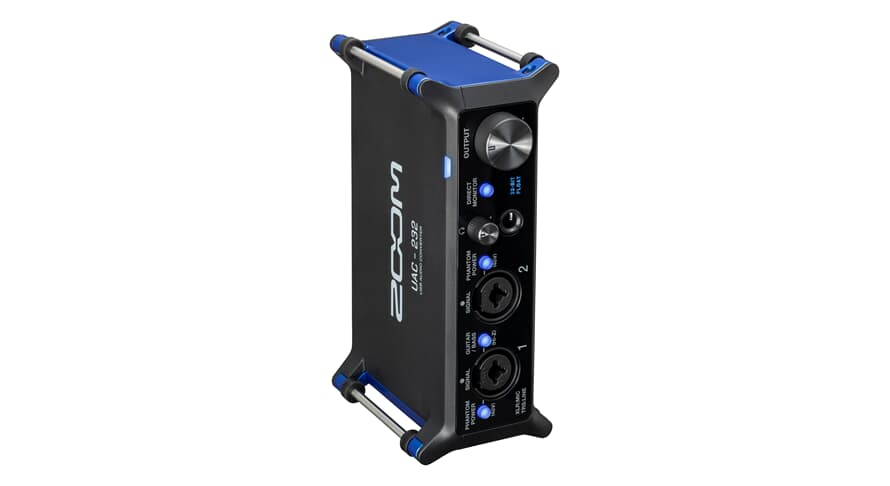

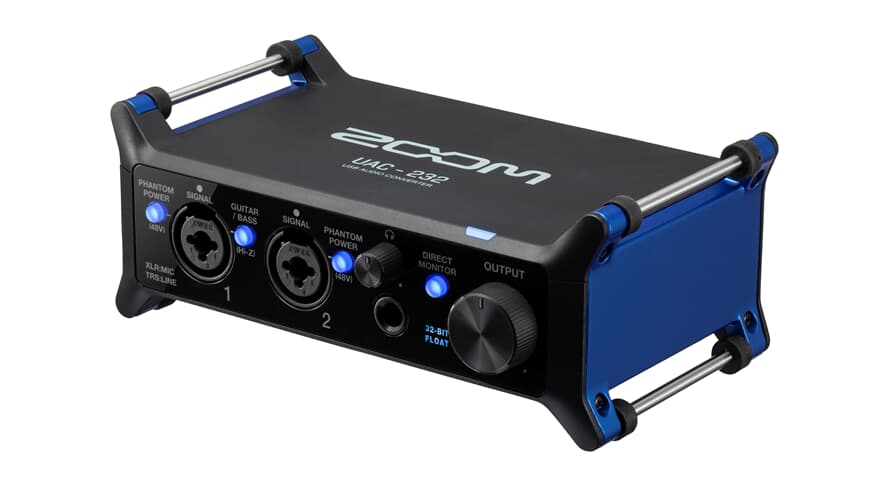

• Compact design with many user-friendly options

• Number of input channels: Mono (MIC/LINE) 2
• Number of output channels: Stereo (TRS) 1, Stereo (PHONE) 1 and Connector

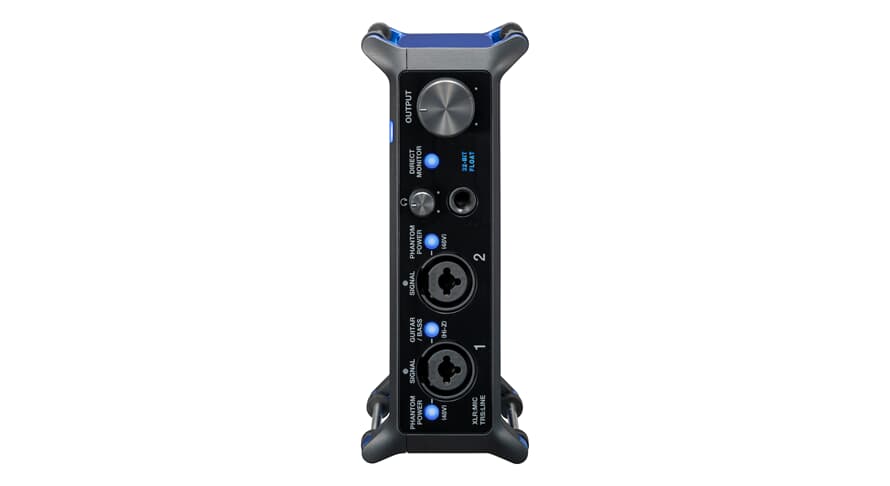

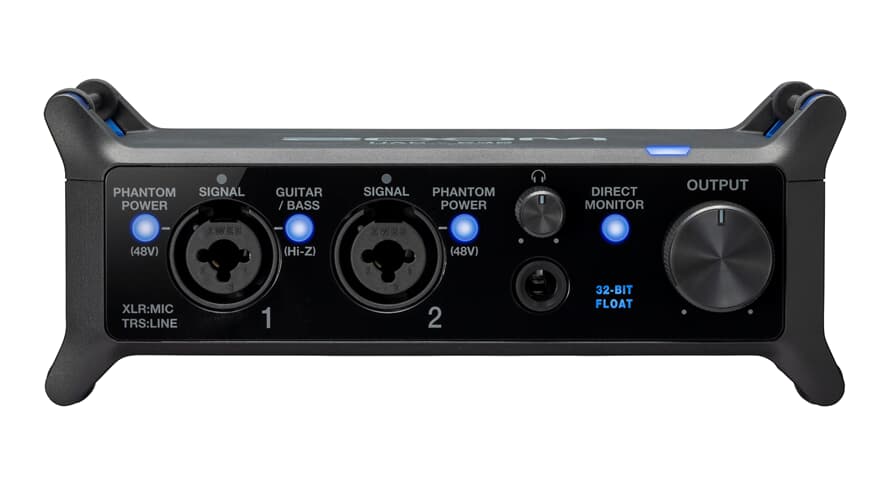

• Input 1-2: XLR/TRS combo connectors (XLR: 2 HOT, TRS: TIP HOT)
• Input impedance: XLR: 2.7 k and TRS: 4 k / 1 M (when set to Hi-Z)
• Maximum input level: XLR: +6 dBu, TRS: +24 dBu / +11.5 dBu (when set to Hi-Z)
• Phantom power:+48 V
• TRS phone jack (balanced)
• Maximum output level: +18 dBu (at 0 dBFS)
• Output impedance: 100
• Phone: 3.5 mm stereo phone jack, 100 mW + 100 mW (32 load)
• Output impedance:12
• USB: USB Type-C (audio interface function)
• DC 5V
• USB Type-C (for power supply)
• Frequency response
• Inputs: 44.1 kHz: 20 Hz - 20 kHz, +0.1 dB / -0.2 dB, 192 kHz: 20 Hz - 80 kHz, +0.1 dB / -0.2 dB
• Outputs: 44.1 kHz: 20 Hz - 20 kHz, +0.0 dB / -0.1 dB, 192 kHz: 20 Hz - 80 kHz, +0.0 dB / -1.0 dB
• Headphones: 44.1 kHz: 20 Hz - 20 kHz, +0.0 dB / -0.5 dB, 192 kHz: 20 Hz - 80 kHz, +0.0 dB / -1.0 dB
• Equivalent input noise: -127 dBu or less (IHF-A)
• Audio interface
• Input and output channels
• Recording: 2 channels
• Playback: 2 channels
• Sampling frequencies: 192 kHz, 176.4 kHz, 96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz
• 32-bit Float / 24-bit
• USB Audio Class 2.0
• AC power adapter (ZOOM AD-17): DC 5 V/1 A
• USB bus power is supported.
• USB/AC adapter (5 V): 293 mA
• Power consumption: 5 W maximum
• Dimensions: 164 mm (W) × 105.5 mm (D) × 65 mm (H)
• Weight: 355 g
