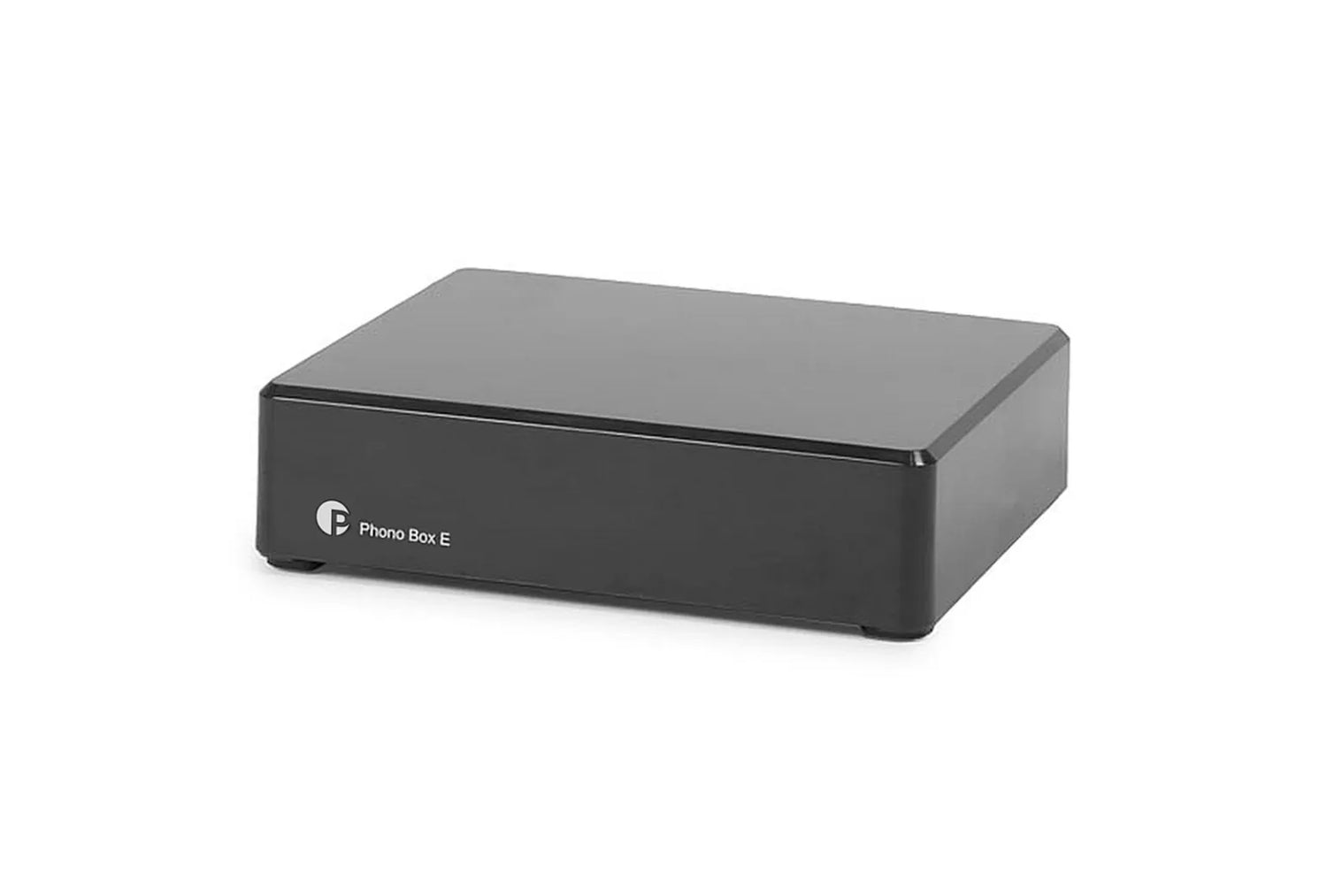

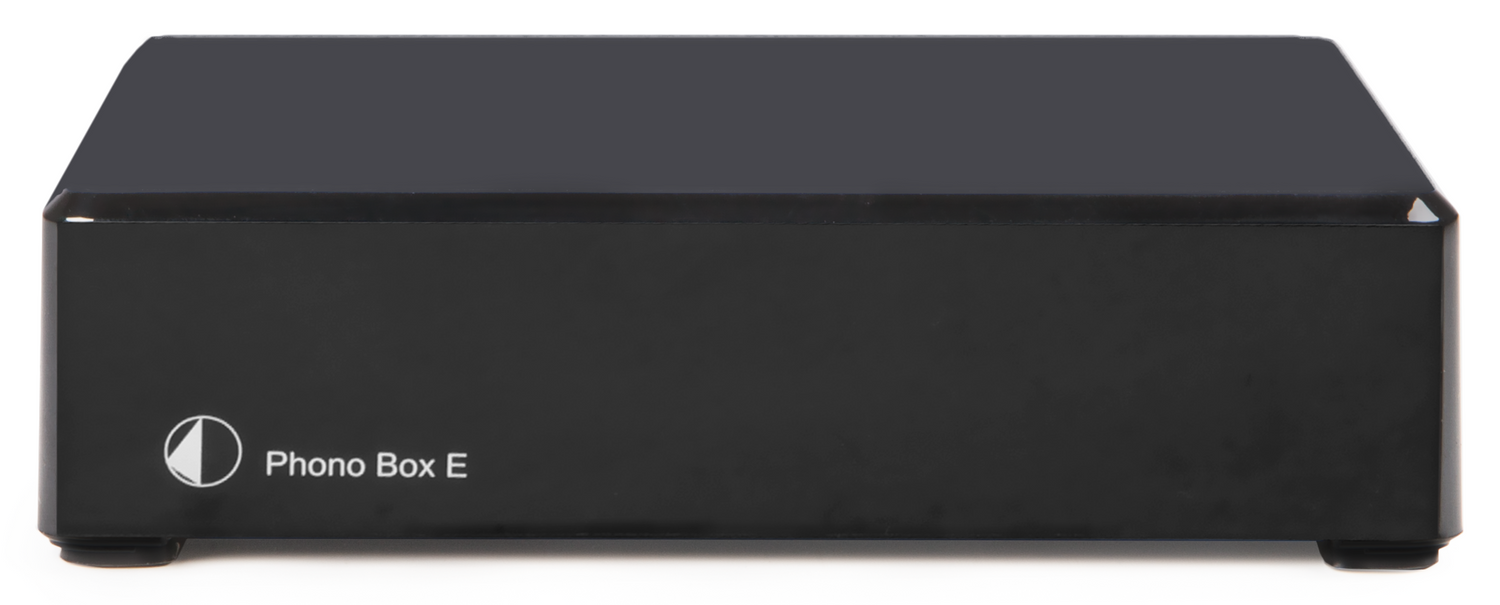

Pro-Ject Phono Box E RIAA Amplifier (Black)

• Budget-friendly RIAA phono preamplifier with high-quality sound
• For MM (moving magnet) pickups
• SMD circuitry ensures very low noise and distortion
• Built-in shielding and an external power supply provide superb clean sound
• Gold plated inputs and outputs
• Colour: black

Pro-Ject Phono Box E RIAA Amplifier (Black)

• Budget-friendly RIAA phono preamplifier with high-quality sound.
• For MM (moving magnet) pickups.
• SMD circuitry ensures very low noise and distortion.
• Built-in shielding and an external power supply provide superb clean sound.
• Gold plated inputs and outputs.
• Colour: black.

Input impedance     47 kohms
Input capacitance     120 pF
Gain     40 dB
Output voltage(typically)     500mV/ 1kHz at 5mV/1kHz
Noise floor     88 dB (A weighted)
THD     <0.05%
RIAA deviation     deviation max. 0.  5 dB/ 20 Hz - 20 kHz

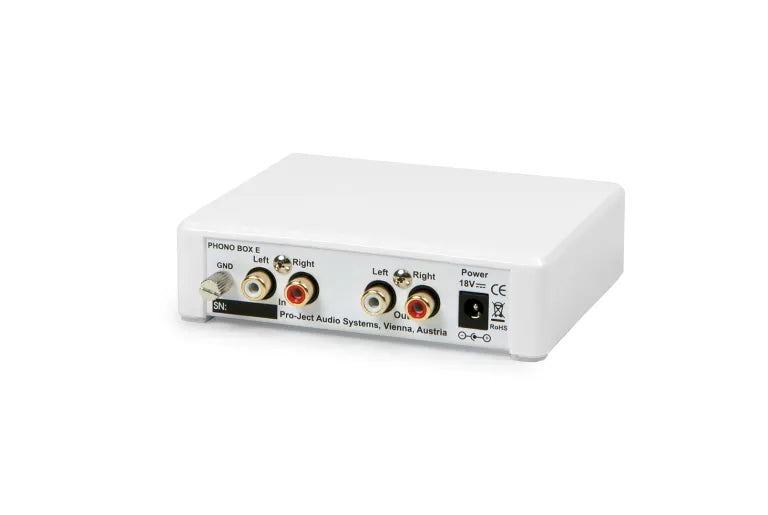

Input     1 pair RCA socket
Output     1 pair RCA socket
Outboard power supply   18 V/500 mA DC; 220 - 240 V, 50 Hz
Standby power consumption     < 1 watt
Power consumption     20 mA DC
Dimension W x H x D (D with sockets)     120 x 32 x 100 (106) mm
Weight     269 g without power supply
