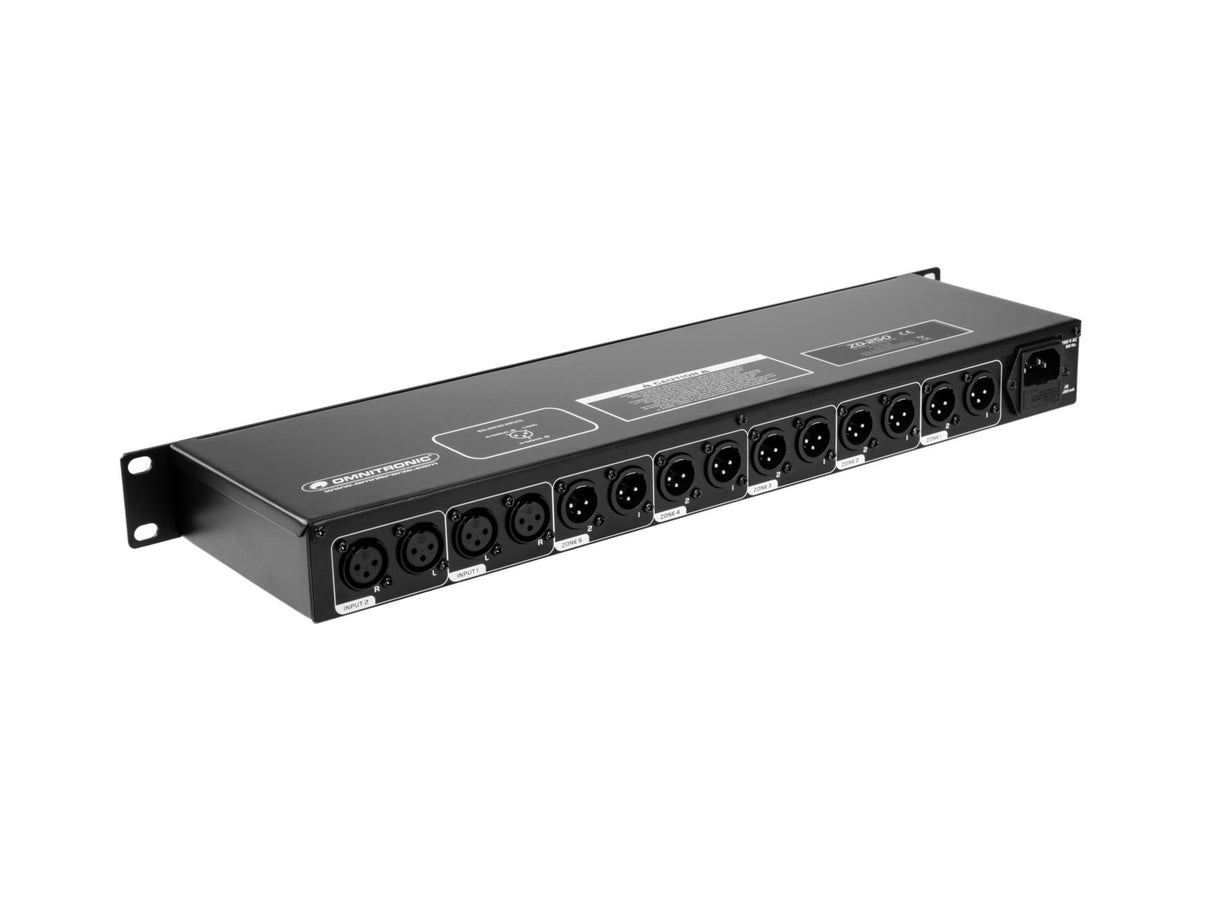

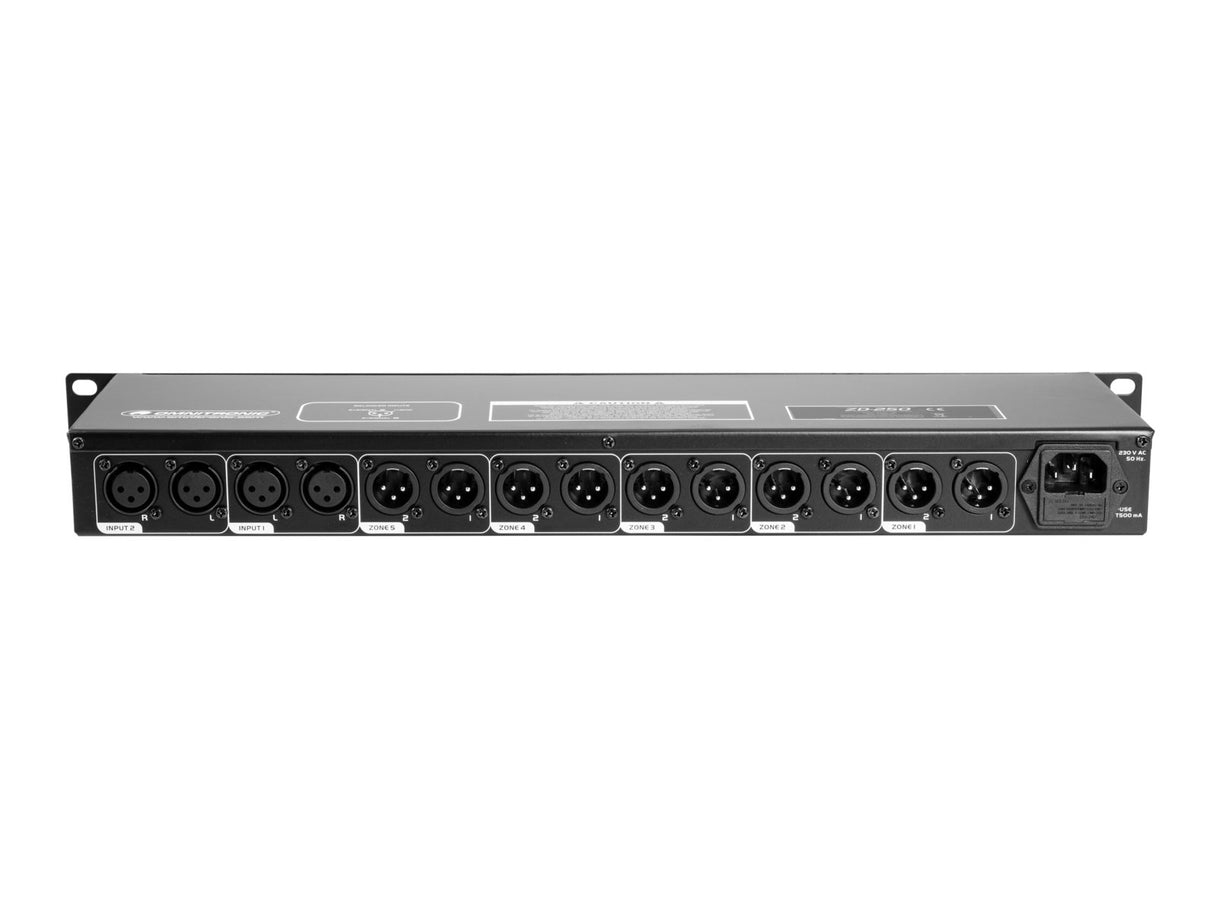

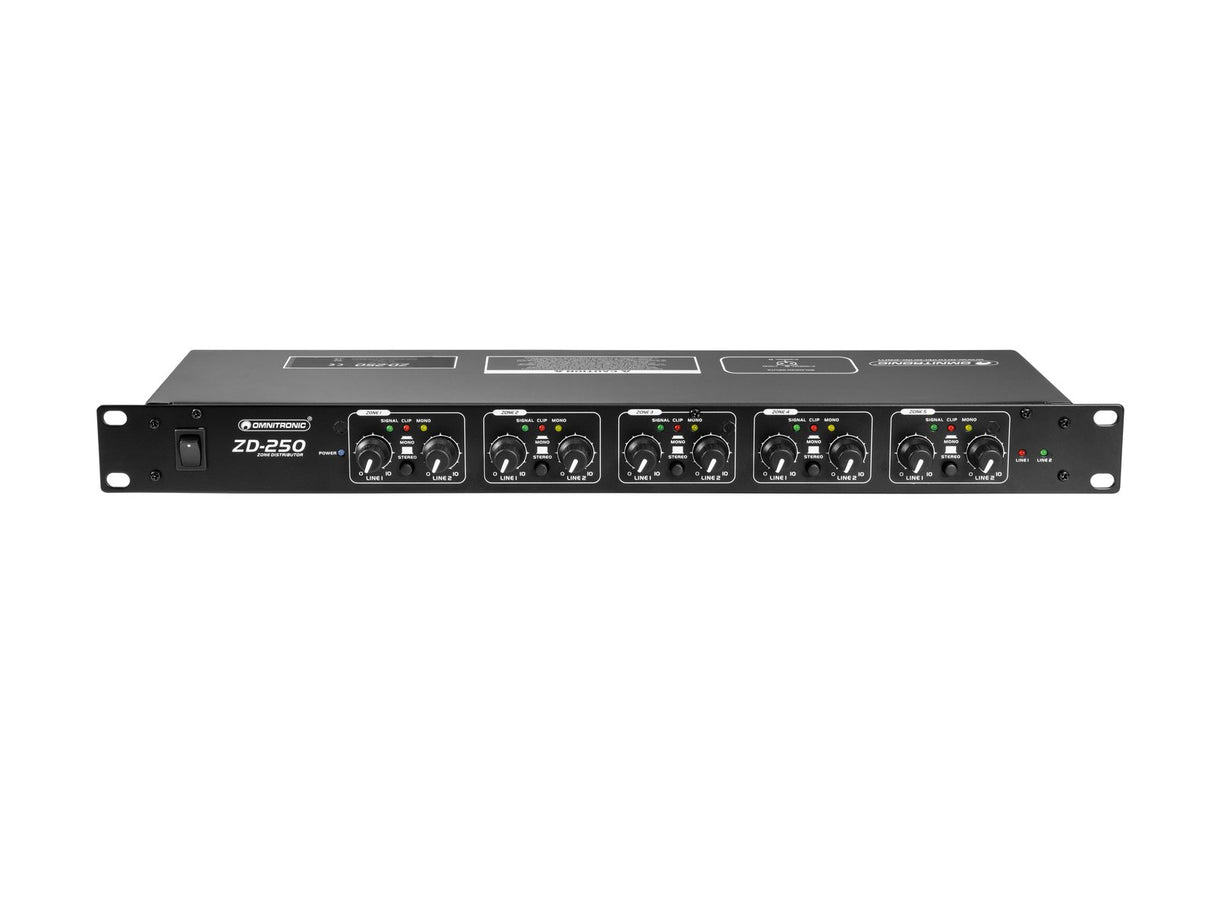

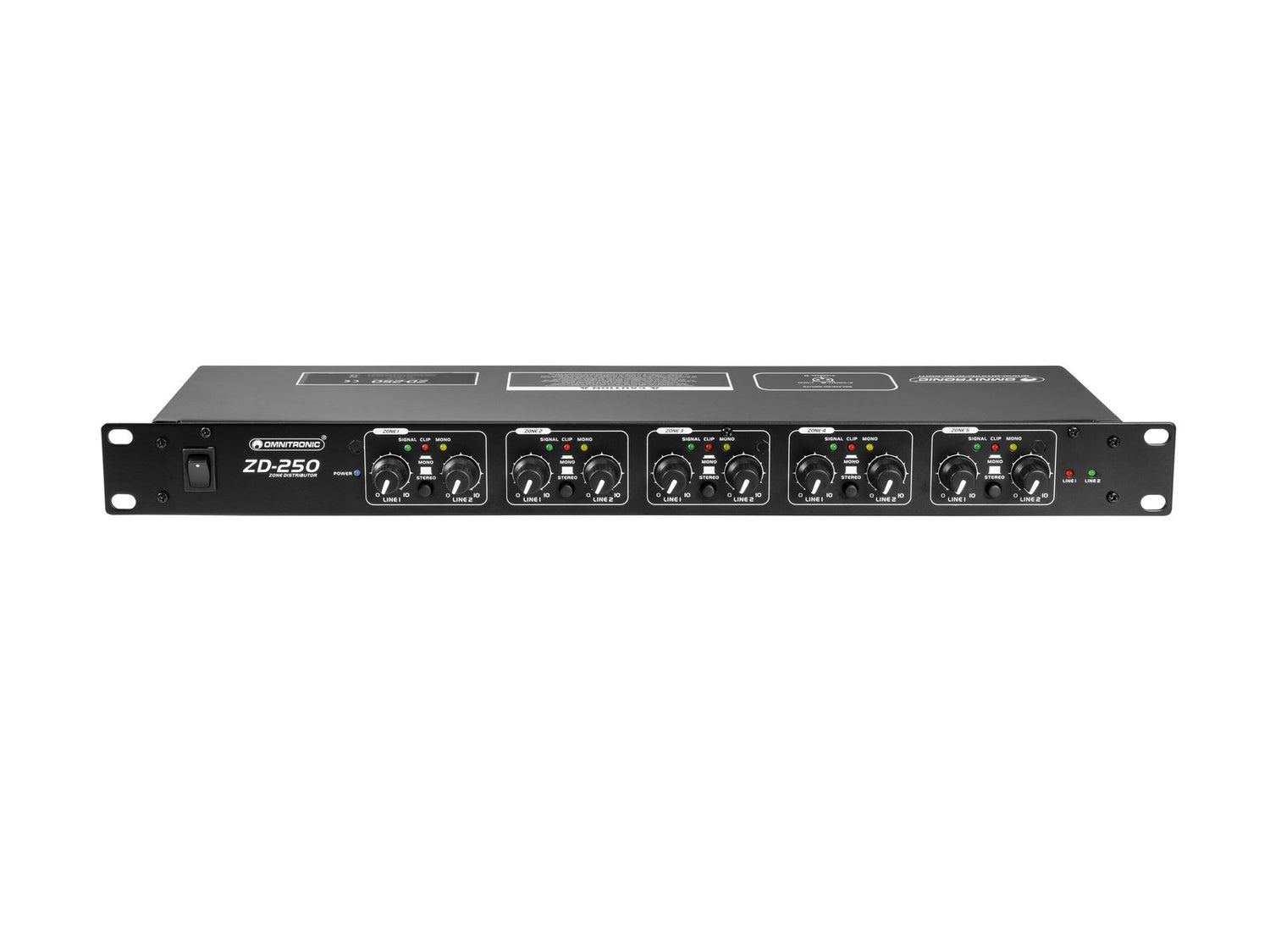

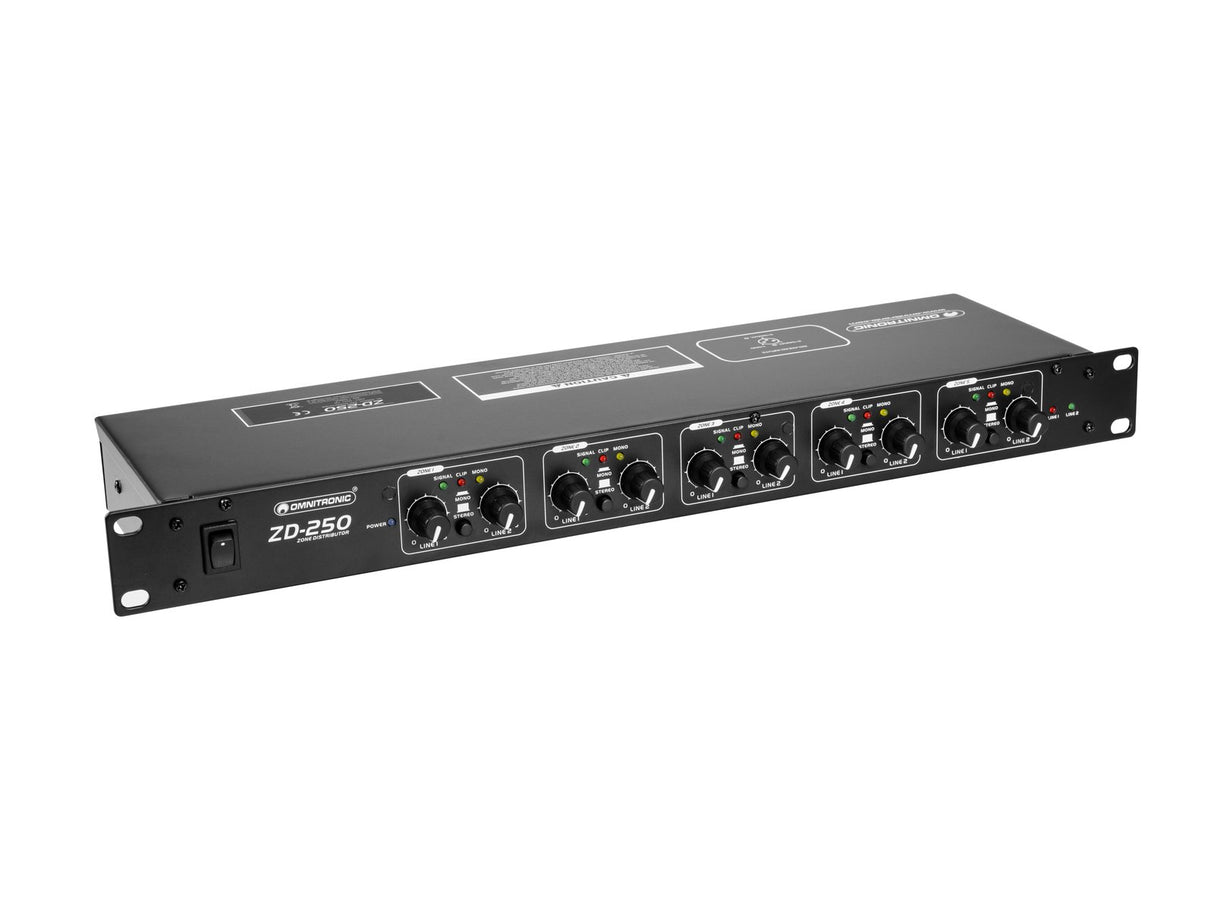

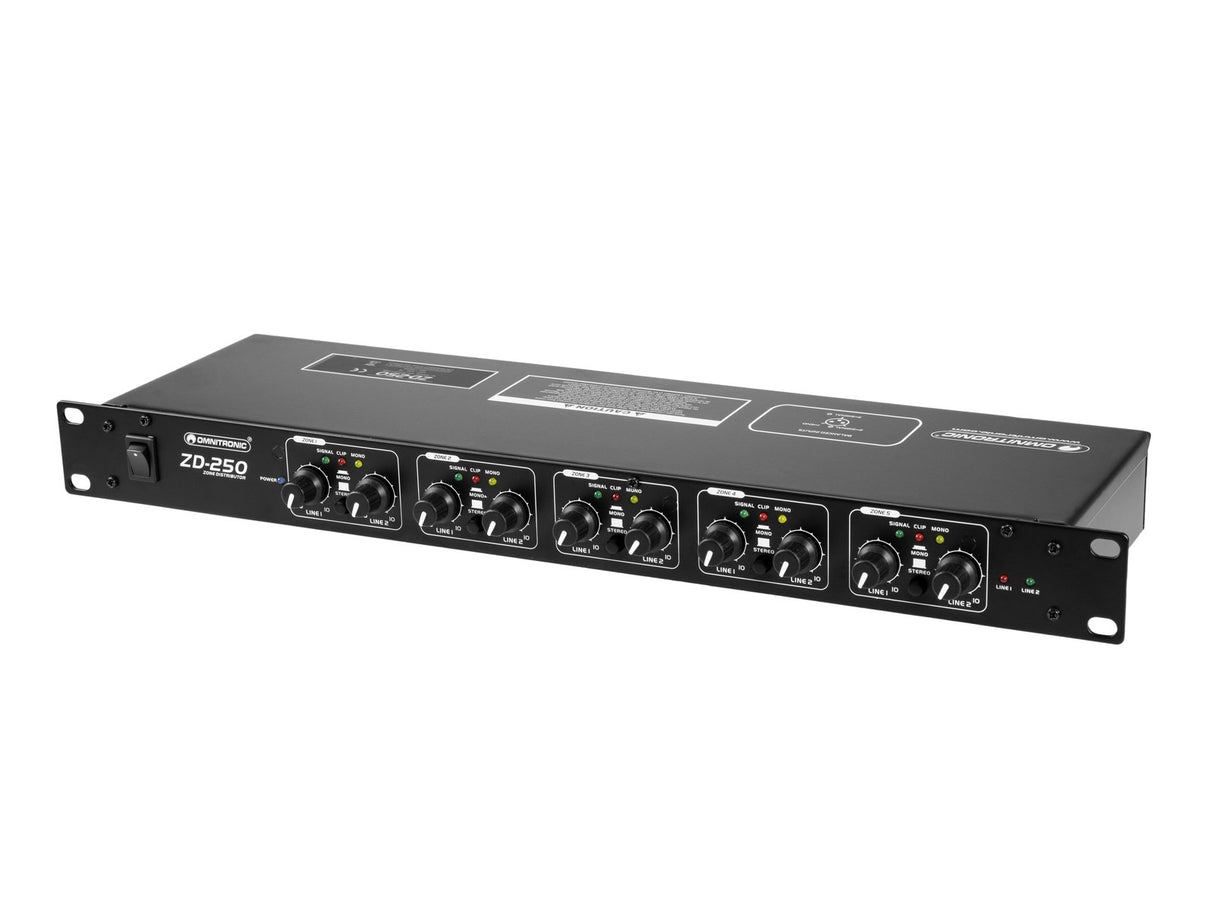

Omnitronic ZD-250B Zone Mixer

• Smart zone mixer with 2 inputs and 5 outputs
• Perfect for expanding your mixer with more outputs
• 2 stereo XLR inputs
• 5 stereo zone XLR outputs
• Each zone with volume control for both inputs, plus mono switch
• LED display shows signal input, distortion and mono/stereo mode
• 19" rack size - 1 unit

Omnitronic ZD-250B Zone Mixer

• Smart zone mixer with 2 inputs and 5 outputs.
• Perfect for expanding your mixer with more outputs.
• 2 stereo XLR inputs.
• 5 stereo zone XLR outputs.
• Each zone with volume control for both inputs, plus mono switch.
• LED display shows signal input, distortion and mono/stereo mode.
• 19" rack size - 1 unit.
• Power cable and manual included.

Power supply:     115/230 V AC, 50/60 Hz
Power consumption:     7,00 W
Power connection:     Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
S/N ratio:    >69 dB
THD:     <0.2 % at 1 kHz
Impedance:     Input: 45.1 kOhm
Output: 125 Ohm
Gain:     15 dB
Max. level:     Input: +9 dB
Output: +22 dB
Color:     Black
Housing design:     (19") 48.3 cm rack installation 1 U
Dimensions:     Width: 48.3 cm
Depth: 12.6 cm
Height: 4.45 cm
Weight:     2.34 kg
