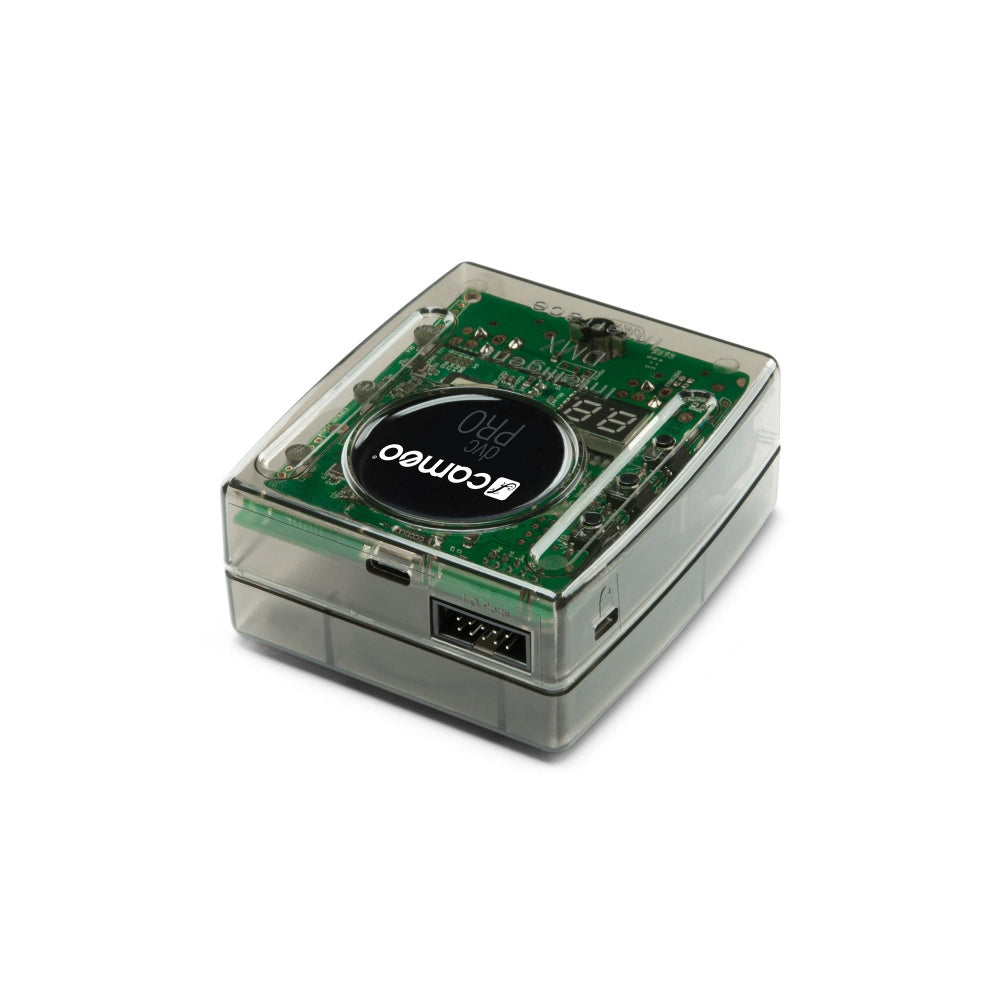

Cameo DVC PRO USB-DMX Interface incl Software

• USB interface with 1024 DMX channels in live mode
• Possibility of 256 channels in standalone mode
• User-friendly, intuitive free Cameo DMX software
• Over 15000 device libraries and built-in ScanLibrary editor
• Powerful XEEL motor
• Touchscreen control
• Remote control via smartphones, tablets or MIDI controller
• Audio analysis and MIDI clock
• Real-time programming and 3D visualization of light shows

Cameo DVC PRO USB-DMX Interface incl Software

• USB interface with 1024 DMX channels in live mode (expandable via ArtNet).
• Integrated Flash memory allowing 256 channels in standalone mode (expandable up to 1024 channels).

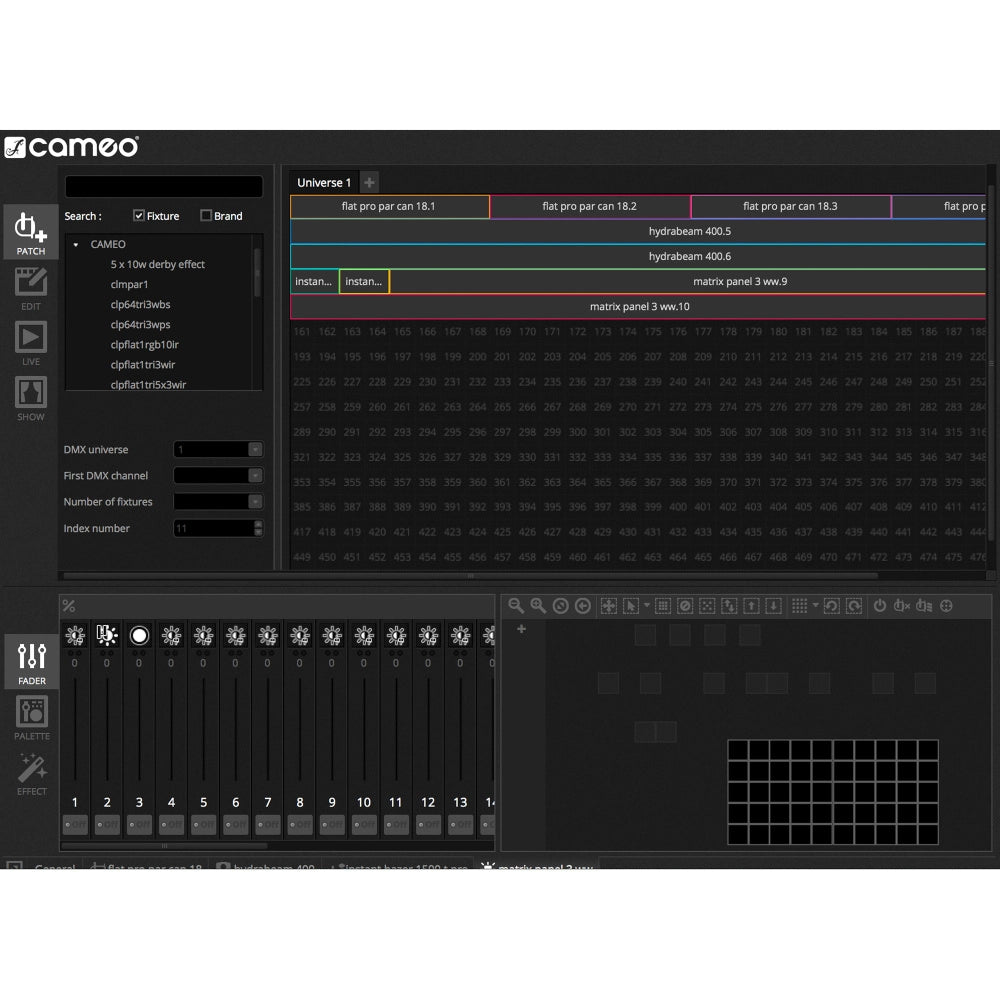

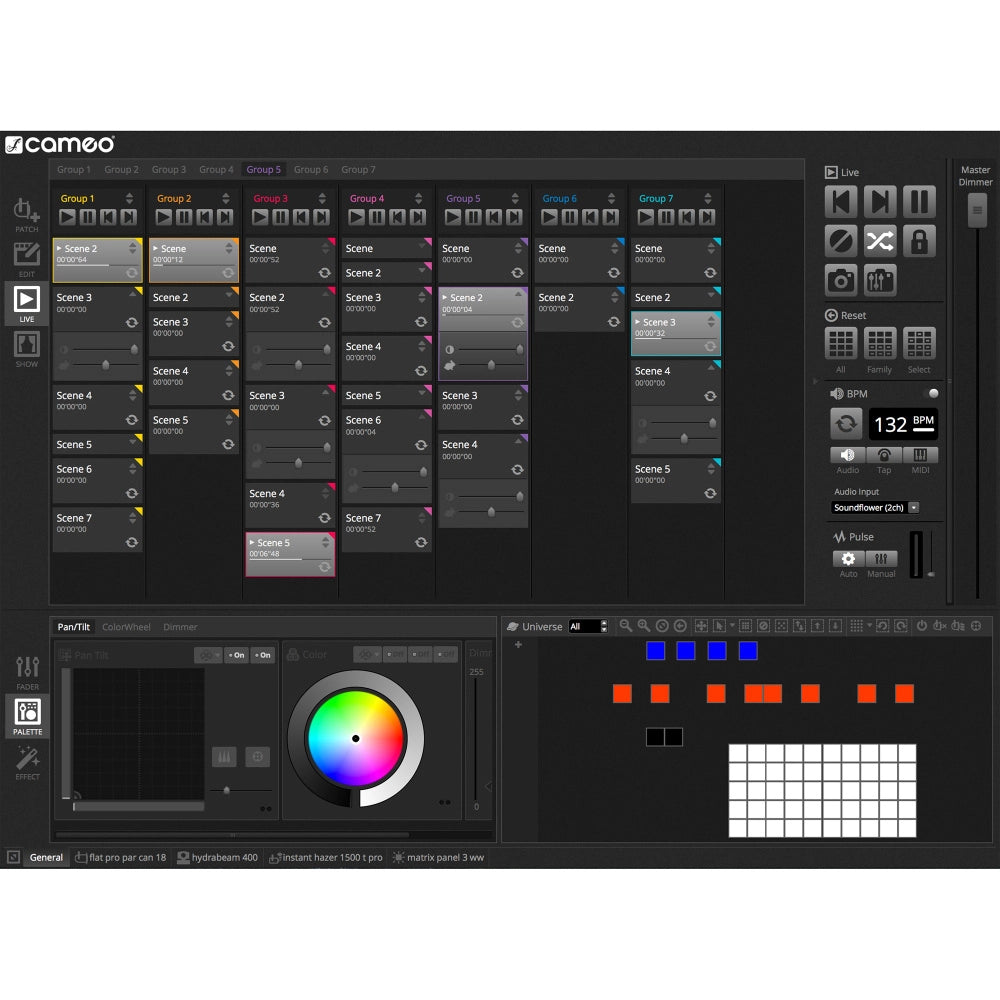

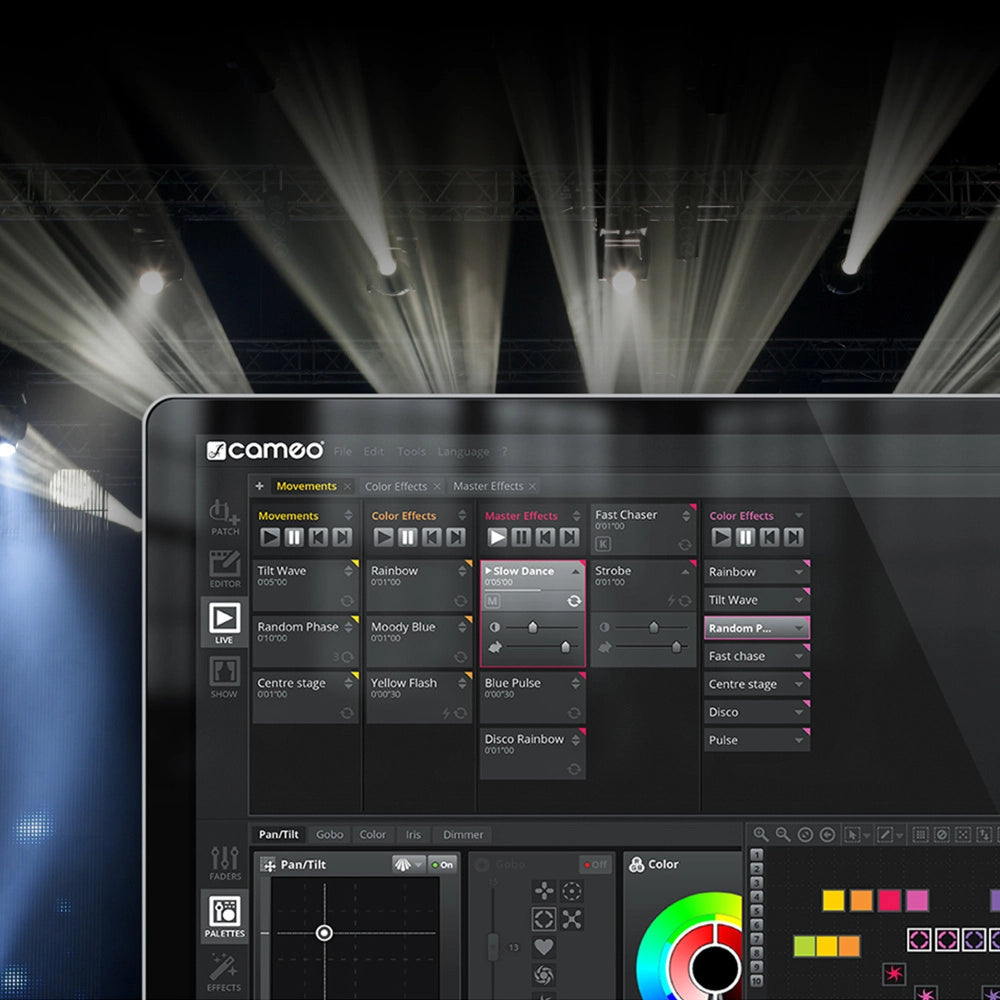

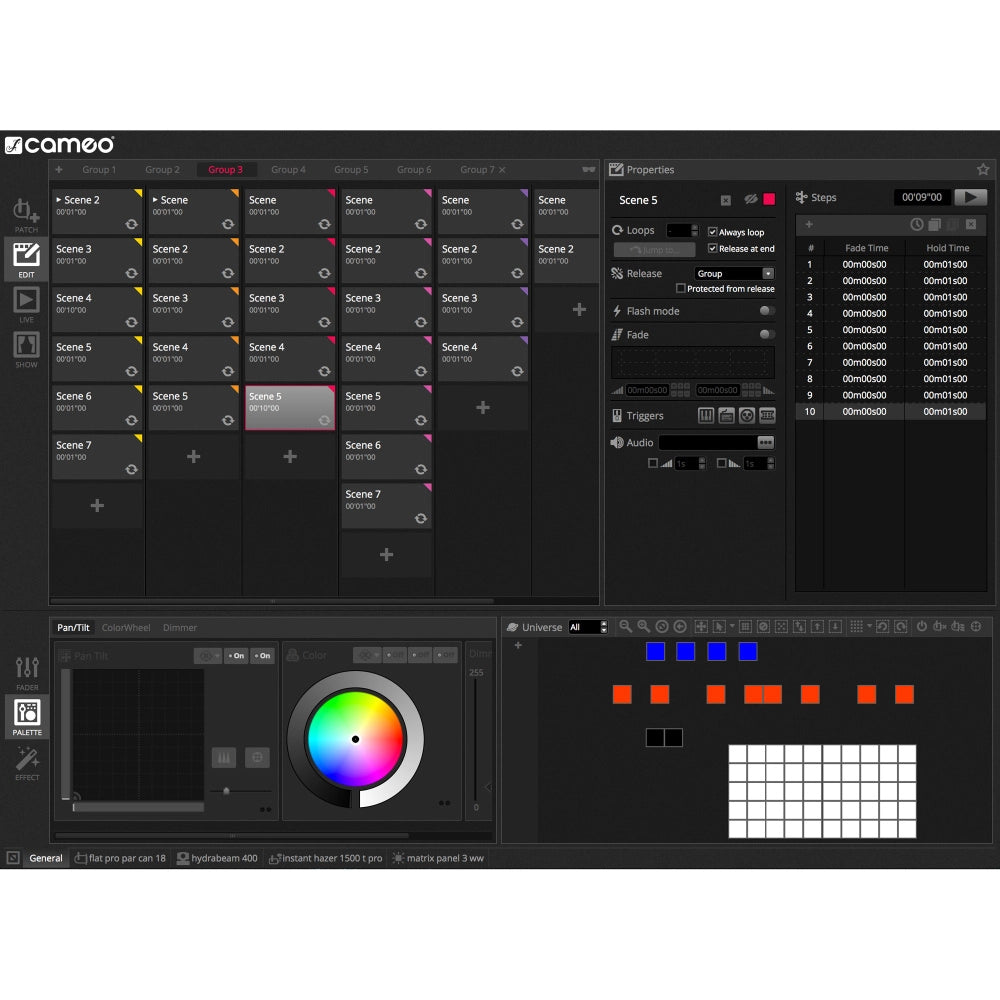

• User-friendly, intuitive Cameo DMX software "by Daslight" for Windows and Mac OS can be downloaded for free.
• Internet connection is required to register the hardware and activate the software.
• Over 15000 device libraries and built-in ScanLibrary editor, allowing you to create your own device profiles.
• Powerful XEEL engine providing hundreds of impressive pixel and video effects and movements for moving heads and scanners.

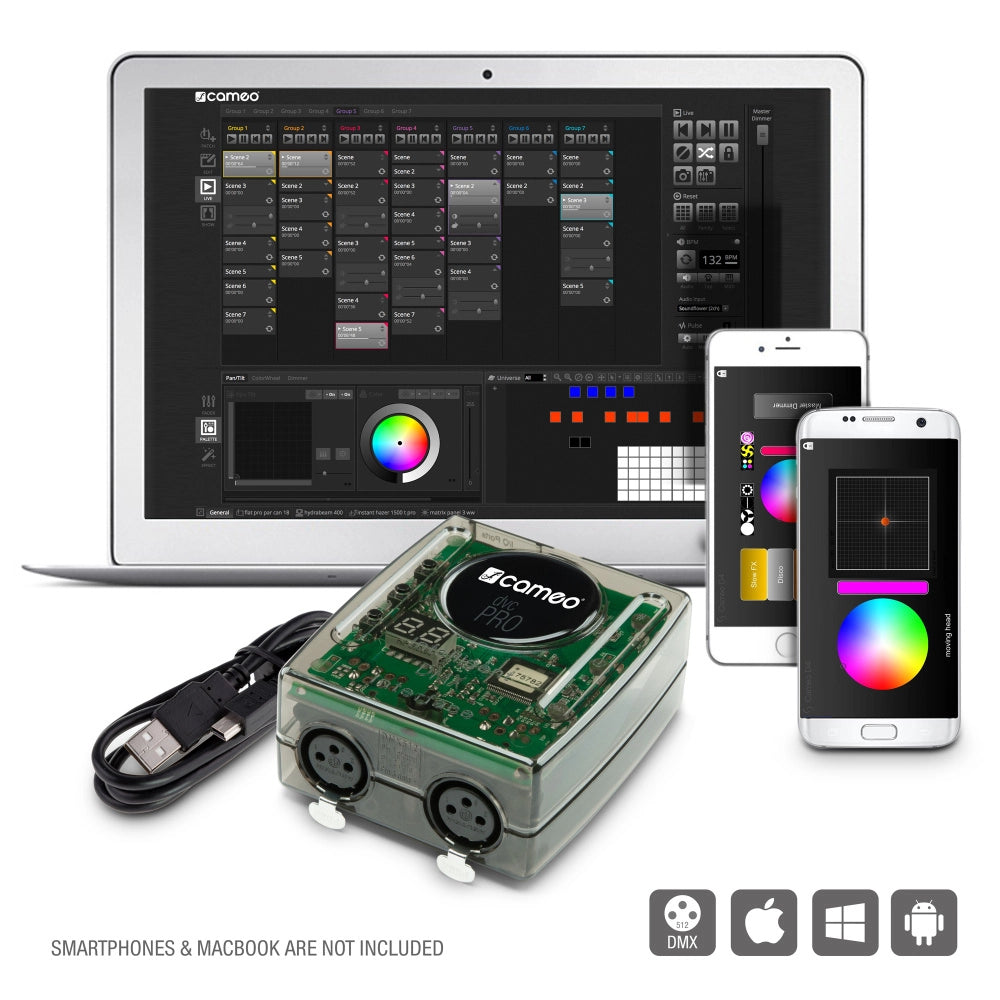

• Touchscreen control plus remote control of key functions via iOS and Android smartphones and tablets or via MIDI controller.
• Built-in access point for remote control via Wi-Fi in standalone mode.
• Audio analytics and MIDI clock to synchronize light show and music tempo.
• Real-time programming and 3D visualization of light show.
• Compatible with Light Raider app on Android and iOS devices (free 30-day trial version can be downloaded).

Product type

USB to DMX Interface

Live channels

1024 channels (expandable via ArtNet)

Stand Alone channels

256 channels (expandable up to 1024 channels)

Software Mode

full Cameo D4 / full Daslight D4

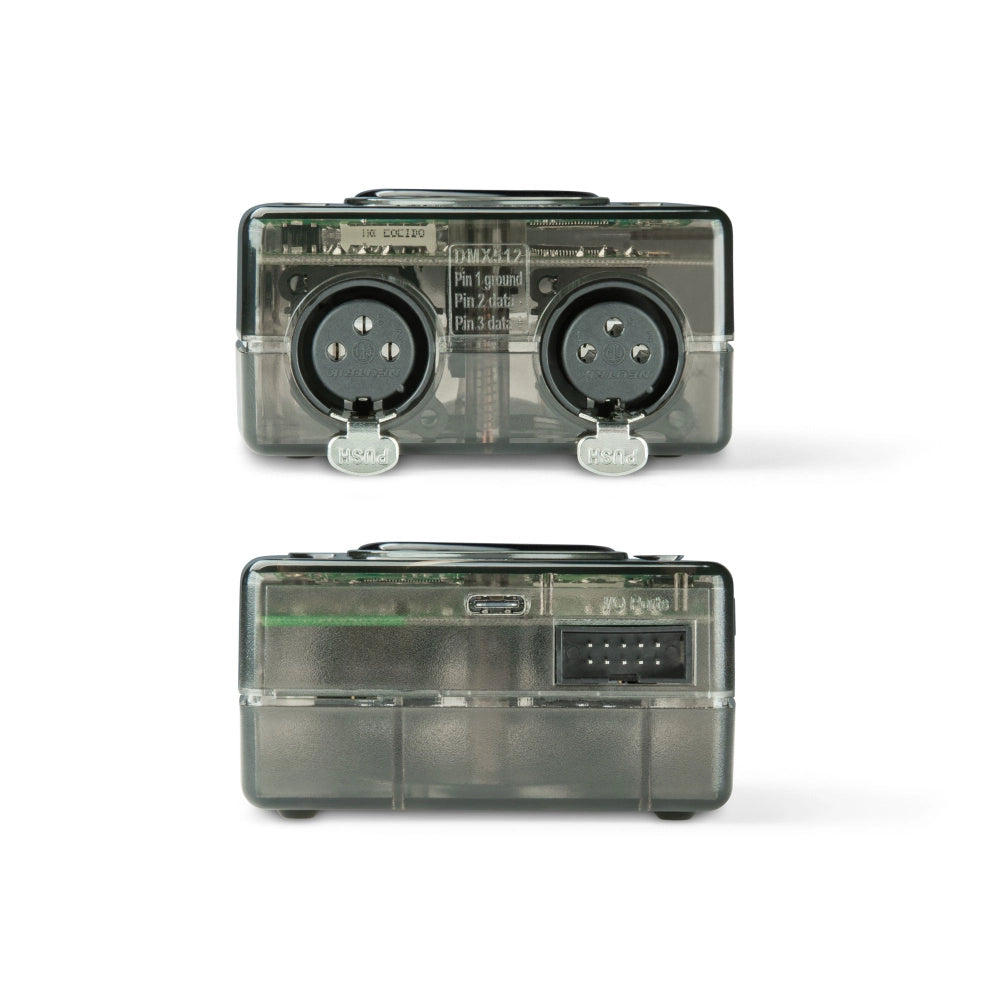

Inputs

USB-C

Outputs

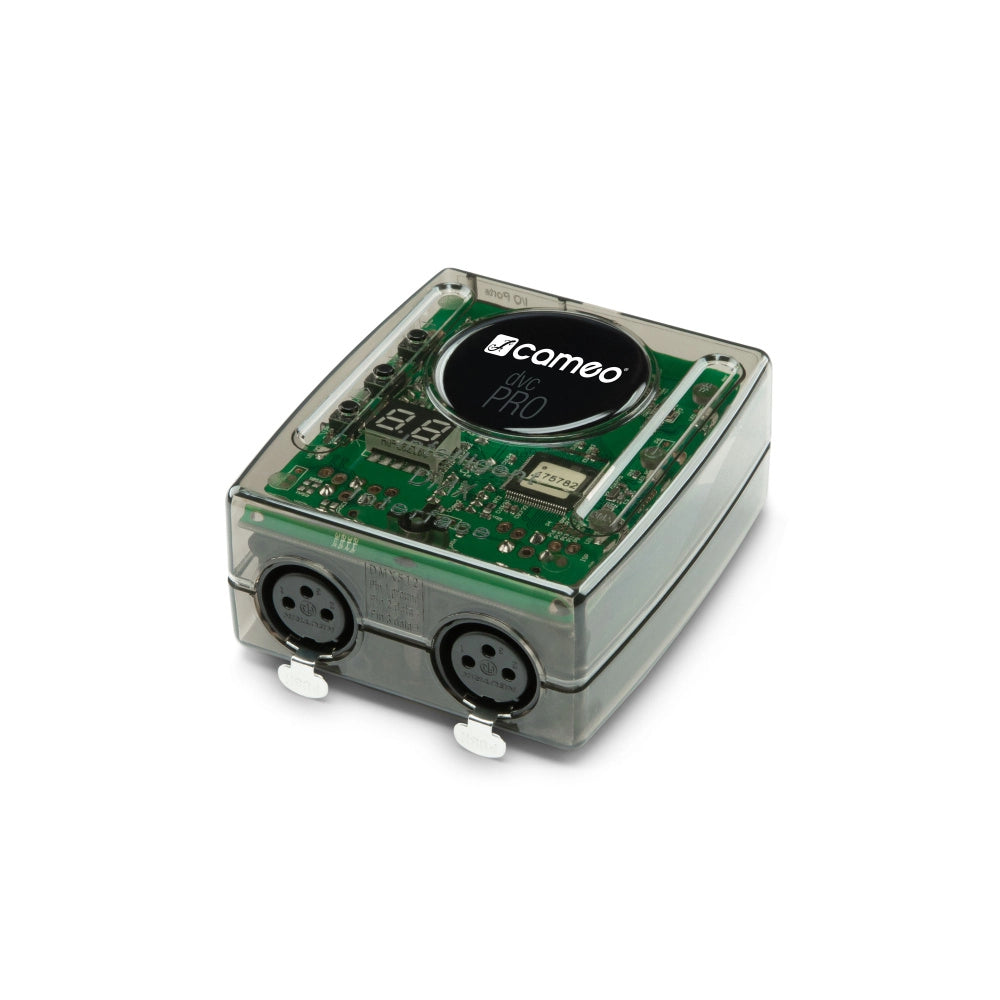

2 x XLR 3 pin female

Memory

120 K

Dry contact ports

8

Operating voltage

5 V USB bus powered

Width

78 mm

Height

27 mm

Depth

88 mm

Accessories (included)

USB to USB-C

Weight

0,193 kg
