Cameo STUDIO PAR 4 G2
Beschreibung
Beschreibung
- Cameos STUDIO PAR 4 G2 offers 12 x 8 W 4-in-1 RGBW LED with 4.700 lm brightness
- Offers you efficiency, intuitive control and wireless control
- Enormous ease of use

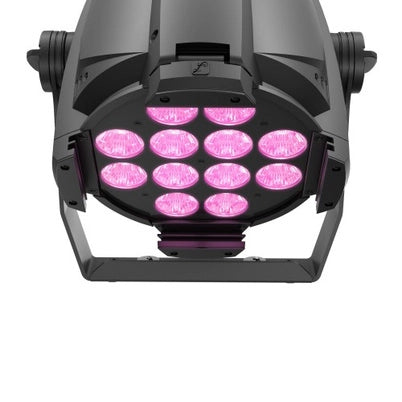

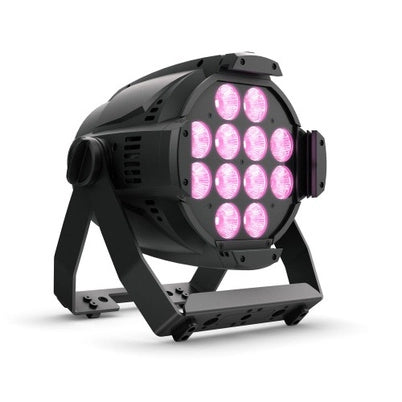

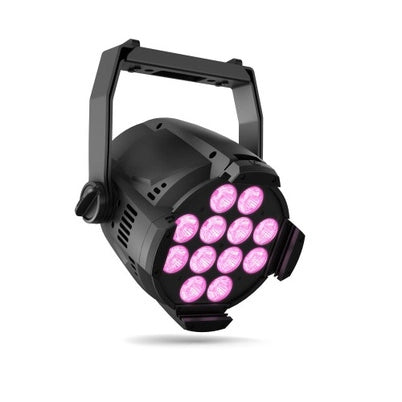

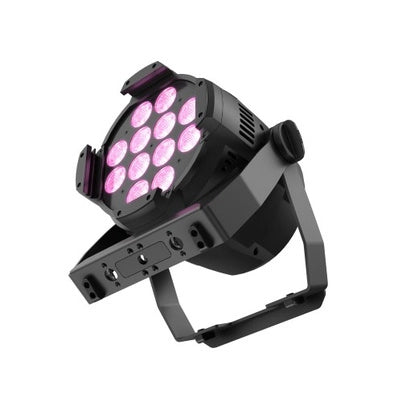

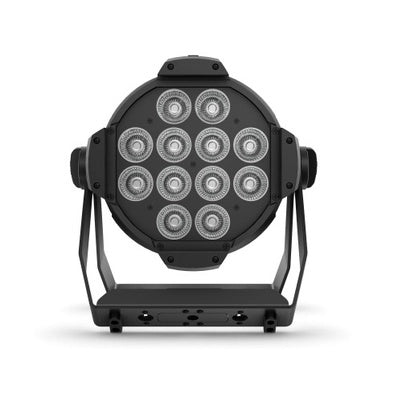

Cameo STUDIO PAR 4 G2 LED Lamp
- Make it easy illuminate an entire environment with this stunning 12 x 8 W 4-in-1 RGBW LED with 4,700 lm brightness
- Cameo has had the design through extensive optimisation, so the user gets a product that is not only efficient, but also easy to use.
- Thanks to the adjustable pulse width modulation (up to 25 kHz) for flicker-free drift, you can count on a great yield without compromising on quality
- Installation is easy and intuitive with a holding system designed to fit colour filter frames
- Get wireless control using the Cameo iDMX Stick
- Configuration is simple thanks to the user-friendly OLED screen
- PowerCON-compatible power connector provides additional flexibility
Spezifikationen
Spezifikationen
-
Weight (kg)
More specifications
More specifications
Product type: LED PAR lighting
Type: studio PAR
Colour spectrum: RGBW
Number of LEDs: 12
LED type: 4 in 1 RGBW 8 W SMD LED
Luminous flux: 4700 lm
Spread: Beam angle: 19°, Field angle: 27°
Lens: 12 x acrylic lens
LED PWM frequency: 650 Hz, 1530 Hz, 3600 Hz, 12000 Hz, 18900 Hz, 25000 Hz
Dimmer resolution: 16 bit
Dimming curves: exponential, linear, logarithmic, quadratic
Strobe: 0 - 20 Hz
CRI: >72 Ra
DMX input: 3-Pin, iDMX slot
DMX output: 3-Pin
DMX mode: 1-channel, 10-channel, 14-channel, 3-channel, 4-channel, 6-channel, 8-channel
DMX functions: Color Macro, Device Settings, Dimmer, Dimmer Curve, EZ-Chase, RGBW, Strobe
Standalone Modes: Auto Mode, Static
System Settings: Calibration, Default Settings, Dimmer, Dimmer Response, Display, Fan Mode, LED PWM Frequency, Signal Error, Wireless
Controls: 4 x buttons, down, enter, menu, up
Indicators: OLED display
Relative humidity: < 80%, non-condensing
Protection class IP: IP20
Ambient temperature (drift): -10 - 40 °C
Cooling: Convection, low-noise fan
Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz

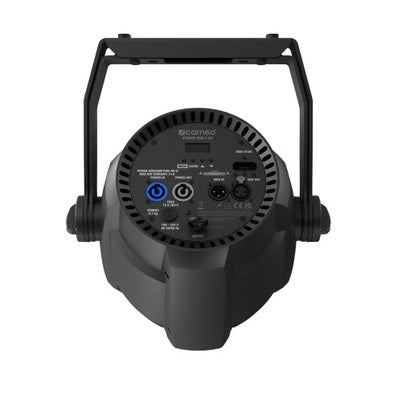

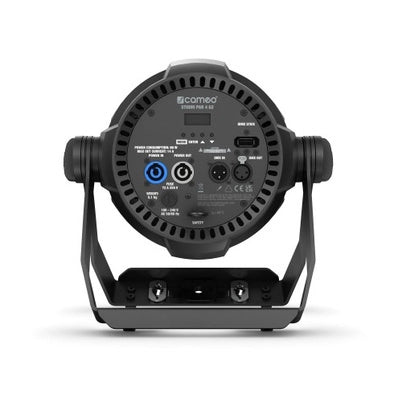

Power connector: PowerCon Blue I/O
Fuse: T2A
Max. Power consumption: 90 W
Housing: Die-cast aluminium
Cabinet surface: Powder-coated
Cabinet colour: Black
Height: 360 mm
Width: 310 mm
Depth: 250 mm
Weight: 5.1 kg
