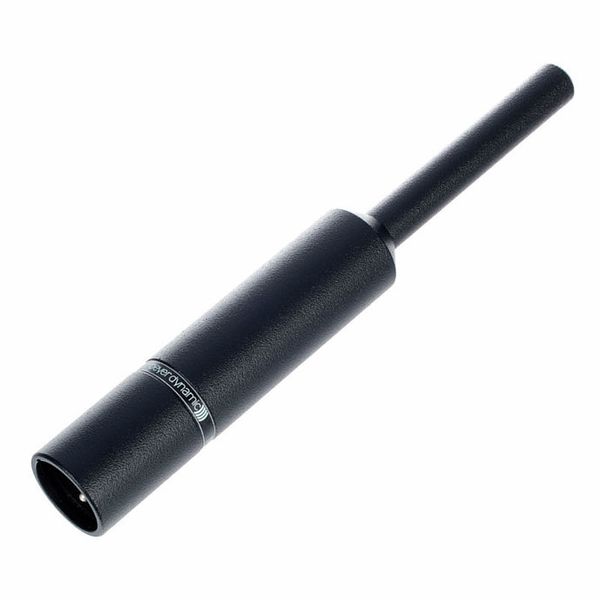

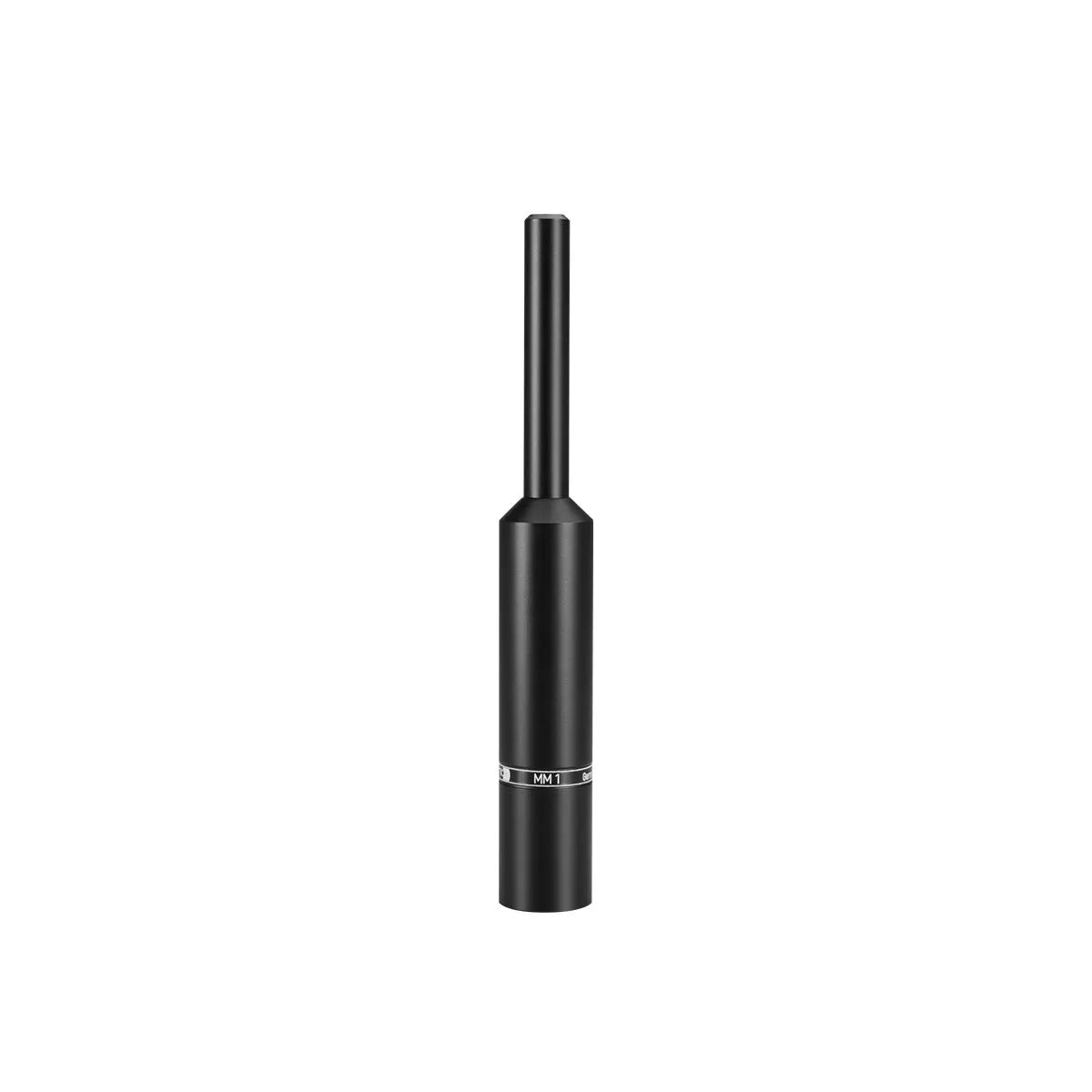

Beyerdynamic MM 1 Measuring microphone

• Microphone for measuring sound reinforcement and PA systems
• Open calibrated circuit voltage
• Robust and compact metal housing
• Ideal microphone for analysing audio signals

Beyerdynamic MM 1 Measuring microphone

Microphone specially designed for measuring sound reinforcement and PA systems

• Linear frequency response in the diffuse field - below 90°.
• Open calibrated circuit voltage.
• Robust and compact metal housing.

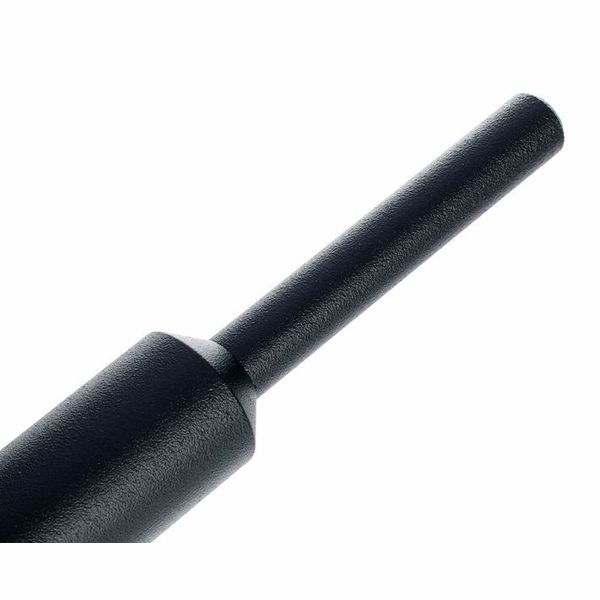

• Narrow tubular construction to minimise influence on sound field.
• MM1 is the ideal microphone for measurement and analysis of sound signals in reverberation tests etc.

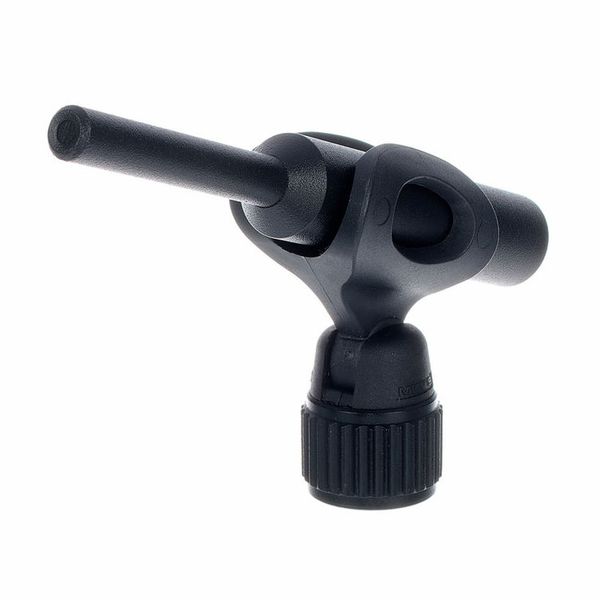

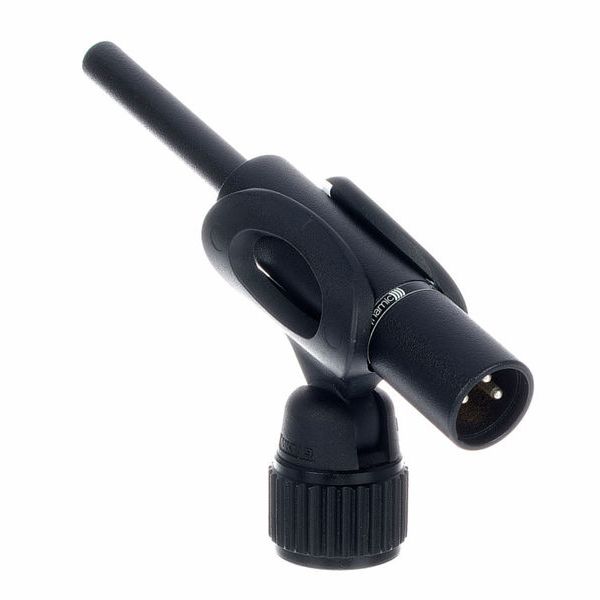

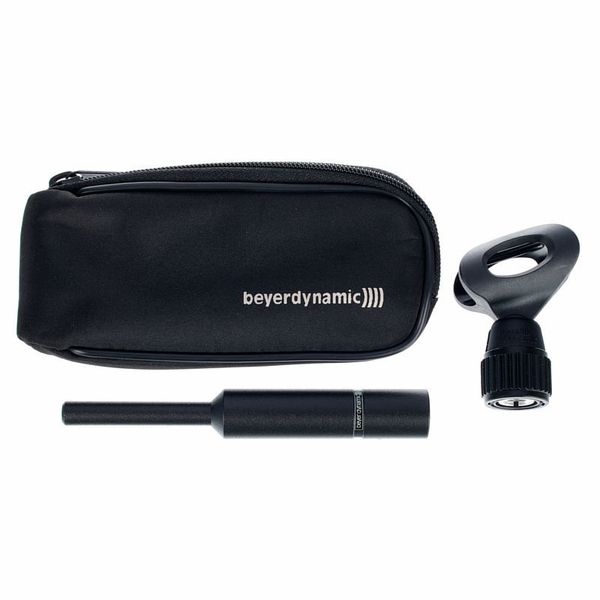

• Bag, microphone holder and measurement chart included.

TRANSDUCER TYPE
Condenser

POLAR PATTERN
Omnidirectional

MICROPHONE FREQUENCY RESPONSE
20 - 20.000 Hz

CONNECTION TYPE

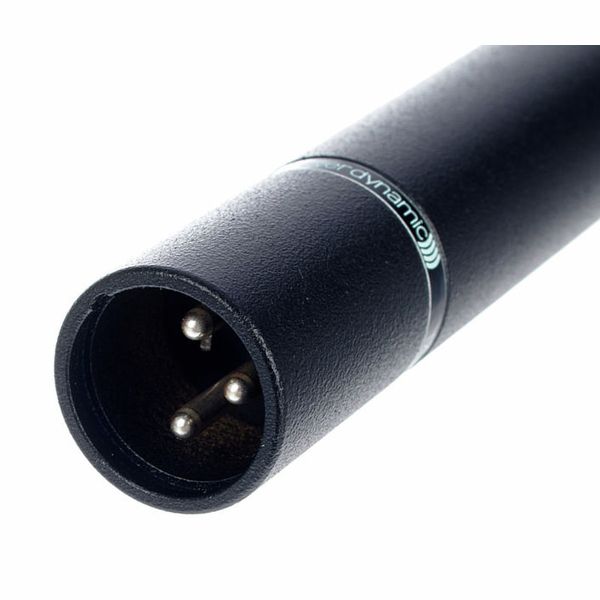

XLR 3-pin

MAX SPL:
128 dB

CURRENT CUNSOMPTION APPROX:
3.4 mA

DIMENSIONS:
133 x 19/9 mm

CAPSULE DIAMETER:
9 mm

WEIGHT:
88 g
