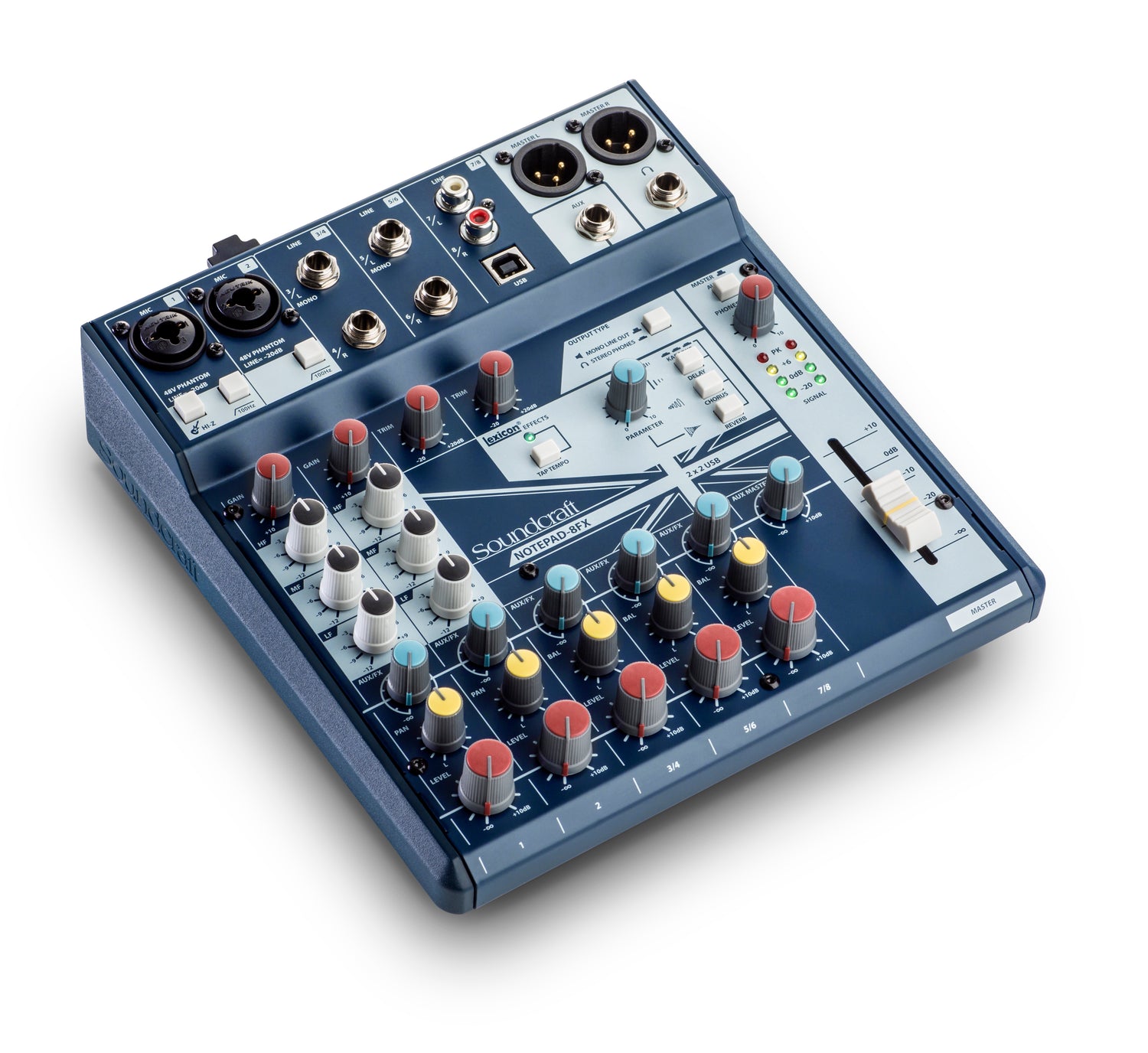

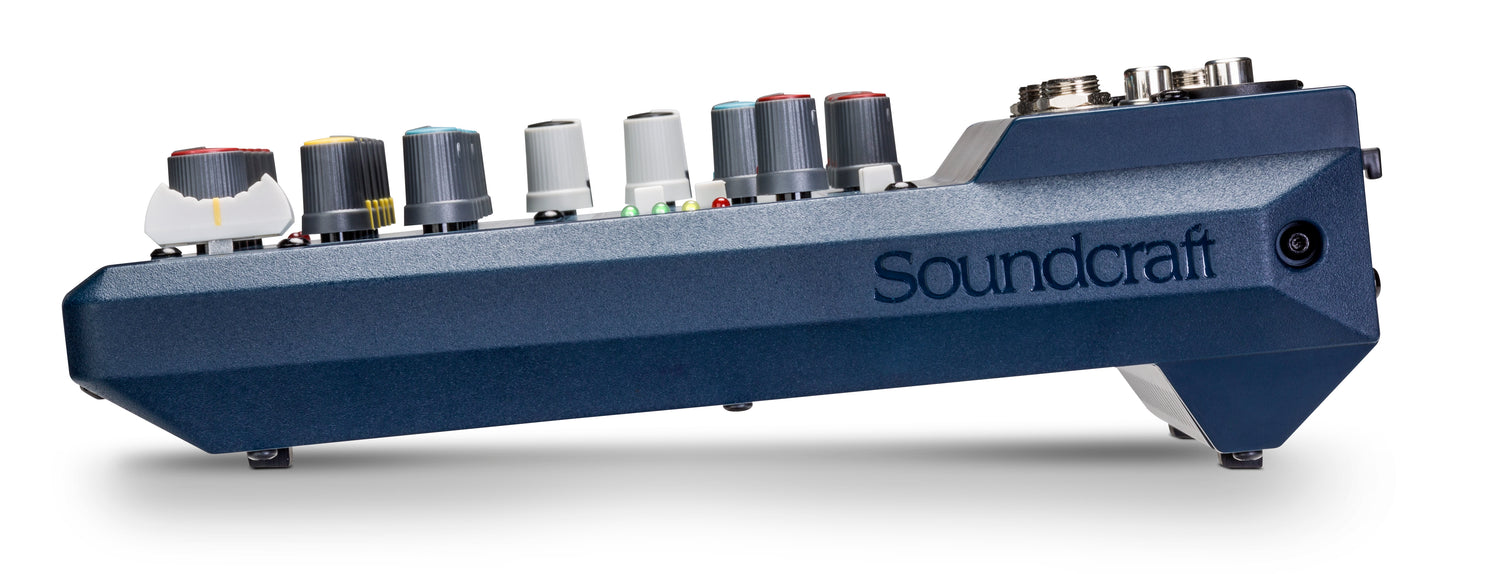

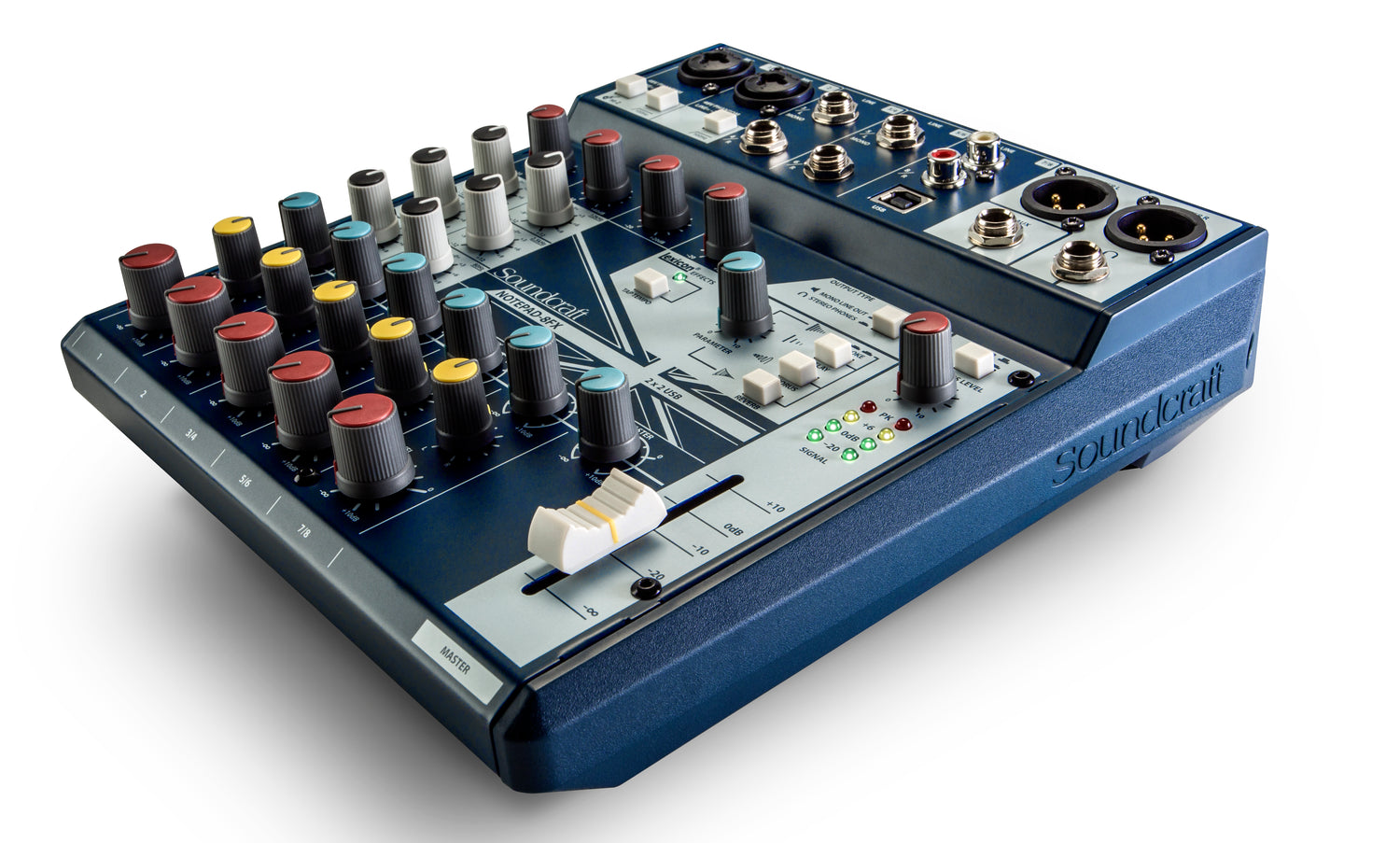

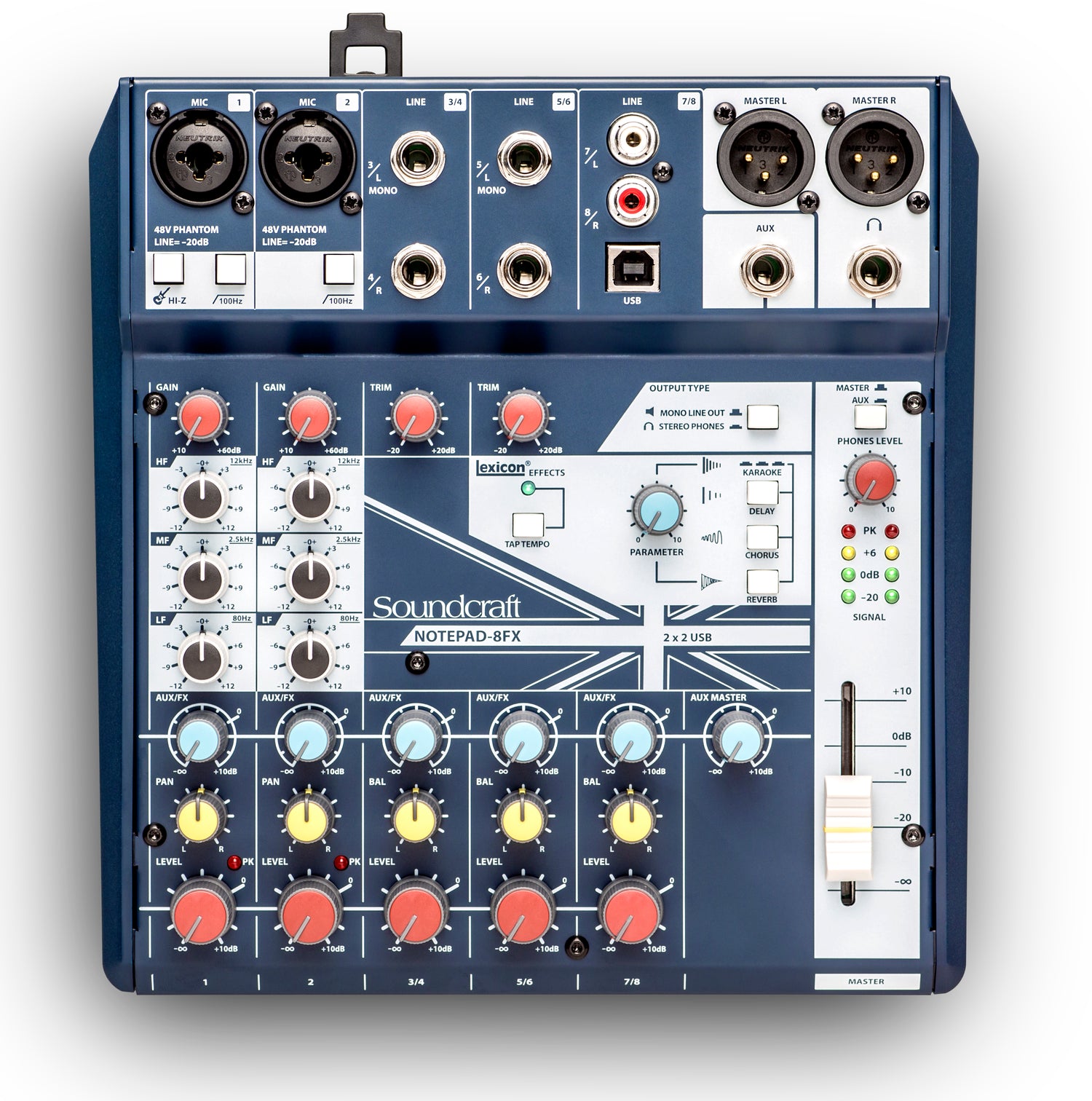

Soundcraft Notepad 8FX

• Compact analogue mixer with USB interface
• Lexicon high quality effects
• Great for music, podcasts or videos
• High quality and resolution microphone preamps
• XLR/Jack combo inputs
• Ruggedly built for life on the road

Soundcraft Notepad 8FX

• Compact analog mixer with USB interface and built-in high-quality Lexicon effects.
• Ideal for music, podcasts or videos.
• Built with high quality analog components, Harman digital signal processing.
• Built-in USB audio interface for recording on PC or Mac.
• High quality and resolution microphone preamps.
• XLR/Jack combo inputs.
• Built-in reverb, chorus and delay.
• Aux sends, 3 band eq, headphone output.
• Ruggedly built for life on the road.

Input (Mic) - Mic/Line Combo Inputs     2
Input (Mic) - Gain     2
Input (Mic) - Inputs with Hi-Z     1
Input (Mic) - Peak Light     2
Input (Mic) - EQ High     2
Input (Mic) - EQ Mid     2
Input (Mic) - EQ Low     2
Input (Mic) - Pan     2
Input (Mic) - Level     2
Input (Line) - 1/4" Stereo Line Inputs w/Trim     2
Input (Line) - RCA Stereo Line Inputs     1
Input (Line) -  1/4" Stereo Line External FX Return    n/a
Input (Line) - Aux/FX     3
Input (Line) - Balance     3
Input (USB) - USB Return     2, summed with RCA, into channel 7&8
Output - Master Stereo Out     1
Output - Monitor Stereo Out     1
Output - Aux Out     1
Lexicon Processing - Reverb/Chorus/Delay     1
Lexicon Processing - Tap Tempo     1
Output Control - Master Level Fader     1
Output Control - Monitor/Phones Level     1
Output Control - Output Meters      4x LED
