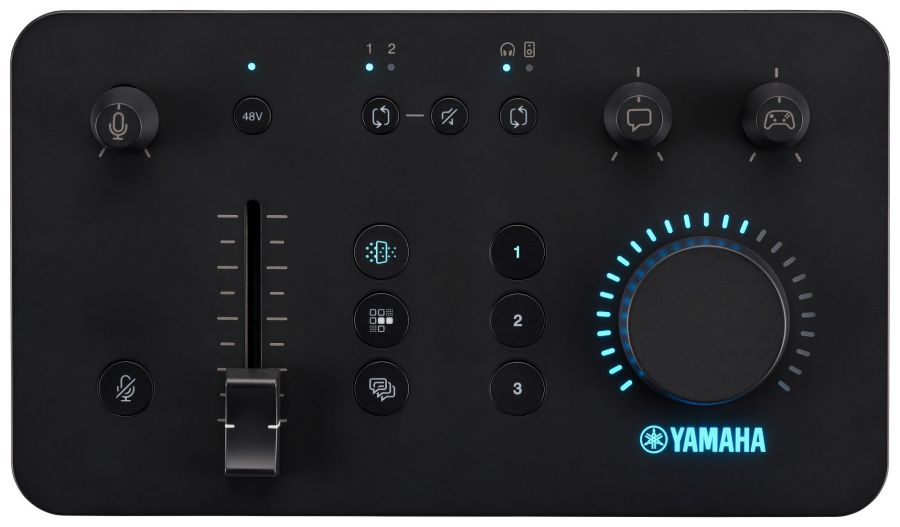

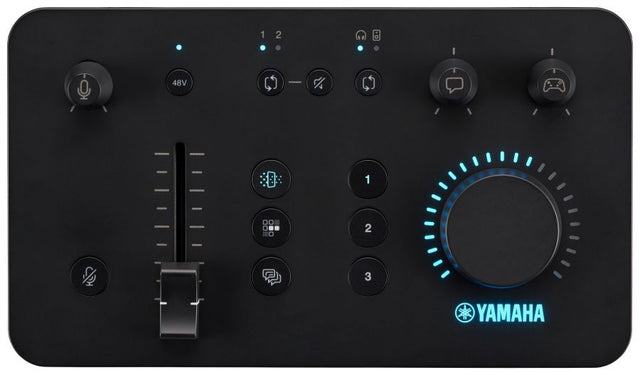

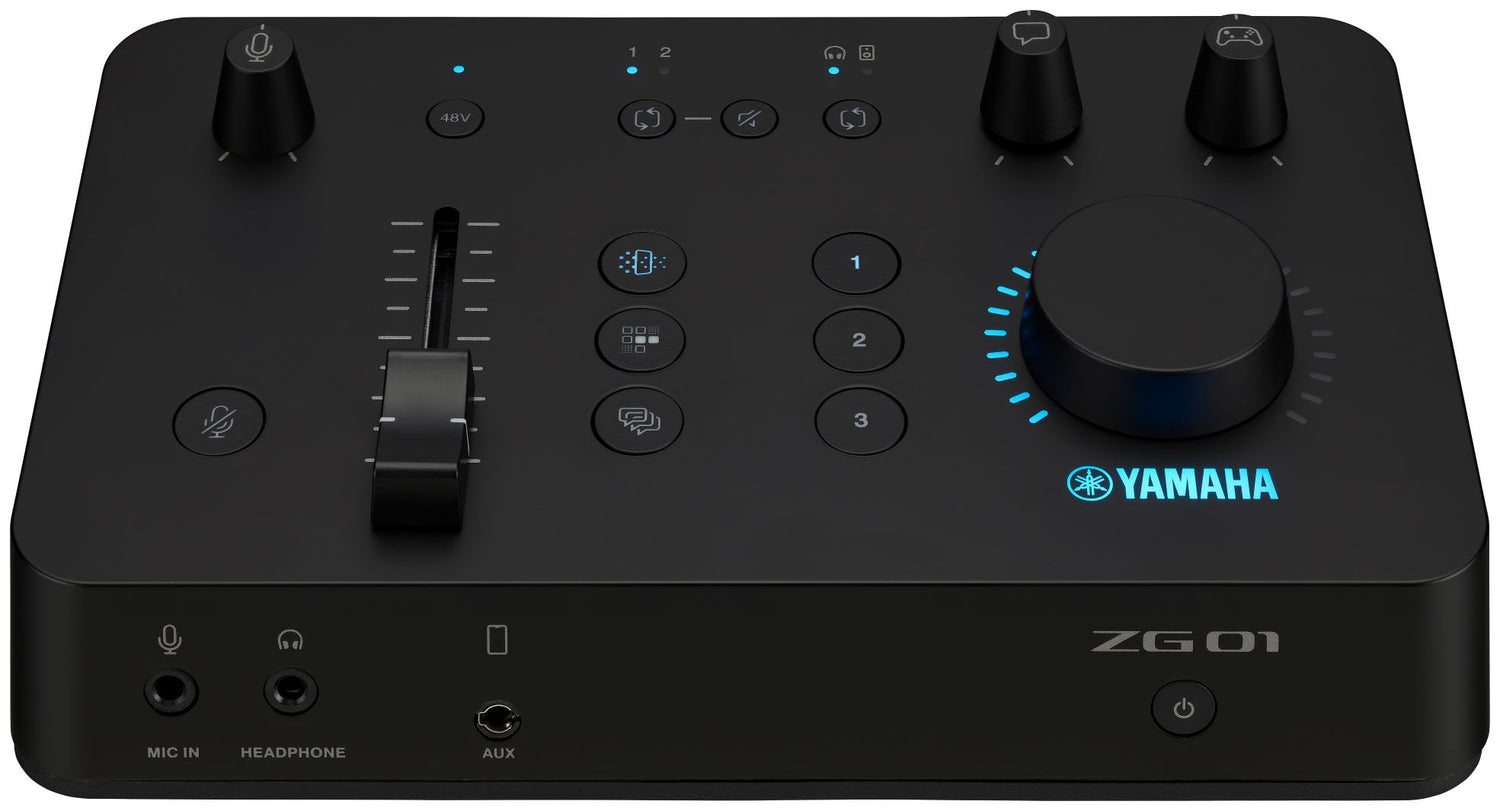

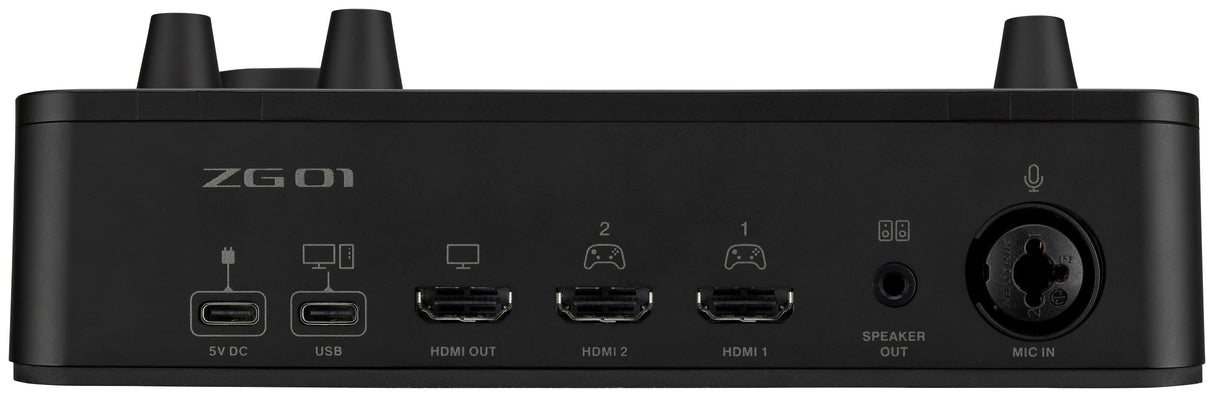

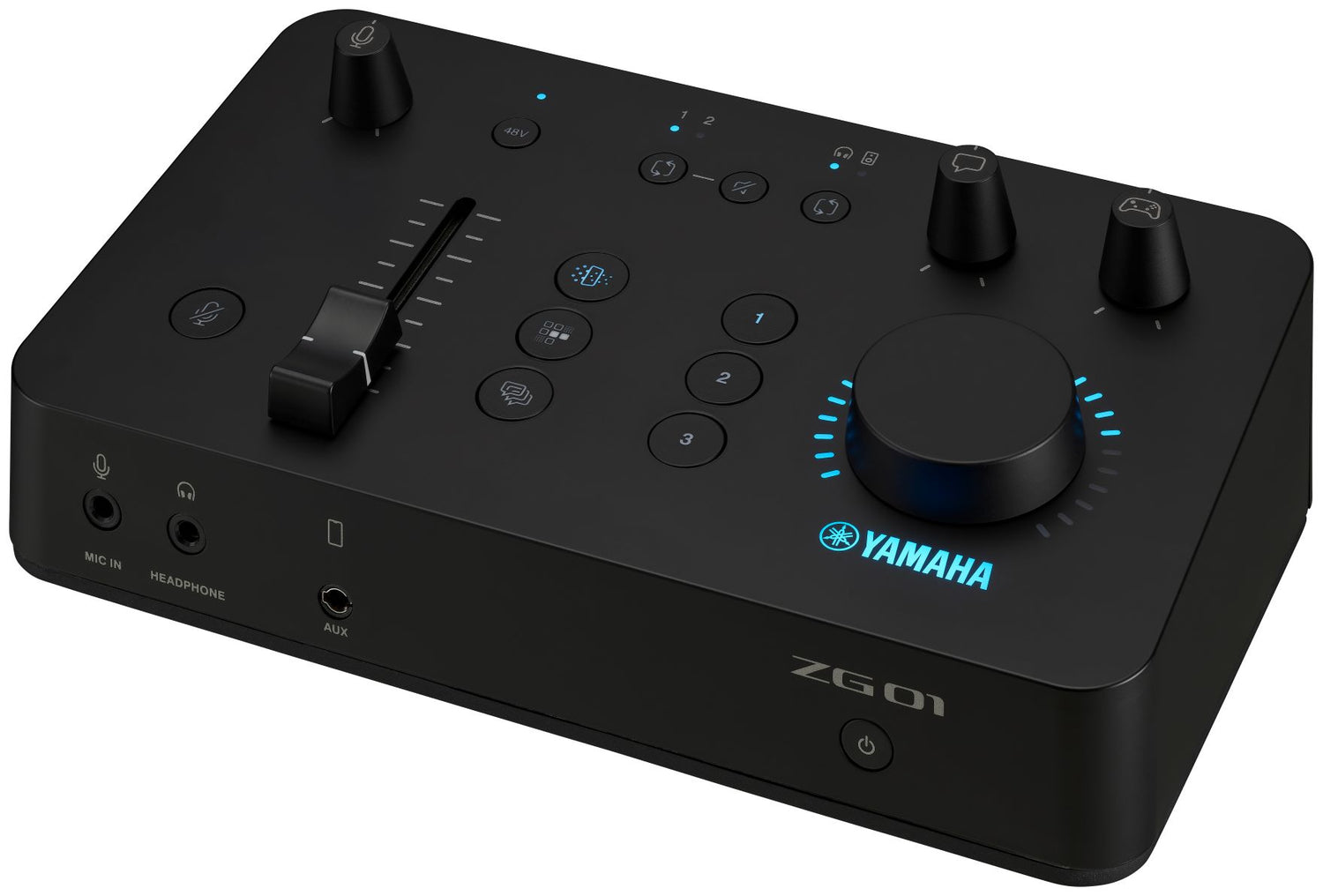

Yamaha ZG-01 Gaming Mixer

• Easy-to-use gaming mixer
• Designed by Yahama specifically for gaming
• Many adjustment options
• Great value for money!

Yamaha ZG-01 Gaming Mixer

• Smart mixer made for gaming and streaming
• Makes it easy to control the different audio inputs
• Easy to adjust the sound - 3 functions for both game audio and audio chat
• Complete intuitive control system
• High resulation - 24-bit, 48 kHz
• HDMI input and output!

Input channels:

Microphone: 1 - Combo (microphone, +48 V phantom power), 3.5 mm (1/8") mini (headset mic, plug-in power) *Mic and headset mic cannot be used simultaneously
Smartphone: 1 - 4-pin mini input/output (TRRS)
HDMI: 1 - Switchable input HDMI 1 or HDMI 2 with button *No video recording function
USB: 2 - Virtual devices (voice, streaming)

Output channels:

PHONES: 1 - 3.5 mm (1/8") stereo mini (headphones or headset phones)
Smartphone: 1 - 4-pin mini input/output (TRRS)
MONITOR OUT: 1 - Stereo mini (speaker out)
HDMI: 1 - Audio output: 2-channel 24-bit/48kHz fixed, Video signal: Pass-through
USB: 2 - Virtual devices (voice, speaker)
Features: MUTE button x 1, HDMI input select button x 1, Display output select button x 1, Effect preset button x 6 (voice x 3, game x3)

USB audio: Sample rate: Max. 48 kHz, Bit Depth: 24-bit, Type-C
USB DC Power Input: 1 - Type-C, 5 V DC, 1.5 A

General:

Power requirements: 5 V DC, 1.5 A
Power consumption: Max. 7.5 W
Dimensions: W: 195 mm (7.7") H: 47.5 mm (1.9") D: 110 mm (4.3")
Net weight: 0.8 kg (1.8 lbs)
Supplied accessories: USB 2.0 cable (USB-C to USB-C) 1.5 m x 1, USB 2.0 cable (USB-A to USB-C) 1.5 m x 1, Getting Started Guide, Safety Guide
Other: Operating temperature: 0 to + 40
