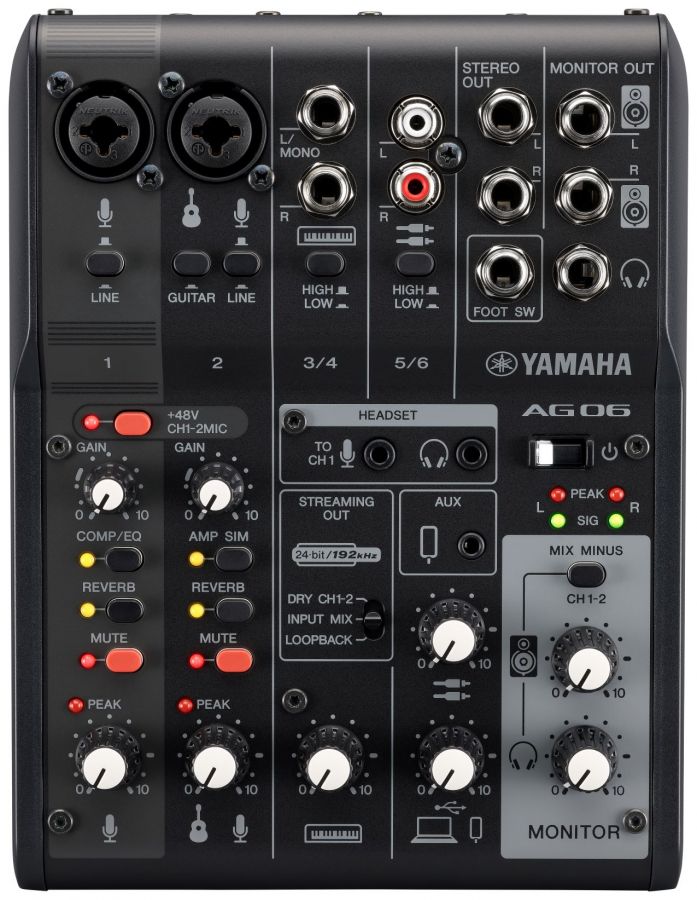

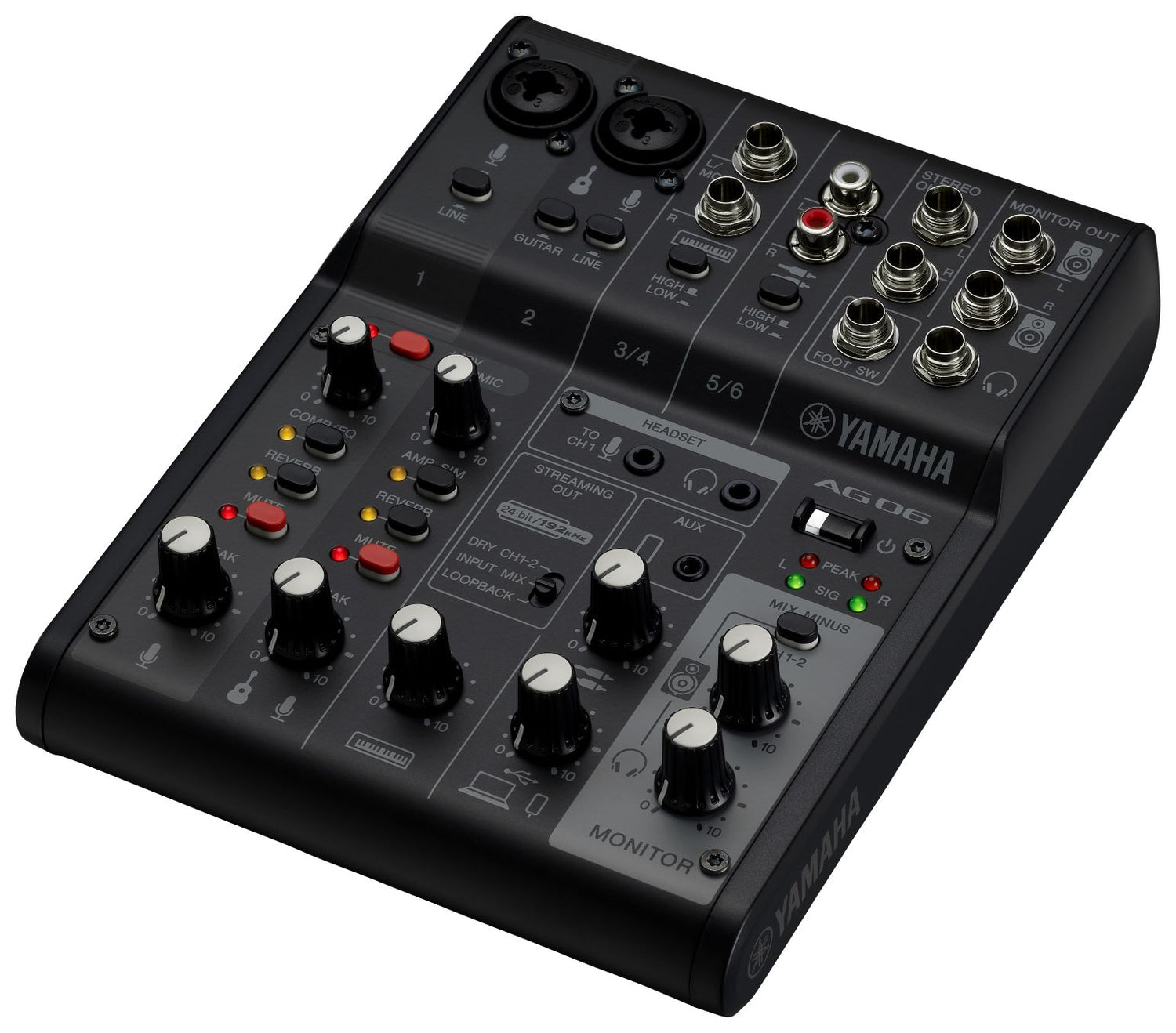

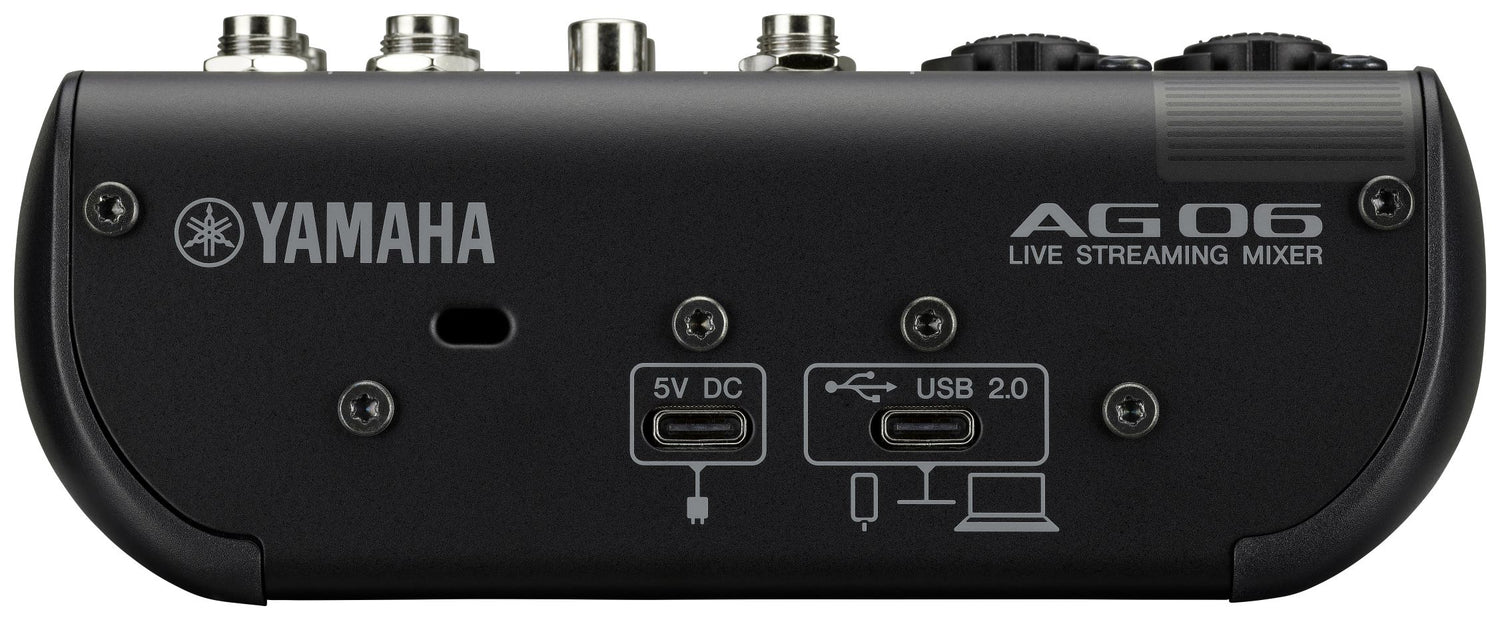

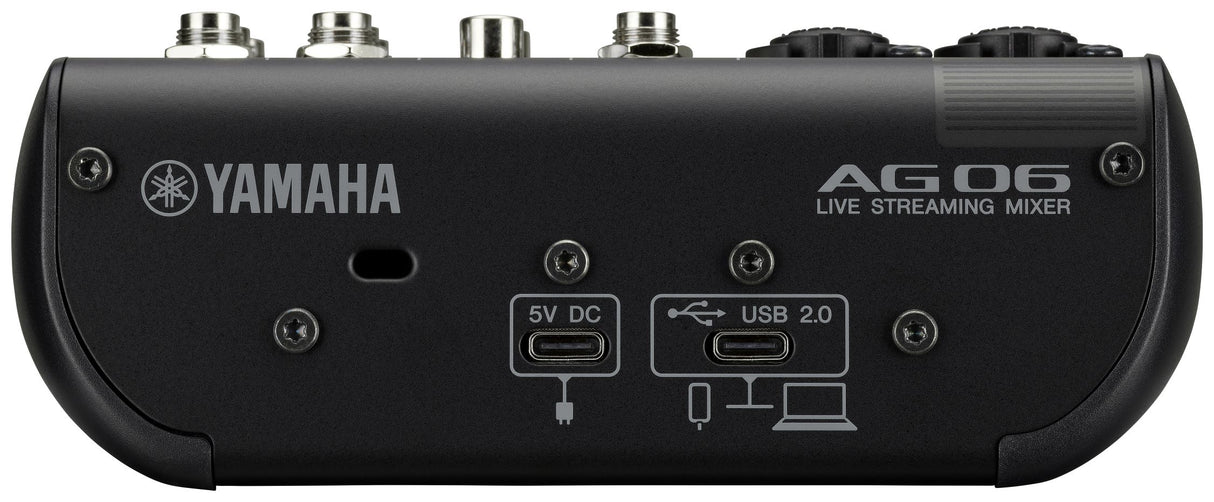

Yamaha AG06 MkII Live Streaming Mixer (Black)
Beschreibung
Beschreibung
- Sharp live streaming mixer from Yahama
- With two microphone inputs
- Easy to connect to your own set-up
Yamaha AG06 MkII Live Streaming Mixer (Black)
- Live streaming mixer from Yahama with two microphone inputs
- Several cool features - such as Yahama's loopback feature
- 6 channels
- Larger mixer with many different options
- Intuitive control system
Spezifikationen
Spezifikationen
-
Weight (kg)
More specifications
More specifications
Input channels:
Mono [MIC/LINE]: 2 - CH1: Combo (microphone, +48 V phantom power / line), 3.5 mm (1/8") stereo mini (headset microphone, plug-in power), CH2: Combo (microphone, +48 V phantom power / Guitar input / Line) *CH1 input and headset microphone cannot be used simultaneously
Stereo [LINE]: 2 - L/R Stereo: Phone, RCA
Smartphone: 1 - PHONES / HEADSET PHONES *Cannot be used simultaneously
USB: 1
Output channels:
PHONES: 2 - PHONES / HEADSET PHONES *Cannot be used simultaneously
Smartphone: 1 - 4-pin mini input/output (TRRS)
MONITOR OUT: 1
STEREO OUTPUT: 1
USB: 1
Bus: 1 Stereo system
Functions: MUTE button x 1, PAD button x 2, HI-Z button x 1, STREAMING OUT (DRY CH 1-2G / INPUT MIX / LOOPBACK), MIX MINUS MIC (ON / OFF)
Built-in processors
DSP: COMP/EQ, REVERB (SPX Reverb), AMP SIM *Details are operated on AG Controller
USB
USB Audio: 2 IN / 2 OUT, USB Audio Class 2.0 compatible, Sampling Frequency: Max. 192 kHz, Bit Depth: 24-bit, Type-C
USB DC Power Input: 1 - Type-C, 5 V DC, 900 mA
General Specifications
Power requirements: 5 V DC, 900 mA
Power consumption: Max. 4.5 W
Dimensions: W 152 mm (6.0") H 63 mm (2.5") D 201 mm (7.9")
Net weight: 0.9 kg (2.0 lbs)
Included accessories: USB2.0 cable (1.5 m), Quick Guide, Safety Guide, Wavelab Cast download details, Cubase AI download details
Other: Operating temperature: 0 to + 40 ?
