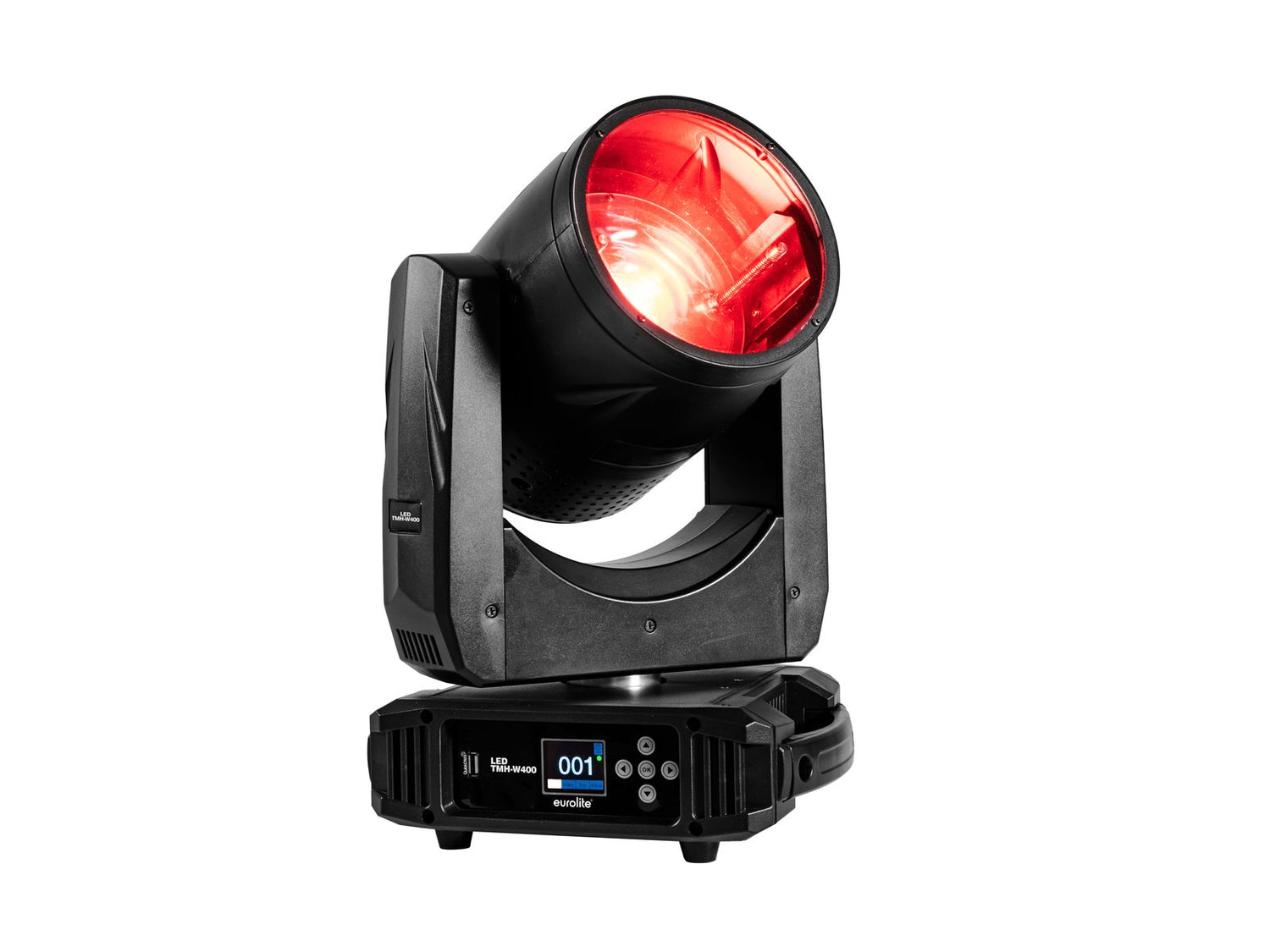

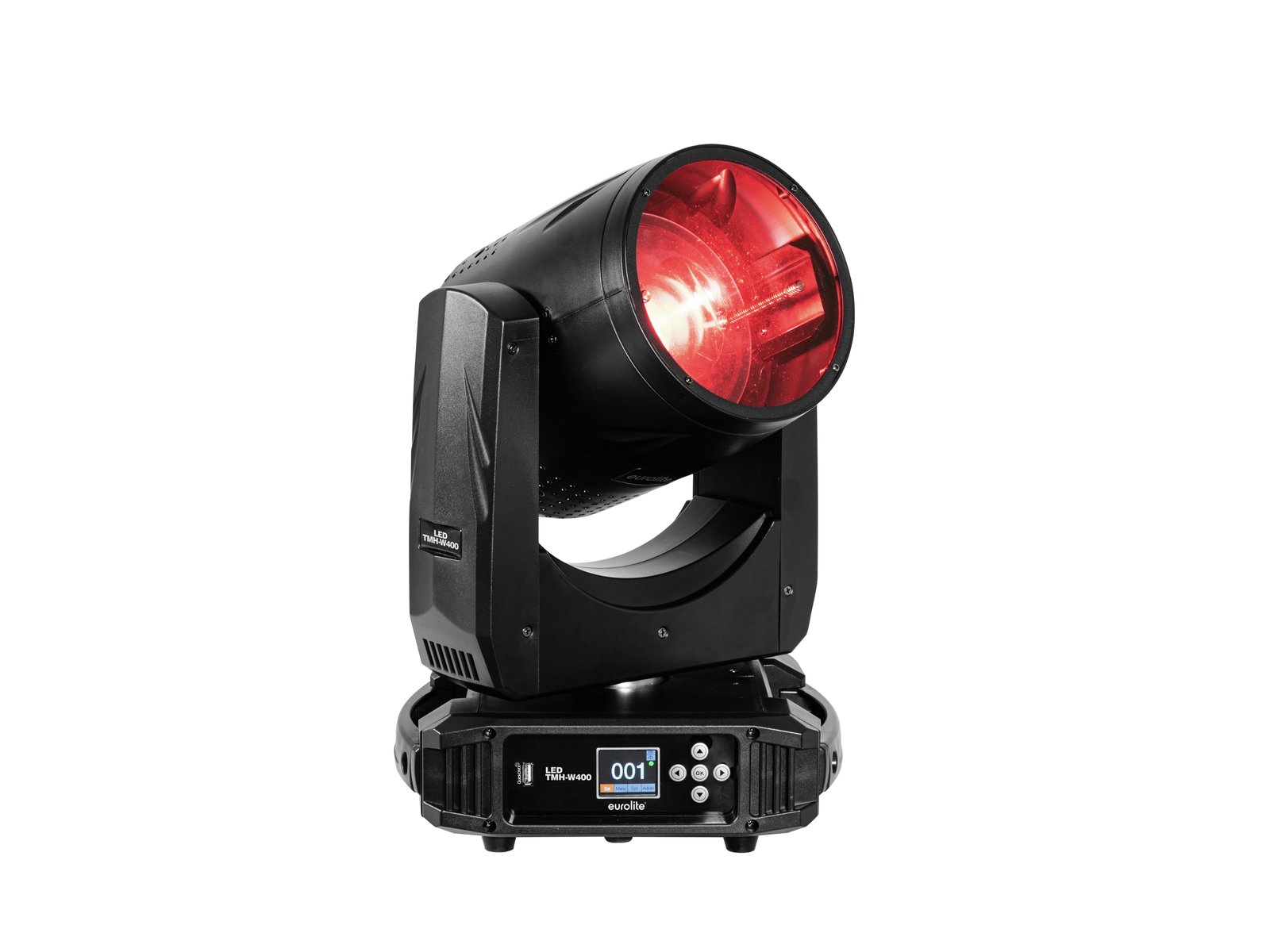

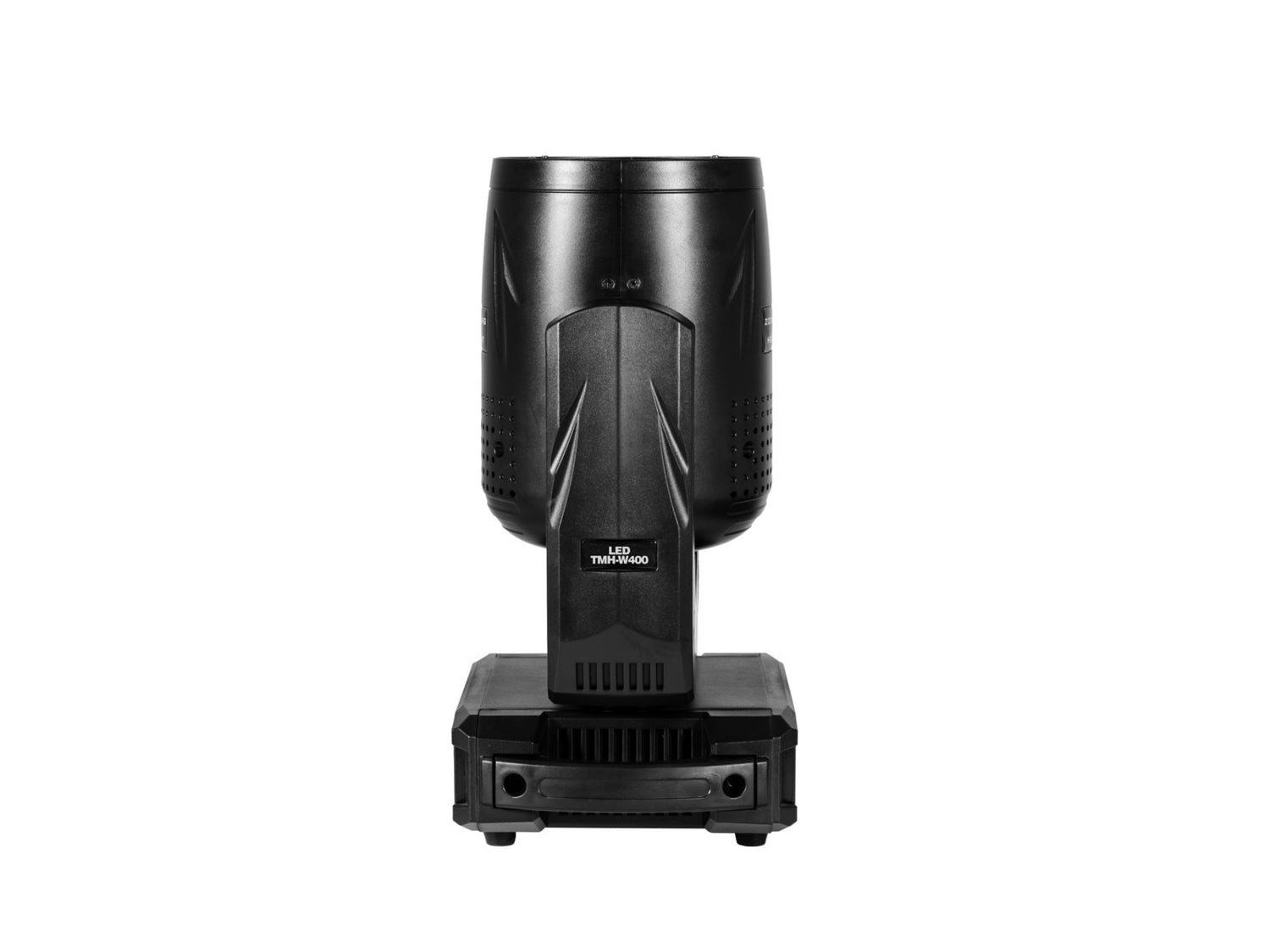

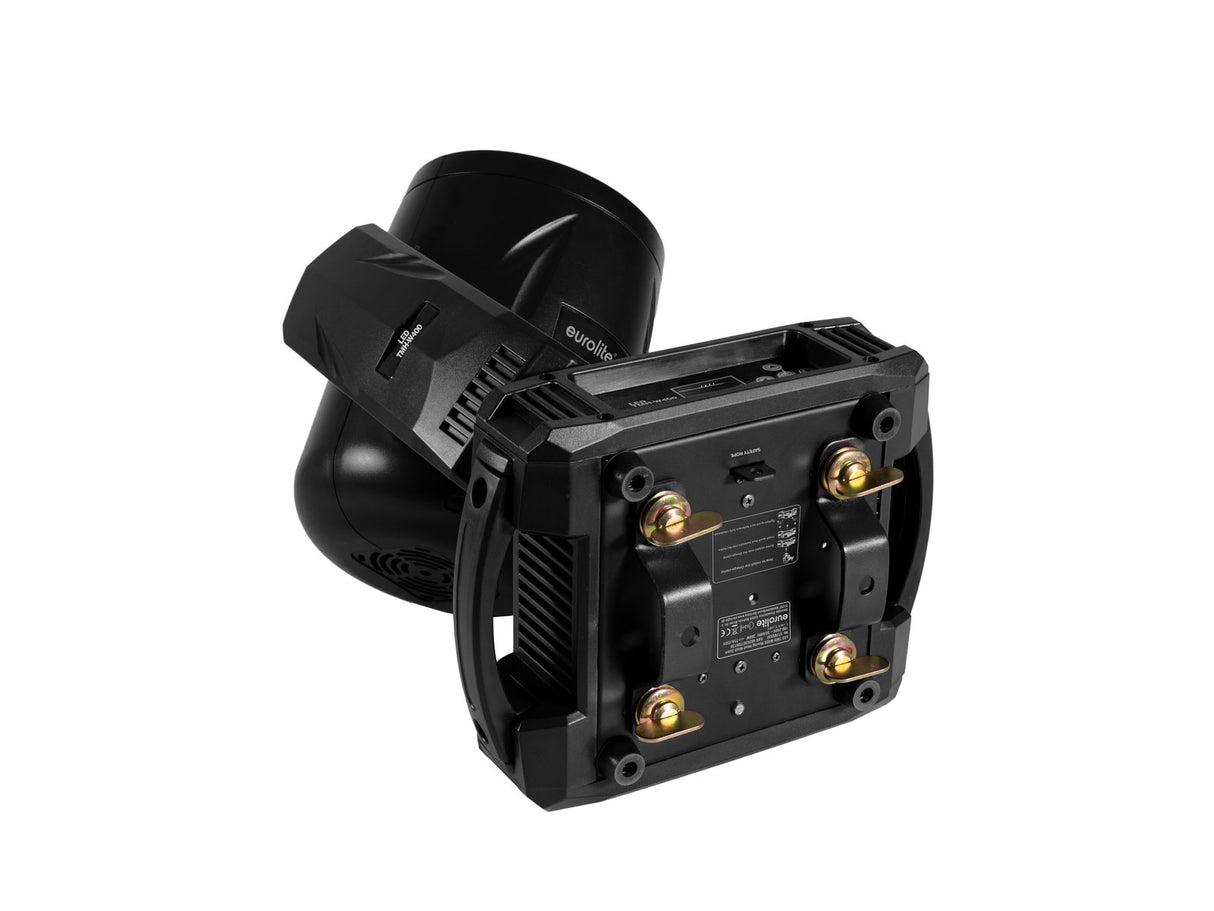

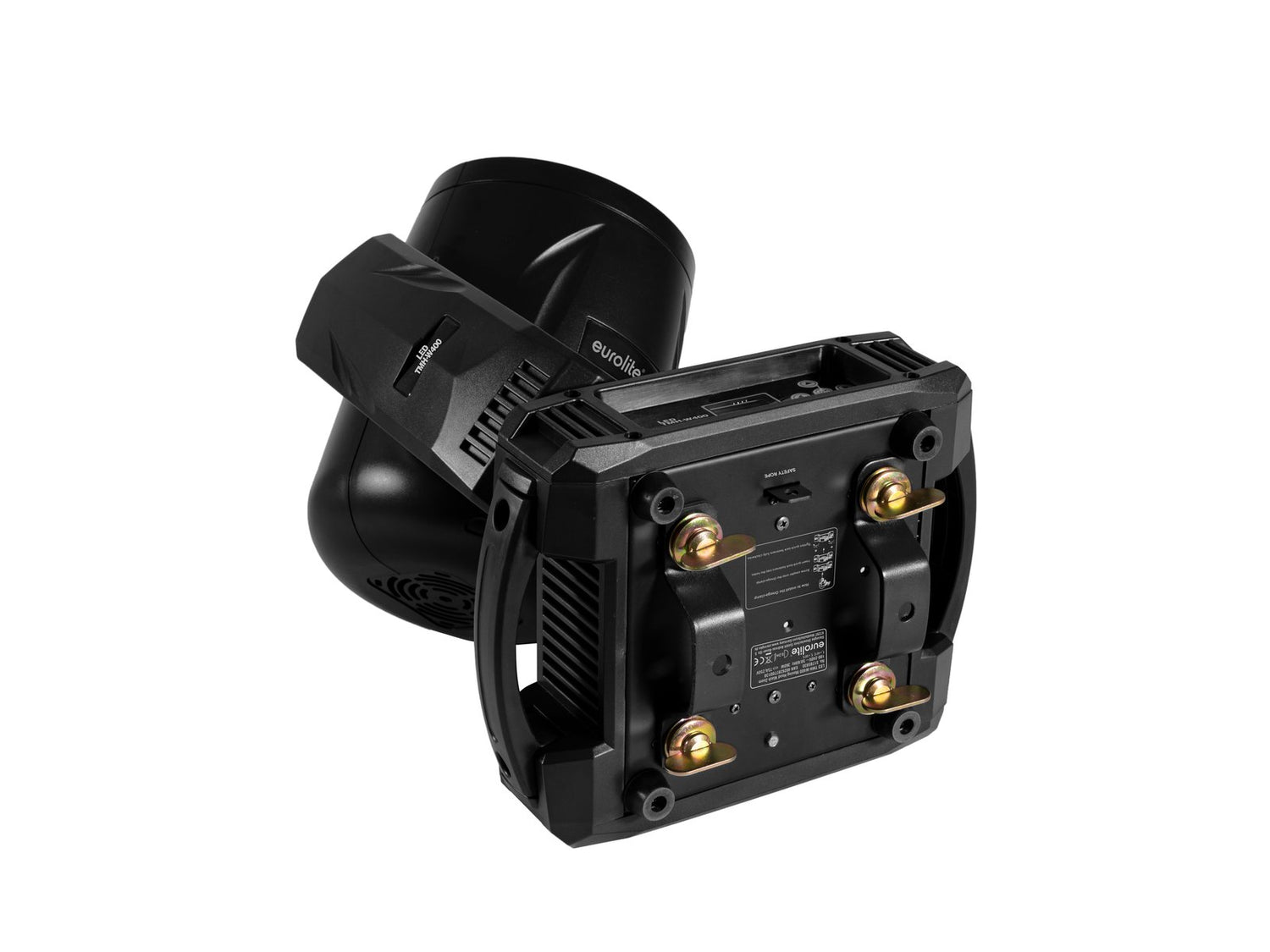

Eurolite LED TMH-W400

• One high-power 400 W RGB/WW LED (4in1)
• Motorized zoom with 9-48° beam angle
• Stepless RGBW color mixture
• Auto, music, master/slave and DMX mode
• Built-in auto and music show programs
• Strobe effect 1-25 Hz
• Random strobe effect
• Electronic dimmer (0-100%)
• Automatic position correction
• Positioning within 540° PAN and 230° TILT
• Exact positioning via 16-bit PAN/TILT movement resolution
• Supports QuickDMX - the wireless DMX system from Eurolite
• Control panel with color LC display for easy configuration
• Built-in phantom-powered USB port for QuickDMX, CRMX and WDMX receivers (optional)
• Mains input and output for power linking up to 4 units

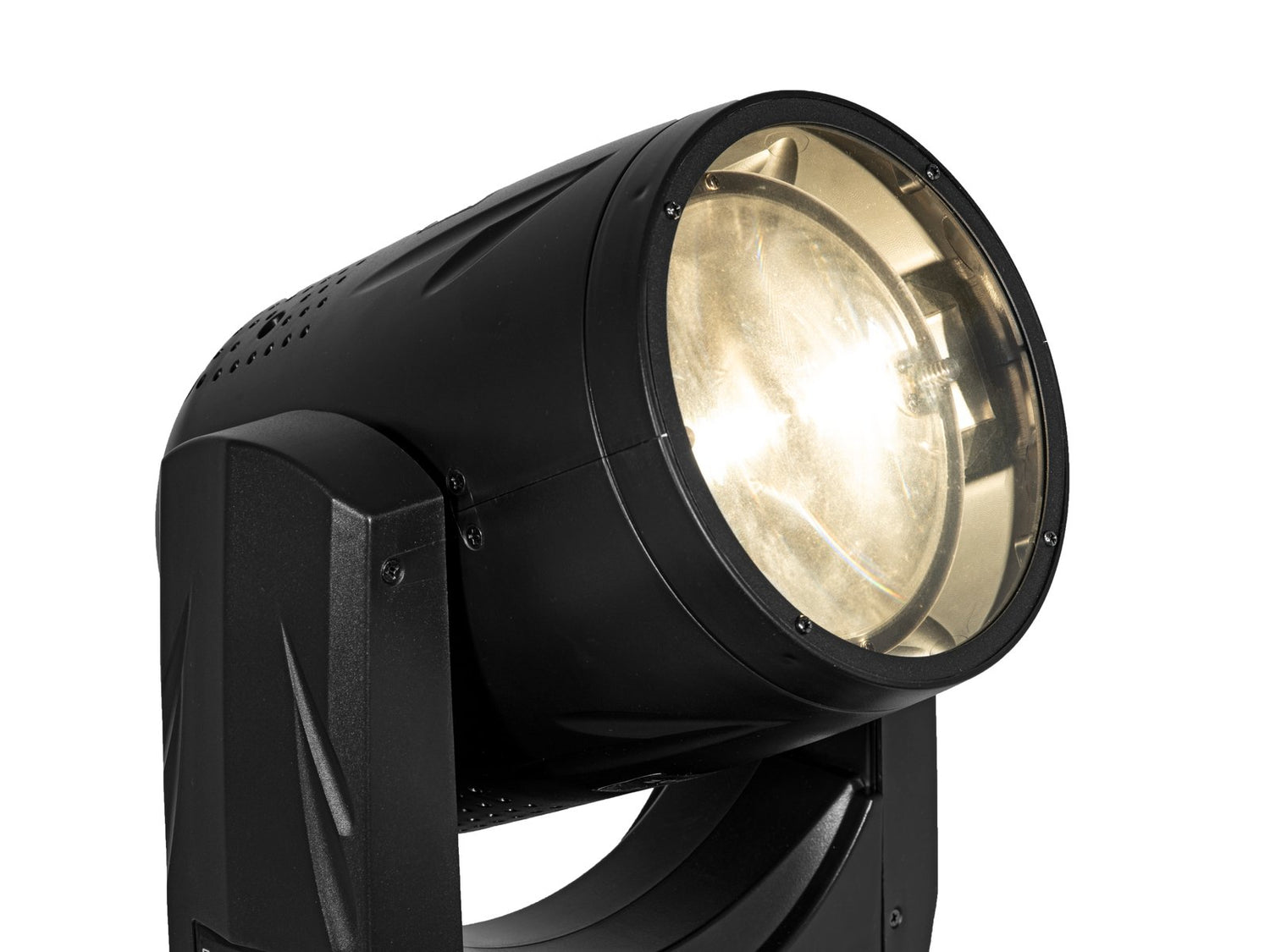

• LED: 1 x COB (chip-on-board) 400 W 4in1 QCL RGB/WW (homogenous color mix)
• Can be operated in 13 CH mode
• The device is cooled by cooling fan
• Controlling by stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
• Preprogrammed in Light Captain
• Flicker-free projection
• Very high color rendering index (CRI)

• Power supply: 100-240 V AC, 50/60 Hz
• Power consumption: 360 W
• IP classification: IP20
• Protection class: Protection class I

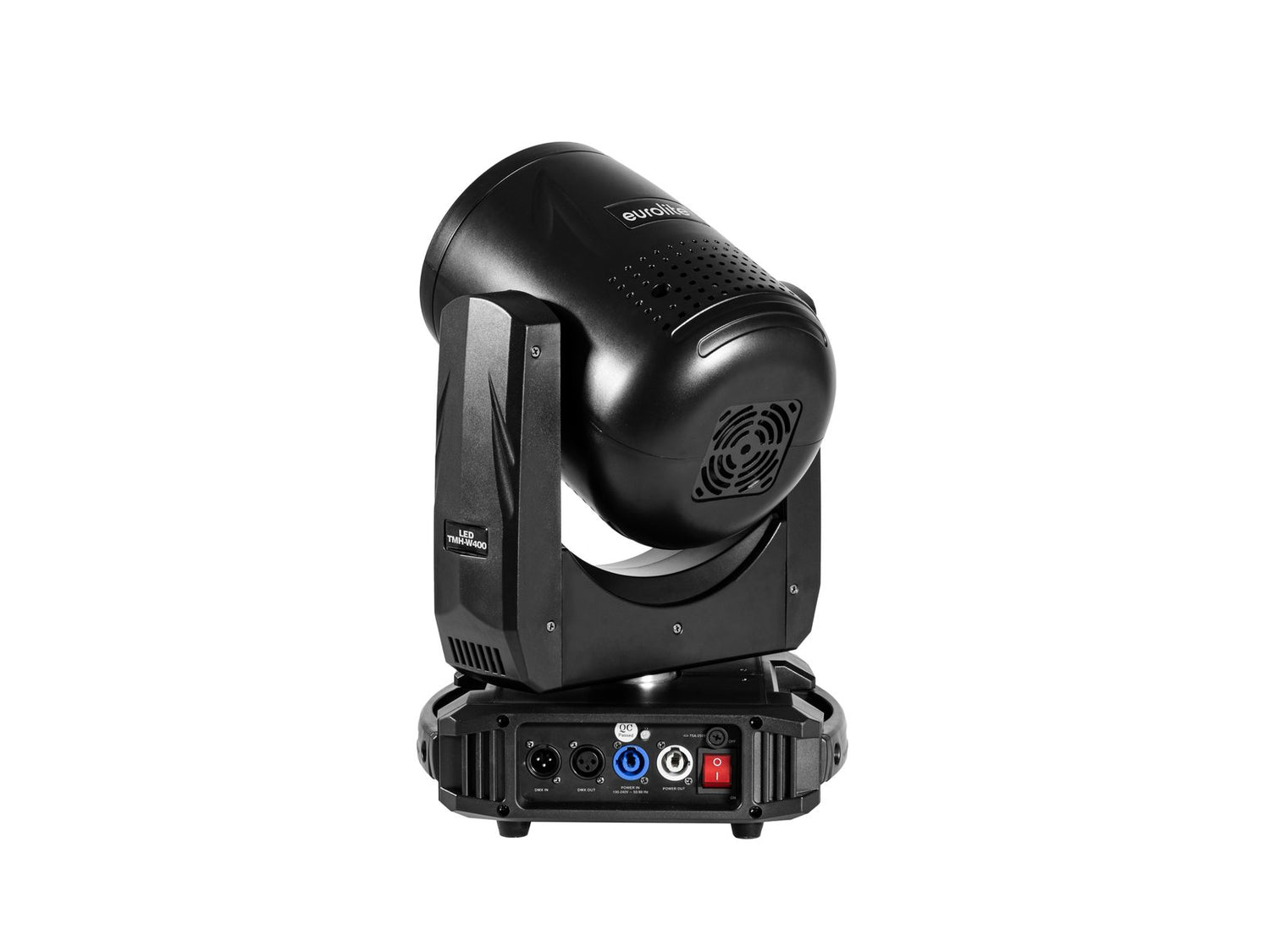

• Power connection: Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
• Power output: P-Con (gray), mounting version
• Fuse: 5 x 20 mm, T 5 A Fuse replaceable
• Lamp type: LED lamp
• LED:  1 x 400 W COB (chip-on-board) 4in1 QCL RGB/WW (homogenous color mix)
• Max. TILT movement: 230° Exact positioning (16 bit resolution) Auto position correction (feedback)
• Max. PAN movement: 540° Exact positioning (16 bit resolution) Auto position correction (feedback)
• Flash rate: 1 - 25 Hz
• Equipment: Zoom motor-driven
• DMX channels: 13
• DMX input: 3-pin XLR (M) mounting version
• DMX output: 3-pin XLR (F) mounting version
• Cooling: Cooling fan
• Control: Stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
• Preprogrammed in: Light Captain; Light´J
• Projection: Flicker-free
• Beam angle: 9° - 48°
• Beam angle (1/2 peak): 9 - 25°
• Beam angle (1/10 peak): 16 - 48°
• Color rendering index (CRI): 92 Ra
• Housing color: Black
• Display type: Multicolor LCD display
• Noise classification: Class 2 (slight noise)

Illuminance in Lux (lx):

• Narrow red (R) 1m: 14250 lx, 3m: 2003 lx, 6m: 470 lx
• Narrow green (G) 1m: 36558 lx, 3m: 4533 lx, 6m: 1085 lx
• Narrow blue (B) 1m: 4869 lx, 3m: 959 lx, 6m: 235 lx
• Narrow warm white (WW) 1m: 33844 lx, 3m: 3508 lx, 6m: 837 lx
• Narrow all 1m: 75609 lx, 3m: 9660 lx, 6m: 2293 lx
• Wide red (R) 1m: 2821 lx, 3m: 359 lx, 6m: 97 lx
• Wide green (G) 1m: 6107 lx, 3m: 809 lx, 6m: 227 lx
• Wide blue (B) 1m: 1410 lx, 3m: 188 lx, 6m: 53 lx
• Wide warm white (WW) 1m: 5425 lx, 3m: 706 lx, 6m: 195 lx
• Wide all 1m: 13817 lx, 3m: 1798 lx, 6m: 495 lx

Dimensions:

• Width: 30,0 cm
• Depth: 23,0 cm
• Height: 45,0 cm
• Weight: 10,20 kg

Legal specifications

• Special product: Not designed for household room illumination
• Intended use: Show effect lighting
