PSSO DDA-3500
€713,00
Stückpreis
/
Nicht verfügbar
Beschreibung
Beschreibung

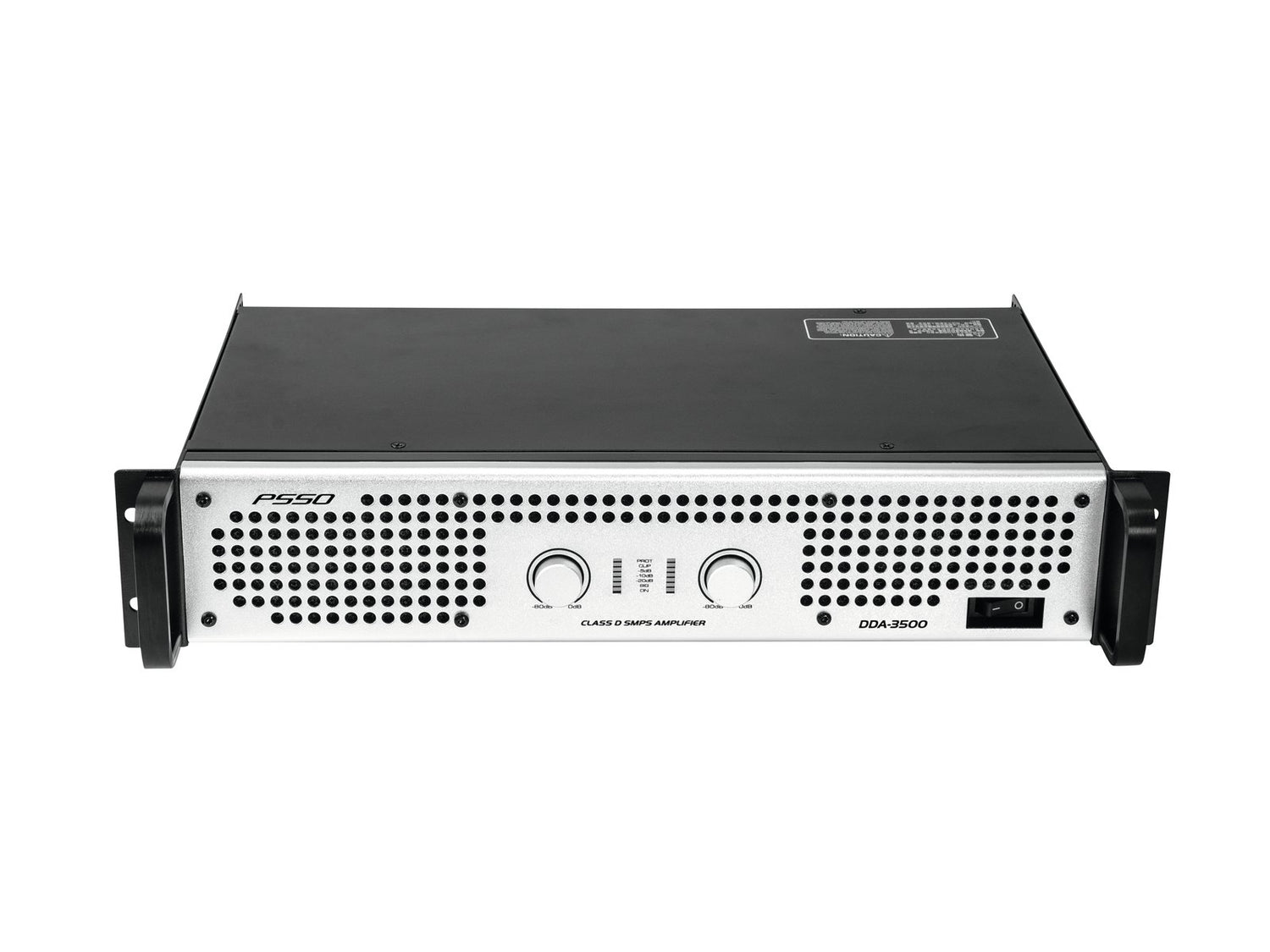

- Stereo PA amplifier with class D circuitry
- Low weight and height due to integrated switch mode power supply
- Reliable power amp with high impulse stability for a wide range of applications (e.g. compact PAs, multi-way PAs, international concerts)
- Limiter and speaker switch-on delay
- 3 operating modes can be selected (stereo, parallel or bridged)
- 2 calibrated level controls for precise level adjustment
- Input sensitivity adjustable
- LED VU meter and LEDs for activated protective circuit (protect), overload (clip), and signal per channel
- Electronically balanced inputs via XLR mounting jacks, with XLR feed-through outputs
- Speaker outputs via lockable Speaker plugs and screw terminals

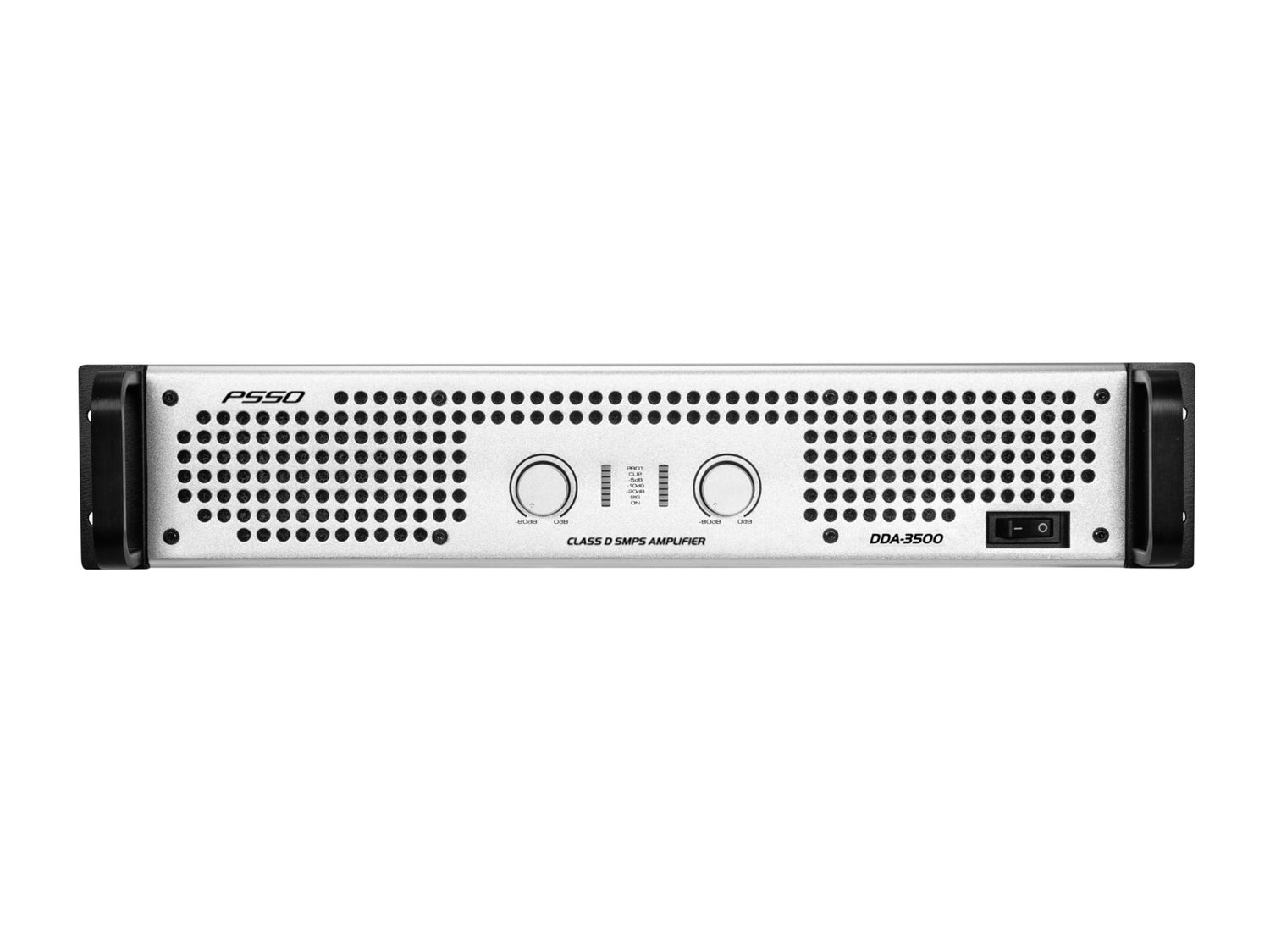

- Rugged steel chassis with aluminum front panel
- Rack installation with 2 units
- Air flow from front to rear
- The device is cooled by 2x temperature-controlled fan
- (19") 48.3 cm rack installation 2 U
Spezifikationen
Spezifikationen
-
Weight (kg)
More specifications
More specifications
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 300 W 1/8 power |
| Output power: | 2 x 1750 W RMS (4 ohms) 2 x 1000 W RMS (8 ohms) 1 x 3500 W RMS bridged (8 ohms) |
| Power connection: | Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided) |
| Frequency range: | 20 - 20000 Hz |
| S/N ratio: | >100 dB |
| THD: | <0.15% at 1 kHz |
| Cooling: | 2 x temperature-controlled fan , Air flow from front to rear |
| Impedance: | Input 10 kOhm , unbal. Input 20 kOhm , bal. |
| Gain: | 41,2 dB |
| Circuitry: | Class D |
| Slew rate: | >10 V/µs |
| Damping factor: | >500 |
| Control elements: | Power switch, level control per channel, mode switch (stereo/parallel/bridged), limiter selector, Input sensitivity switch |
| Controls: | Softstart; overheat; overload; short-circuit; limiter; VHF; DC voltage; progressive volume |
| Status LED: | Level meter, signal, clip, protect |

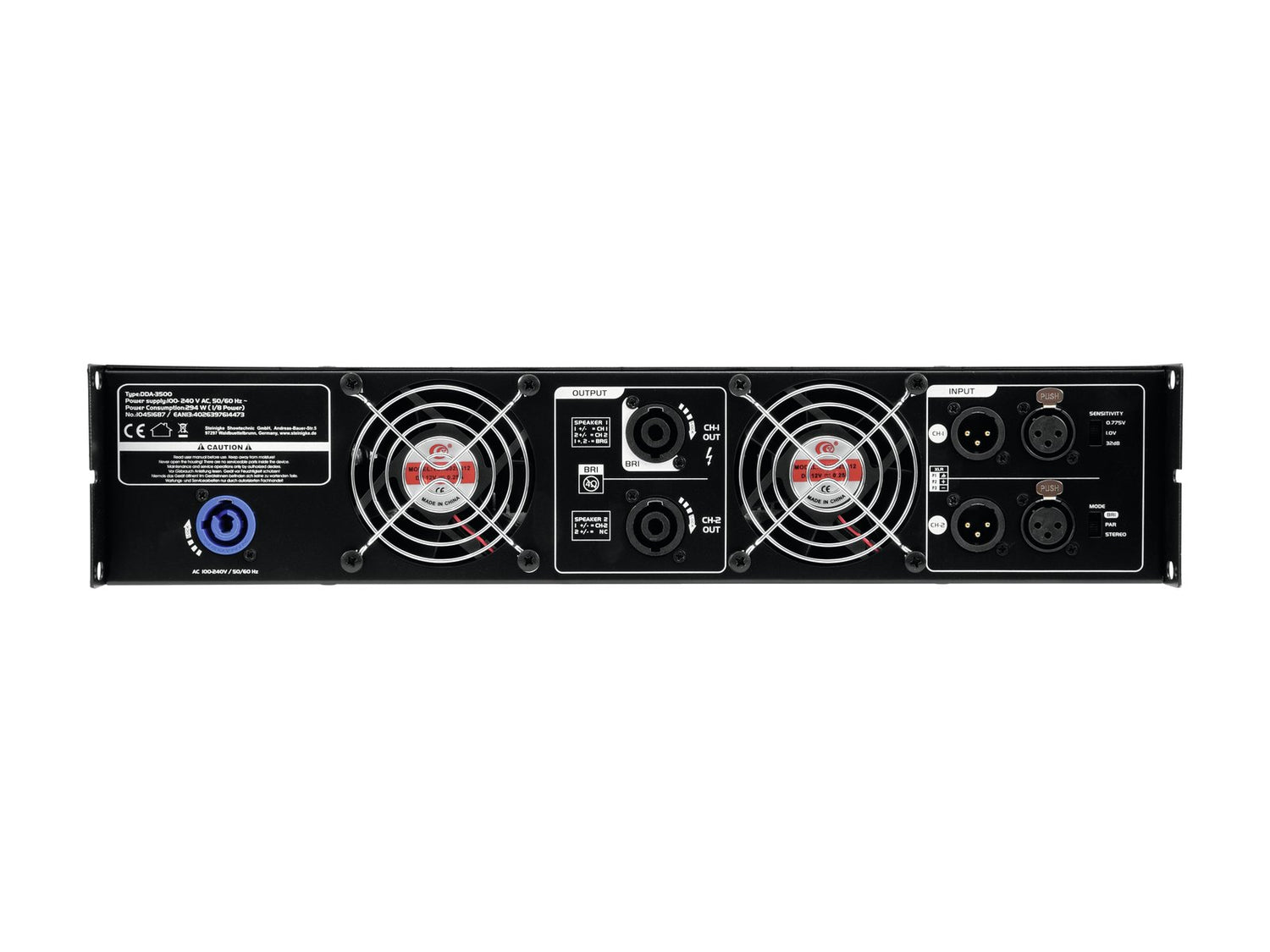

| Connections: | Input: 2 x line via 3-pin XLR Output: 2 x line via 3-pin XLR Output: 2 x speakers via speaker built-in socket (f) |
| Input sensitivity: | 0.775 V; 1.0 V; 1.81 V , switchable; 32 dB; 37 dB; 39.3 dB , switchable |
| Housing design: | (19") 48.3 cm rack installation 2 U |
| Dimensions: | Width: 48.3 cm Depth: 30.7 cm Height: 8.9 cm |
| Weight: | 6,70 kg |
Brand: PSSO
SKU: 10451687
