Boss Cube Street II - Red

• Powerful and compact mini amplifier
• Battery powered and good on the go
• Also available in black

Boss Cube Street II - Red

• Battery-powered stereo amplifier in compact size.
• With premium Boss sound - wherever you play and without the need for a power connection.
• With as much as 10 watts of output spread across the two speakers, you're sure to be heard loud and clear by all your audience.
• ABS plastic moulded enclosure provides enhanced durability and reduced weight (only 4.4kg).
• Two powerful 6.5" speakers deliver high-quality stereo sound.
• Instrument/microphone channel with harmony, three-band EQ and reverb effects.
• Microphone/guitar channel with nine different amplifier types, three-band EQ, chorus/delay, reverb and tuner.
• Up to 45 seconds recording time with the looper.
• Angled front for perfect monitoring and sound reproduction.
• Record/livestream your audio performance to PC/mobile via USB or i-CUBE Link.
• Powered by eight AA batteries or with the included adapter.
• Eco mode for longer play time.

- Rated Power Output
10 W (5 W + 5 W)

- Nominal Input Level
MIC/INSTRUMENT INPUT: -40 dBu (2 k ohm)/-20 dBu (11 k ohm)
GUITAR/MIC INPUT:-10 dBu(1 M ohm)
i-CUBE LINK/AUX IN: -20 dBu (15 k ohm)

- Nominal Output Level
LINE OUT : -10 dBu (MONO)

- Speakers
16 cm (6.5 inches) x 2

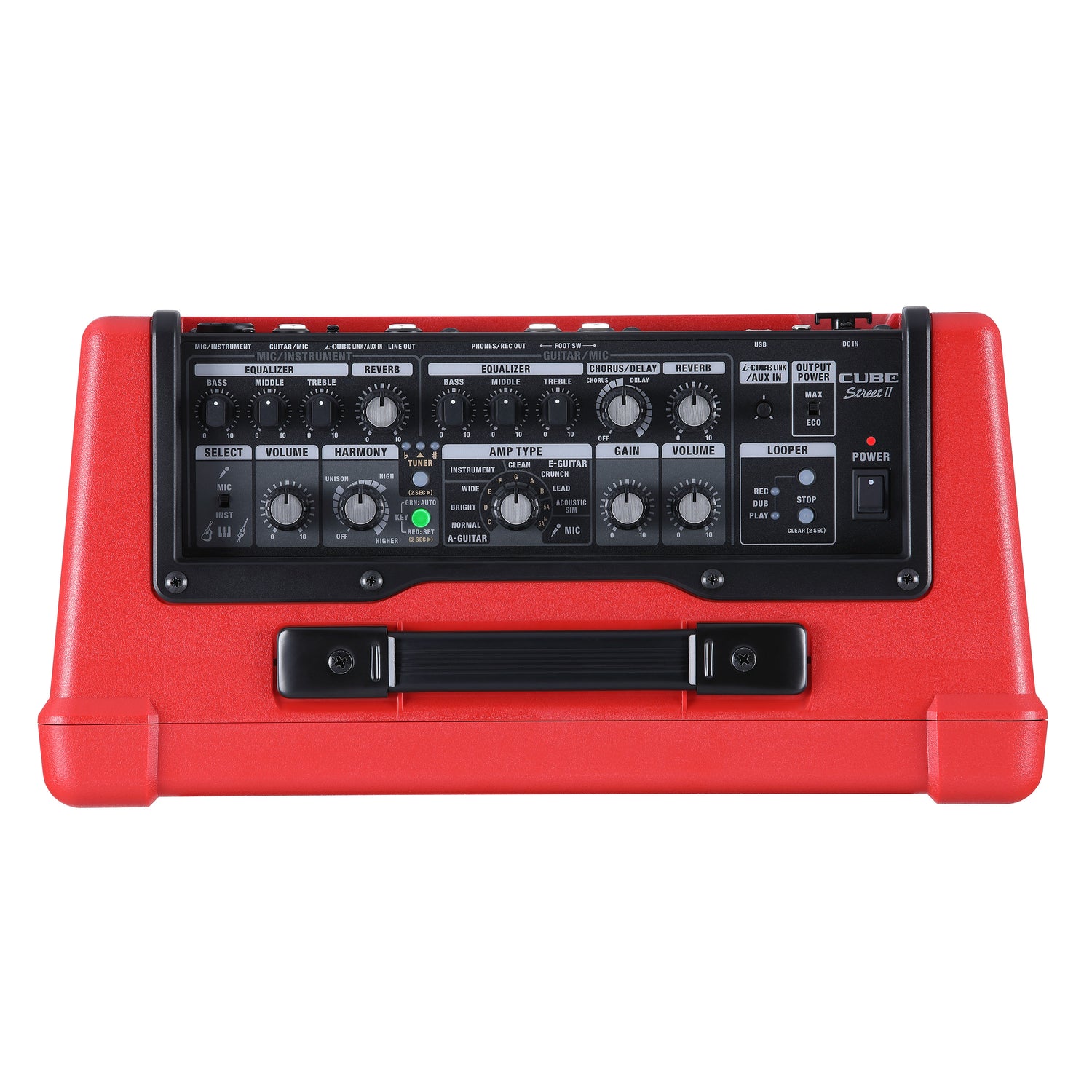

- Controls
POWER switch
OUTPUT POWER switch (MAX, ECO)
LOOPER button
STOP button

[MIC/INSTRUMENT]
SELECT switch (MIC, INST)
VOLUME knob
HARMONY knob
KEY button
BASS knob
MIDDLE knob
TREBLE knob
REVERB knob

[TUNER]
TUNER button

[GUITAR/MIC]
AMP TYPE knob (NORMAL, BRIGHT, WIDE, INSTRUMENT, CLEAN, CRUNCH, LEAD, ACOUSTIC SIM, MIC)
GAIN knob
VOLUME knob
BASS knob
MIDDLE knob
TREBLE knob
CHORUS/DELAY knob (CHORUS, DELAY)
REVERB knob

[i-CUBE LINK/AUX IN]
i-CUBE LINK/AUX IN knob

- Indicators
POWER
TUNER
KEY
REC
PLAY

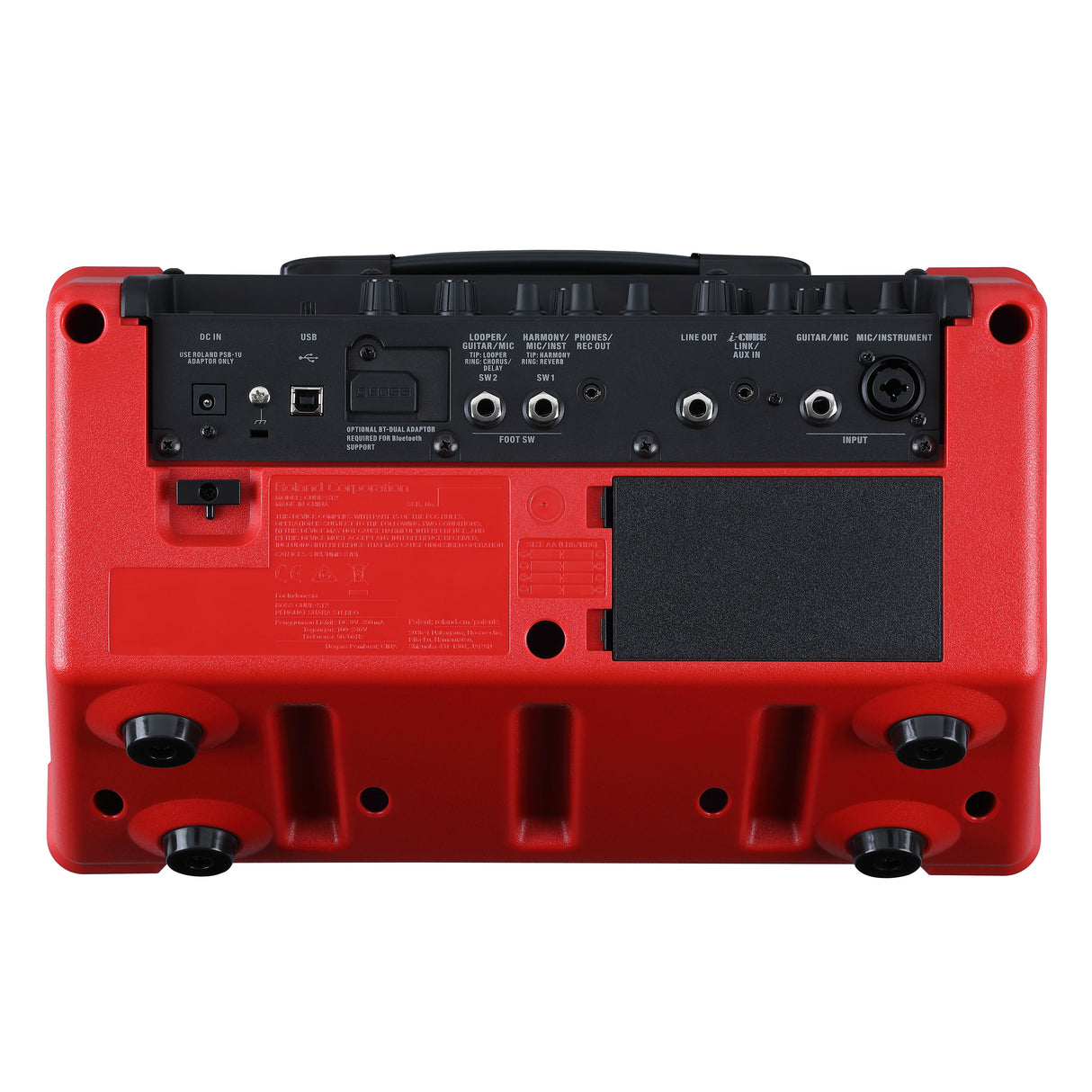

- Connectors
[INPUT]
MIC/INSTRUMENT jack: Combo type (XLR type, 1/4-inch TRS phone type), balanced
GUITAR/MIC jack: 1/4-inch phone type
i-CUBE LINK/AUX IN jack: 4-pole miniature phone type

[OUTPUT]
LINE OUT jack: 1/4-inch phone type
PHONES/REC OUT jack: Stereo miniature phone type

[FOOT SW]
SW 1 HARMONY/MIC/INST jack: 1/4-inch TRS phone type
SW 2 LOOPER/GUITAR/MIC jack: 1/4-inch TRS phone type

Bluetooth ADAPTOR connector: Dedicated connector
USB port: USB B type
DC IN jack

- Power Supply
AC adaptor (DC 9 V)
Alkaline battery (AA, LR6) x 8
Rechargeable Ni-MH battery (AA, HR6) x 8

- Current Draw
390 mA

- Expected battery life under continuous use
[OUTPUT POWER switch: MAX (Maximum power output: 10 W)]
Alkaline battery: Approximately 8 hours
Rechargeable Ni-MH battery: Approximately 10 hours (*1)
B
[OUTPUT POWER switch: ECO (Maximum power output: 5 W)]
Alkaline battery: Approximately 11 hours
Rechargeable Ni-MH battery: Approximately 14 hours (*1)

*1 When using batteries having a capacity of 2,500 mAh.
* These can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.

- Dimensions
414 (W) x 285 (D) x 255 (H) mm
16-5/16 (W) x 11-1/4 (D) x 10-1/16 (H) inches

- Weight (excluding AC adaptor)
4.4 kg
9 lbs 12 oz

- Accessories
Owner's Manual
Leaflet USING THE UNIT SAFELY
AC adaptor
Power cord
Mini cable (4-pole miniature phone type)

- Options (sold separately)
BOSS Bluetooth (R) Audio MIDI Dual Adaptor: BT-DUAL
Carrying case: CB-CS1
Footswitch: FS-5U, FS-6, FS-7

* 0 dBu = 0.775 Vrms
