Yamaha MSP3A Active Studio Monitor

• Yamaha's versatile MSP3 reference monitor has been revamped as the MSP3A with a new Twisted Flare Port that delivers clearer bass from a simpler and more beautiful design
• With a built-in 22 watt amplifier, the MSP3A ensures authentic sound reproduction

Yamaha MSP3A Active Monitor

• Yamaha's versatile MSP3 reference monitor has been revamped as the MSP3A with a new Twisted Flare Port that delivers clearer bass from a simpler and more beautiful design.
• With a built-in 22 watt amplifier, the MSP3A guarantees authentic sound reproduction.
• Like its predecessor, it has a range of inputs and control options and is compatible with several types of suspension.
• The MSP3A is the ideal choice for small studios and post-production, as well as for monitoring electronic instruments and surround reproduction.

• Speaker type: 2-way powered speaker, Bass-reflex type (Twisted Flare Port)
• Frequency response (-10dB): 67Hz - 22kHz
• Components: LF: 4 " (10 cm) Cone, HF: 0 .8" (2.2 cm) Dome
• Crossover: 4kHz
• Output power: 22W
• Maximum Output Level (Measured peak, IEC noise@1m): 99dB SPL
• Input sensitivity: LINE 1 : -10 dBu, 10k (RCA), LINE 2 : +4.0 dBu, 10k (Combo)

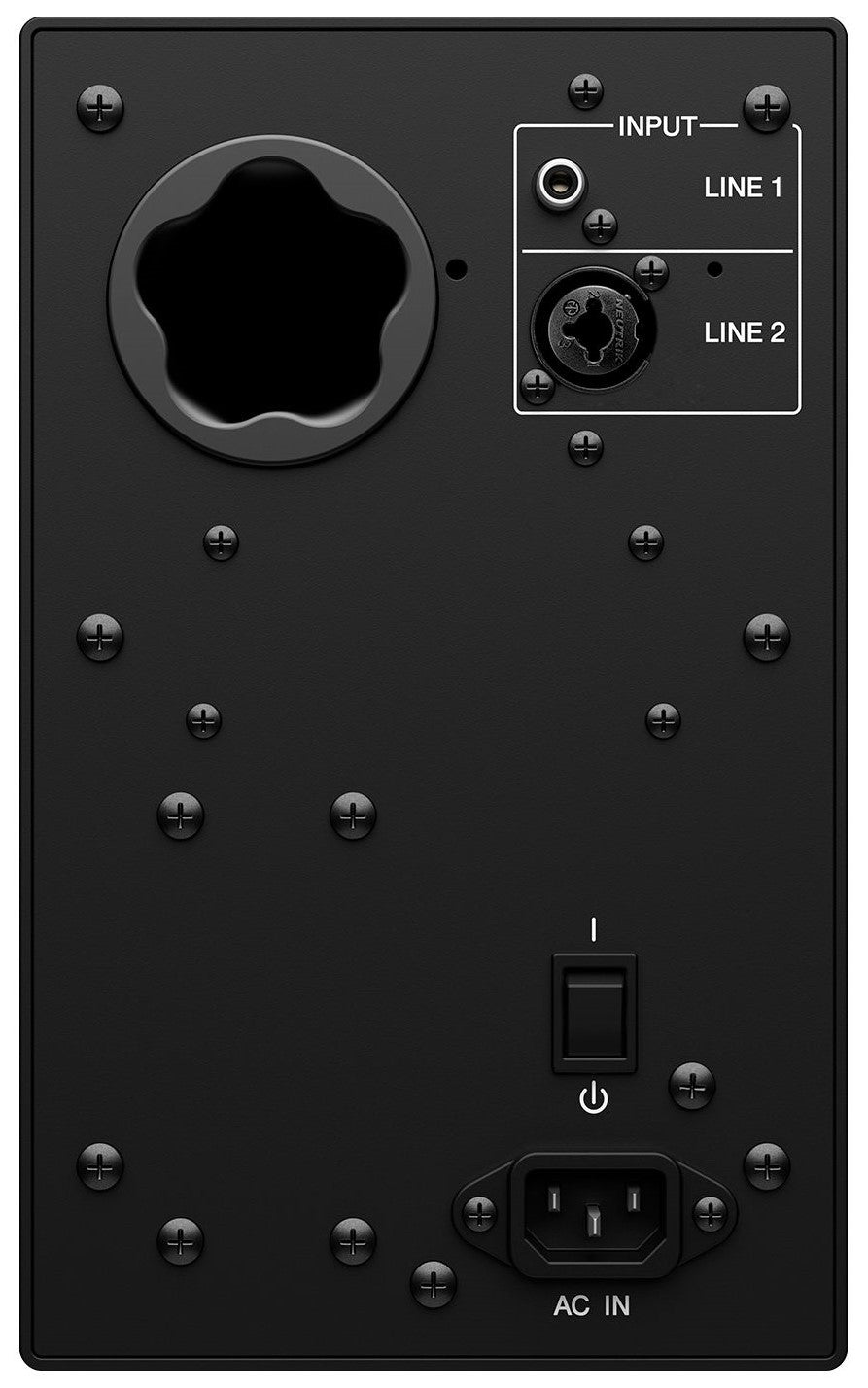

• I/O connectors: LINE 1: RCA, LINE 2: Combo (XLR/TRS phone)
• Indicators: Power ON (Green LED)
• Power requirements: May vary depending on region: 120V 50/60Hz, 110 - 120V 50/60Hz, 230V 50/60Hz, 220 - 230V 50/60Hz, 220V 50Hz, 240V 50Hz
• Power consumption: 30W
• Others: Level control (LINE1, LINE2); Tone control (LOW = Center, REF = 100Hz : MIN -3.0 ± 2.0 dB, MAX +3.0 ± 2.0 dB; HIGH = Center, REF = 10kHz : MIN -3.0 ± 2.0 dB, MAX +3.0 ± 2.0 dB)
• Dimensions: W: 144mm (5-5/8"): H: 236mm (9-1/4"): D: 166mm (6-5/8")
• Net weight: 3.6kg (7.9 lbs.)
• Accessories: Power cord, Owner's manual
