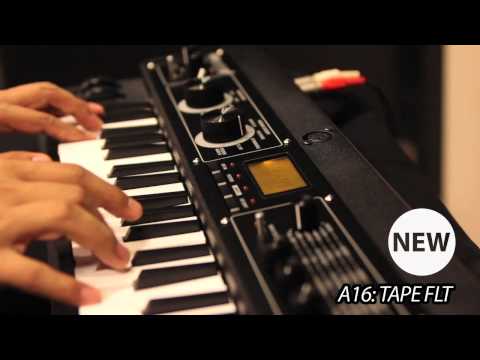

Korg Microkorg XL+ Synthesizer

• The MicroKorg XL+ is a versatile synthesizer with smaller keys, a classic vintage look and an analogue sound you can only dream of at this price point

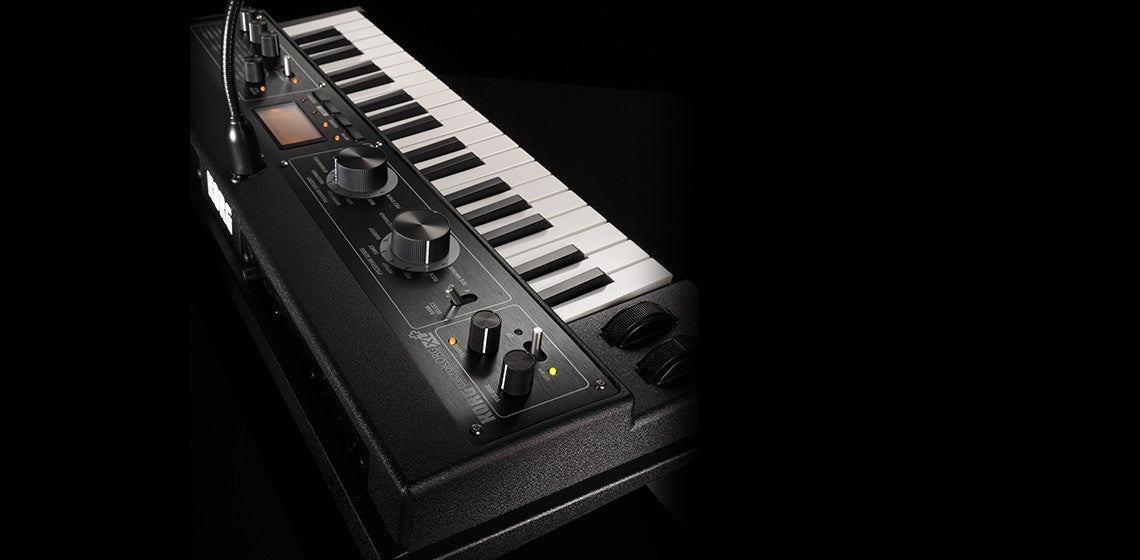

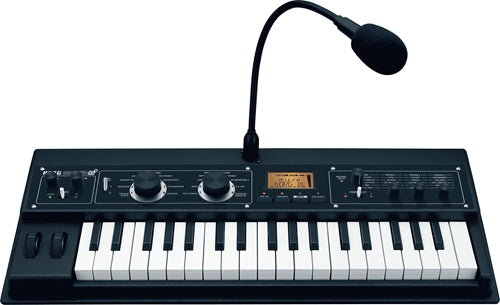

Korg Microkorg XL+

• With its unique exterior and sound, MicroKorg set new standards for analog modular synthesizers.
• In 2008, Korg launched the MicroKorg XL, which inherited its big brother's fat, powerful sound and was equipped with even more sound effects.
• And now Korg is ready with the latest addition:
• The MicroKorg XL+ is a versatile synthesizer with smaller keys, a classic vintage look and an analog sound that you can only dream of at this price point.

Tone Generator System

MMT (Multiple Modeling Technology)

Program

- Multi Timbral: Maximum 2 (when using Layer, Split, or Multi)

- Voice polyphony: Maximum 8 voices (when using Vocoder, it is 4 voices)

- Synth: 2 oscillators + noise generator

- Oscillator 1: Waveform: 8 types (Sawtooth, Pulse, Triangle, Sine, Formant, Noise, DWGS, Audio In), Modulation: Waveform, Cross, Unison, VPM

- Oscillator 2: Waveform: 4 types (Sawtooth, Pulse, Triangle, Sine), Modulation: Ring, Sync, Ring+Sync

- Waveshape: Type: Drive, Decimator, HardClip, OctSaw, MultiTri, MultiSin, SubOSCSaw, SubOSCSqu, SubOSCTri, SubOSCSin, LevelBoost,

- Multimode Filters: Filter 1: -24 dB/oct LPF ~ -12 dB/oct LPF ~ -12 dB/oct BPF ~ -12 dB/oct HPF ~ Thru, Filter 2: LPF, HPF, BPF (switchable)

Vocoder:16 channel vocoder, adjustable level and pan for each channel, Formant Shift function, Formant Hold function

Keyboard37 notes (Natural Touch mini-keyboard, velocity sensitive)

Controller: Pitch bend wheel, Modulation Wheel

Effects

- Timbre: 2 band EQ

- Master effect: 2 units, 17effect algorisms.

Arpeggiator: Six types: UP, DOWN, ALT1/2, Random, Trigger, Individual step on/off function

Programs: 128 programs (A/B banks x 8 genres x 8 category)

Inputs: [AUDIO INPUT 1] (1/4" phone jack, unbalanced, with MIC/LINE switch) - Rear Panel [AUDIO INPUT 1 (MIC)] (XLR jack / balanced) - Front Panel

Outputs: [L/MONO, R] (1/4" Standard phone jacks / unbalanced) [Phone] (1/4" Stereo Standard phone jacks)

MIDI: IN, OUT

USB: Type B

Display: Custom LCD

Power Supply: DC 9 V (AC adapter), or six AA alkaline batteries (sold separately)

Battery Life: Approx. four hours (with alkaline batteries)

Dimensions: 556 x 231 x 73mm / 21.89" x 9.09" x 2.87"

Weight: 2.0 kg/4.41 lbs. (without batteries and included microphone)

Accessories: AC adapter, Gooseneck Microphone
