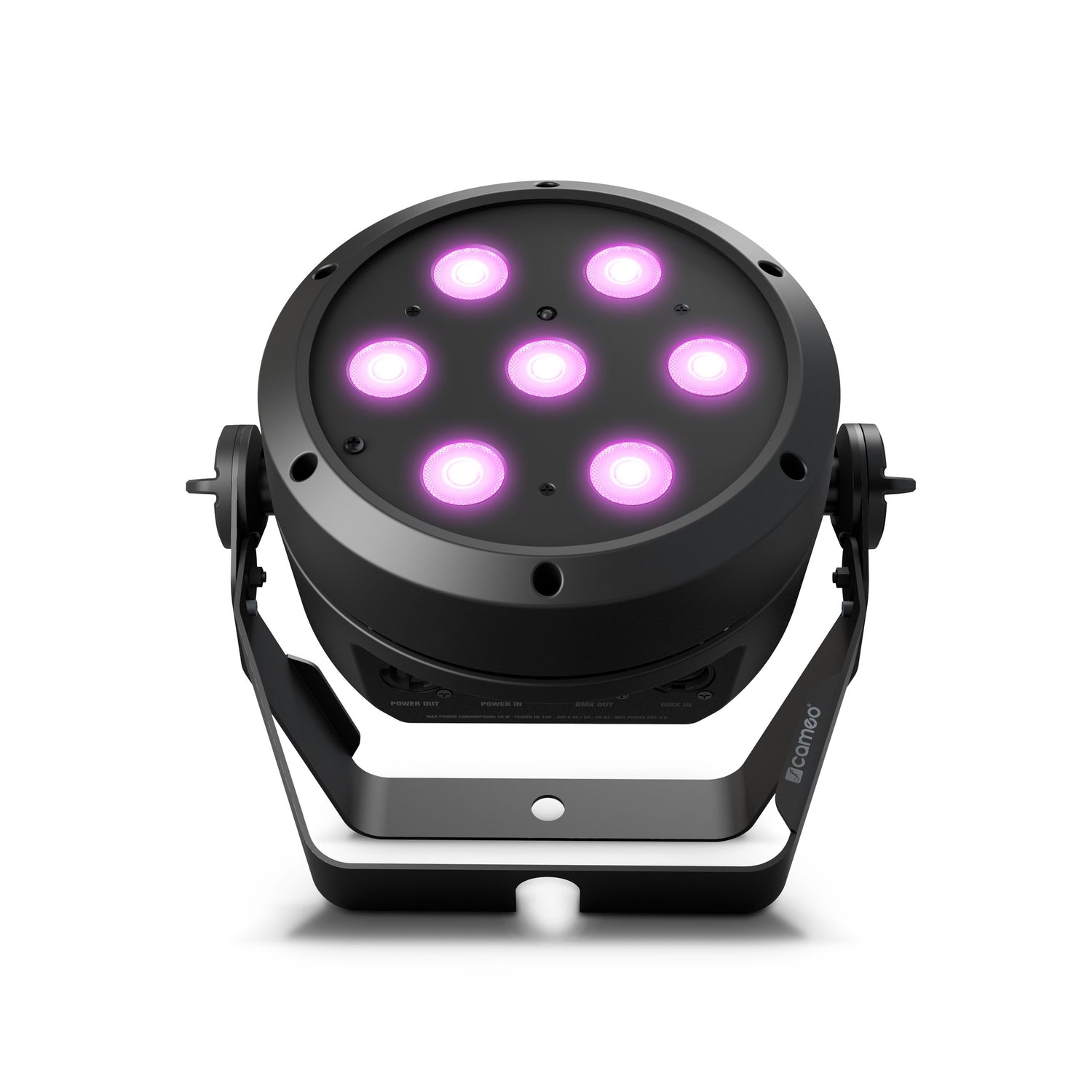

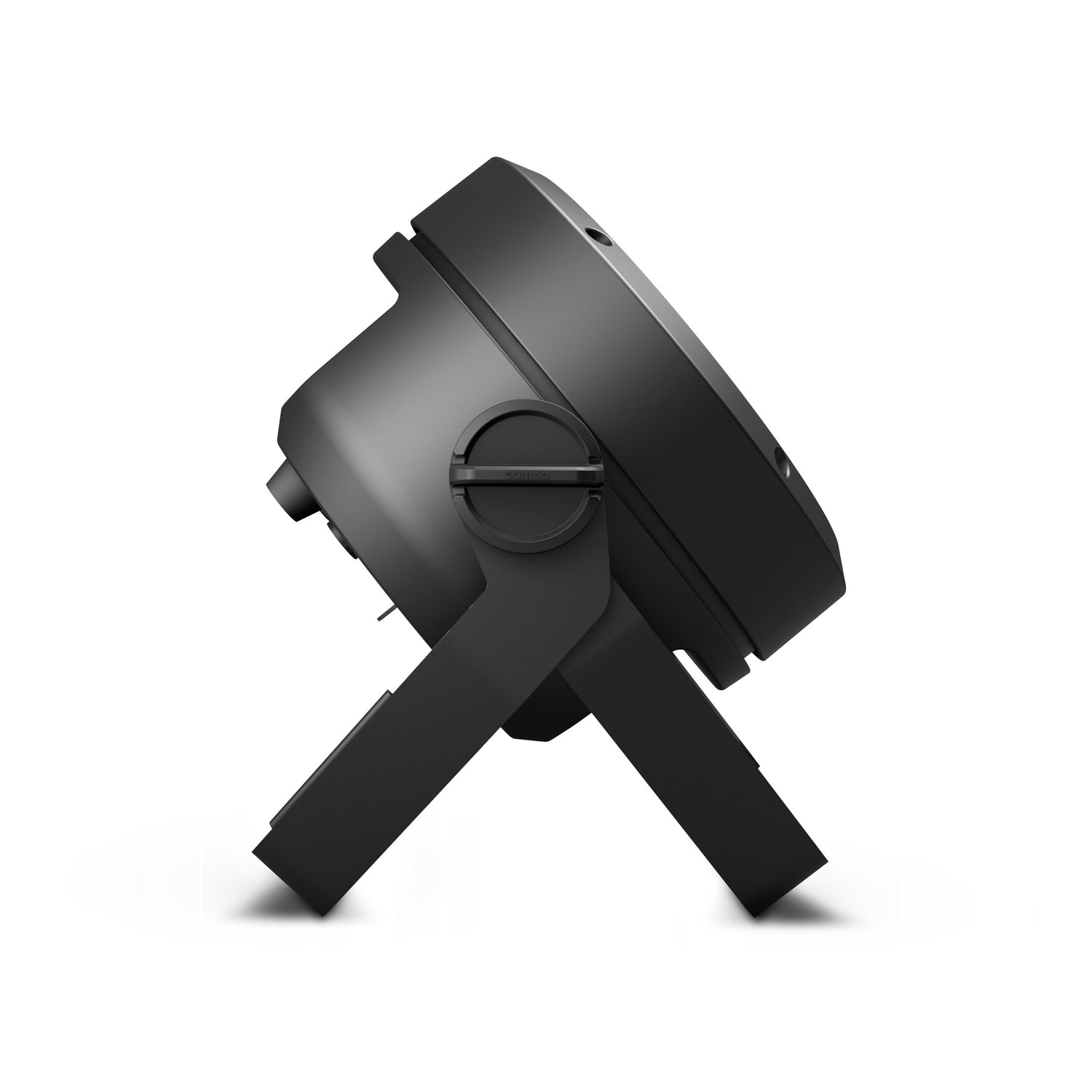

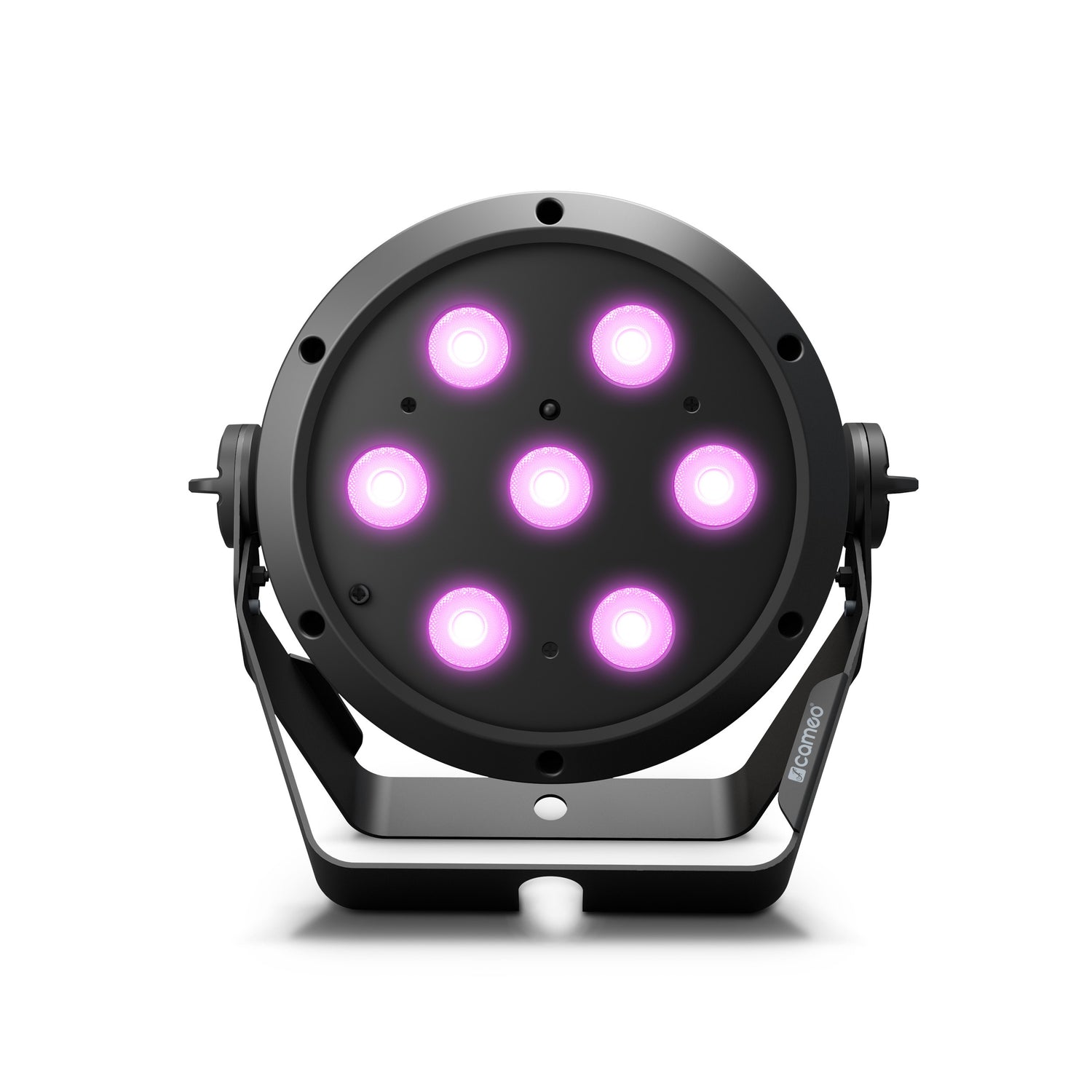

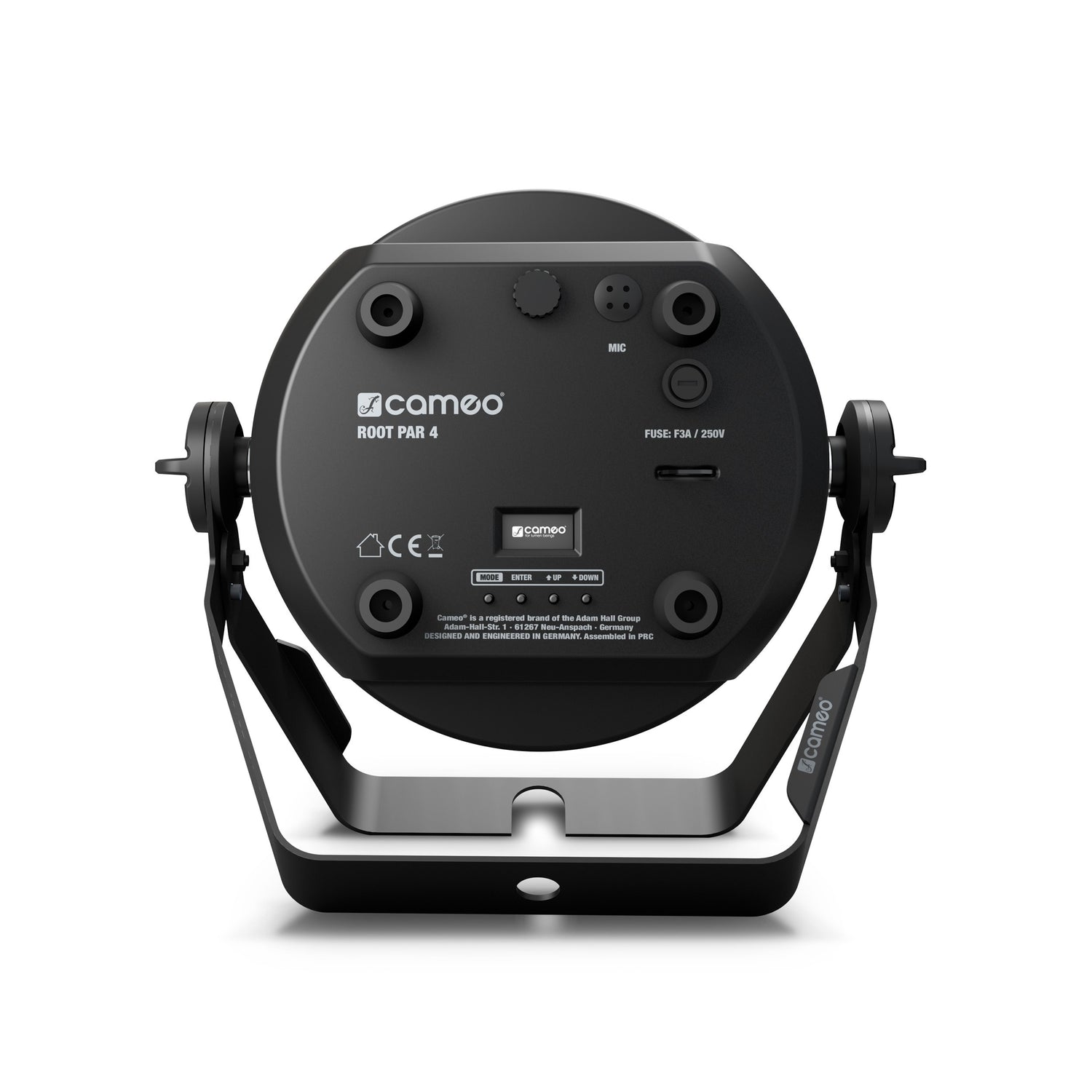

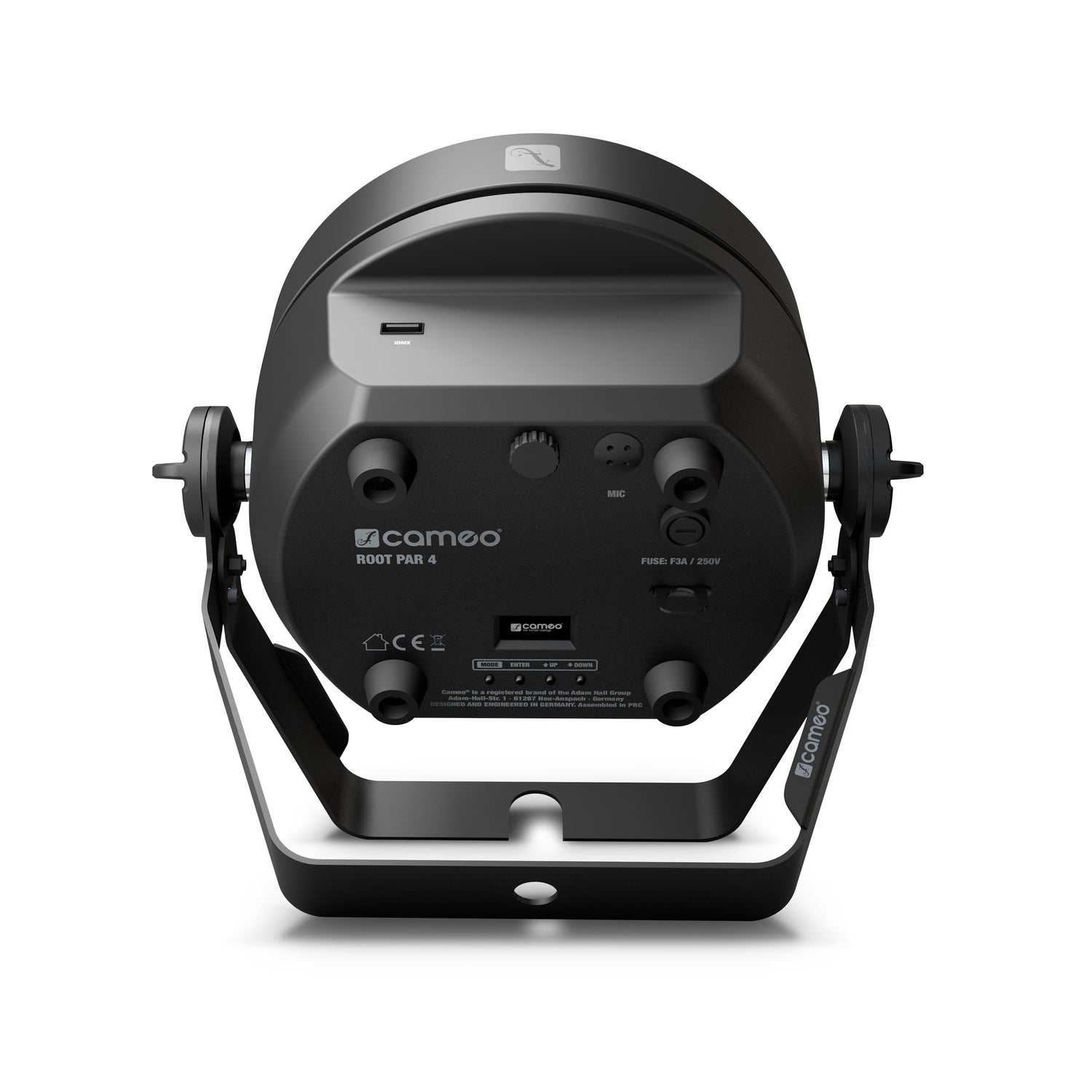

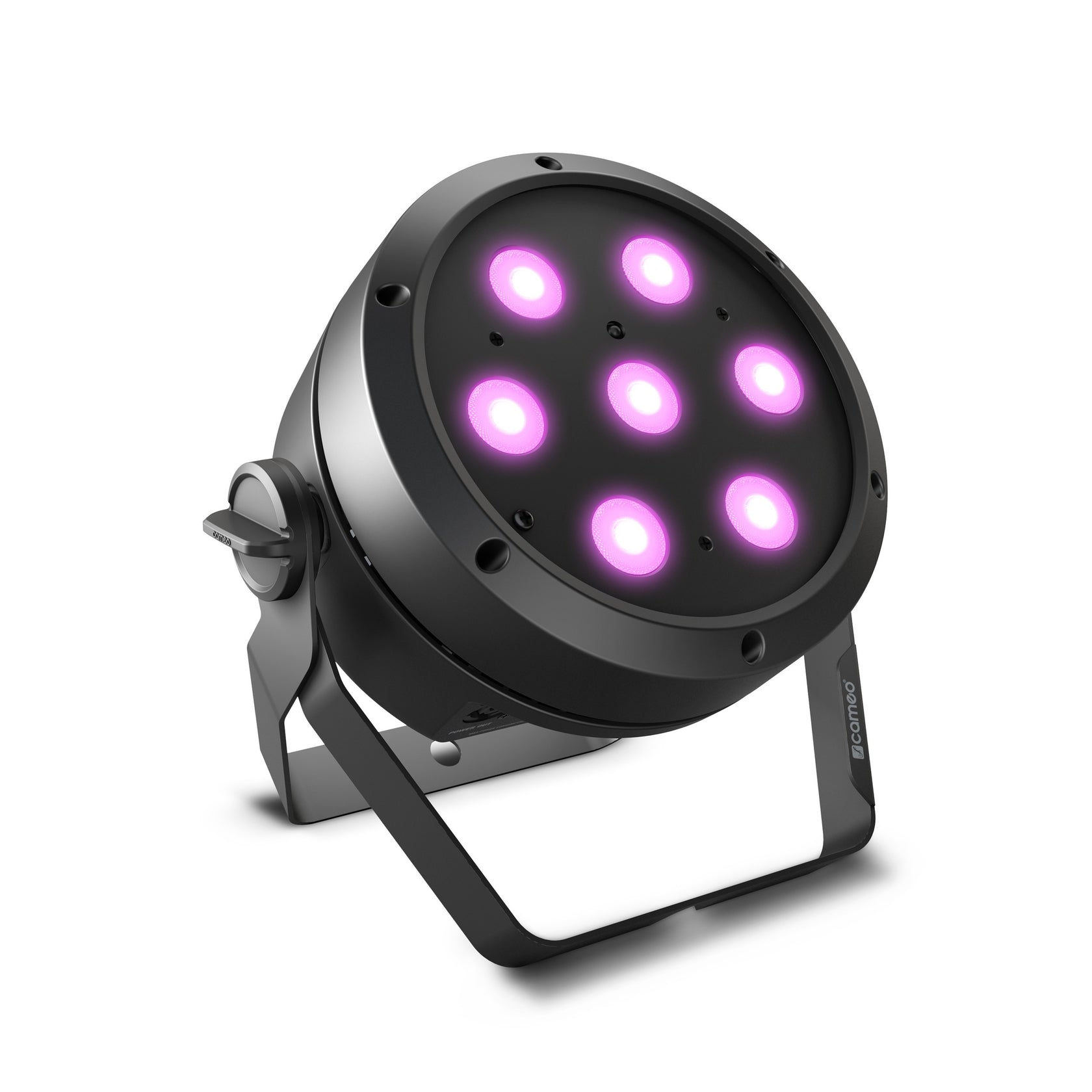

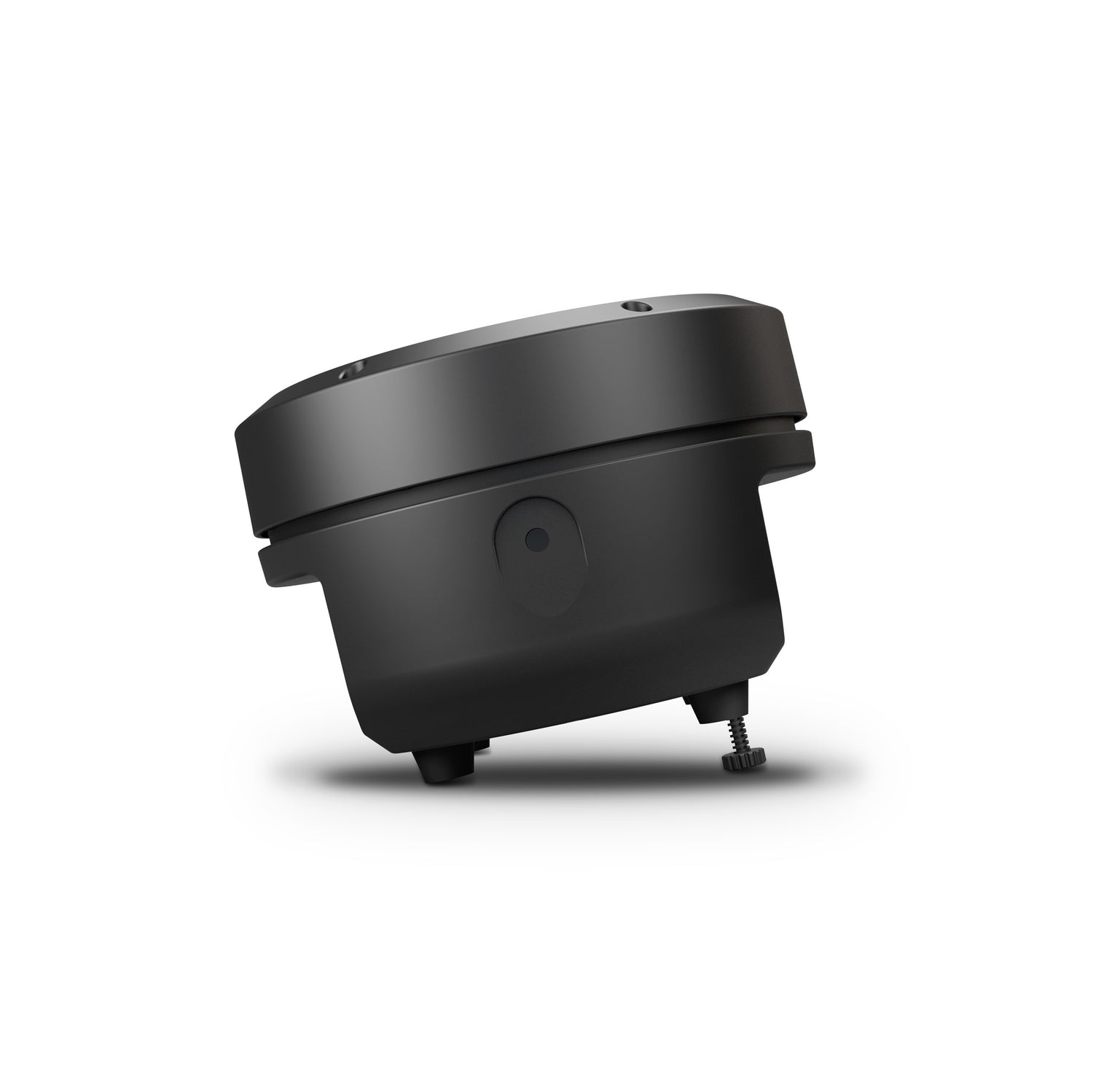

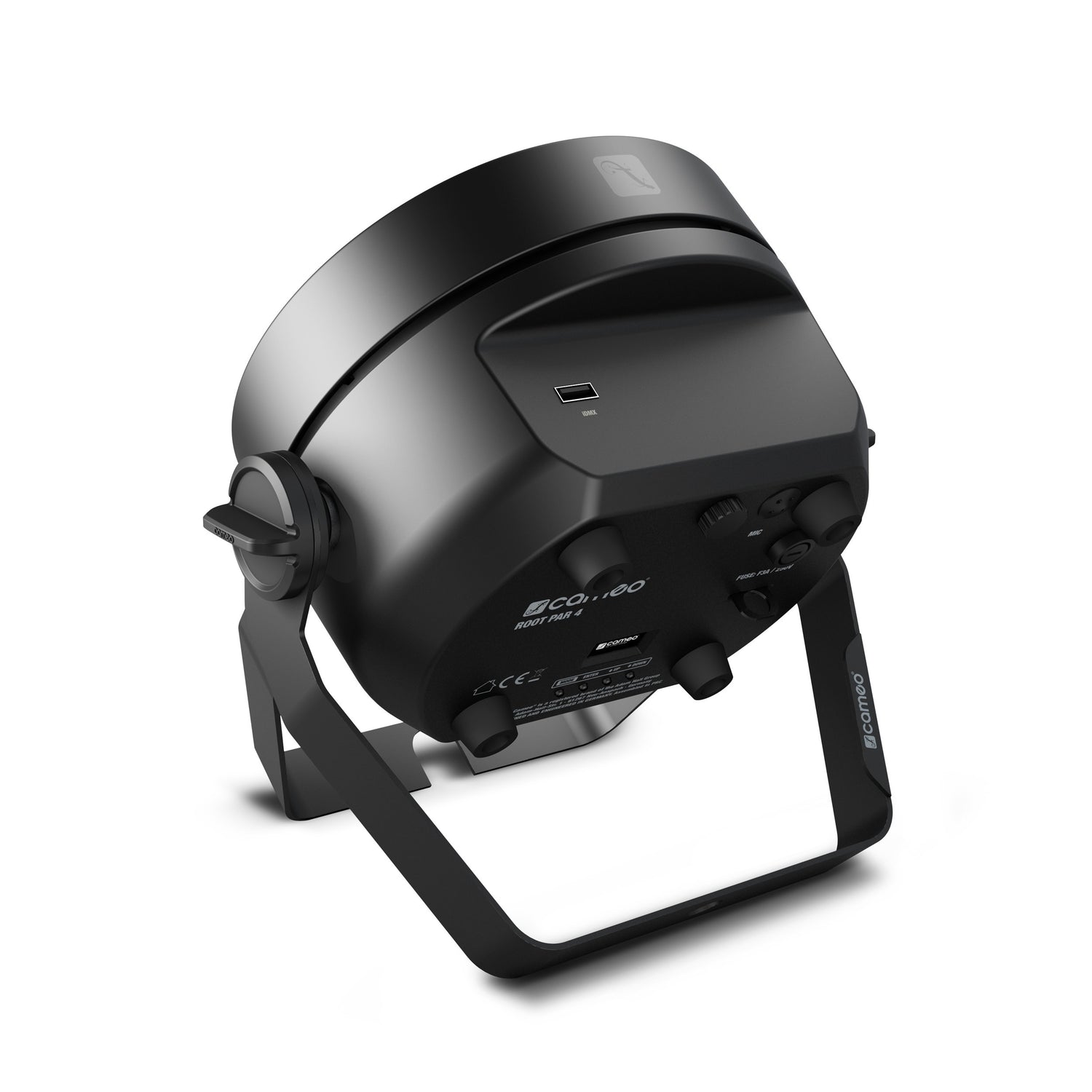

Cameo ROOT PAR 4

• 7 x 4 W RGBW LED PAR-spot with 1350 lm light output
• Beautiful RGBW colour mix
• DMX and power input and output for daisy-chaining multiple units
• PowerCON power connection
• Configuration via OLED display
• Built-in microphone for sound control
• USB port for iDMX® stick for wireless DMX connection via W-DMX
• Rubber feet
• Double mounting bracket included
• Can be ceiling, truss or floor mounted

Product type

LED PAR Lighting

Colour spectrum

RGBW

Number of LEDs

7

LED type

4 W

LED PWM Frequency

650 Hz, 1530 Hz, 2150 Hz, 4000 Hz

Dispersion

19 °

DMX input

3-pole male

DMX output

3-pole female

DMX Functions

colour macro , Dimmer , Dimmer Fine , DMX Delay , RGBW , sound sensitivity , Speed Selection , strobe

Control

DMX512 , IR Remote Control

Standalone modes

Auto programs , Colour presets , Loop , sound programs , Static , User Colours

Controls

Down , Enter , Mode , Up

Indicators

OLED Display

Operating voltage

100 V AC - 240 V AC, 50 - 60 Hz

Power consumption

38 W

Power connector

Blue Power Twist, male , White Power Twist

Housing material

ABS plastic

Cabinet colour

Black

Cooling

Convection

Illuminance

7850 lx

Luminous flux

1350 lm

Fuse

F3A / 250 V

Relative Humidity

< 80 %, not condensing

Operating Temperature

0 - 40 °C

Width

195 mm

Height

133 mm

Length

195 mm

Weight

1,2 kg

Accessories (included)

Mounting bracket , Power cord
