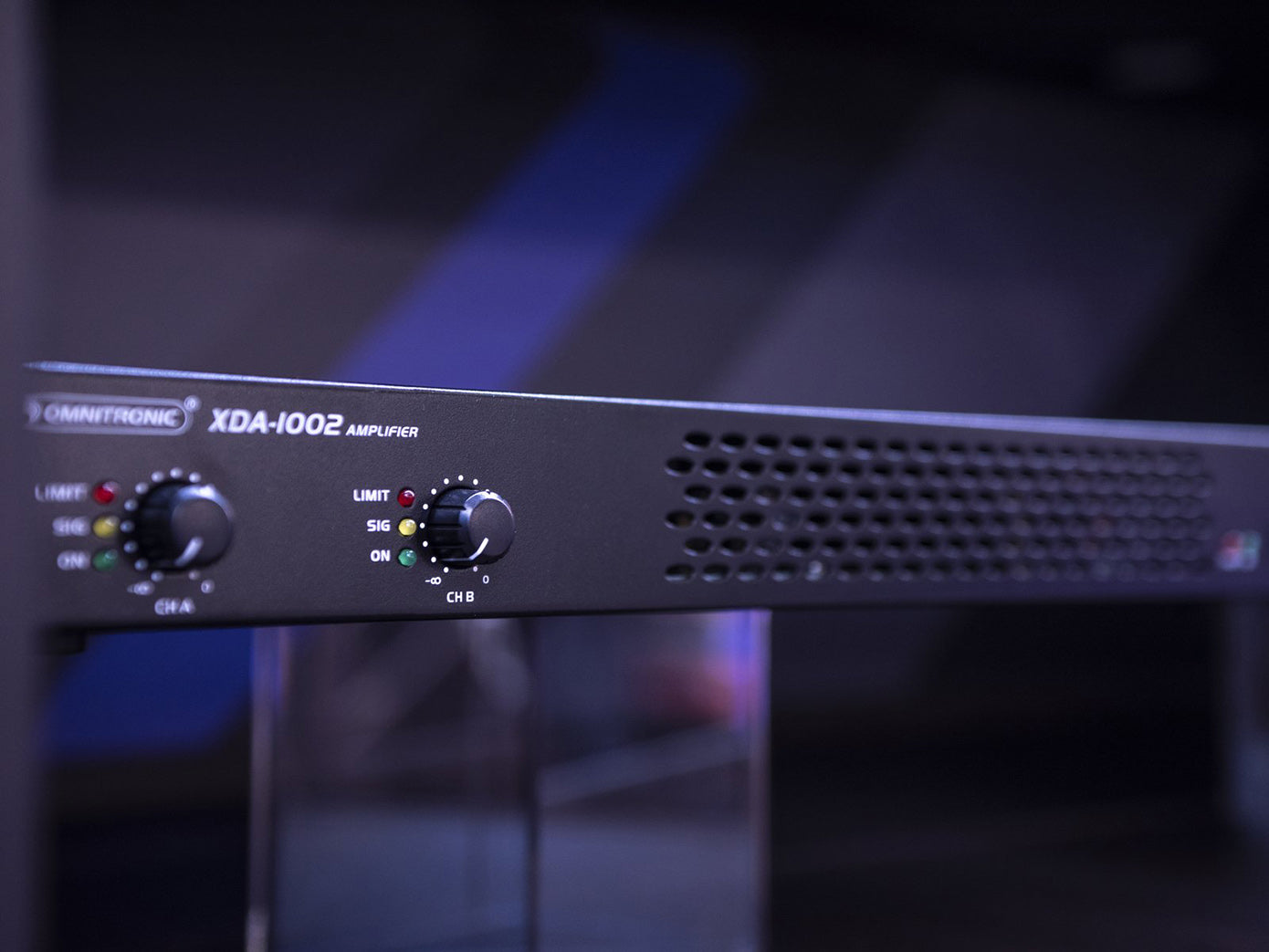

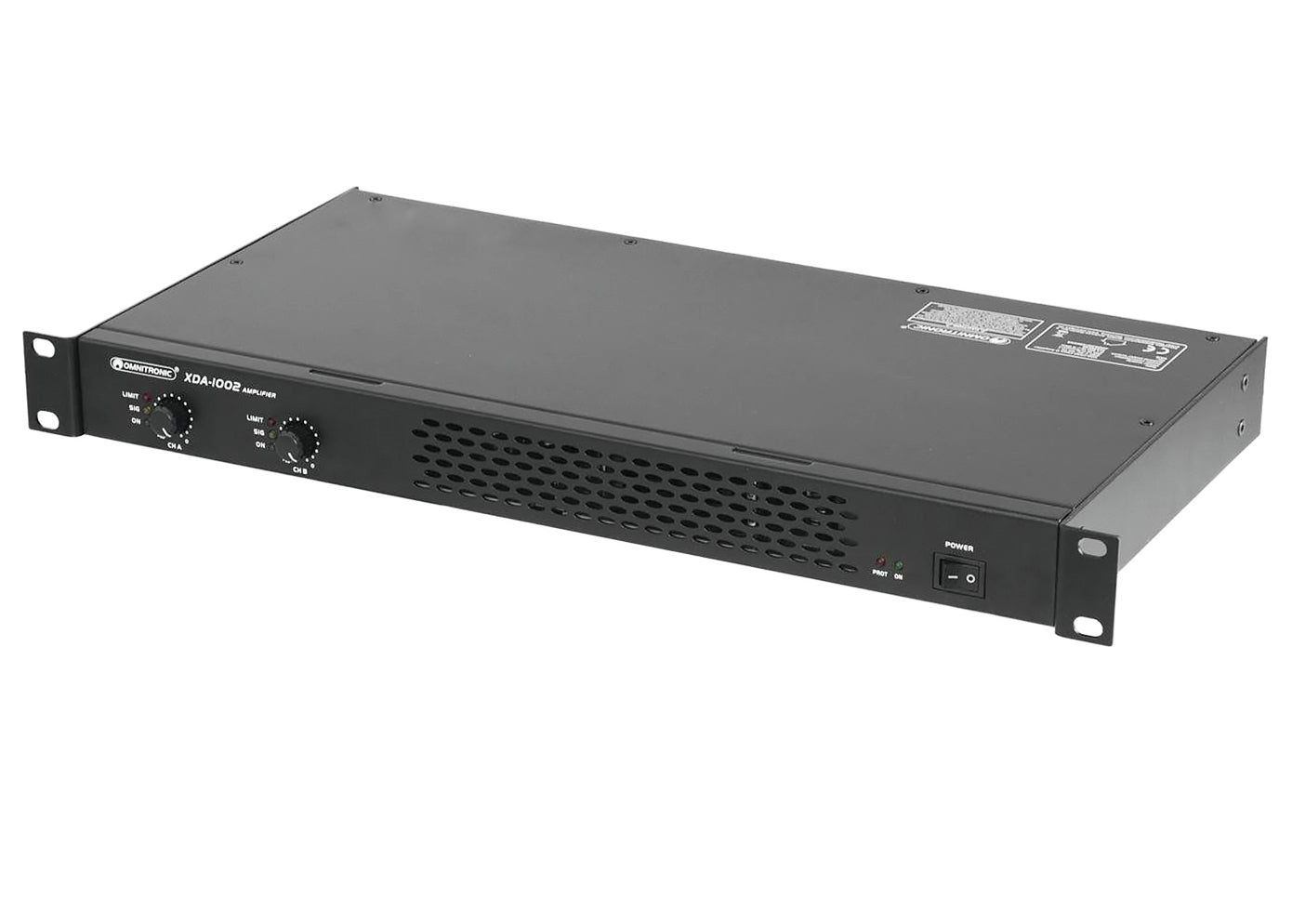

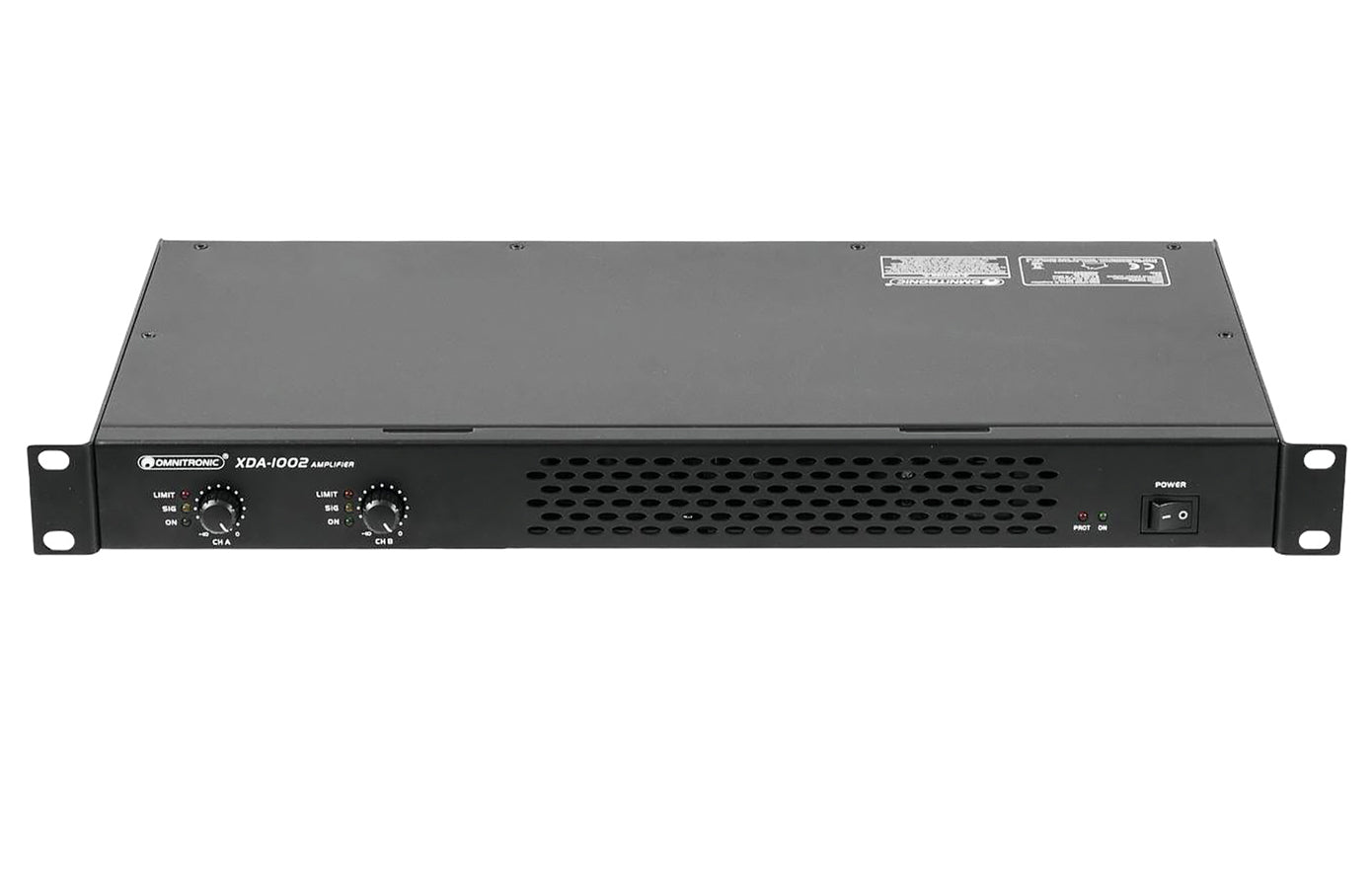

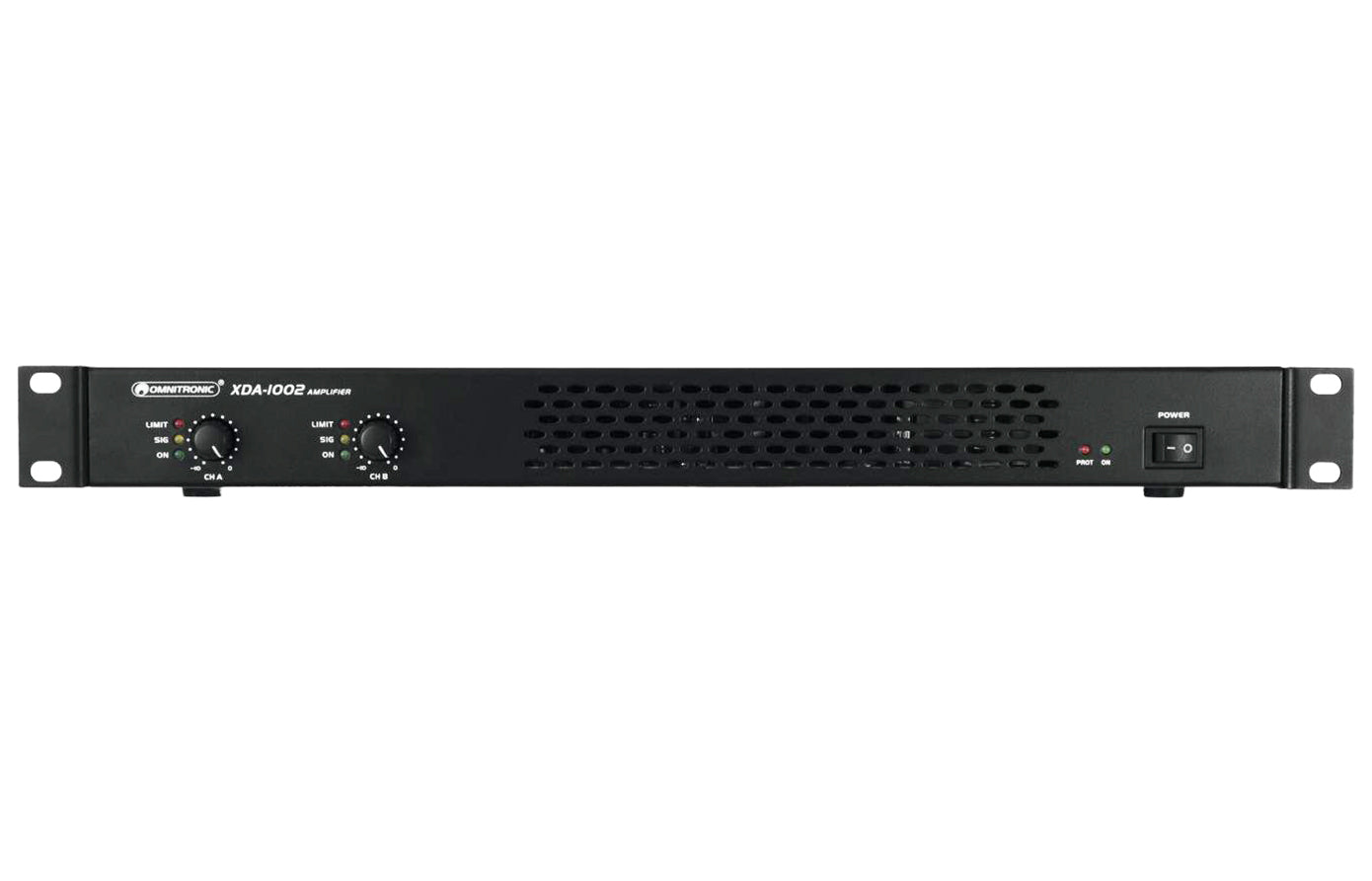

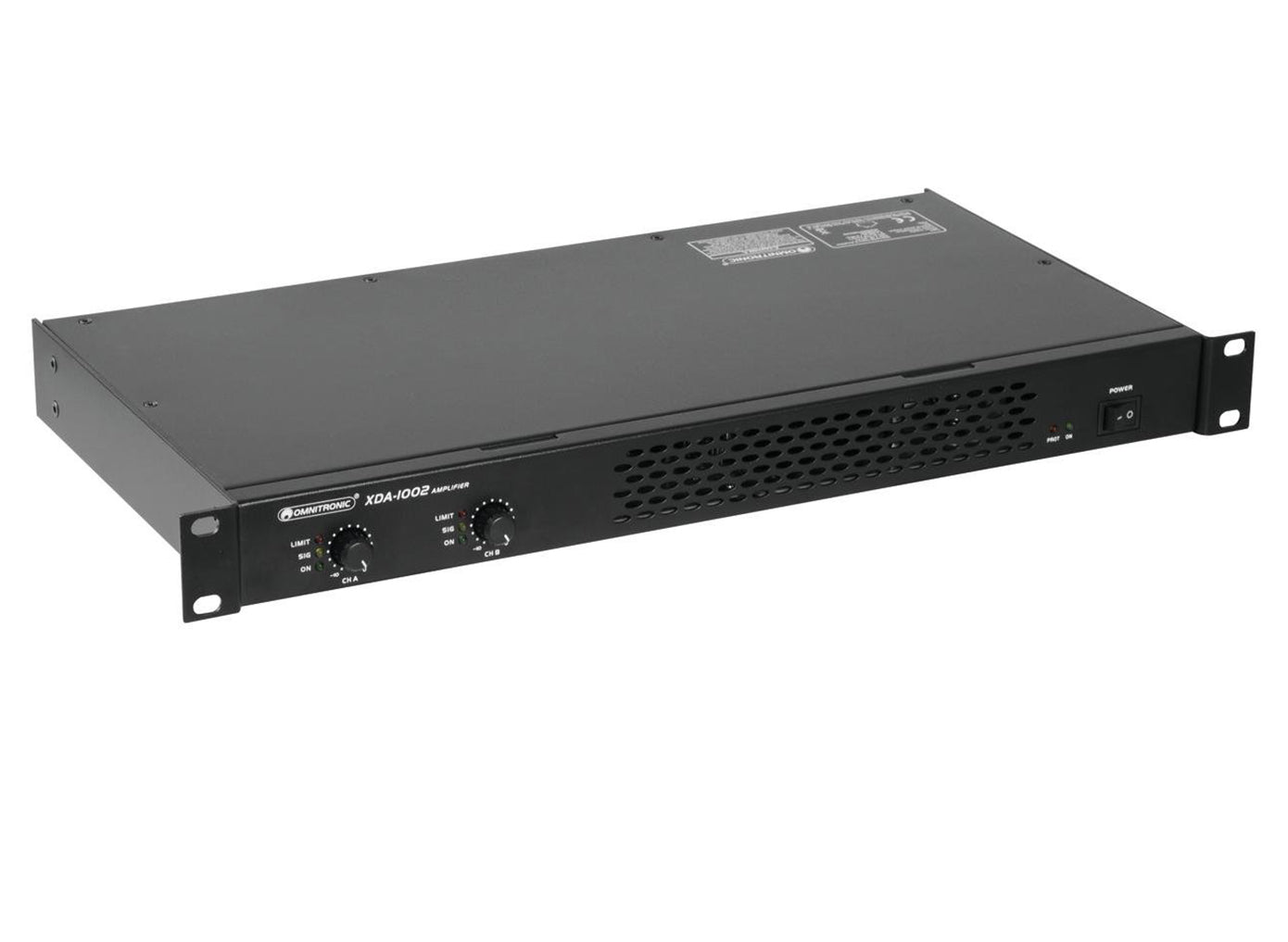

Omnitronic XDA-1002 PA amplifier
€382,00
Stückpreis
/
Nicht verfügbar
Beschreibung
Beschreibung
- Omnitronic XDA-1002 Class D amplifier
-
Stereo PA Amplifier with SMPS
-
2 x 510W into 4 ohms / 2 x 300W into 8 ohms
-
19" rack installation 1U
- 2 level controls
- LEDs for activated protective circuit, limiter, signal, and power
- Complete protection set against short-circuit, overheat, DC voltage, power on/off transients, soft start
- Ground lift switch against humming
- Fan cooling

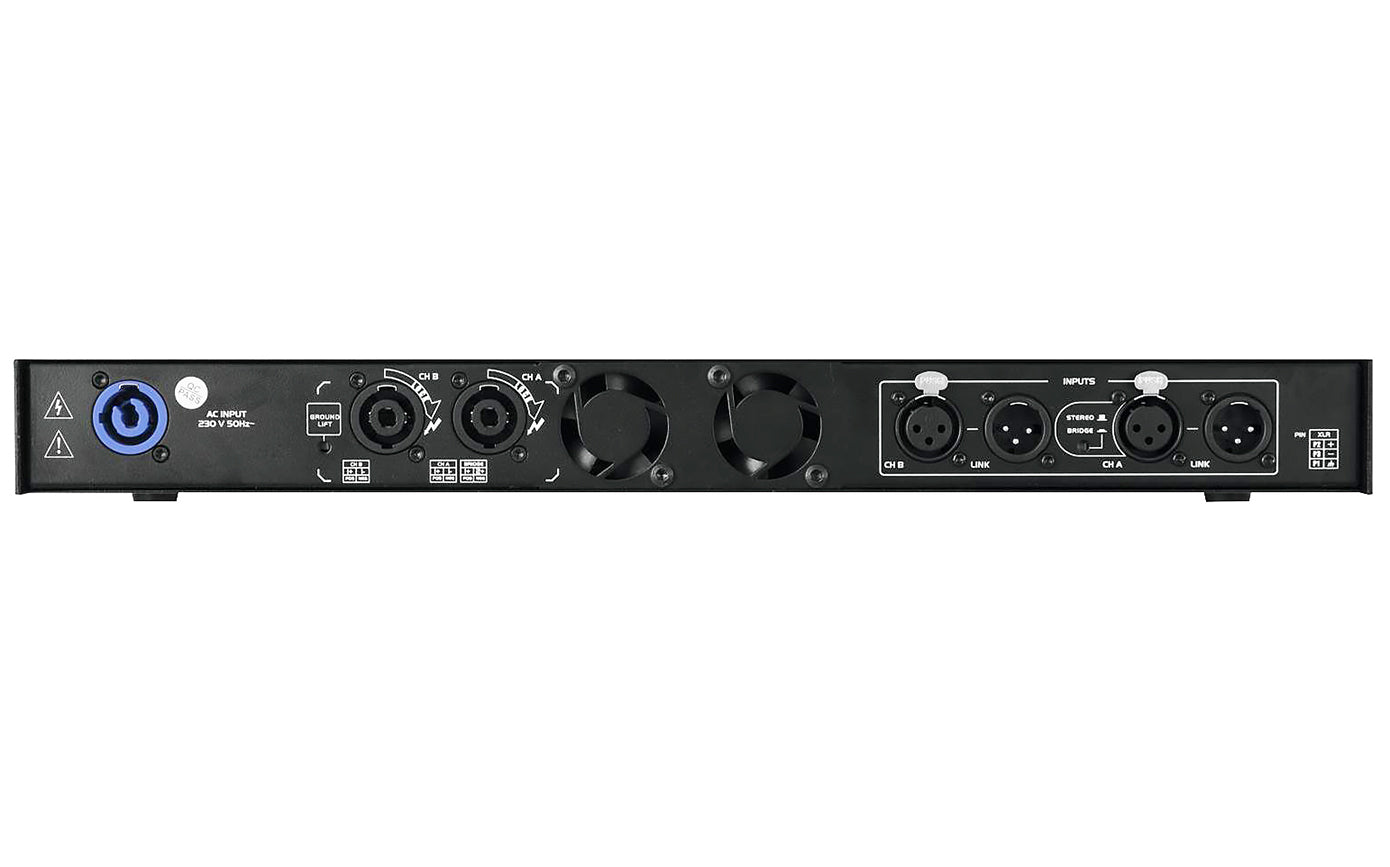

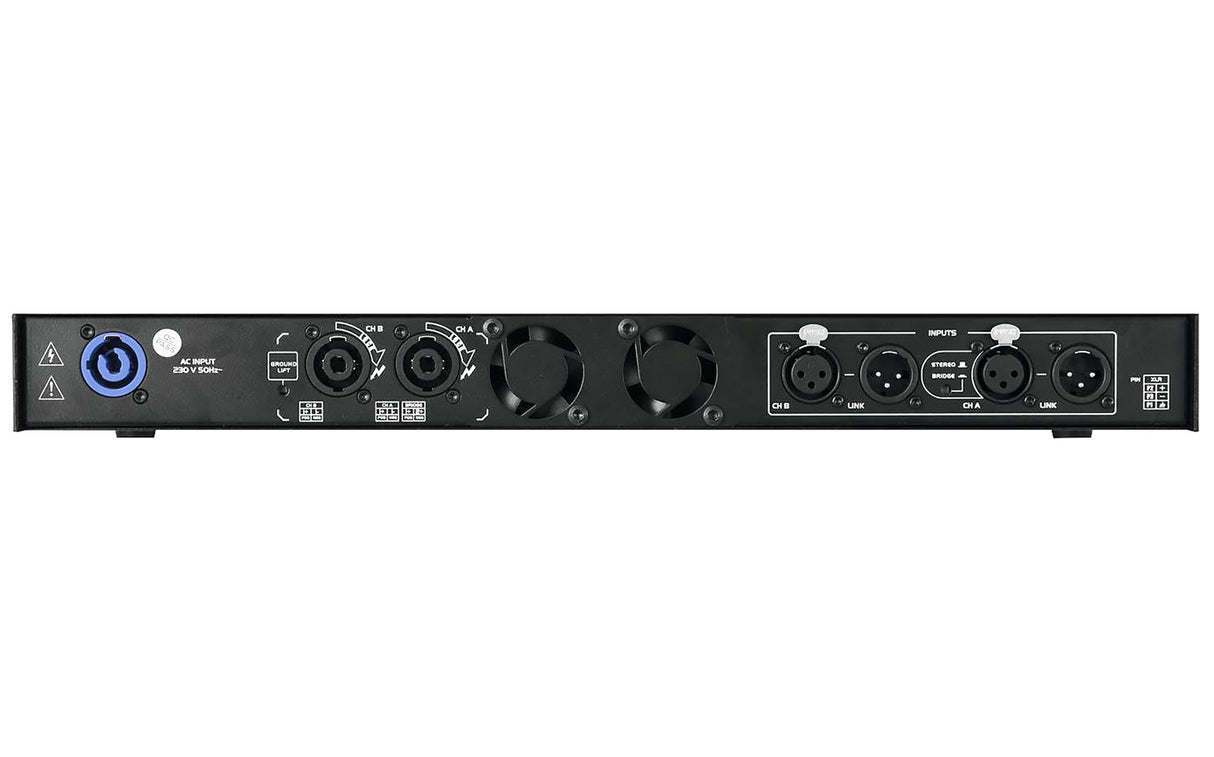

- Electronically balanced inputs via XLR mounting jacks with feed-through output
- Speaker outputs via lockable speaker jacks
- Housing design: (19") 48.3 cm rack installation 1 U
Spezifikationen
Spezifikationen
-
Weight (kg)
More specifications
More specifications
- 2 level controls
- LEDs for activated protective circuit, limiter, signal, and power
- Complete protection set against short-circuit, overheat, DC voltage, power on/off transients, soft start
- Ground lift switch against humming
- Fan cooling
- Electronically balanced inputs via XLR mounting jacks with feed-through output
- Speaker outputs via lockable speaker jacks
- Housing design: (19") 48.3 cm rack installation 1 U
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 210 W 1/8 power |
| Output power: | 2 x 300 W RMS (8 ohms) |
| 2 x 510 W RMS (4 ohms) | |
| 1000 W RMS bridged (8 ohms) | |
| Power connection: | Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided) |
| Frequency range: | 30 - 20000 Hz |
| S/N ratio: | >100 dB |
| Circuitry: | Class D |
| Input sensitivity: | ca. 1,25 V |
| Distortion: | <0,02 % |
| Housing design: | (19") 48.3 cm rack installation 1 U |
| Voltage gain: | 36 dB at 8 ohms |
| Input impedance: | 20 kohms (balanced), 10 kohms (unbalanced) |
| Input connectors: | 2 x XLR |
| Output connectors: | 2 x Speaker, 2 x XLR feed-through output |
| Circuitry: | class D |
| Control elements: | power switch, level control per channel, mode switch (stereo/bridged), ground lift switch |
| LED indicators: | Protect, limit, signal, power |
| Protection circuits: | Short-circuit, overheat, DC voltage, power on/off transients, softstart |
| Construction: | steel chassis |
Brand: OMNITRONIC
SKU: STE-10451635
