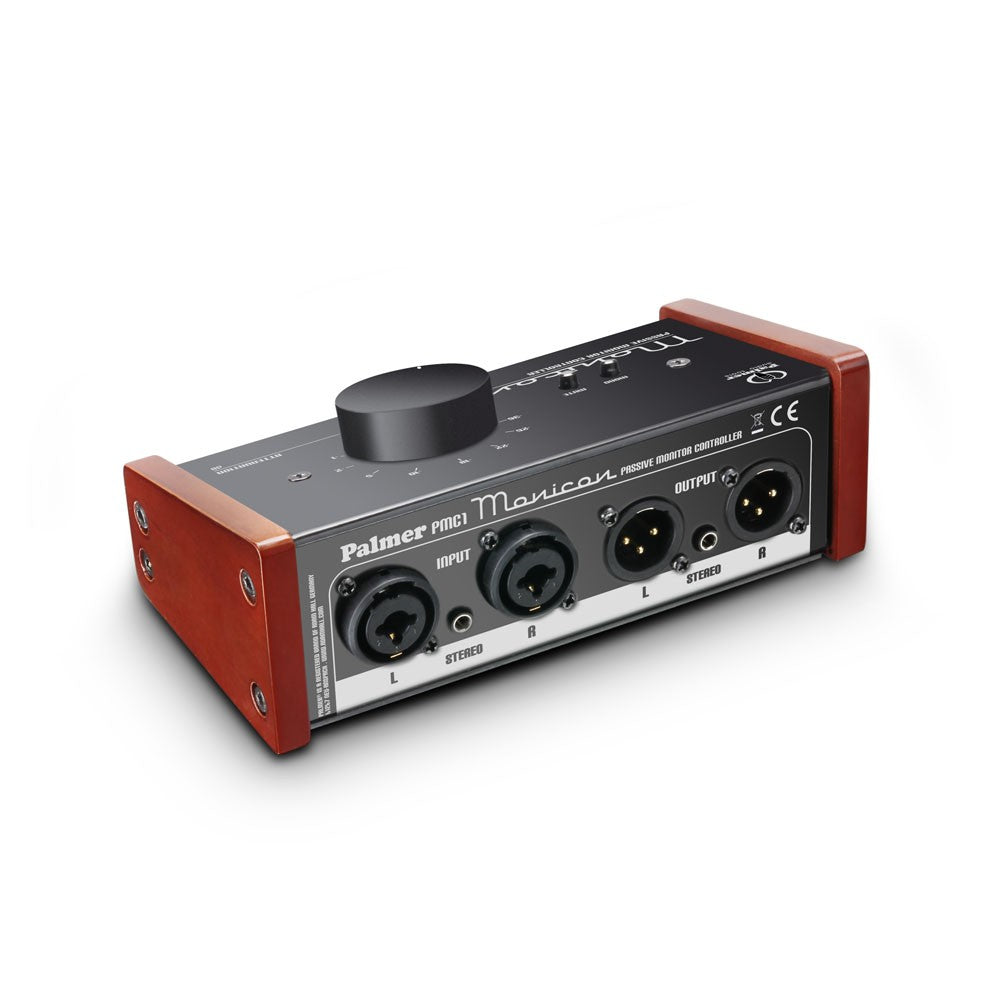

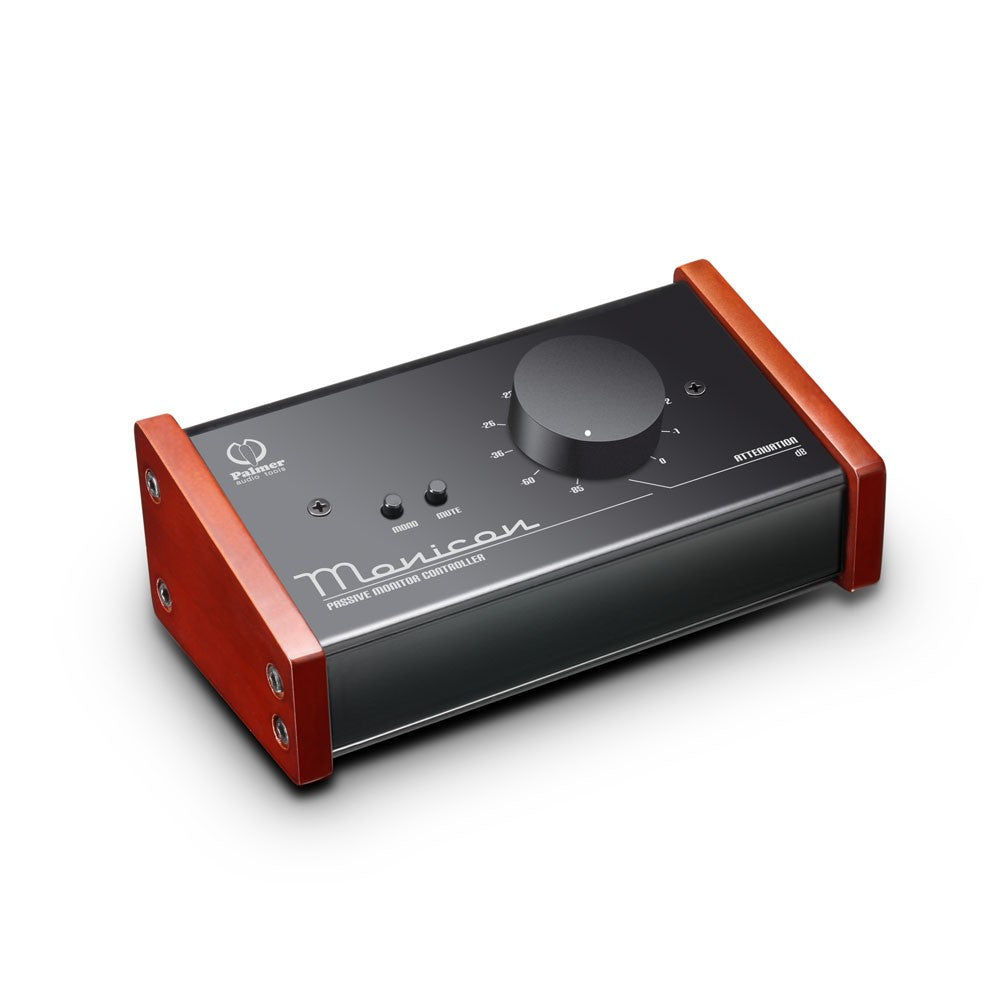

Palmer Passive Monitor Controller

• Volume control for your active monitors
• 2 x jack/XLR combo input
• 1 x 3.5 mm stereo jack input
• 2 x XLR output
• 1 x 3.5 mm stereo jack output
• Mute button

Palmer Monicon®, and the volume is right!

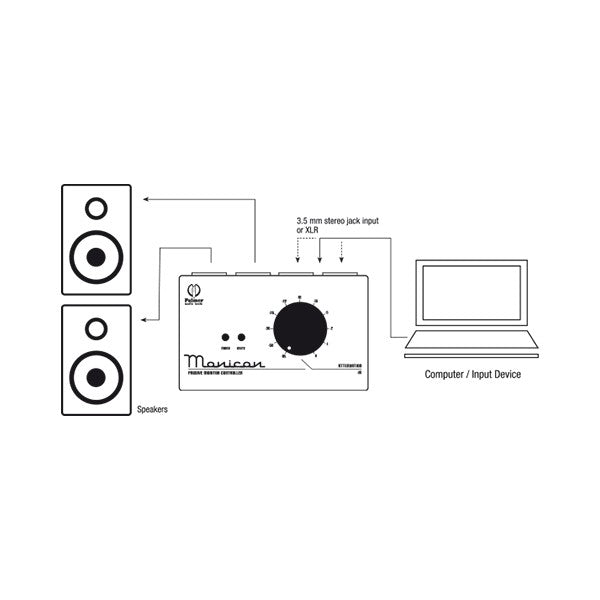

With Palmer Monicon®, your monitor volume is always under control. The passive mini-mixer with the oversized control is inserted between the stereo output of the notebook, PC or interface and an active monitor system and thus permits convenient and precise volume control of the monitors from the workstation. The passive circuitry with only a few components has absolutely no affect on the sound. Mute and mono buttons make it possible to mute the outputs and merge the stereo output signal into a mono master signal.

The inputs and outputs of the controller are equipped with XLR connectors and the 3.5mm stereo TRS sockets usually found on computers. Combo input sockets also permit connection with 6.3 mm TRS plugs. Thus the Palmer Monicon® is compatible with both professional and consumer equipment. Genuine wood sides make the practical studio tool in its massive powder-coated sheet steel housing an elegant looking "little helper" that is a typical Palmer product.

Specifications

Product type

Other Studio and Recording Equipment

Channels

1

Inputs

2

Input connectors

3.5 mm TRS , XLR

Input type

balanced/unbalanced (depending on TS/TRS connection)

Max. input level

20 dBu

Input impedance

(balanced) 10k Ohm(s) , (unbalanced) 5k Ohm(s)

Outputs

2

Output connectors

3.5 mm TRS , XLR

Output type

balanced/unbalanced (depending on TS/TRS connection)

Max. output level

20 dBu

Output impedance

600 Ohm(s)

Frequency response

10 - 40000 Hz

THD

0.001 %

Max. attenuation

(Attenuator + Mute) 112 dB , (Attenuator) 85 dB

Controls

attenuation , mono , mute

Cabinet material

sheet steel , wood

Cabinet surface

Powder coated

Width

164 mm

Height

62 mm

Depth

85 mm

Weight

0,75 kg
