Cameo Instant Fog 1700 T Pro

• Powerful 1700 watt Fog machine
• Controlled via DMX or as standalone
• Automatic shut-off when tank is empty.
• Suitable for theatres, larger stages, discos etc.

Cameo Instant Fog 1700 T Pro

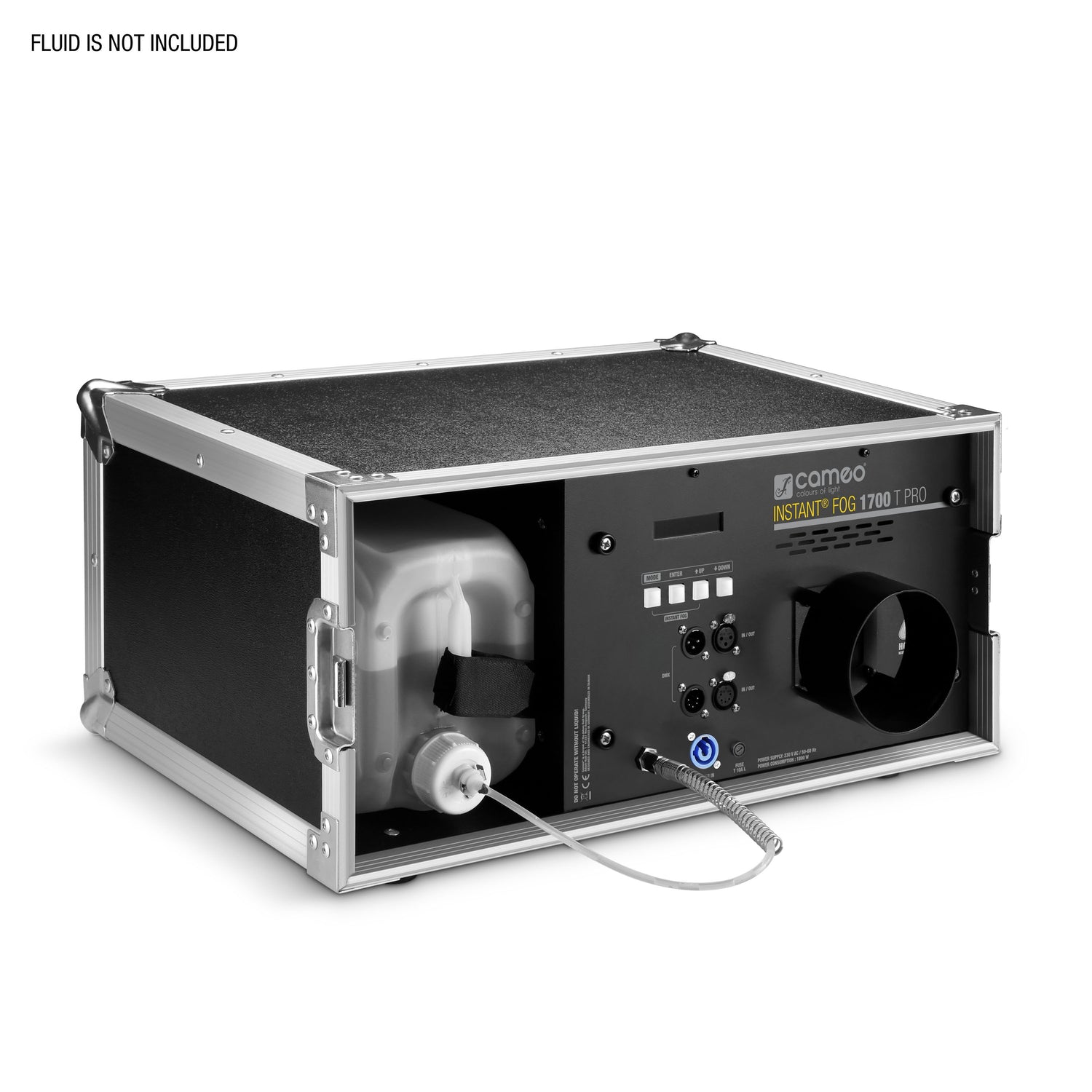

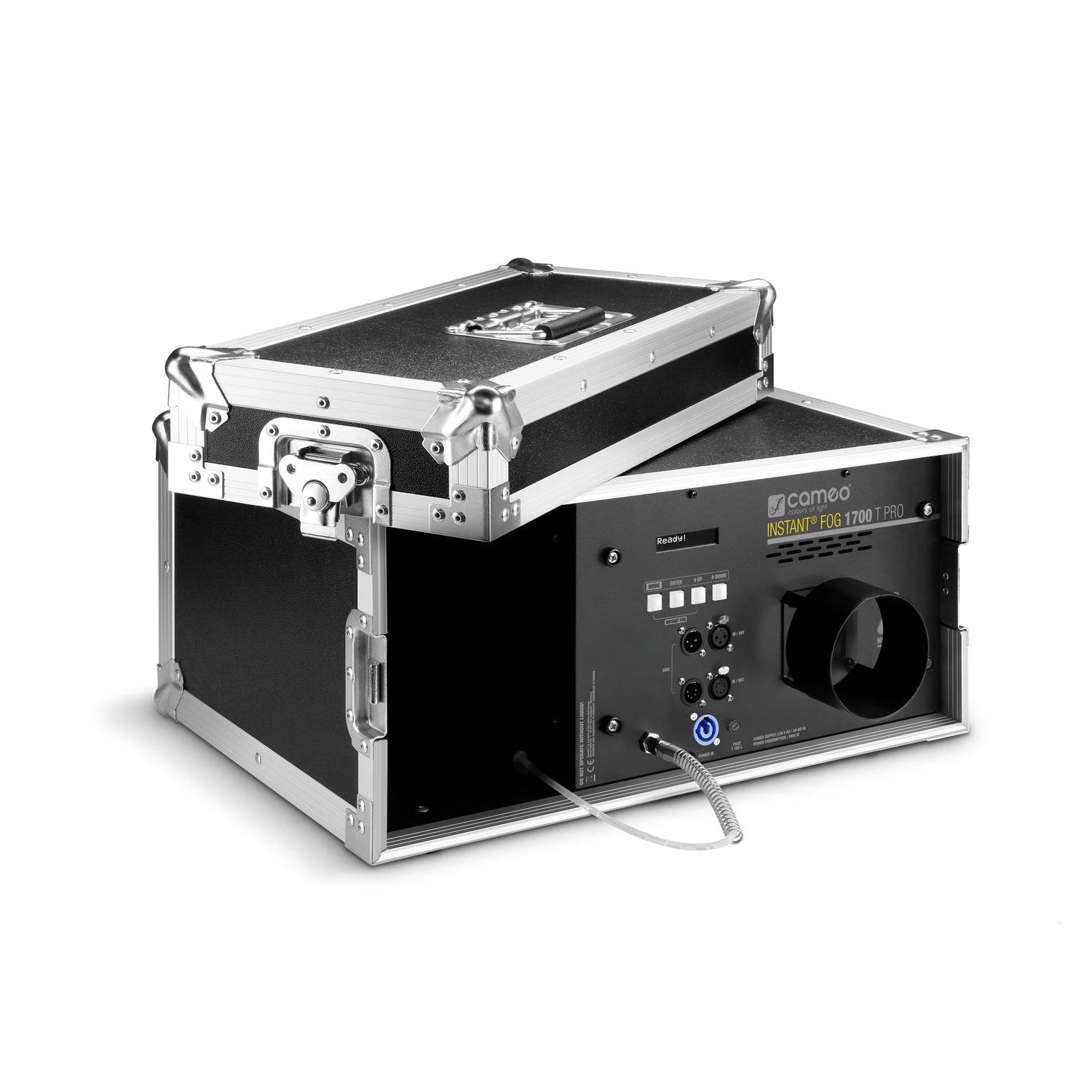

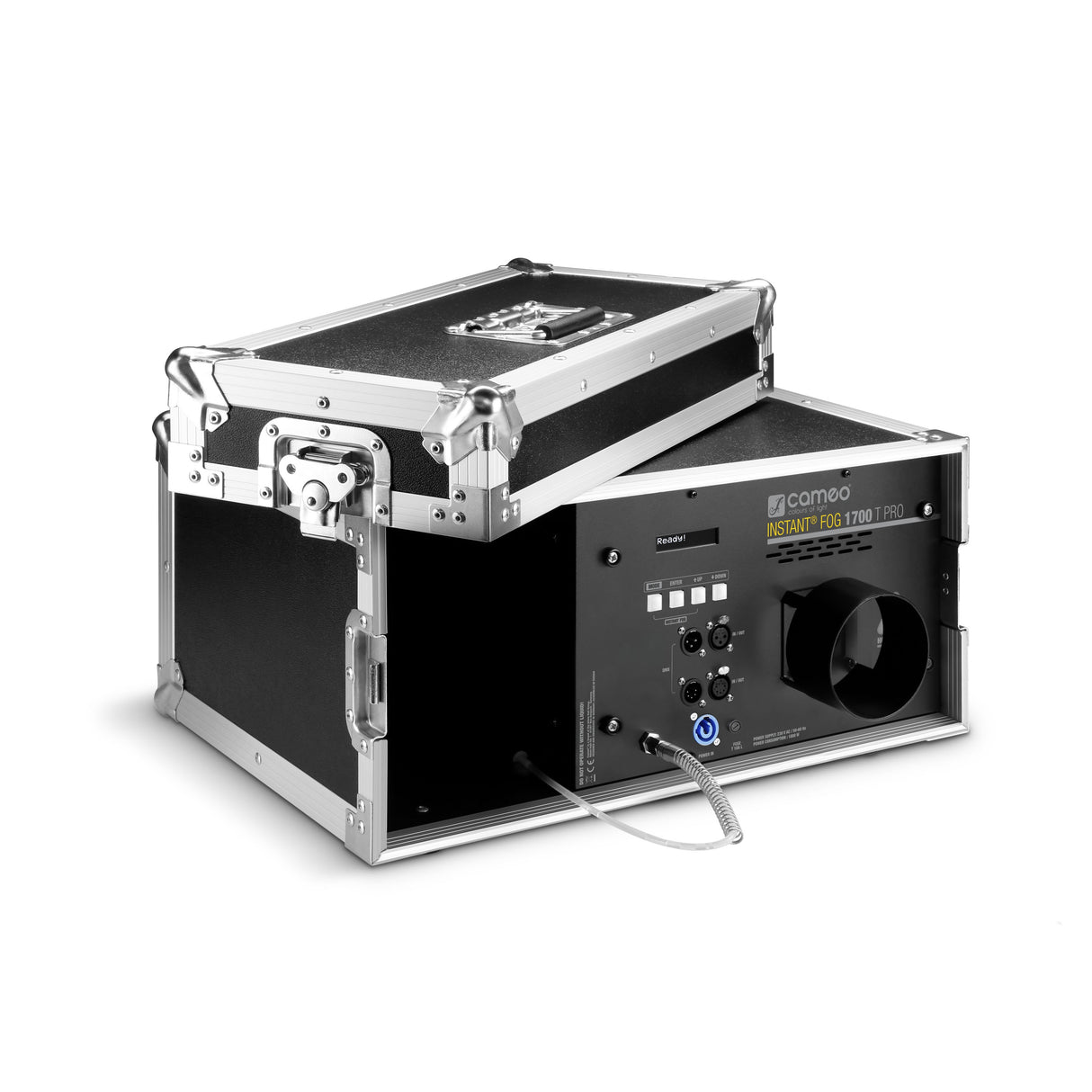

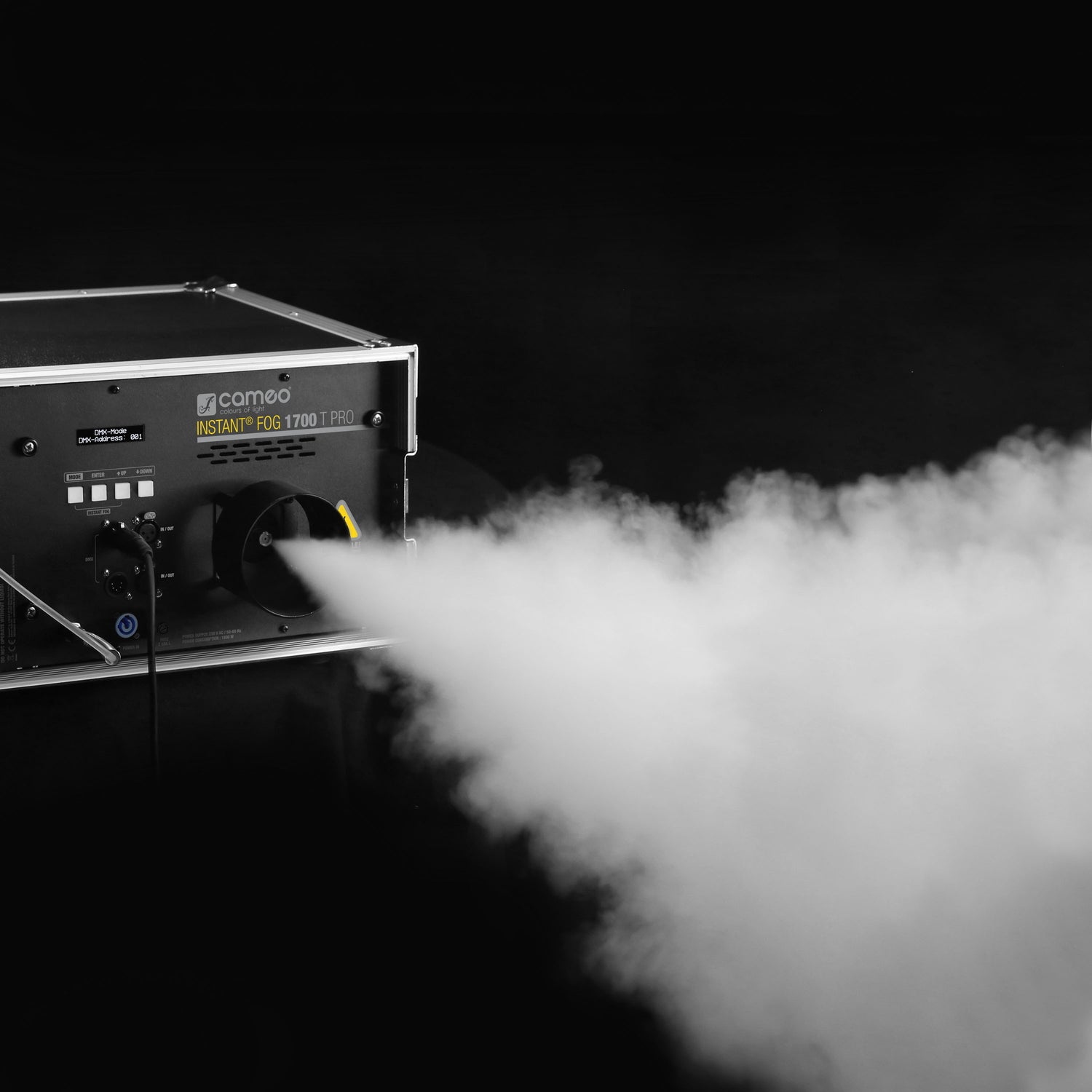

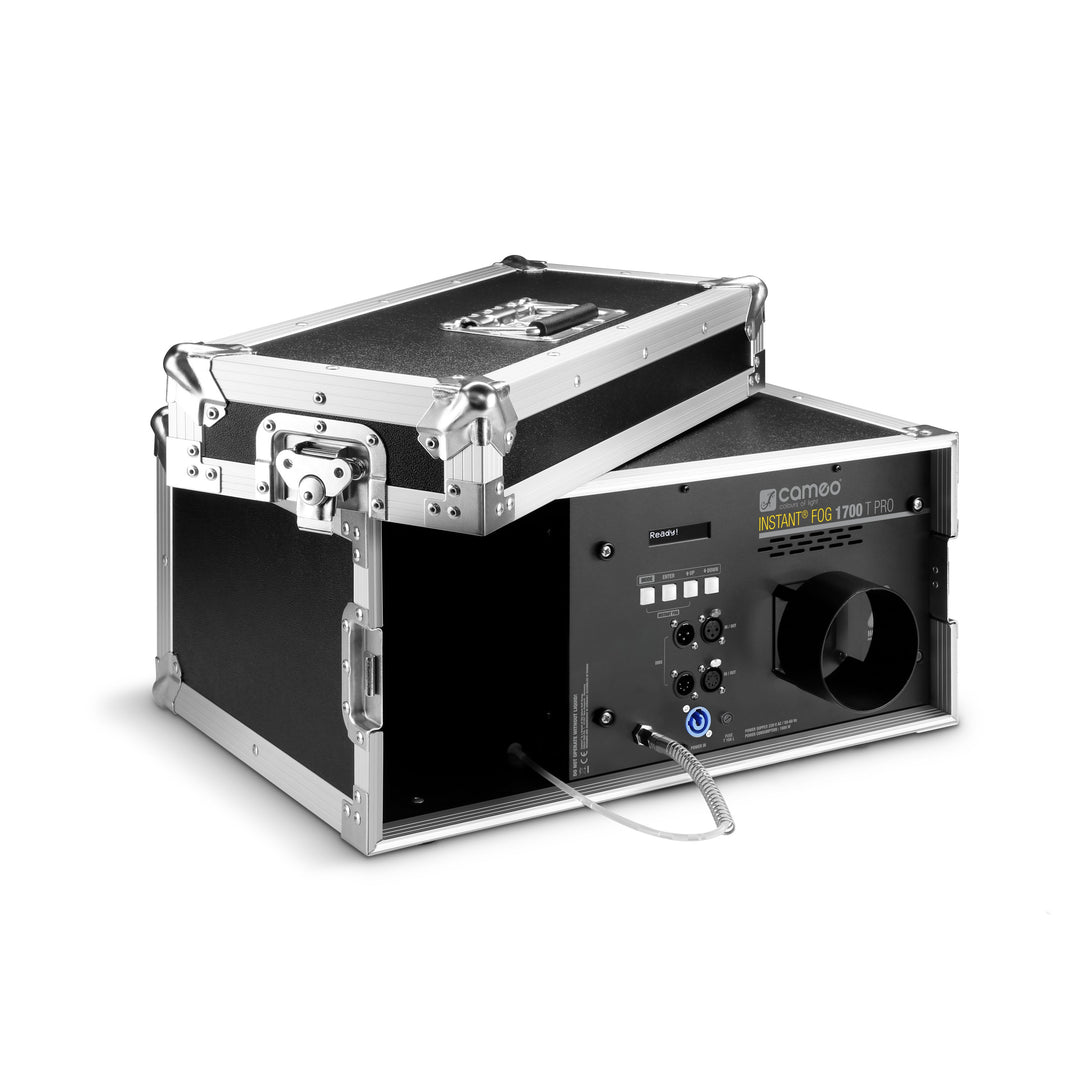

• The Cameo INSTANT FOG 1700 T PRO is a powerful touring fog machine built into a sturdy road case, designed for professional applications such as live events, nightclubs, and theaters.
• Equipped with a 1,700-watt heating element, it delivers a massive fog output of 700 cubic meters per minute, making it ideal for large stages and venues.
• After a short warm-up time of only 7 minutes, the machine can produce dense and consistent fog, perfect for creating spectacular atmospheres.
• With a low fluid consumption of only 150 ml/min at 100% output and an integrated fluid tank that holds up to 5 liters, it ensures longer operation times between refills.

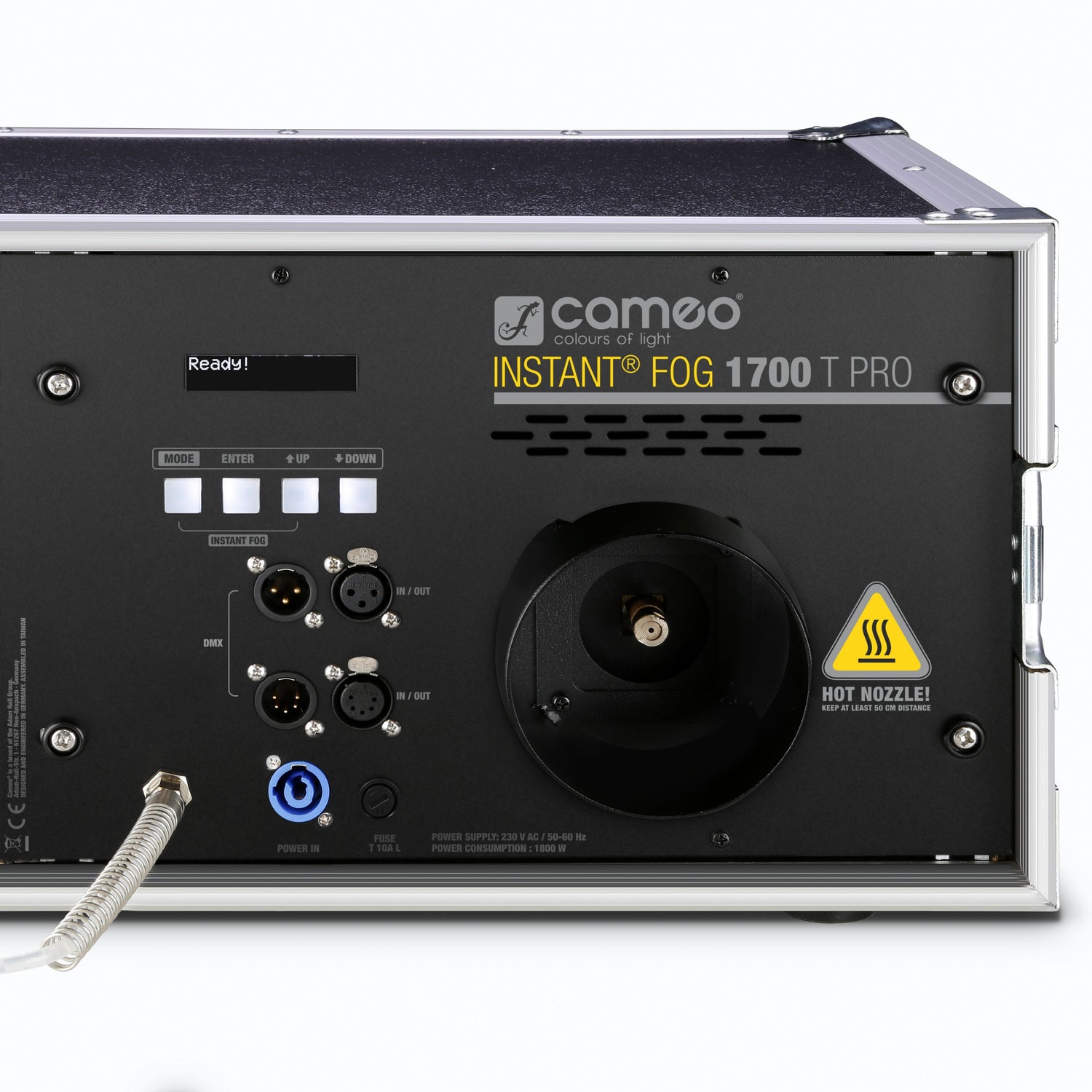

• The INSTANT FOG 1700 T PRO is controlled via DMX in 3-channel mode or using the easy-to-read, high-contrast LCD display and four buttons.
• It features both 3-pin and 5-pin DMX inputs and outputs, as well as a 100 mm hose adapter, allowing the fog to be directed to another location.
• Automatic shutdown protects the pump when the fluid tank is empty, preventing damage.

Power:
1700 W

Warm-up Time:
Approximately 7 minutes

Fog Duration:

• Approximately 40 seconds at 100% Output
• Non-Stop at 50% Output

Reheating Time:
60 seconds

Fluid Tank Capacity:
5 liters

Fluid Consumption:
150 ml/min

DMX Input:
XLR 3-pin male, XLR 5-pin male

DMX Output:
XLR 3-pin female, XLR 5-pin female

DMX Mode:
3-channel

DMX Functions:
Fog Quantity, Interval

Standalone Functions:
Fog Quantity, Instant Fog, Interval

Controls:
Enter, Mode, Value Down, Value Up

Indicators:
Canister lighting, Key illumination, LC display

Operating Voltage:

• 230 V AC / 50-60 Hz

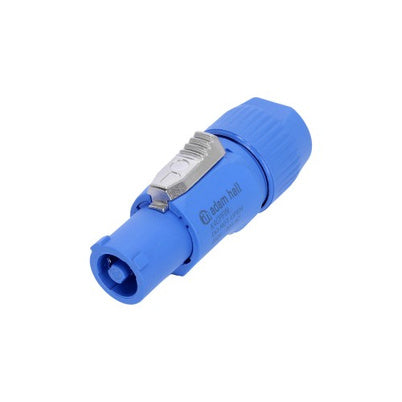

• 230 - 240 V AC / 50 - 60 Hz, Neutrik PowerCON TRUE1

Power Consumption:
1800 W

Overheating Protection:
Heating element with thermostat

Power Supply Connector:

• Power cord with safety plug (Type E / CEE 7/7)
• Power Twist Connector

Fuse:
T10AL (5 x 20 mm)

Ambient Temperature (Operating):
5 - 40 °C

Relative Humidity:
Less than 85%, non-condensing

Housing Material:
Metal, plywood

Cabinet Colour:
Black

Dimensions with Cover (W x H x D):
550 x 265 x 465 mm

Width:
465 mm

Height:
255 mm

Length:
550 mm

Other Features:

• 4 rubber feet

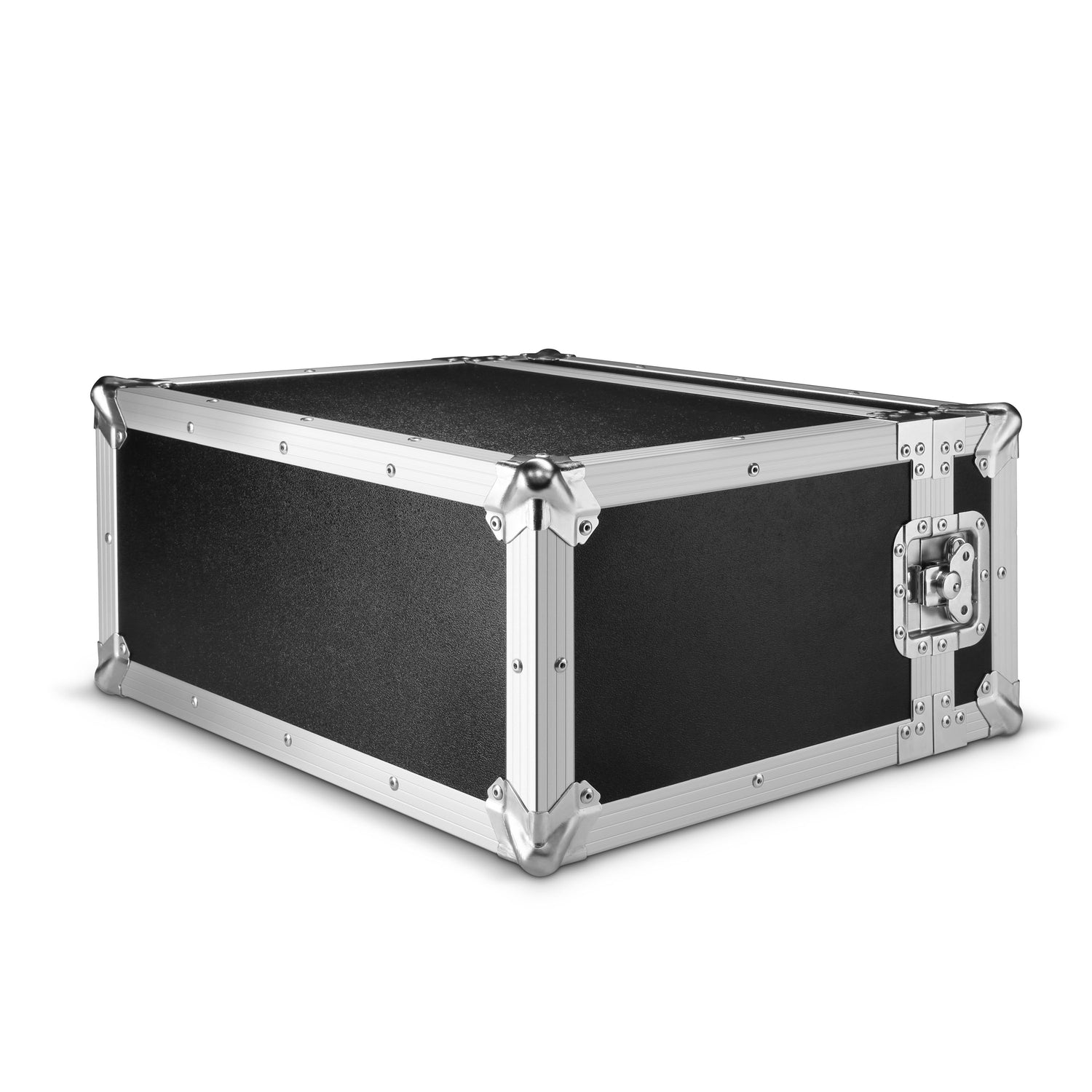

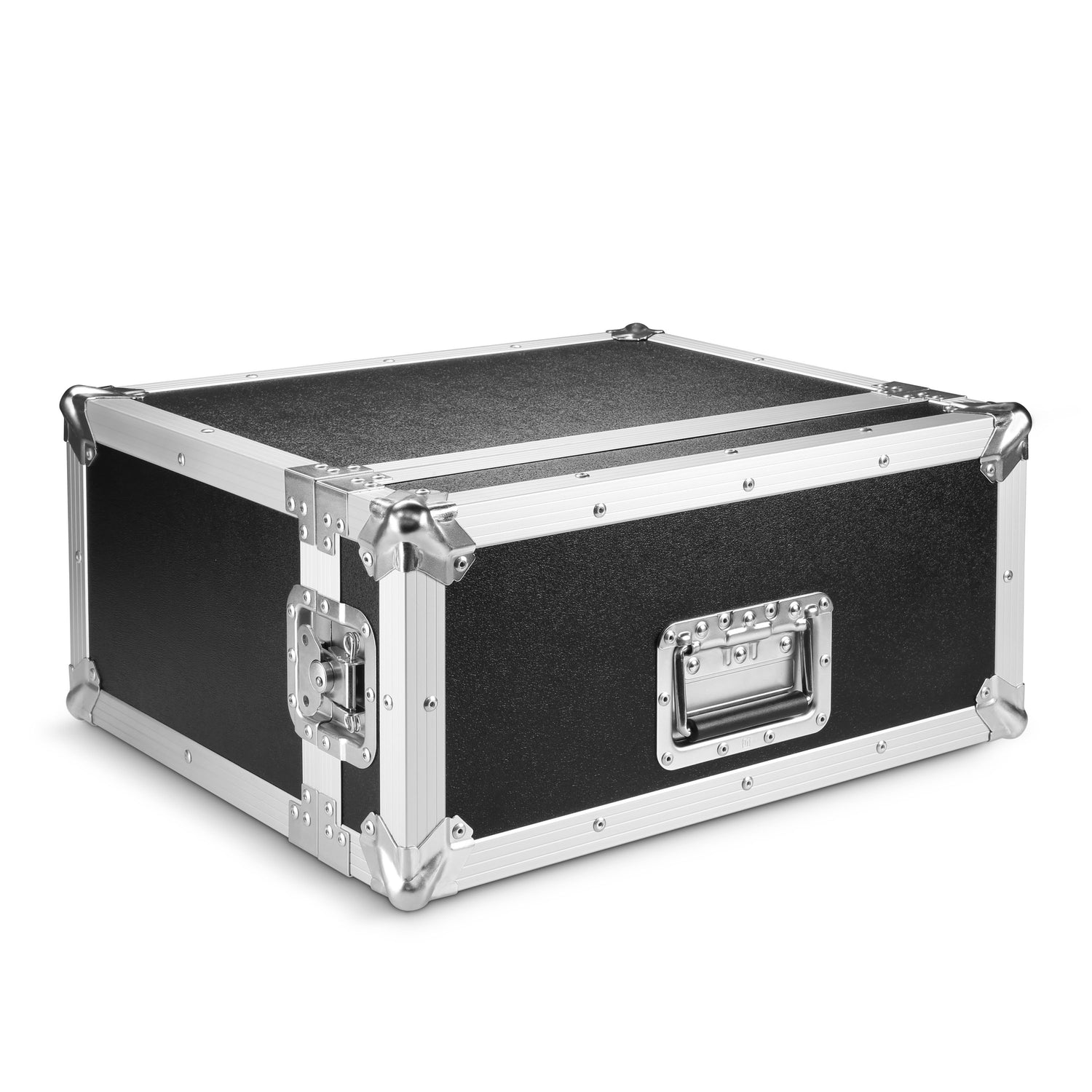

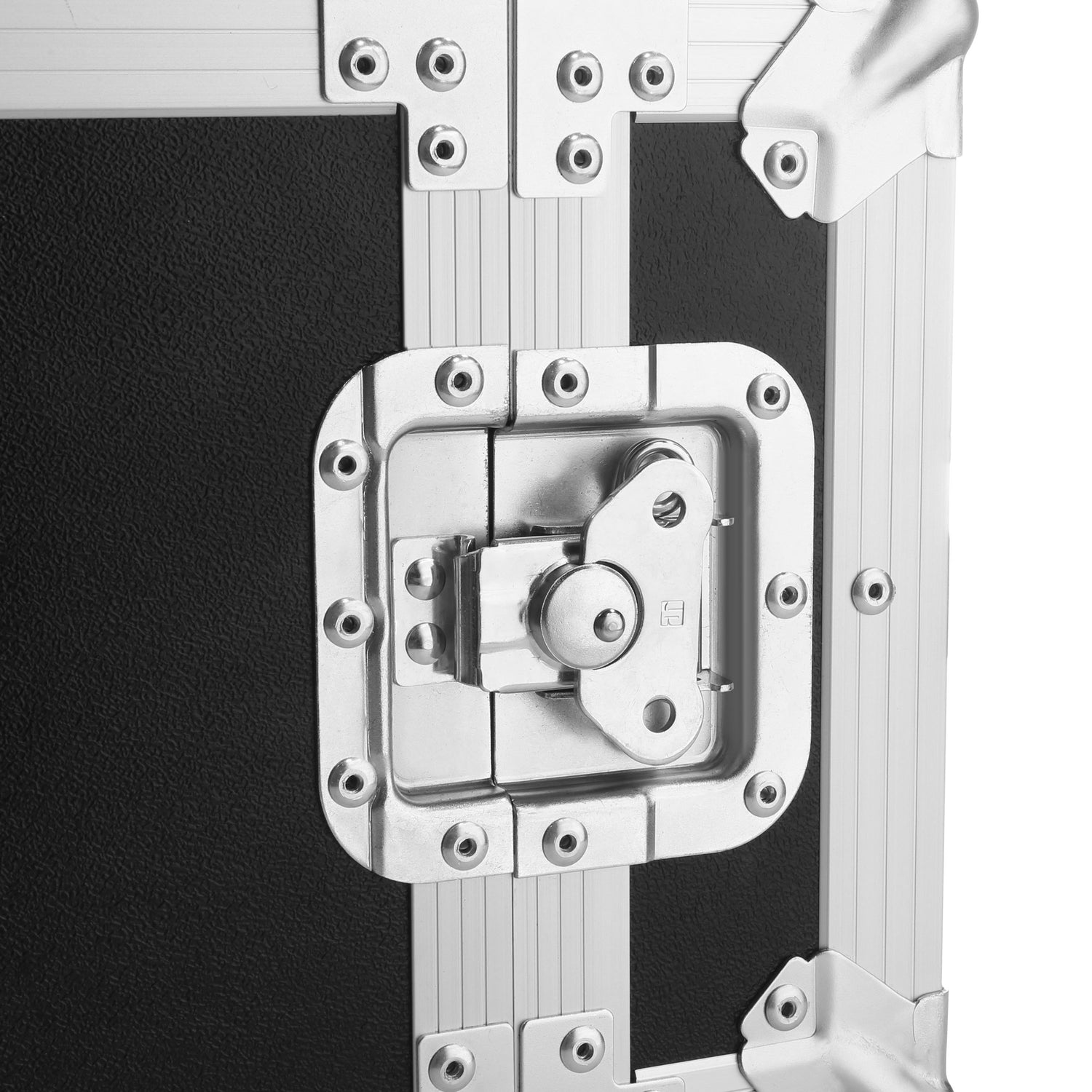

• Flight case with cover, butterfly locks, and carrying handle
• Power cord
• Special canister cap with ventilation valve and suction pipe

Weight:
21.763 kg
