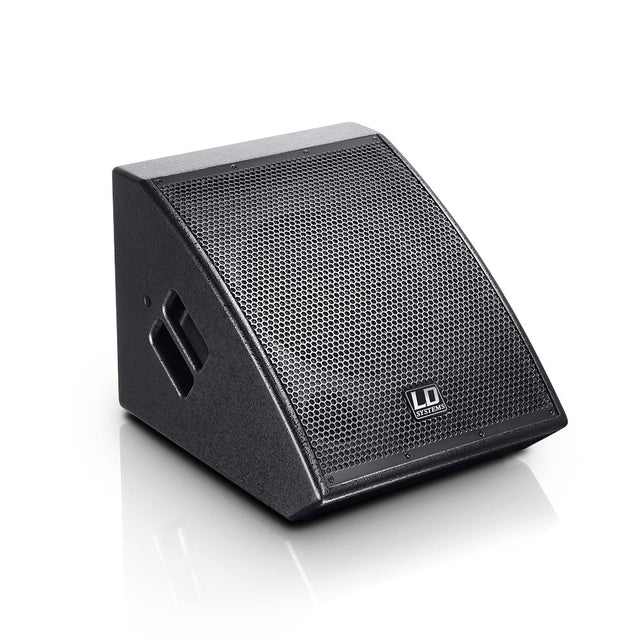

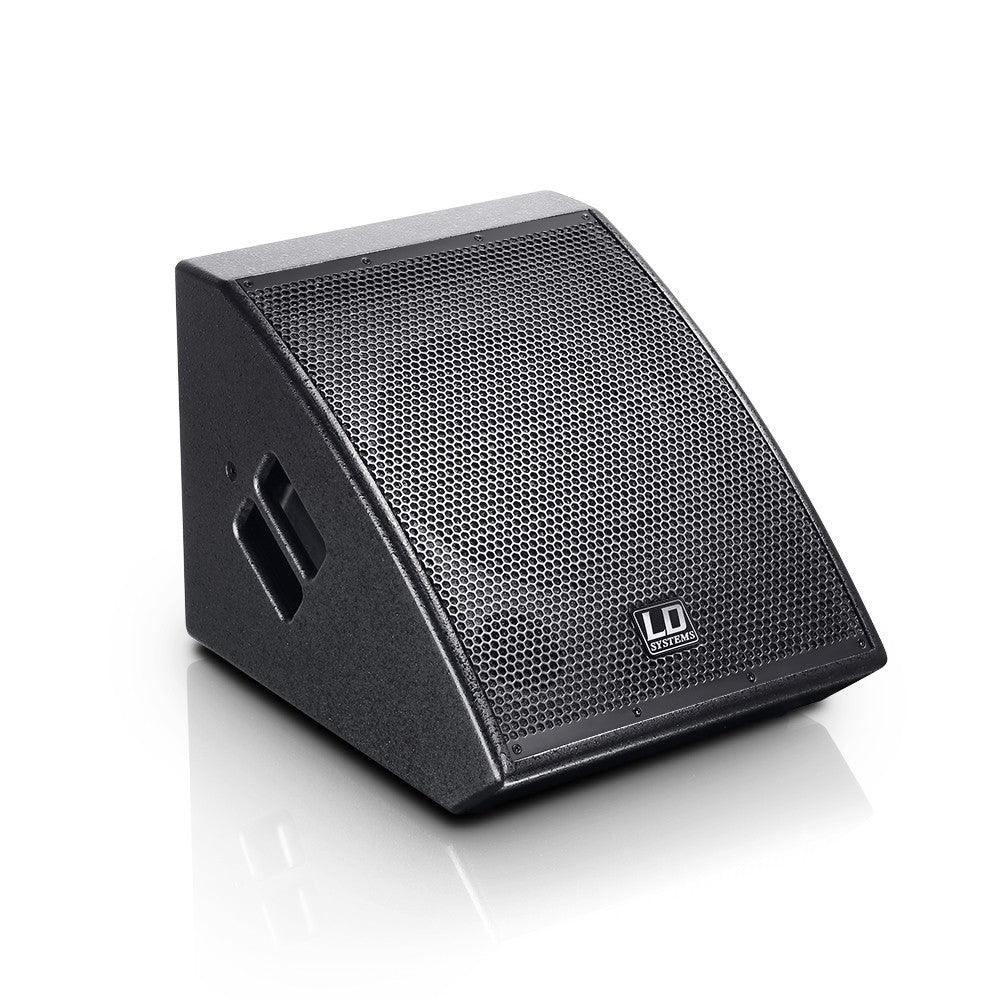

LD Systems MON-101A G2, Active Stage Monitor

• 150W. RMS.
• 99 SPL (1W/1m)
• 10" Coaxial speaker with an integrated 1" HF driver.
• Dispersion angle of 75° x75°.
• Very low sensitivity for feedback.
• Short circuit protection and Limiter ensure reliable drift.
• Adjustable volume and power switch directly on the monitor.

LD Systems Stinger MON-101A G2

This is an extremely compact active monitor, with a very wide frequency range and a maximum sound level pressure of 121dB.

Product type

PA loudspeaker

Type

Active

Low/mid driver dimensions

10 "

Woofer size

254 mm

Woofer type

coaxial loudspeaker

Woofer magnet

Ferrite

Woofer brand

Custom-made

Woofer voice coil

2 "

Woofer voice coil (mm)

50.8 mm

HF driver dimensions

1 "

HF Driver Size

25.4 mm

HF driver magnet

Ferrite

HF driver brand

Custom-made

HF driver voice coil

1 "

HF Driver Voice Coil

25.4 mm

Amplifier

Class A/B

Dispersion (H x V)

75 x 75 °

RMS

150 W

Peak power

600 W

Frequency response

90 - 20000 Hz

Crossover frequency

3300 Hz

SPL (1W/1m)

99 dB

Max. SPL (continuous)

113 dB

Max. SPL (peak)

121 dB

Protection circuits

limiter , short circuit

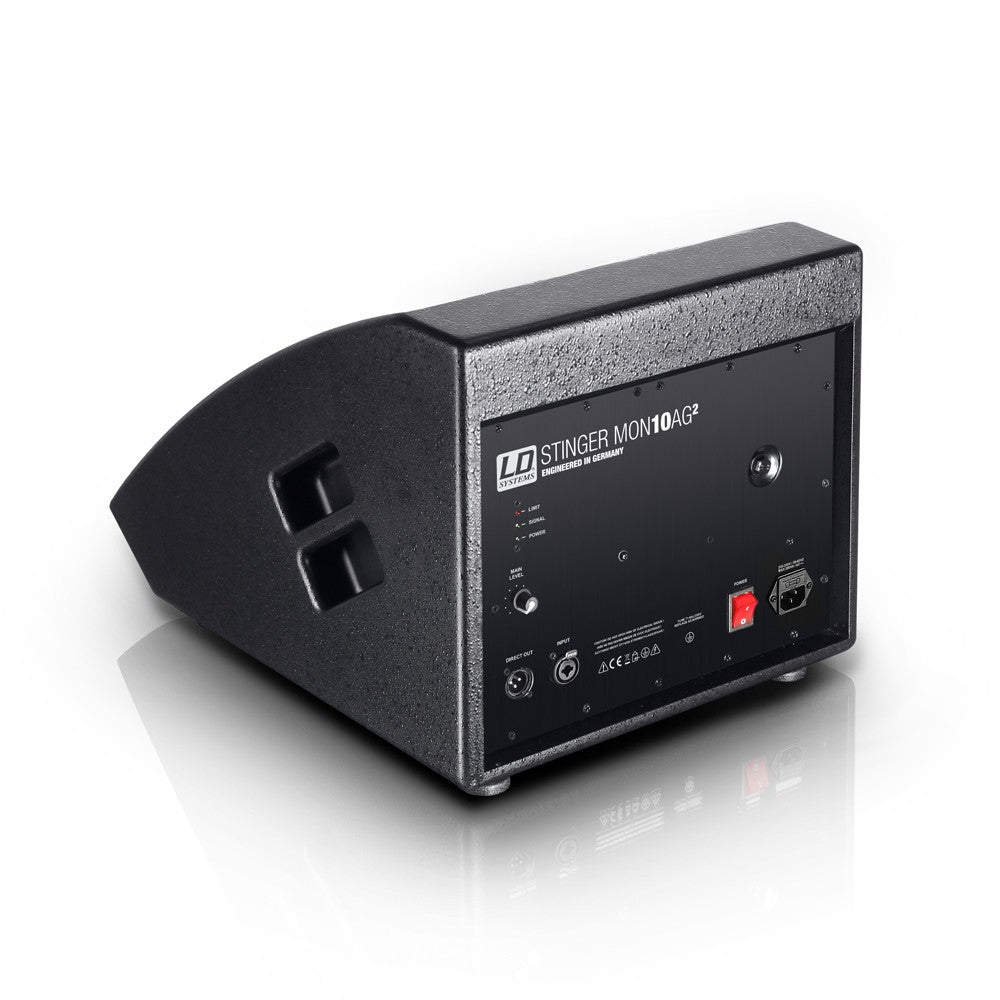

Controls

On / Off , volume

Indicators

Limit , Power , Signal

Line Inputs

1

Line input connectors

6.3 mm jack , XLR

Line Outputs

1

Line output connectors

XLR

Operating voltage

transformer

Operating voltage

230 V AC / 50-60 Hz

Cabinet material

15 mm Plywood

Cabinet construction

vented

Monitor angle

35 °

Width

380 mm

Depth

335 mm

Height

466 mm

Weight

15,3 kg

Features

ergonomically shaped insert handles
