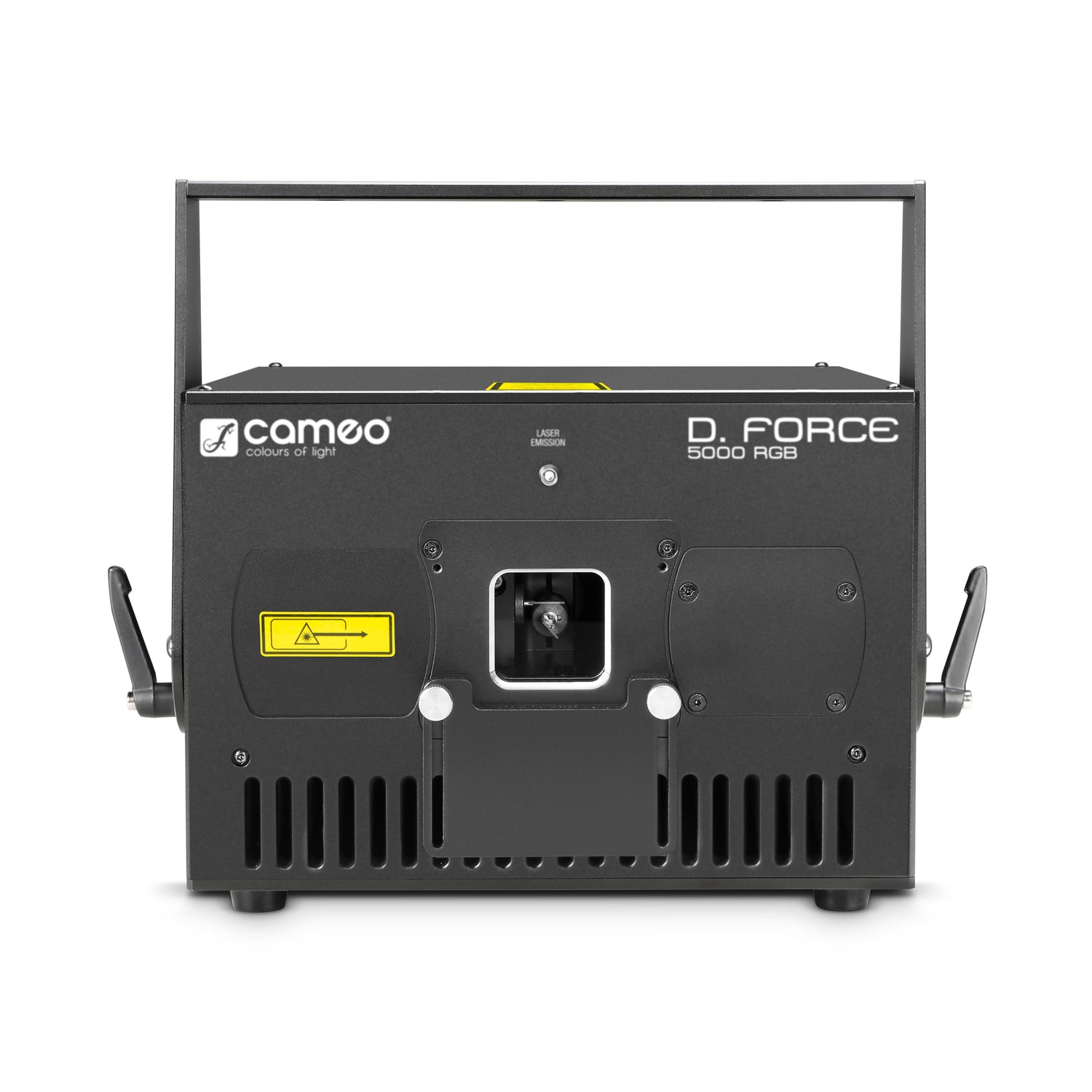

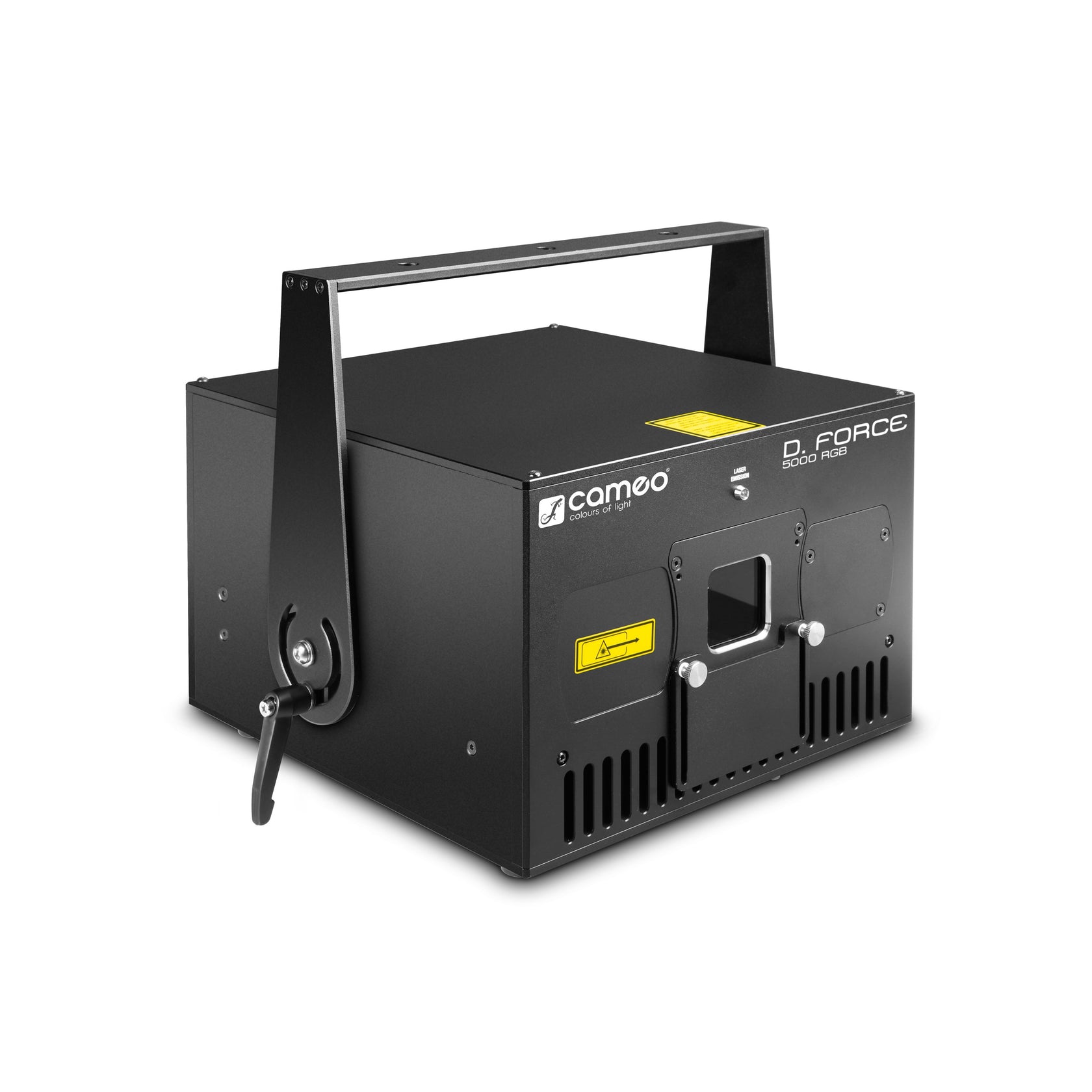

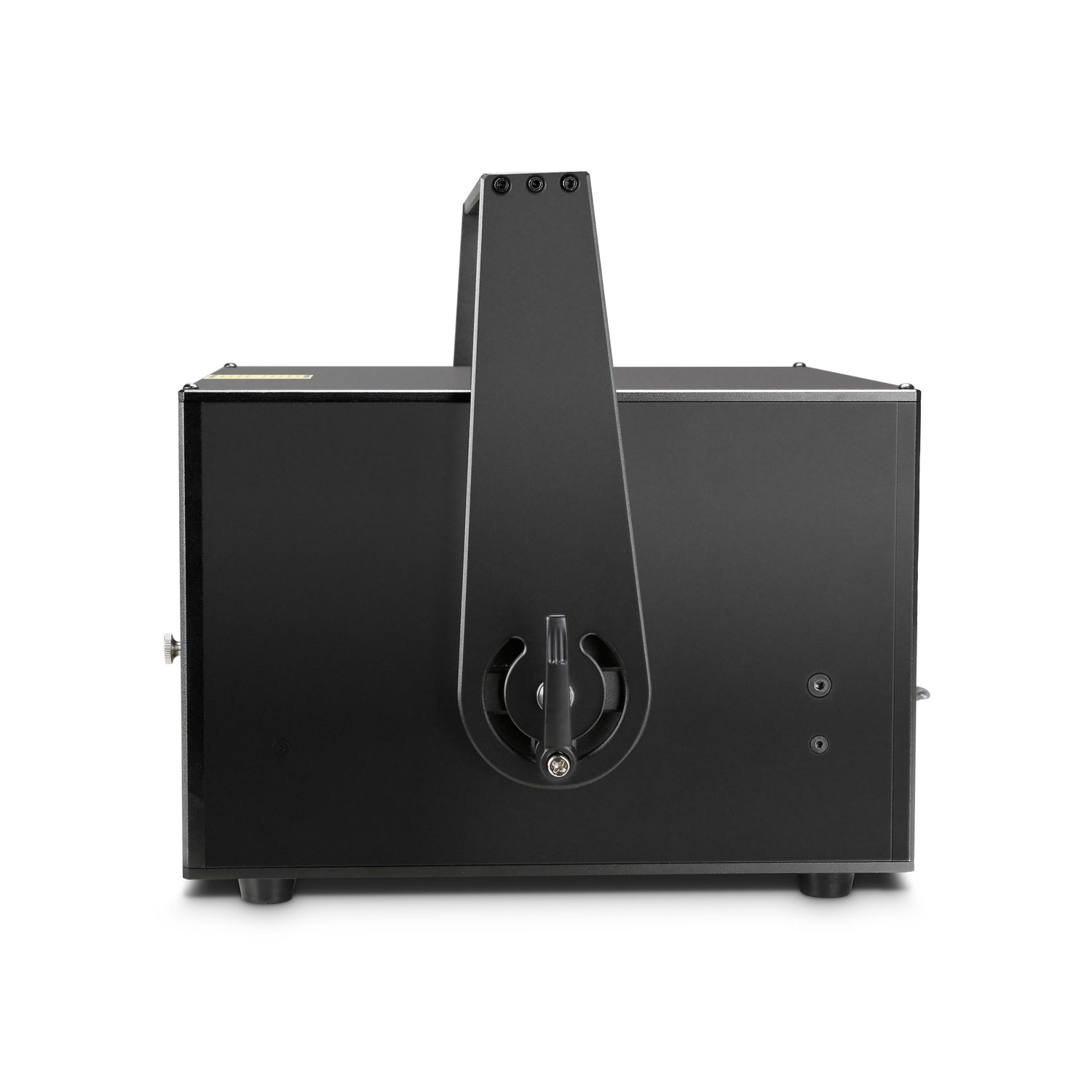

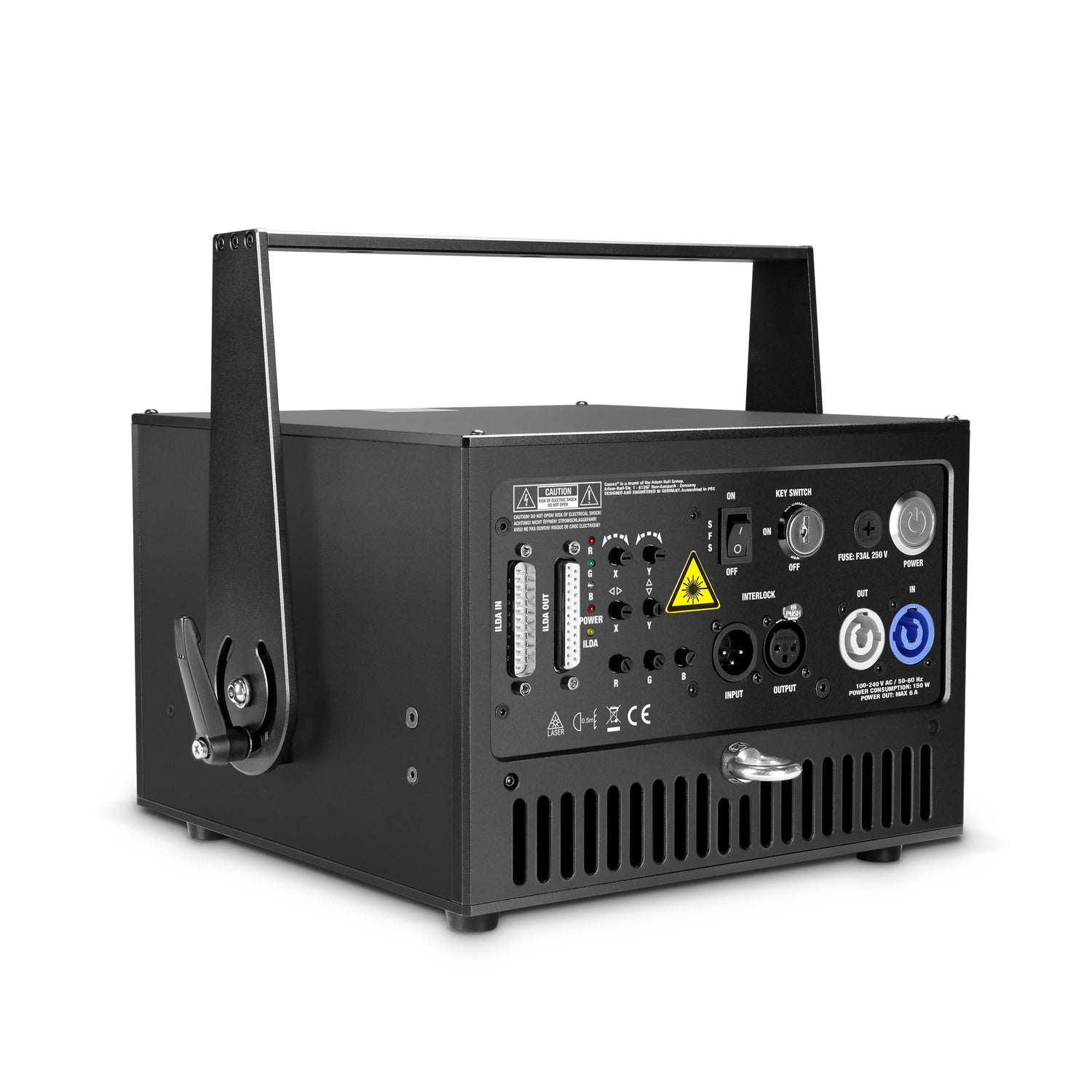

Cameo D FORCE 5000 RGB

• 5,000 mW total output power User-adjustable beam adjustment
• Dust-tight aluminum housing for minimal maintenance
• High-speed high-performance 30 Kpps galvo scanner @ 8°
• ILDA Analog modulation for up to 16 million color shades
• Precision beam with minimal divergence for razor-sharp projections Interlock emergency stop signal output

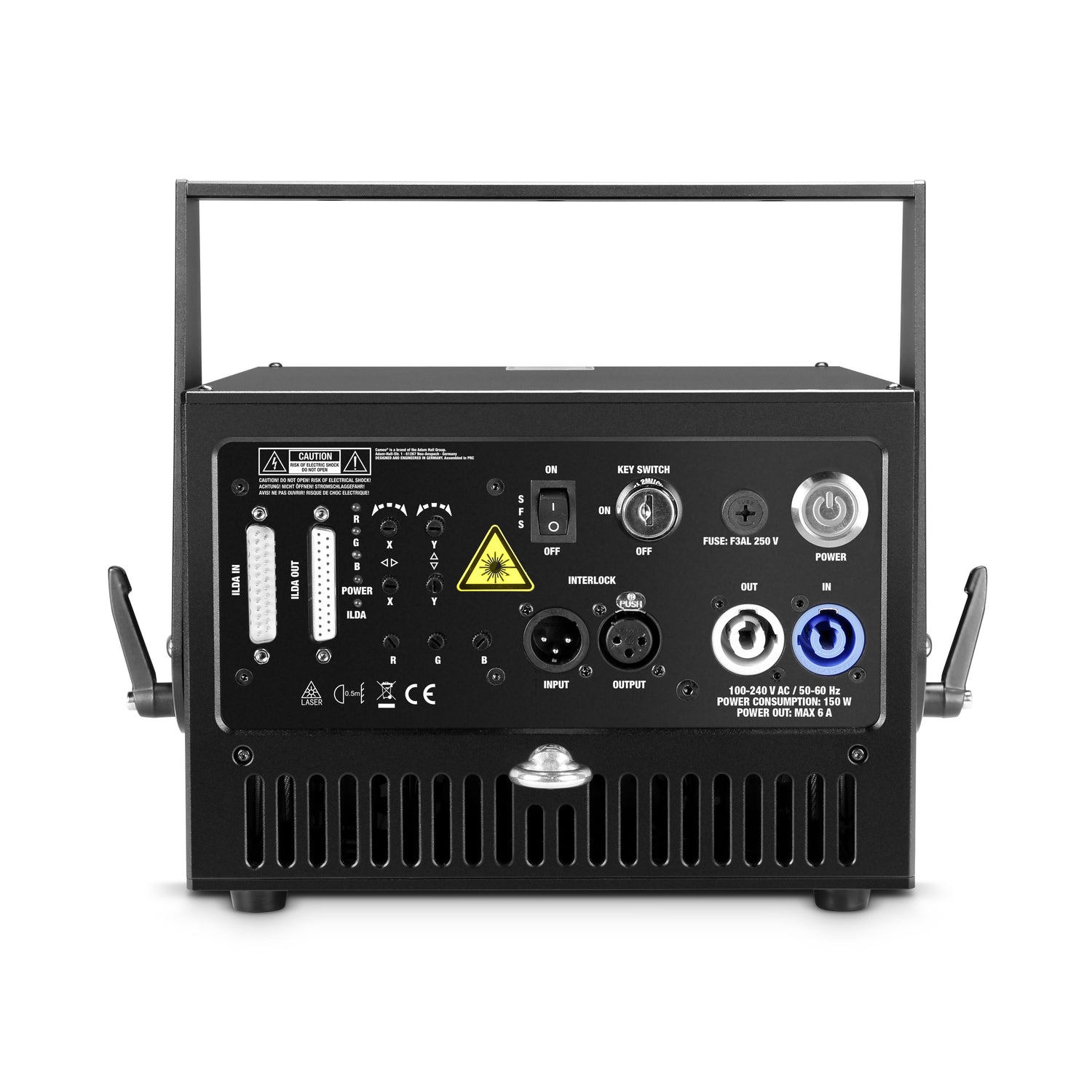

• ILDA interface for software control Scan Fail Safety system Neutrik PowerCON input and output
• Temperature-controlled noise-reducing fan for cool and quiet operation
• Optional adapters for Pangolin safety lenses and DiscoScan V2 360° wide-angle lens (CLLDFORCEAPSSL, CLLDFORCEAPDSL)

• 5,000 mW total output power
• User-adjustable beam alignment
• Dust-proof aluminium housing for minimum maintenance
• High-speed high-performance 30 Kpps galvo scanner @ 8° ILDA
• Analogue modulation for up to 16 million colour shades
• Precision beam with minimum divergence for razor-sharp projections
• Interlock emergency stop signal output
• ILDA interface for software control
• Scan Fail Safety system
• Neutrik PowerCON input and output
• Temperature-controlled low-noise fan for cool and quiet operation
• Optional adapters for Pangolin safety lenses and DiscoScan V2 360° wide-angle lens (CLLDFORCEAPSSL, CLLDFORCEAPDSL)

Product Specifications

• Product Type: Laser
• Total Power: 5,000 mW (R: 1,400 mW, G: 1,400 mW, B: 2,300 mW)
• Colour Spectrum: RGB
• Beam Data: 2 x 4 mm
• Laser Sources: Laser diode
• Laser Class: 4
• Scanner: 30kpps @ 8° ILDA
• Max. Scan Angle: Max. 50°
• Operating Modes: ILDA
• Power Supply: 100 V AC - 250 V AC
• Power Consumption: 150 W
• Power Supply Connector: Neutrik PowerCon
• Housing Material: Aluminium
• Cabinet Colour: Black
• Width: 254 mm
• Height: 175 mm
• Depth: 300 mm
• Weight: 7.9 kg

Downloads:

• User´s Manual
• Technical drawing
• Data Sheet
• Tender documents
