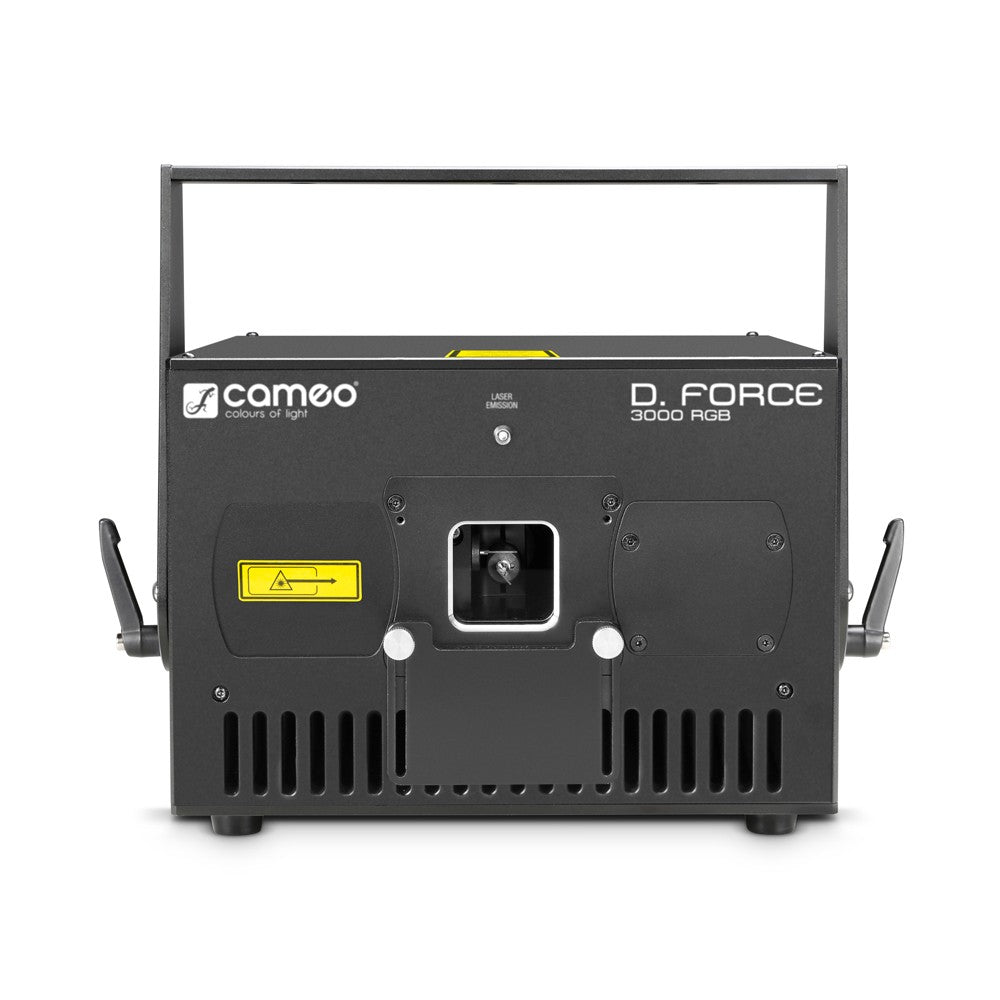

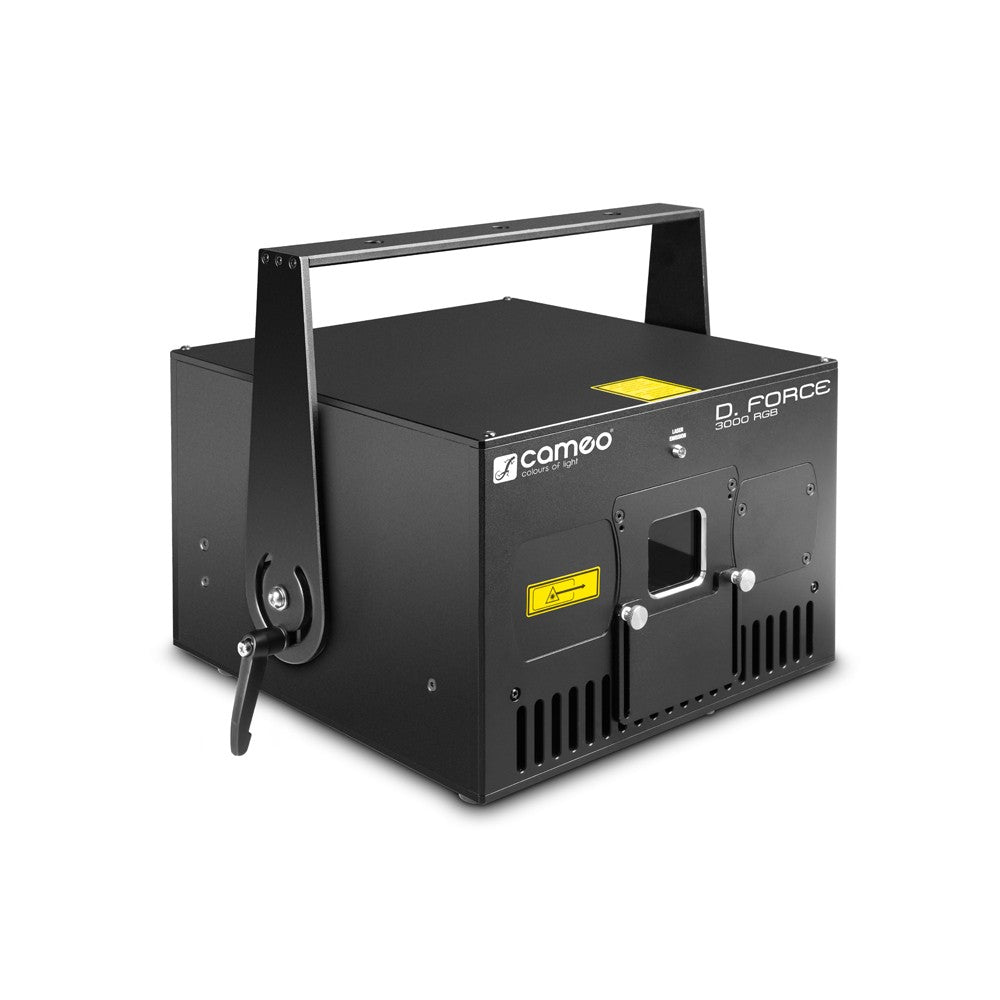

Cameo D FORCE 3000 RGB

• 3000 mW total output power (R: 700 mW, G: 800 mW, B: 1900 mW)
• Beam alignment without the need for servicing!
• Dust-proof aluminium housing for minimal maintenance
• 30 kpps high-speed galvoscanner @ 8° ILDA
• Analogue modulation for up to 16 million colour shades
• Accurate beams with extremely low divergence for razor-sharp projections
• Interlock Out for sending the emergency switch-off signal
• Control via ILDA
• Scan Fail Safety System
• Neutrik PowerCON power input and output
• Thermally activated fan for controlled operating temperature
• Compatible with Pangolin Safety lens and Pangolin DiscoScan V2 360° wide-angle lens with optional adapter (CLLDFORCEAPDSL or CLLDFORCEAPSSL)

• Product Type: Laser
• Total Power: 3000 mW
• Colour Spectrum: RGB
• Wavelength: Blue 445 nm, Green 520 nm, Red 638 nm
• Beam Data: 2 x 4 mm
• Laser Sources: Laser diode
• Laser Class: 4
• Scanner: 30 kpps @ 8° ILDA
• Max. Scan Angle: 50 °
• Operating Modes: ILDA
• Power Supply: 100 V AC - 250 V AC
• Power Consumption: 110 W
• Power Supply Connector: Neutrik PowerCon
• Housing Material: Aluminium
• Cabinet Colour: Black
• Width: 246 mm
• Height: 238 mm
• Depth: 175 mm
• Weight: 7.9 kg

Downloads:

• User's manual
• Tender documents
