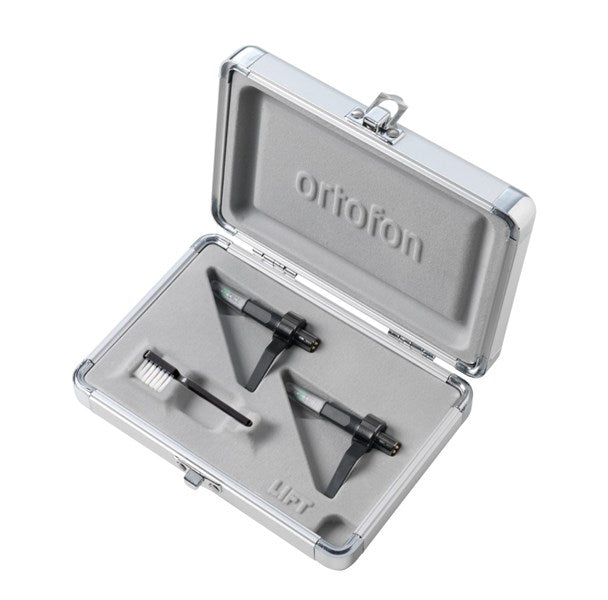

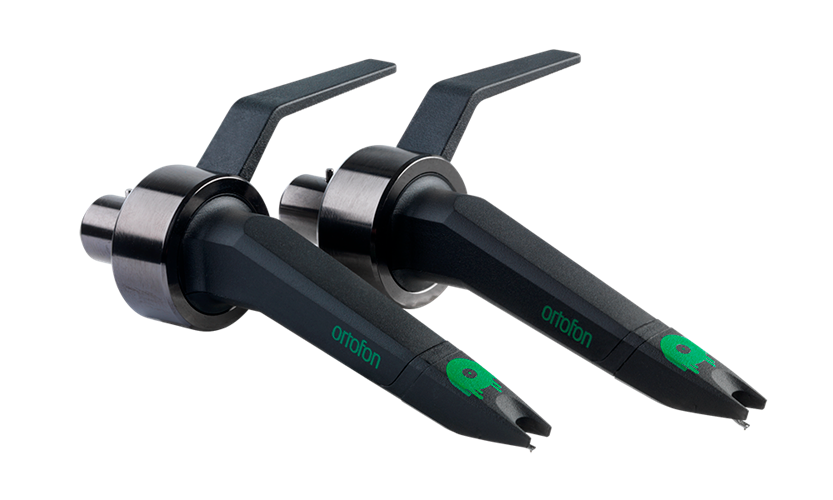

Ortofon Concorde MIX MKII pick-up twin set

• An all-round model
• Can be used for scratch and back-cueing.
• Provides good performance and durability.
• Reasonable output, high sound quality and good tracking ability for virtually any style of music.

Ortofon Concorde MIX MKII pick-up

• Ortofon The MIX is an all-round model that can be used for scratch and back-cueing.
• Provides good performance and durability.
• It has a good quality spherical stylus/needle, a solid cantilever, and serves general purposes well.
• The provides both reasonable output, high sound quality, and good tracking capability for virtually any style of music.
• With transparent sound across the spectrum and excellent handling capability, the MIX represents a DJ pick-up with one of the longest running values.

Specifications:

Output voltage at 1000Hz, 5cm/sec. - 6 mV
Channel balance at 1kHz - 1,5 dB
Channel separation at 1kHz - 20 dB
Channel separation at 15 kHz - 15 dB
Frequency range at -3dB - 20-20.000 Hz
Tracking ability at 315 Hz at recommmended tracking force - 100 m
Compliance, dynamic lateral - 14 m/m N
Stylus type - Spherical R 18 m
Tracking force range - 2 - 4 g
Tracking force recommended - 3 g

Cartridge weight - 18,5 g
Replacement stylus unit - Mix
