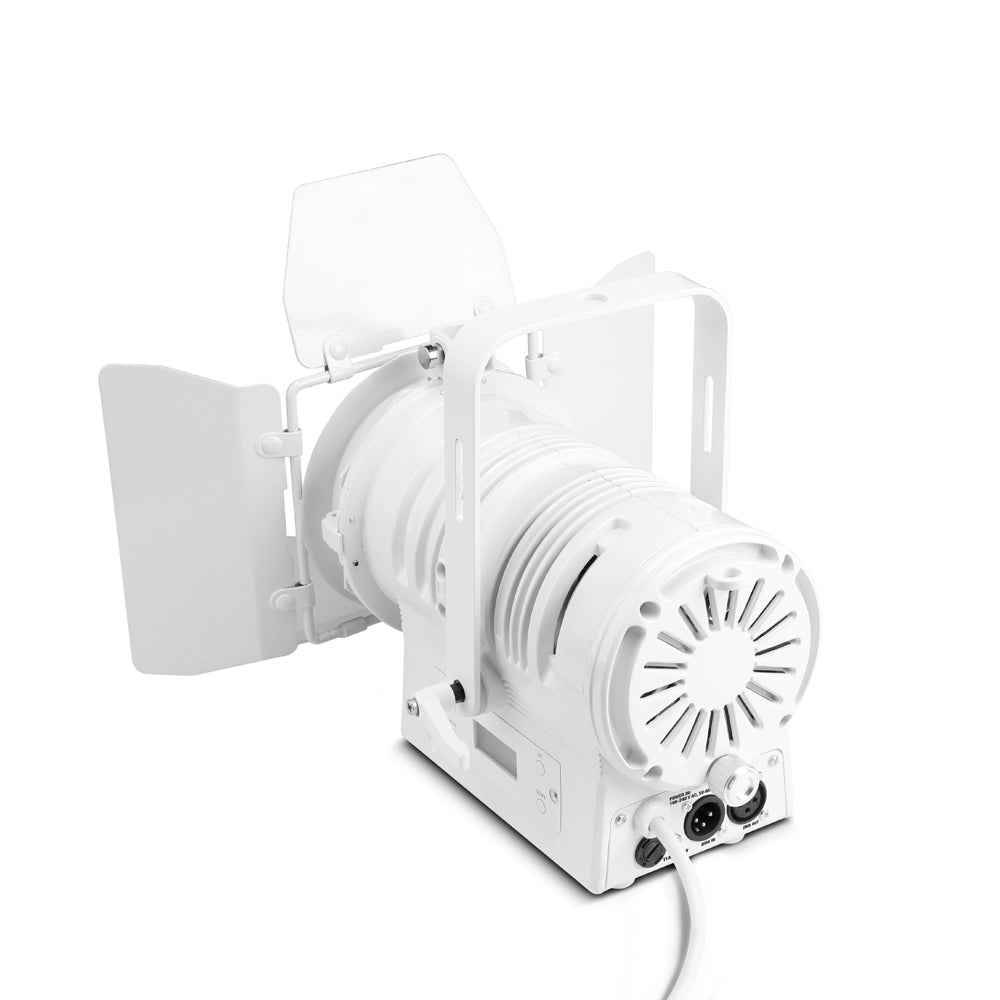

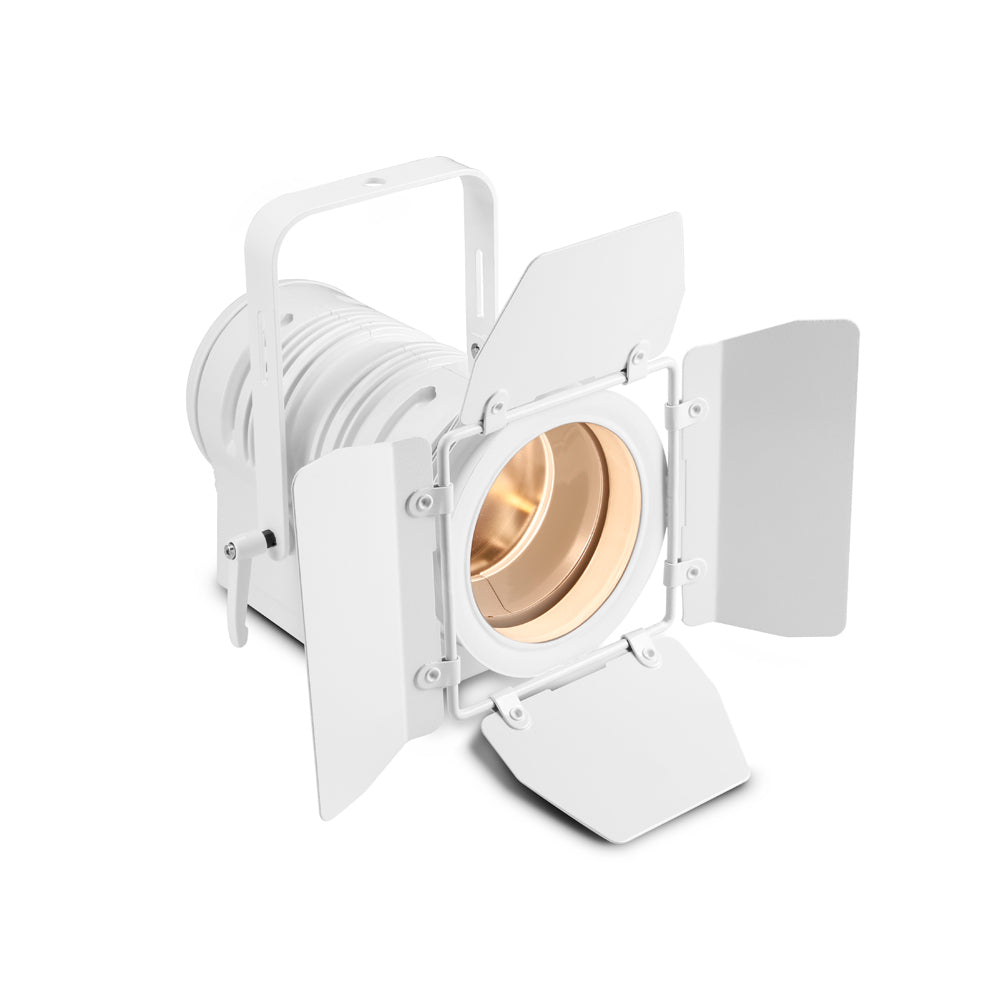

Cameo TS 40 WW Theatre spot - White
Beschreibung
Beschreibung
- Powerful 40 watt warm white LED
- Plano-convex lens
- Continuously variable manual zoom for 14° - 38° beam angle
- RDM stand
- 18.000 lux @ 1 m
- 3,200 K color temperature
- CRI> 90
- Flicker-free operation
- Robust metal housing with convection cooling
- Includes rotatable barn doors and filter frame
Cameo TS 40 WW Theatre spot
Cameo The TS 40 WW is a versatile theatre spot with plano-convex lens and manual zoom for easy spot-to-flood focus adjustment. Cameo TS 40 WW delivers of a soft beam with continuous variable 14° to 38° angle. The RDM-compatible luminaire is powered by a single 40 watt warm white LED. It has a color temperature of 3,200 K and 18,000 lux illuminance at 1 meters distance.

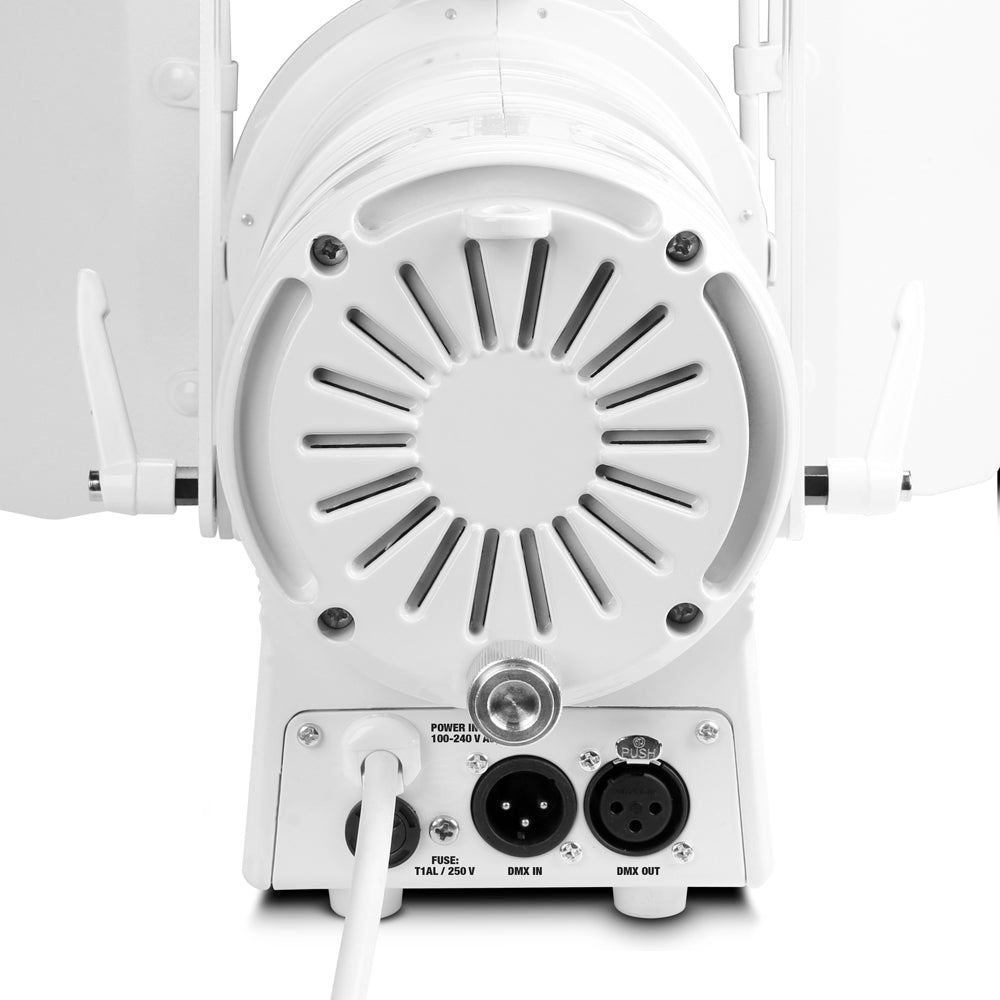

The spot's DMX features include a high-speed strobe with adjustable flash rate from 1 to 20 Hz and a choice of dimming curves. A refresh rate of 1,200 Hz ensures flicker-free performance. The TS 40 WW comes in a hard metal housing with efficient convection cooling. It provides a 4-button display for easy configuration, 3-pin DMX connector and an IEC power input. Included is a rotatable barndoor and color filter frame.
Spezifikationen
Spezifikationen
-
Weight (kg)
More specifications
More specifications
Specifications
Product type
LED PAR Lighting
Type
Indoor
Colour spectrum
warm white
Number of LEDs
1
Colour temperature
3200 K
CRI
>90
LED type
warm white 40 W
Refresh rate
1200M Hz
Dispersion
(Beam) 14° - 38° / (Field) 20° - 48 °
DMX input
XLR 3-pin male
DMX output
XLR 3-pin female
Protocols
USITT DMX 512 protocol
DMX mode
3-channel
DMX Functions
Dimmer , Dimmer Curve , strobe
Wireless DMX
no
Flash Strobe rate
1 - 20 Hz
Standalone modes
Static
Controls
down , Enter , mode , up
Operating voltage
100 V AC - 240 V AC, 50 - 60 Hz
Indicators
LC display
Power consumption
40 W
Power connector
Power cord with safety plug (Type E / CEE 7/7)
Housing material
die cast metal
Cabinet colour
Black
Cooling
Convection
Operating Temperature
0 - 40 °C
Illuminance
18000lx @ 1m
Luminous flux
1570 lm
Width
145 mm
Height
205 mm
Depth
240 mm
Weight
3,6 kg
Accessories (included)
barndoor
