Neutrik Microphone Signal Cable XLR (5m)

XLR cable with Neutrik connector

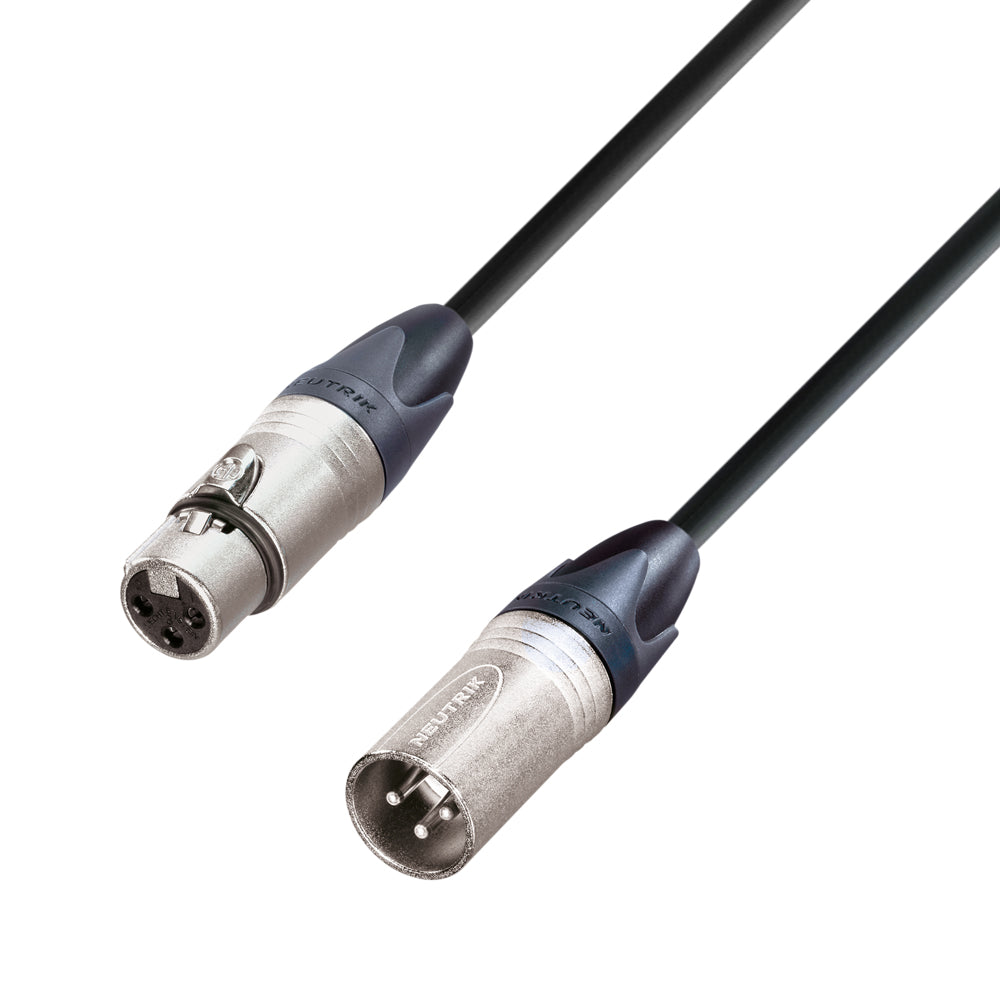

Professional signal microphone cable with Neutrik NC3MXX XLR Male connector to Neutrik NC3FXX XLR Female connector.

XLR cable with Neutrik connector

Professional balanced XLR cable with Neutrik connector

Highly flexible and yet extremely rugged; the multilayer shielding ensure optimal insulation against electrical interference onstage. Equipped with NEUTRIK © XLR plugs on both ends.

Specifications of Neutrik XLR cables:

• Type: Microphone Cable
• Color: black
• Overall diameter: 6.4 mm +/- 0.1 mm
• Conductor area: 0.22 mm²
• AWG (American Wire Gauge): 24
• Conductor material: copper wire screen
• Composition of conductor: 28 x 0,10 mm
• Screen material: bare copper, OFC
• Screen: spiral wound
• Conductor resistance: 87 Ohm / km
• Capacity: < 68 pF/m
• Overall jacket material: PVC

Plugs:

• Model name NC3FXX
• Manufacturer: Neutrik
• Product type: XLR Plug
• Type: straight
• Number of poles: 3
• Gender: female
• Cable diameter: 3.5 - 8 mm
• Colour marking: -
• Contact surface: Silver
• Connection type: Solder contact
• Colour: Silver
• Housing: Cast zinc
• Clamping sleeve: POM
• Dimensions (L x Ø ): 71.5 x 19.2 mm

• Model name NC3MXX
• Manufacturer: Neutrik
• Product type: XLR Plug
• Type: straight
• Number of poles: 3
• Gender: male
• Cable diameter: 3.5 - 8 mm
• Colour marking: -
• Contact surface: Silver
• Connection type: Solder contact
• Colour: Silver
• Housing: Cast zinc
• Clamping sleeve: POM
• See also our DMX cables for lights
• Dimensions (L x Ø ): 68,1 x 20,4 mm
