BOSS Katana 50 EX Gen 3 Guitar Amplifier

• Katana 50 EX Gen 3
• Connect the big footcontrol Boss GA-FC EX Foot Switch
• 50 W, ideal for both indoor use and smaller live performances
• Power Control, different amp types
• Complete power section
• EXP PEDAL and CTL CH1/CH2 SOLO jacks for extended control
• USB C port and Bluetooth Adaptor slot for modern integration and wireless connections

BOSS Katana 50 EX Gen 3 Guitar Amplifier

• Latest generation of the acclaimed Boss Katana series.
• Lots of new features.
• Improved sound quality and EQ.
• New Pushed Amp type that simulates a pushed vintage amplifier.
• Bluetooth Stream to audio and midi via adapter (optional).
• Edit sounds directly from your phone via Tone Studio App, via bluetooth.
• Stereo headphone output.
• Improved editor - more intuitive layout.
• Here Katana 50 EX Gen 3, which is an extended version of Katana 50 Gen 3.
• Here you can connect the large footcontrol Boss GA-FC EX Foot Switch.
• Delivers 50 W, ideal for both indoor use and smaller live performances.
• Equipped with versatile input options including INPUT of -10 dBu (1 M ohms) and AUX IN of -10 dBu (20 k ohms).
• Powerful 12" speaker that delivers clear and dynamic sound.
• Power Control: Switch between STANDBY, 0.5 W, HALF, and MAX to adjust volume without losing tone.
• Choose between different amplifier types ACOUSTIC, CLEAN, PUSHED, CRUNCH, LEAD, and BROWN.
• Master and Gain Controls: Adjust overall volume and gain level easily.
• Powerful Equalizer: Adjust BASS, MIDDLE, and TREBLE.
• Complete effects section with BOOSTER, MOD, FX, DELAY, and REVERB, plus dedicated controls for each effect.
• TAP knob for adjusting delay times and modulation rates.
• Quick sound adjustment: CH1, CH2 and PANEL buttons make it easy to switch and fine-tune presets.
• Includes INPUT, POWER AMP IN, LINE OUT, and STEREO PHONES jacks.
• EXP PEDAL and CTL CH1/CH2 SOLO jacks for extended control.
• USB C port and Bluetooth Adaptor slot for modern integration and wireless connections.

- Rated Power Output
50 W

- Nominal Input Level
INPUT: -10 dBu (1 M ohms)
AUX IN: -10 dBu (20 k ohms)

- Speaker
30 cm (12 inches) x 1

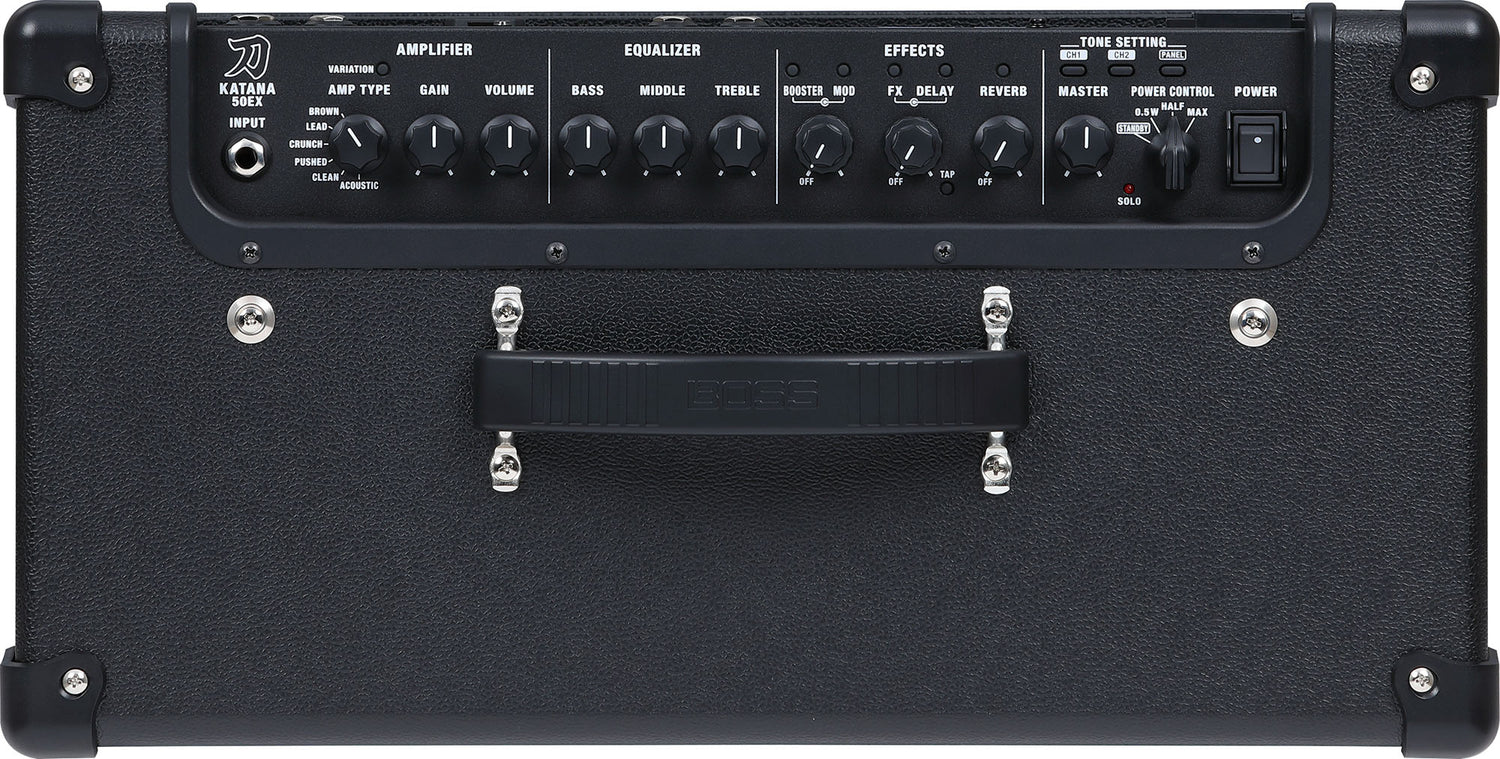

- Controls
POWER switch
MASTER knob
POWER CONTROL switch (STANDBY, 0.5 W, HALF, MAX)

[AMPLIFIER]
VARIATION button
AMP TYPE switch (ACOUSTIC, CLEAN, PUSHED, CRUNCH, LEAD, BROWN)
GAIN knob
VOLUME knob

[EQUALIZER]
BASS knob
MIDDLE knob
TREBLE knob

[EFFECT]
BOOSTER button
MOD button
FX button
DELAY button
REVERB button
TAP button
BOOSTER knob
MOD knob
FX knob
DELAY knob
REVERB knob

[TONE SETTING]
CH1 button
CH2 button
PANEL button

- Indicators
VARIATION
BOOSTER
MOD
FX
DELAY
REVERB
TAP
SOLO
CH1
CH2
PANEL

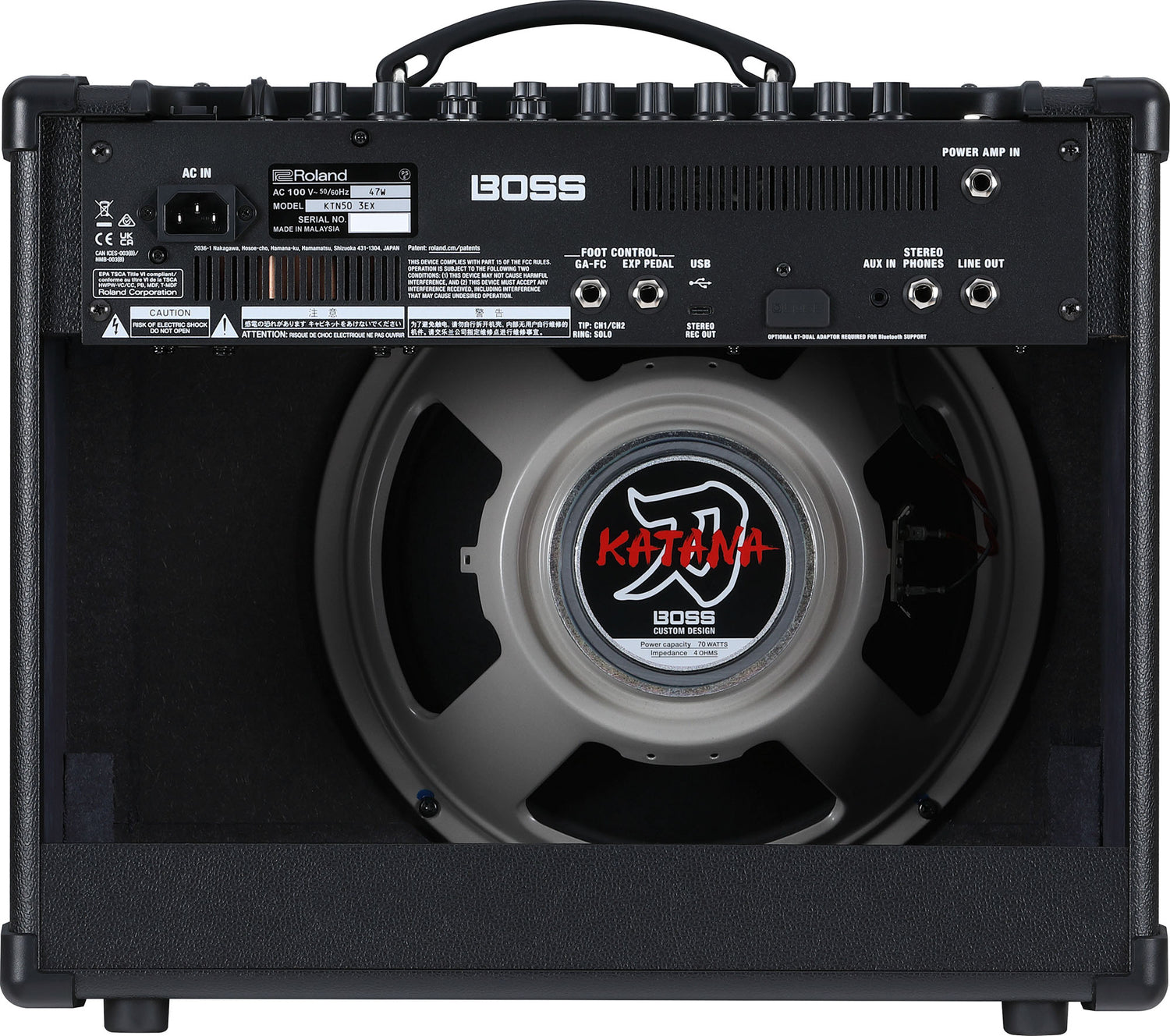

- Connectors
INPUT jack: 1/4-inch phone type
POWER AMP IN jack: 1/4-inch phone type
LINE OUT jack: 1/4-inch phone type
STEREO PHONES jack: Stereo 1/4-inch phone type
CTL CH1/CH2 SOLO jack: 1/4-inch TRS phone type
EXP PEDAL jack: 1/4-inch TRS phone type
AUX IN jack: Stereo miniature phone type
USB port: USB C type
BLUETOOTH ADAPTOR SLOT: Bluetooth Audio MIDI Dual Adaptor
AC IN jack

- Power Consumption
47 W

- Dimensions (Include handle and rubber feet)
470 (W) x 238 (D) x 398 (H) mm
18-9/16 (W) x 9-3/8 (D) x 15-11/16 (H) inches

- Weight
11.7 kg
25 lbs 13 oz

- Accessories
Owner's Manual
Power cord
GA-FC sticker

- Options (sold separately)
Footswitch: FS-5L, FS-6, FS-7
Expression pedal: Roland EV-5, EV-30, FV-500L, FV-500H
GA FOOT CONTROLLER (GA-FC,GA-FC EX)
Bluetooth Audio MIDI Dual Adaptor (Model BT-DUAL)
Amplifier Stand: BAS-1

* 0 dBu=0.775 Vrms
