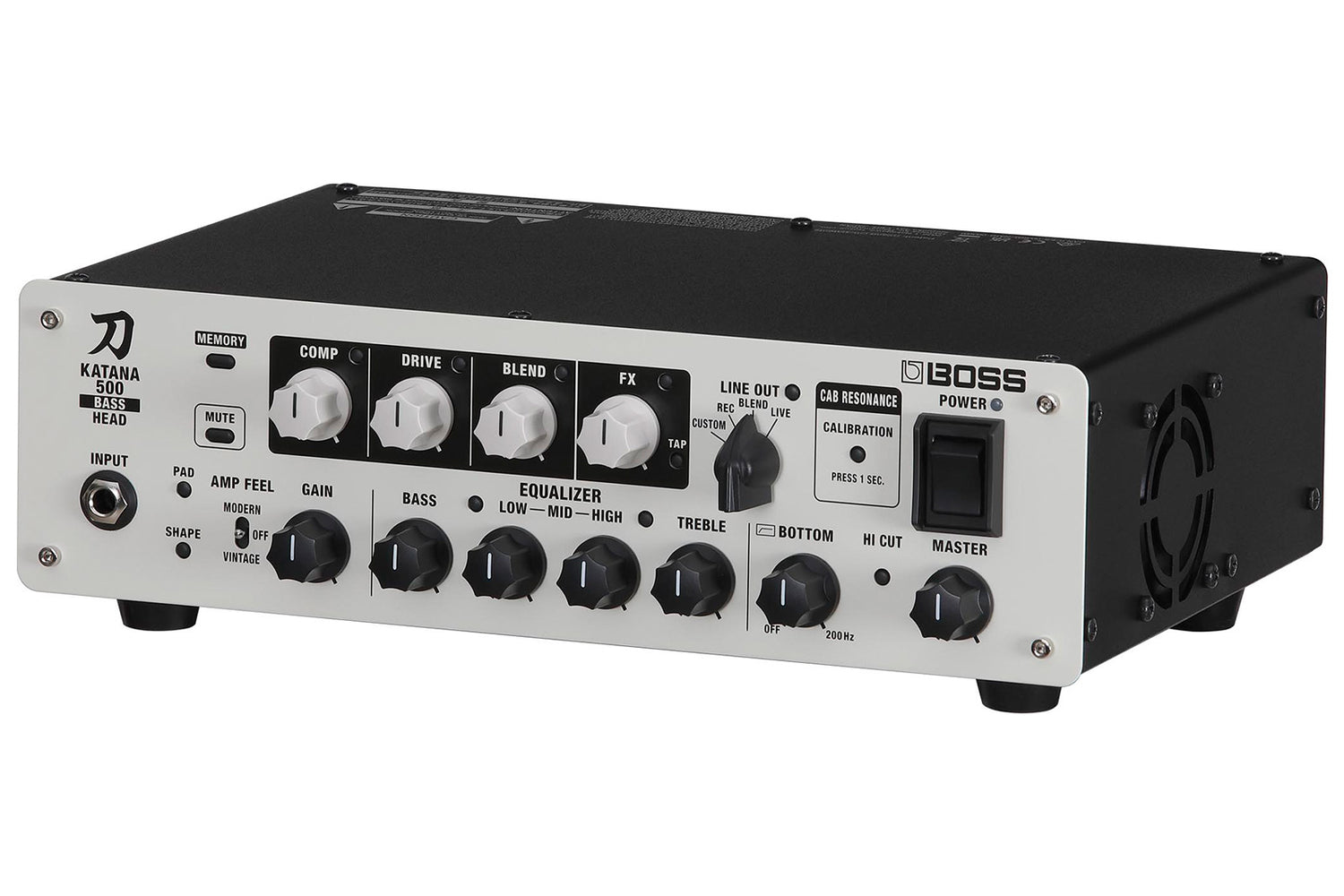

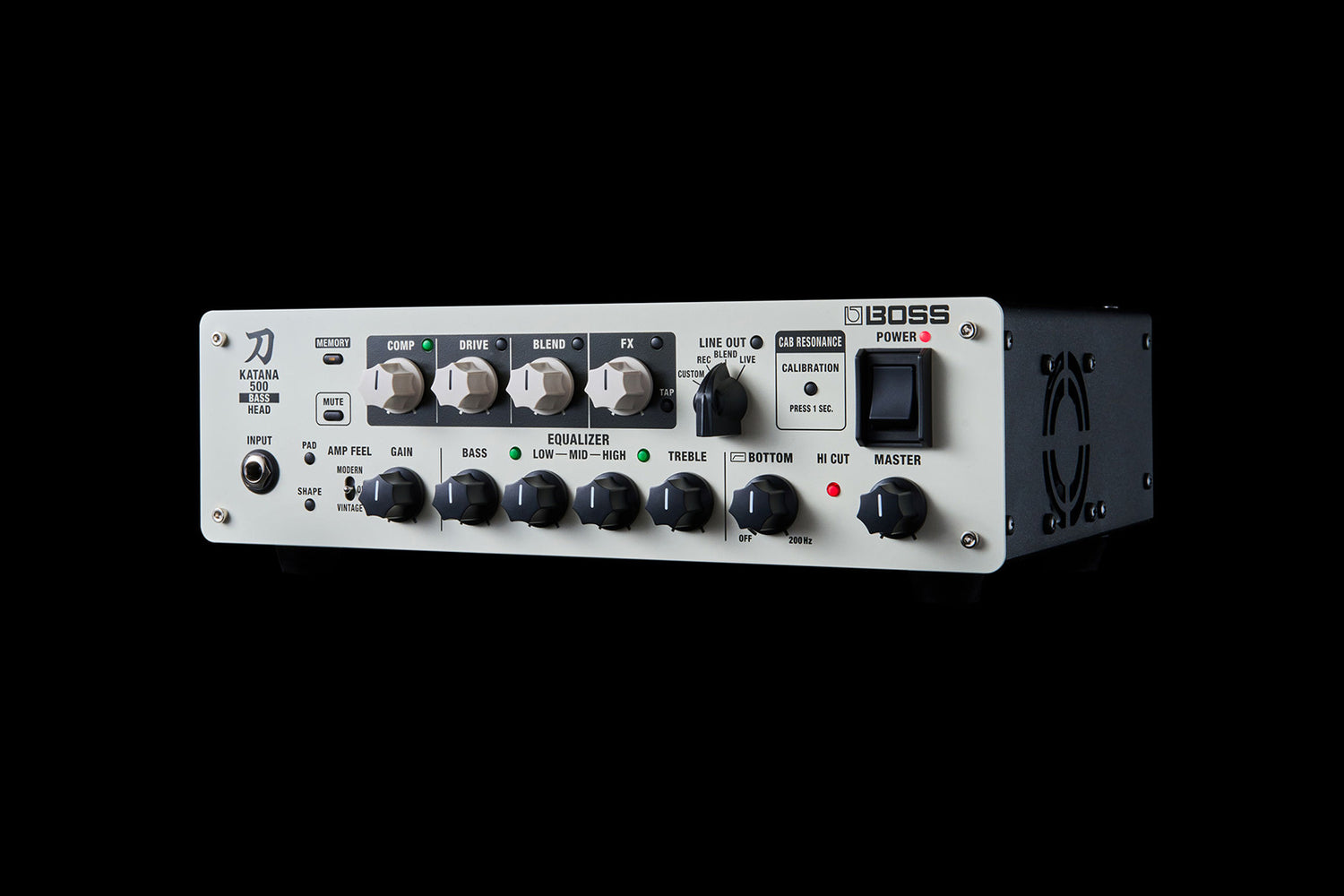

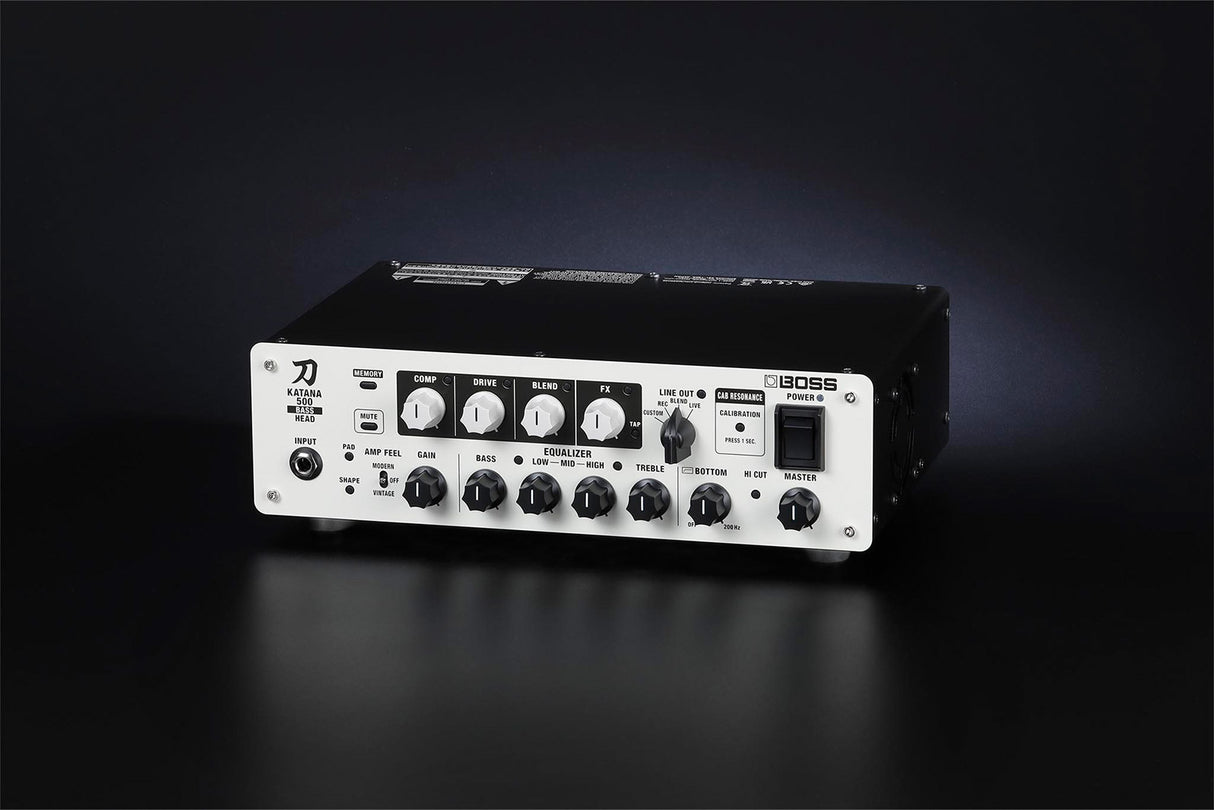

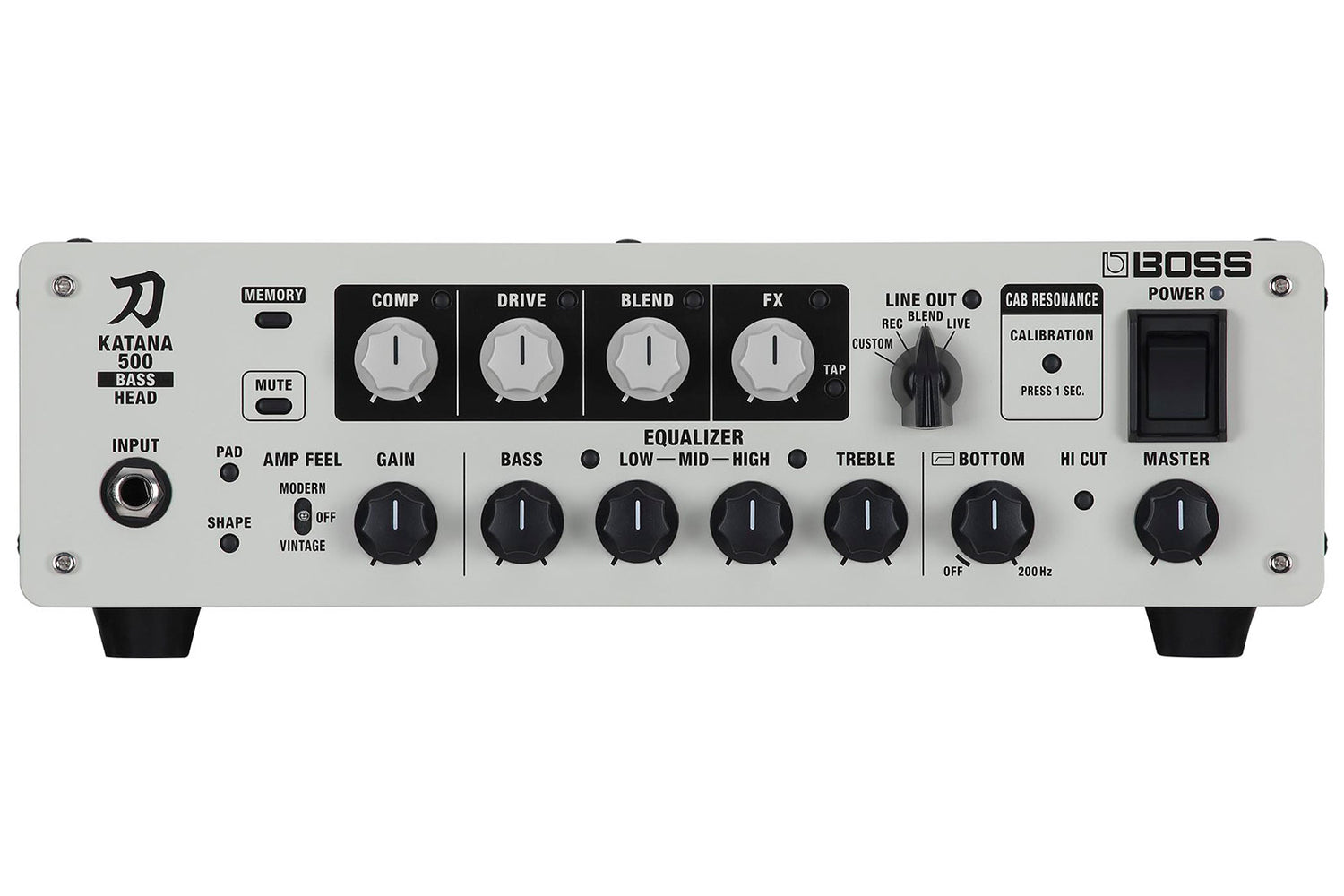

Katana KTN500B-HD Bass Amplifier Head

• Compact 500-watt bass amplifier top
• Newly developed Class D power amplifier
• Lots of settings options
• Save/Load settings
• BOSS Tone Studio for Windows/macOS
• Download and share Livesets at BOSS Tone Exchange

Katana KTN500B-HD Bass Amplifier Top

• Compact 500-watt bass amplifier top with tons of features, in addition to great sound.
• Newly developed Class D power amplifier and innovative cabinet resonance calibration.
• "Amp Feel" settings, "Shape" setting, "Blend" button
• Fire-Band EQ, compressor (3 types) and drive control (3 types).
• "Bottom" button to tighten the sound and eliminate sub-bass rumble.
• "Hi Cut button with three selectable frequencies.
• Built-in memory to store and recall settings.
• XLR line out and headphone/recording out.
• Edit sounds and access over 60 effects with BOSS Tone Studio for Windows/macOS.
• Connect via USB to your computer and BOSS Tone Studio and use it as audio interface.
• Download and share Livesets on BOSS Tone Exchange.
• BluetoothAudio MIDI Dual Adapter allows you to edit sounds and stream audio from an iOS or Android mobile device (must be purchased).
• GA-FC and GA-FC EX foot controls for remote control on stage (must be purchased)

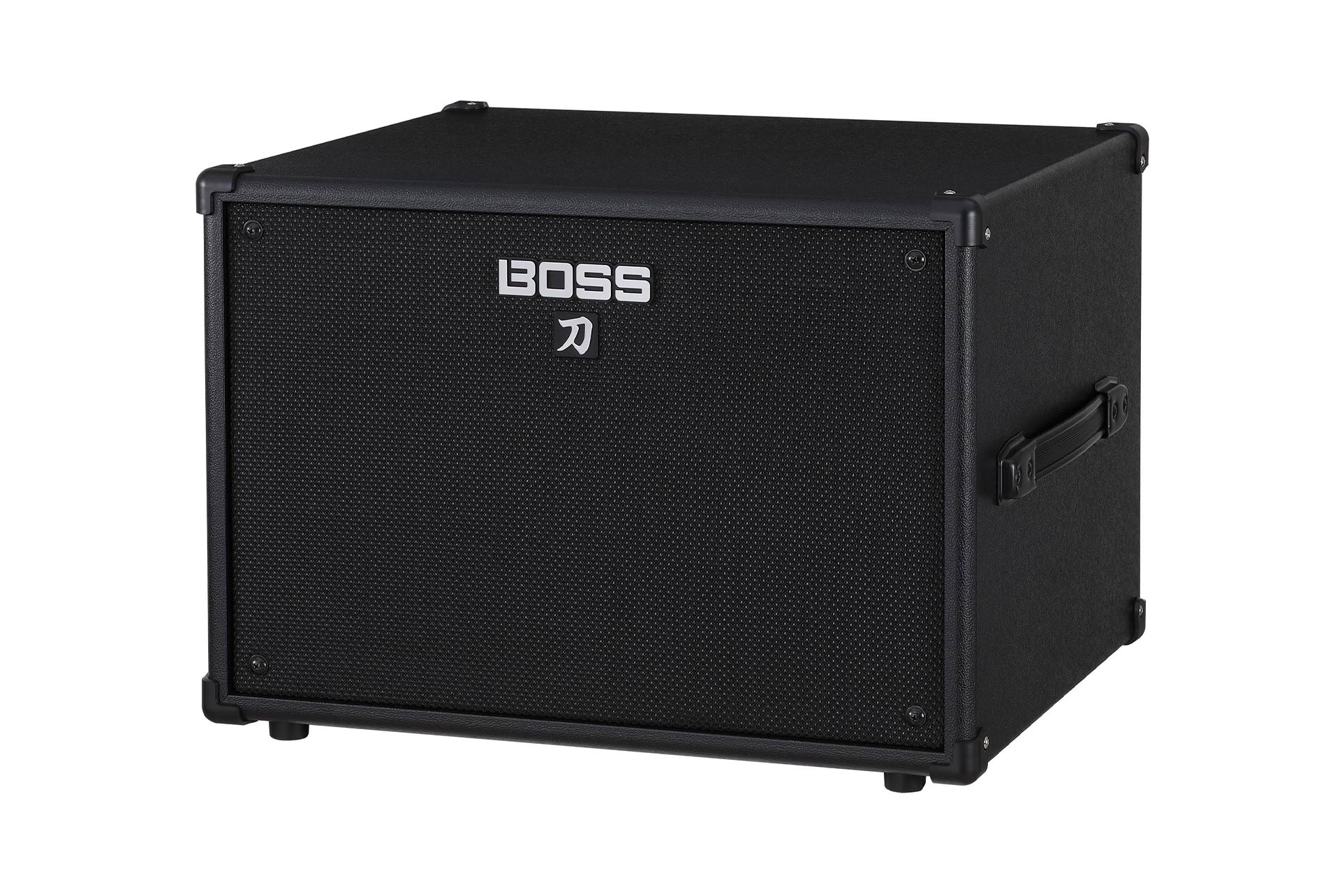

• Fits perfectly with Boss Katana Cabinet 112 Bass.

Output Power 500 W (4 ohms) Peak
250 W (8 ohms) Peak

Nominal Input Level

INPUT: -10 dBu (1 M ohms)
RETURN IN: -10 dBu (100 k ohms)

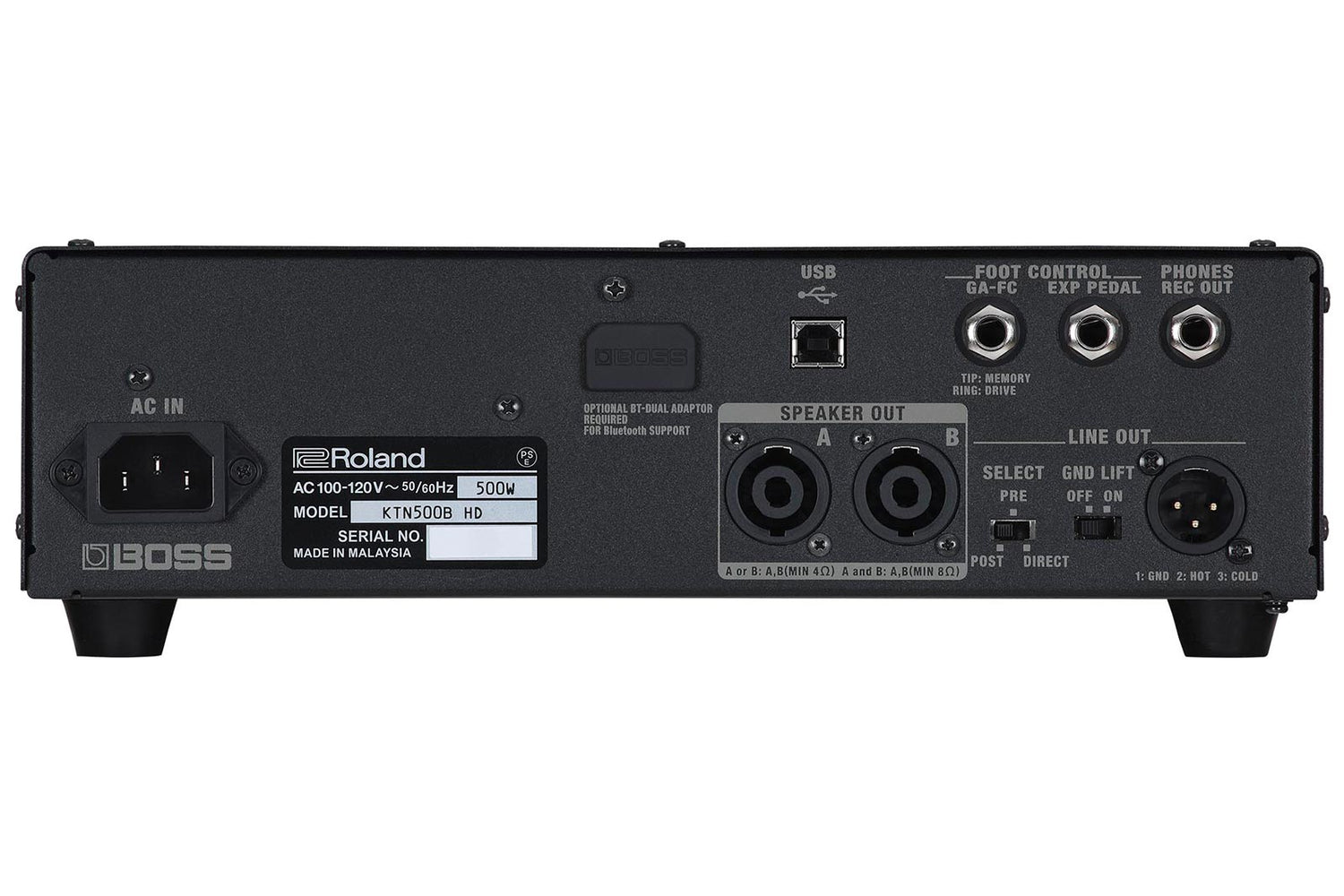

Connectors

INPUT jack: 1/4-inch phone type
LINE OUT jack:XLR type
SPEAKER OUT (MIN 4 ohms) connector: speakON type
PHONES/REC OUT jack: Stereo 1/4-inch phone type
EXP PEDAL jack: 1/4-inch TRS phone type
GA-FC/CTL CH1/CH2 jack jack jack: 1/4-inch TRS phone type
USB port: USB B type
BLUETOOTH ADAPTOR SLOT: Bluetooth® Audio MIDI Dual Adaptor
AC IN jack

Power Consumption 500 W

Accessories

Owner's Manual
Power cord
GA-FC sticker

Options (sold separately)

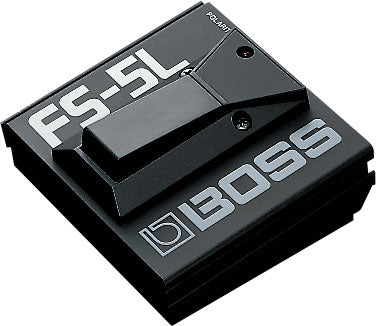

Footswitch: BOSS FS-5L, BOSS FS-6, BOSS FS-7
Expression pedal: Roland EV-5, BOSS EV-30, BOSS FV-500L, BOSS FV-500H

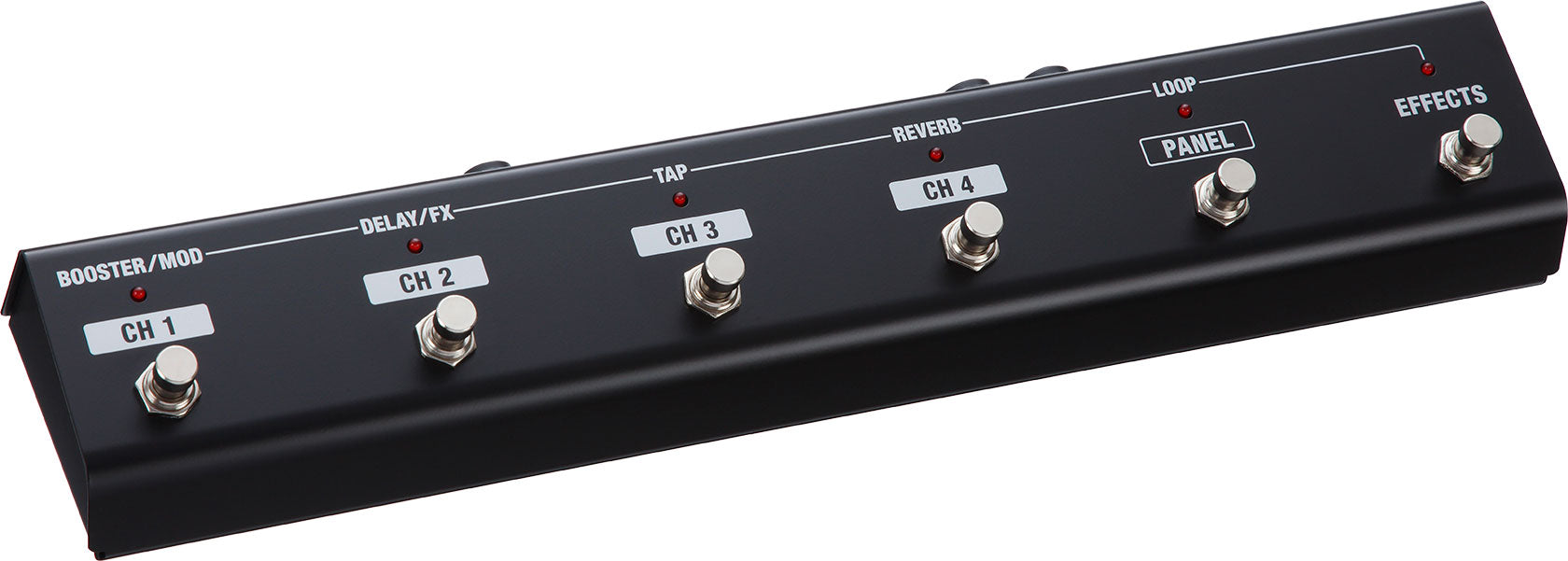

GA FOOT CONTROLLER (GA-FC, GA-FC EX)
Bluetooth ® Audio MIDI Dual Adaptor (Model BT-DUAL)

Width 298 mm
Depth 212 mm
Height 96 mm
Weight 2.8 kg
