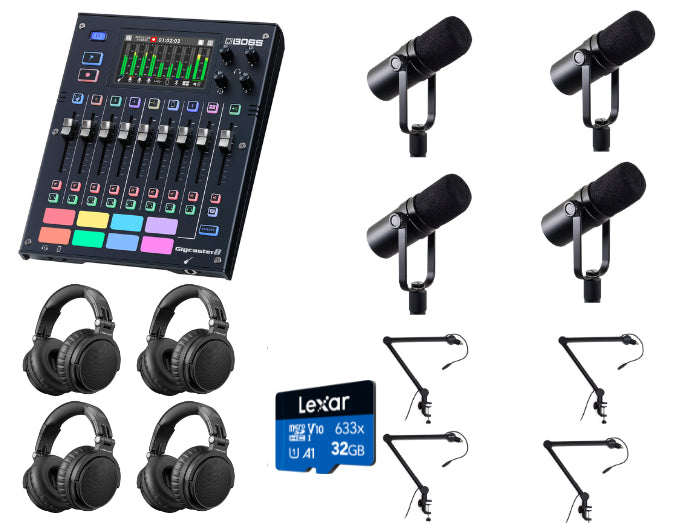

Boss Gigcaster 8 Streaming Mixer Starter Kit

• Compact 8-channel streaming mixer with guitar/bass input, fire XLR/TRS combo inputs, eight audio/effects pads, microSD recording and more
• All-in-one audio streaming hub for the musician, educator, podcaster, content creators
• User-friendly and intuitive interface with quick-access live controls via faders, buttons, eight assignable pads and 4.3" color display
• Built-in GT amplifiers and Boss top-quality effects taken from Boss GT-1000 with tons of presets
• 32-bit floating point processing and 48 kHz sampling rate
• Dedicated vocal effects and features taken from VE vocal processors
• Headphone output on the front panel supports headset microphone or inline microphone
• Can also be used as 20x14 USB audio interface for multitrack recording in DAW
• Ability to record live stereo or multitrack audio to microSD card (must be purchased)
• Gigcaster 8 App for editing parameters, backup and conversion of audio files

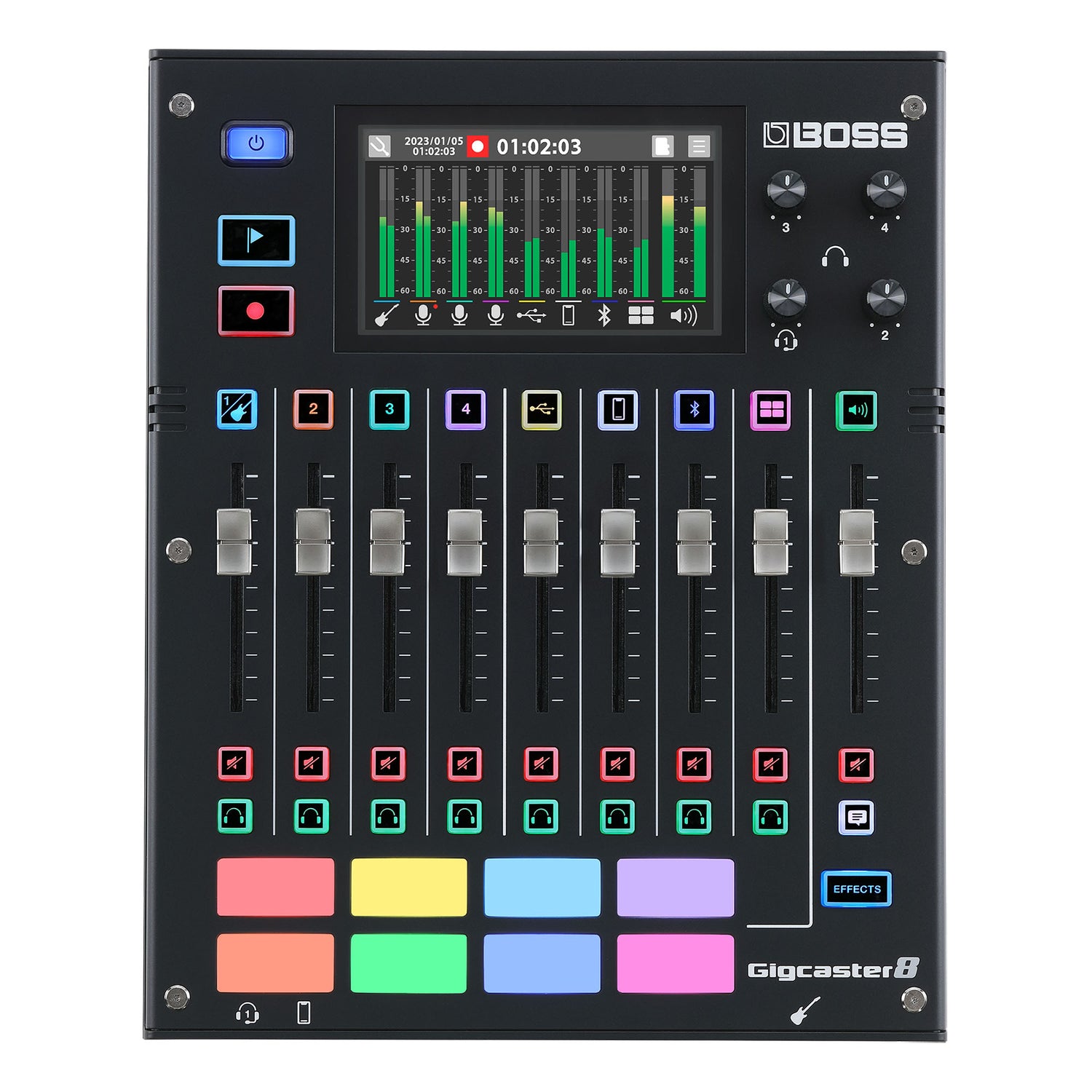

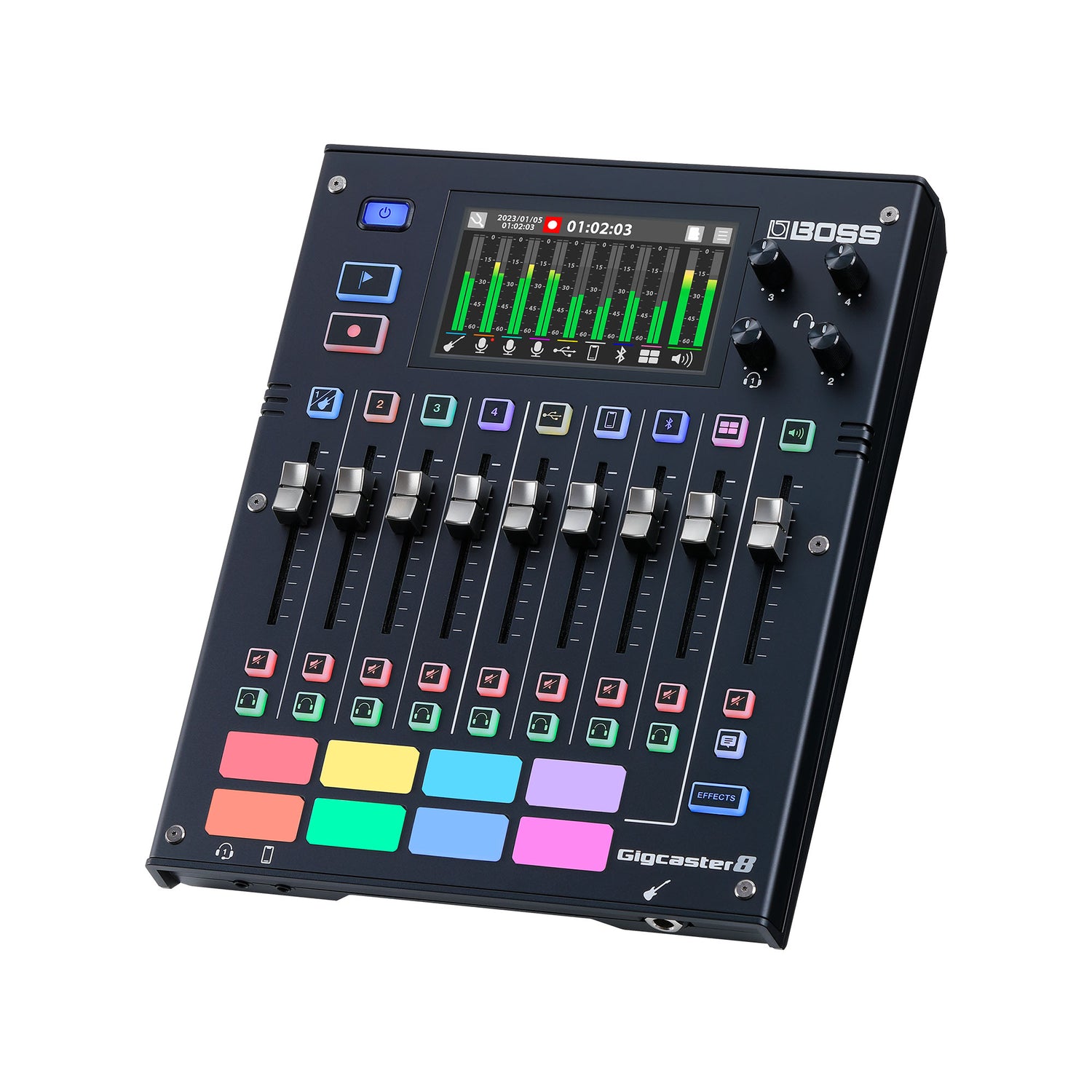

Boss Gigcaster 8 Streaming Mixer

• Compact 8-channel streaming mixer with guitar/bass input, fire XLR/TRS combo inputs, eight audio/effect pads, microSD recording and more.
• All-in-one audio streaming hub for the musician, educator, podcaster, content creators.
• User-friendly and intuitive interface with quick-access live controls via faders, buttons, eight assignable pads and 4.3" color display.
• Built-in GT amplifiers and top-quality Boss effects taken from the Boss GT-1000 with tons of presets.
• 32-bit floating point processing and 48 kHz sampling rate.
• Mic inputs with phantom power and pre-amps with wide gain range (+70 dB).
• Dedicated vocal effects and features taken from VE vocal processors.
• Stereo channels for remote guests and mobile devices via Bluetooth or wired connection.
• Cool features like talkback function, ducking function (so the music is turned down when you talk).
• Built-in stereo microphone and fire headphone outputs with dedicated EQs.
• Headphone output on the front panel supports headset microphone or inline microphone.
• Can also be used as 20x14 USB audio interface for multitrack recording in DAW.
• Possibility to record live stereo or multitrack audio to microSD card (must be purchased).
• Power via USB or included power supply.
• Supports wireless operation via Boss foot pedals, expression pedals and GA-FC/GA-FC EX foot controller (must be purchased).
• Gigcaster 8 App for parameter editing, backup and sound file conversion.

-Sample Rate
48 kHz

-AD Conversion
24 bits

-DA Conversion
32 bits

- Processing
32-bit floating point

- USB Audio
Input: 20 ch
Output: 14 ch

- Bluetooth
A2DP, HFP

- Recording
Data Format: BWF (48 kHz, 32-bit float)
Strage: microSD card (sold separately)

-Sound Pad
Data Format: WAV (48 kHz, 16-bit linear)
Storage: internal storage(16GB)

-Effect Patches
GUITAR: 200 (User) + 100 (Preset)
SING: 200 (User) + 30 (Preset)
TALK: 200 (User) + 30 (Preset)

-Number of Effects
GUITAR: 1 ch (DISTORTION､PREAMP､PREAMP､EQ､､EQNS､PEDAL FX､FX1､FX2､FX3､DELAY/REVERB)
SING: 2 ch (COMP､ENHANCE､DESS､DESS､EQNS､PITCH CORRECT､HARMONY､FX1､FX2､FX3､DELAY/REVERB)
TALK: 4 ch (COMP､ENHANCE､､DESS､EQ､NS､FX1､FX2)
CONSOLE: 7 ch (COMP､ENHANCE､DESS､NS､FX)
FX; 1 ch (for SOUND PAD)
OUTPUT: COMP, REVERB

-Nominal Input Level(Adjustable)
GUITAR INPUT: -10 dBu
INPUT 1--4 (XLR type): -40 dBu
INPUT 1--4 (TRS type): -10 dBu
MOBILE IN: -20 dBu

-Input Impedance
GUITAR INPUT: 1M ohms
INPUT 1--4 (XLR type): 5.6 k ohms
INPUT 1--4 (TRS type):27 k ohms
MOBILE IN: 22 k ohms

Nominal Output Level
MAIN OUT L, R: -10 dBu

-Output Impedance
MAIN OUT L, R: 1 k ohms
PHONES1--4: 47 ohms

-Recommended Load Impedance
MAIN OUT L, R: 10 k ohms or greater

-Display
Color Graphic LCD (480 x 272 dots) Touch screen

-Controls
CH1--8 Edit button, OUTPUT Edit button,
CH1--8 Mute button, OUTPUT Mute button,
CH1--8 Monitor button,
Talkback button,
Rec button,
Mark button,
EFFECTS button,
Pads 1--8,
CH1--8 fader, OUTPUT fader,
Headphone 1--4 knob

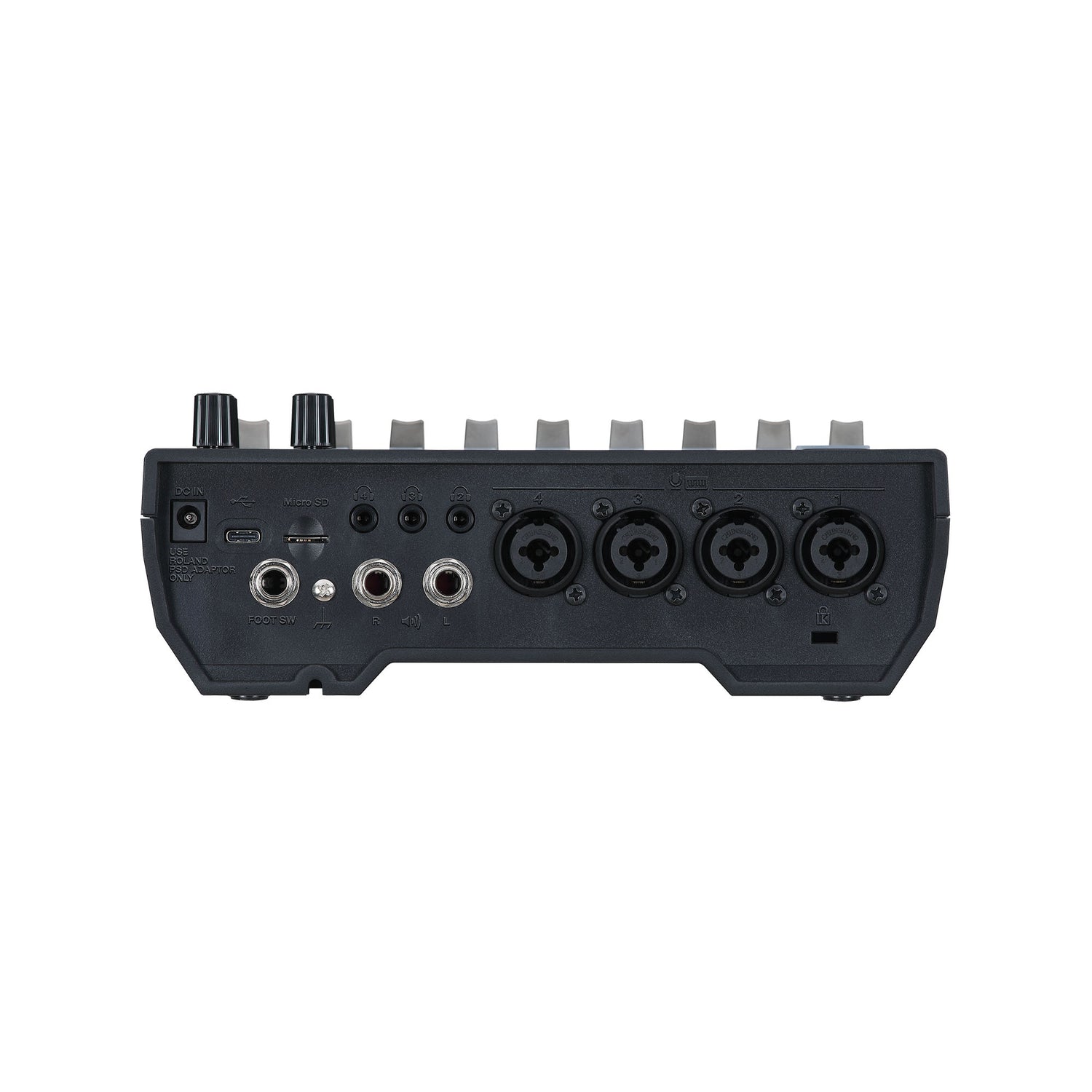

-Connectors
Guitar jack: 1/4-inch phone type
Channel 1--4 jacks: Combo type (XLR, 1/4-inch TRS phone), balanced
Mobile jack: Stereo miniature phone type(CTIA)
MAIN OUT (L, R) jacks: 1/4-inch phone type
Headphone 1 jack: Stereo miniature phone type(CTIA)
Headphone 2--4 jacks: Stereo miniature phone type
FOOT SW jack: 1/4-inch TRS phone type
USB port: USB type C
DC IN jack

-Power Supply
AC adaptor(PSD series)
USB BUS Power

-Current Draw
1.8 A (with phantom power)
1.6 A (without phantom power)

-Dimensions
217 (W) x 267 (D) x 80 (H) mm
8-9/16 (W) x 10-9/16 (D) x 3-3/16 (H) inches

-Weight (including battery)
1.36 kg
3 lbs

-Accessories
AC adaptor: PSD series
Owner's manual
Leaflet "USING THE UNIT SAFELY"

-Options (sold separately)
Footswitch: FS-5U
Dual Footswitch: FS-6
Expression Pedal: FV-500L, FV-500H, Roland EV-5

* 0 dBu = 0.775 Vrms
