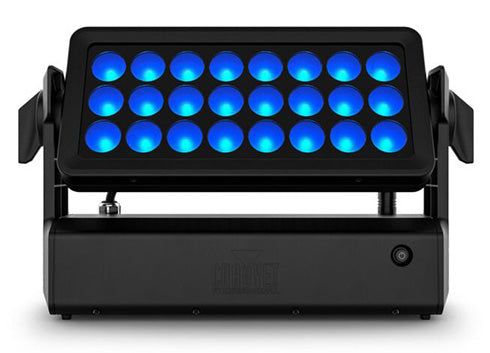

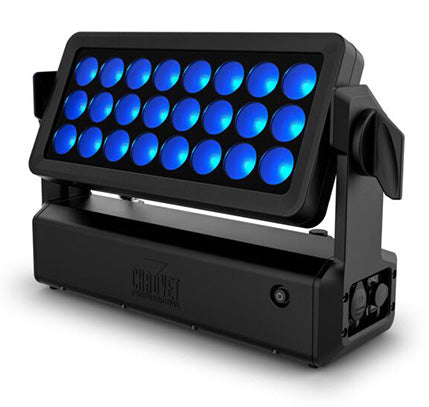

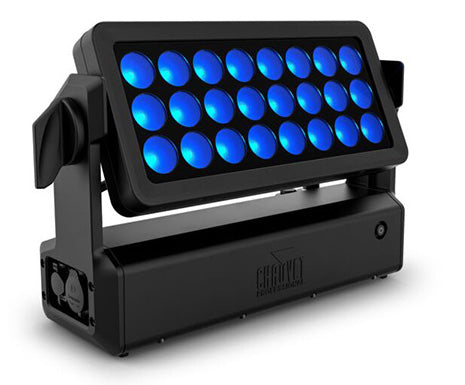

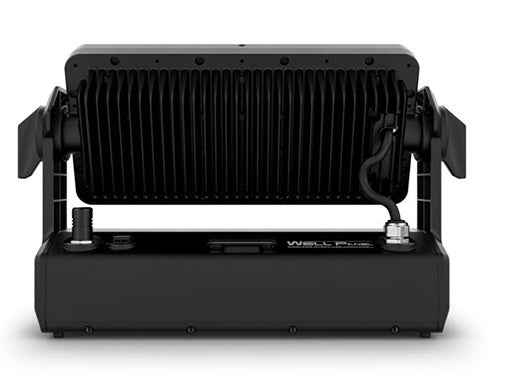

Chauvet WELL Panel

€1.565,00
Inkl. MwSt.

Shipping € 10

Chauvet WELL Panel ist bei dem Anbieter bestellt und wird versendet, sobald es in unserem Lager ankommt.

Beschreibung

  • A completely wireless, IP65 rated, battery powered fixture with 24 quad color (red, green, blue and warm white) LEDs that is controlled by W-DMX, IR, DMX or control panel
  • High CRI value of 90+ across different color temperatures of white
  • Selectable Red Shift emulation over DMX and from the fixture display
  • Selectable PWM settings
  • Selectable dimming speed and curves
  • Built in color temperature presets and
  • RDM control over DMX for fixture setup and reporting
  • Line voltage input allows fixture to operate while being charged
  • Built in power loss detection when operating under line voltage
  • Wireless operation with WDMX or IR remote (not included) as well as wired DMX operation
  • Magnetic diffuser filter included for wider light coverage
  • Omega bracket included for easy hanging options
  • User selectable hours of operation (3, 5, 8, 12) at full output with a recharge time of 4 hours
  • Built in automated programs recallable by W-DMX, DMX or manually.
  • 170-degree rotation of the panel from the base for easy direction of light
  • IP65 rating for temporary outdoor usage
  • Accessory filter pack with 10 x 60 and 40R60 sold separately


WELL Panel

  • WELL Panel is a completely wireless, IP65-rated, battery-powered wash light with 24 quad-color LEDs.
  • The robust unit delivers bright, fully saturate tones and pastel colors, casting it as the right tool for onstage productions or highlighting scenic and architectural pieces.
  • Adjustable beam angles and the included magnetic diffuser adds even wider coverage.
  • This truly versatile fixture is capable of selectable dimming, red shift emulation, and PWM settings. Control your way via W-DMX, DMX.

Spezifikationen

  • Weight (kg)
    13,5

More specifications

OPTICAL

  • Light Source: 24 LEDs (24 red, 24 green, 24 blue, 24 warm white) 1 to 3 W, (500 mA), 50,000 hours life expectancy.
  • Lumens: 5117 w/filter, 5773 w/o filter
  • Installed Optics: 15°
  • Beam Angle (w/o filter): 14°
  • Beam Angle (w/filter): 32.3°
  • Field Angle (w/o filter): 25.8°
  • Field Angle (w/filter): 54.4°
  • Illuminance (w/o filter): 2830 lux @ 5 m
  • Illuminance (w/ filter): 550 lux @ 5 m

DYNAMIC EFFECTS

  • Tilt: 170°
  • Tilt Ranges: 0° to 170° tilt
  • Color Macros: 20 color macros
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 30 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Built in red shift: yes
  • Dim Curves: 4
  • Dim Modes: 4
  • Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL

  • Dimensions: 17.17 x 5.31 x 10.24 in (436 x 135 x 260 mm)
  • Weight (single unit): 22.6 lb (10.3 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast

CONNECTIONS

  • Power Connection: Seetronic PowerKon IP 65
  • Power Input/output: Seetronic PowerKon IP 65
  • Data input/output: 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: DMX, W-DMX
  • DMX Channels: 4, 8, 12, 13 or 21
  • Modes/Personalities: 5 personalities (4Ch, 8Ch, 12Ch, 13Ch, 21Ch)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current (single unit charging): 146 W, 0.634 A @ 230 V, 50 Hz

BATTERY

  • Battery type: Lithium Ion
  • Rechargeable: Yes
  • Battery Charge Time: 4 hours
  • Battery Life: selectable: 3, 5, 8, 12 hrs

CERTIFICATIONS / QUALIFICATIONS

  • CE, FCC, UKCA
  • IP Rating: IP65, temporary outdoor/wet use with pressure equalizing M12 GORE valve
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED

  • WELL Panel
  • Magnetic filter
  • Omega bracket
  • QRG

Brand: Chauvet
SKU: MAT-500017057
Barcode: 781462220655
