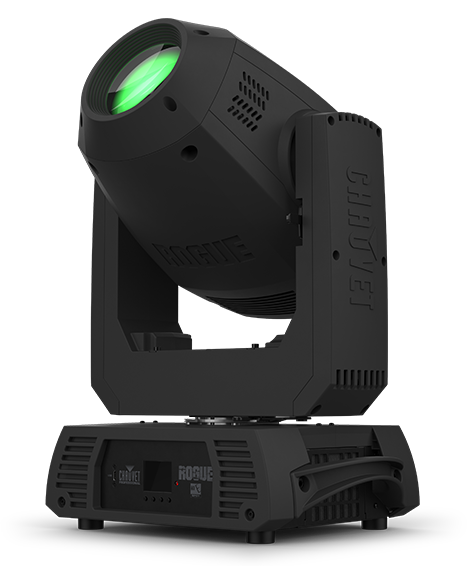

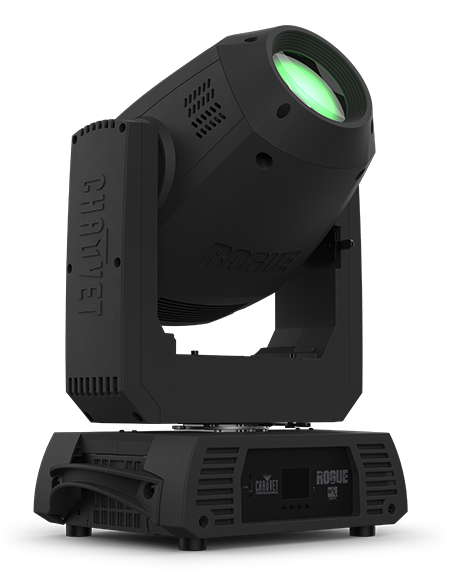

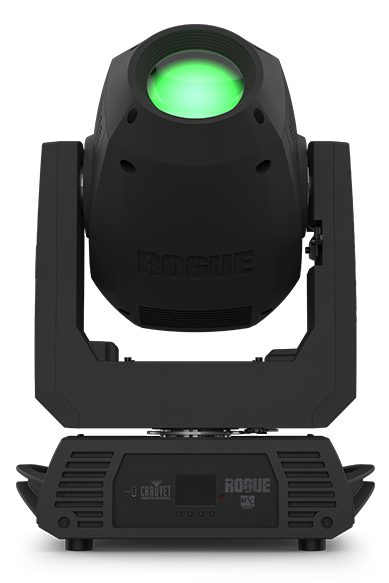

Chauvet Rogue R1E Spot
€1.474,00
Stückpreis
/
Nicht verfügbar
Beschreibung
Beschreibung
- Compact and lightweight moving yoke spot with intense 200 W LED light source, two gobo wheels (rotating and static), 3-facet prism wheel, frost, and color wheel.
- 6-bit dimming of the master dimmer for smooth fade control and perfect gobo morphing between gobo wheels.
- True 1 compatible power connections and 3- and 5-pin DMX input/output connections.
- RDM enabled for remote addressing and troubleshooting.
- Selectable PWM settings for flicker-free operation on camera.
Chauvet Rogue R1E Spot
- Compact and easily movable spot with intense brightness from a 200W LED light engine
- Fully equipped housing with a 3-faceted rotating prism for impressive aerial effects
- Motorized iris and frost for shaping light beams
- Double gobo wheel (one rotating with interchangeable gobos + one static) for creating custom gobo morphing effects
- Color wheel with eight brilliant colors + white + split colors
- 15° beam angle provides sharp gobo projections
- Selectable LED maximum output setting allows for matching brightness with older Rogue R1X Spots in your setup
Spezifikationen
Spezifikationen
-
Weight (kg)
More specifications
More specifications
Specifications
Optical
- Light Source: 1 LED (CW), 200 W (3.2 A), 7423 K, 50,000 hours life expectancy
- Color Temperature (at full): 7423 K
- Front Lens Diameter: 90 mm
- CRI: 68
- Beam Angle: 15.3°
- Field Angle: 18.7°
- Cutoff Angle: 20.3°
- Lumens – Source: 17,900
- Lumens – Output: 12,210
- Illuminance (total): 9,021 lux @ 5 m
- Selectable PWM: 600 Hz, 1,200 Hz, 2000 Hz, 4000 Hz, 6,000 Hz, 15,000 Hz
Dynamic Effects
- Pan and Tilt: 540°/270°
- Pan and Tilt Ranges: 540°, 360°, 270° pan / 270°, 180°, 90° tilt
- Colors: 8 + white, split colors, continuous scroll at variable speeds
- Gobos (1): 7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
- Gobos (2): 8 + open (8 metal), continuous scroll at variable speeds
- Gobo Size: Gobo Wheel 1 (rotating); size: 20 mm (outside), 16 mm (image), 0.6 mm (max. thickness)
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Focus: Motorized
- Iris: Motorized
- Prism: 3 Facets, motorized, rotating
- Strobe Rate: 0 to 22 Hz
- Move in Black: Yes
Construction / Physical
- Dimensions (single unit): 14.01 x 9.44 x 20.47 in (356 x 240 x 520 mm)
- Weight (single unit): 31.2 lb (14.2 kg)
- Exterior Color: Black
- Housing Material: Aluminum die-cast, High-impact flame-retardant polymer, Steel
- Software update: USB-C

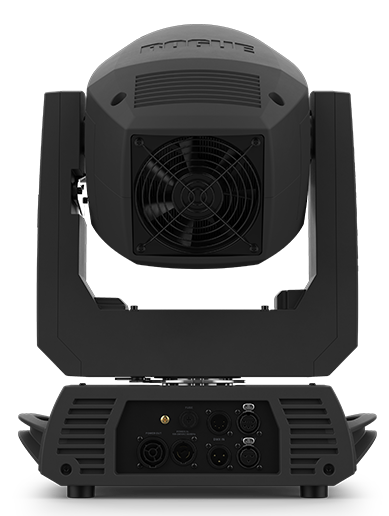

Connections
- Power Connection: Edison (local) plug to Neutrik® powerCON®
- Power Input: Neutrik® powerCON®
- Power Output: Neutrik® powerCON®
- Data Connectors: 3- and 5-pin XLR
- Cable Length (power): 5 ft (1.5 m)
Control
- Control Protocol: DMX, RDM
- DMX Channels: 16 or 19
- Modes/Personalities: 2 personalities (16, 19)
Electrical
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 4 units @ 120 V; 8 units @ 208 V; 8 units @ 230 V
- Power and Current (120 V, 60 Hz): 315 W, 2.63 A
- Power and Current (208 V): 306 W, 1.50 A
- Power and Current (230 V, 50 Hz): 303 W, 1.36 A
Certifications / Qualifications
- Certifications: CE, MET, FCC, UKCA
- IP Rating: IP20, dry location
What's Included
- Rogue R1E Spot
- Seetronic PowerKon power cord
- 2 140D Omega brackets with mounting hardware
Downloads
Brand: Chauvet
SKU: MAT-500020763
