Neutrik NJ3FP6C

Name: Neutrik NJ3FP6C
Brand: Neutrik
SKU: NEU-NJ3FP6C
Price: 9.00 EUR
Availability: InStock

€9,00

Inkl. MwSt.

Shipping € 10

Sehen Sie sich unsere +1000 Bewertungen an ★Trustpilot

Beschreibung

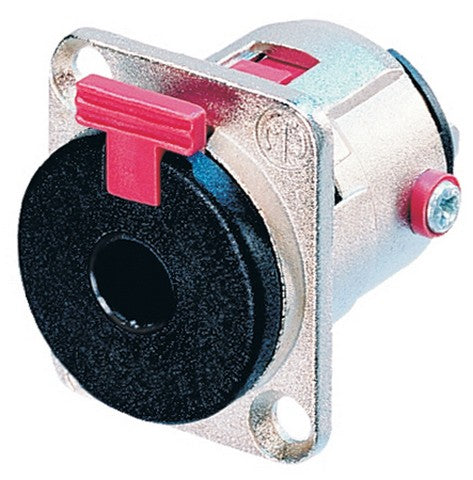

Neutrik chassis connector
Balanced jack
Made of metal

Spezifikationen

Weight (kg)

0,1

More specifications

Specifications

Contact resistance< 6 mÎ© (inner) (initial)
Dielectric strength1 kVdc
Insulation resistanceâ¥ 1 GÎ© @ 500 V dc
Rated current per contact10 A
Insertion force< 20 N
With drawal force< 20 N
Lifetime> 10000 mating cycles
Locking force> 80
Wire size1 mmÂ²
Wire size18 AWG
Wiring Solder contacts
Locking device Latch lock
Mounting direction front Chassis shape D
Contact plating2 Âµm Ag
Contacts Brass (CuZn37) (Ground)
Insert Polyamide (PA 6.6 30 % GR)
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Nickel
Strain relief Polyacetal (POM)
Standard compliance EIA RS 453, IEC 60603-11
Solderability Complies with IEC 68-2-20
Temperature range-25 Â°C to +70 Â°C

Brand: Neutrik

SKU: NEU-NJ3FP6C

Barcode: 765811256724
