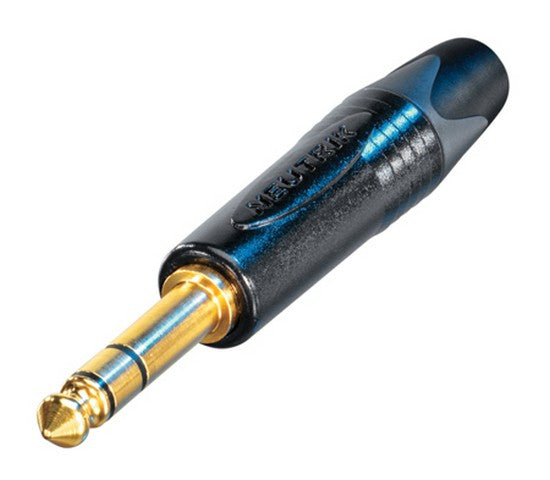

Neutrik NP3X-B jack plug
€9,00
Stückpreis
/
Nicht verfügbar
Beschreibung
Beschreibung
- Neutrik connector for mounting
- Stereo jack plug
- Made of metal
Neutrik NP3X-B
3 pole 1/4" professional phone plug, gold contacts, black shell
The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88mm jack pitch).
The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip.
The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.
Features & Benefits
- Extra slim 1/4" plug for highest packing density
- Robust diecast shell in stylish design
- Proven chuck type strain relief for reliable cable retention
- Sleek design for best handling convenience
- Precision machined one-piece contacts - avoid hook up of tip contact
Spezifikationen
Spezifikationen
-
Weight (kg)
More specifications
More specifications
Specifications | |
| Connection Type | Plug |
| Gender | male |
Electrical | |
| Contact resistance | depends on mating connector m |
| Dielectric strength | 1 kVdc |
| Insulation resistance | > 2 G (initial) |
| Rated current per contact | depends on mating connector A |
| Rated voltage | < 50 V |
Mechanical | |
| Cable O.D. | 4 - 7 mm |
| Lifetime | > 1000 mating cycles |
| Wiresize | 1 mm² |
| Wiresize | 18 AWG |
| Wiring | Solder contacts |
Material | |
| Bushing | Polyacetal (POM) + PU |
| Contact plating | 0.2 µm Au |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Black chromium |
| Strain relief | Polyacetal (POM) |
Environmental | |
| Standard compliance | IEC 60603-11 / EIA RS-453 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -20 °C to +65 °C |
Brand: Neutrik
SKU: NEU-NP3X-B
