LD Systems Road Buddy 10 Portable Speaker
Beschreibung
Beschreibung
Portable speaker with great sound
Built-in rechargeable battery
Headset and belt transmitter included
Comes with remote control.
Ideal for guided tours, small music events, private parties, speeches, demonstrations etc.
LD Systems Road Buddy 10 HS
Battery Powered Bluetooth Speakers with mixer, bodypack and headset

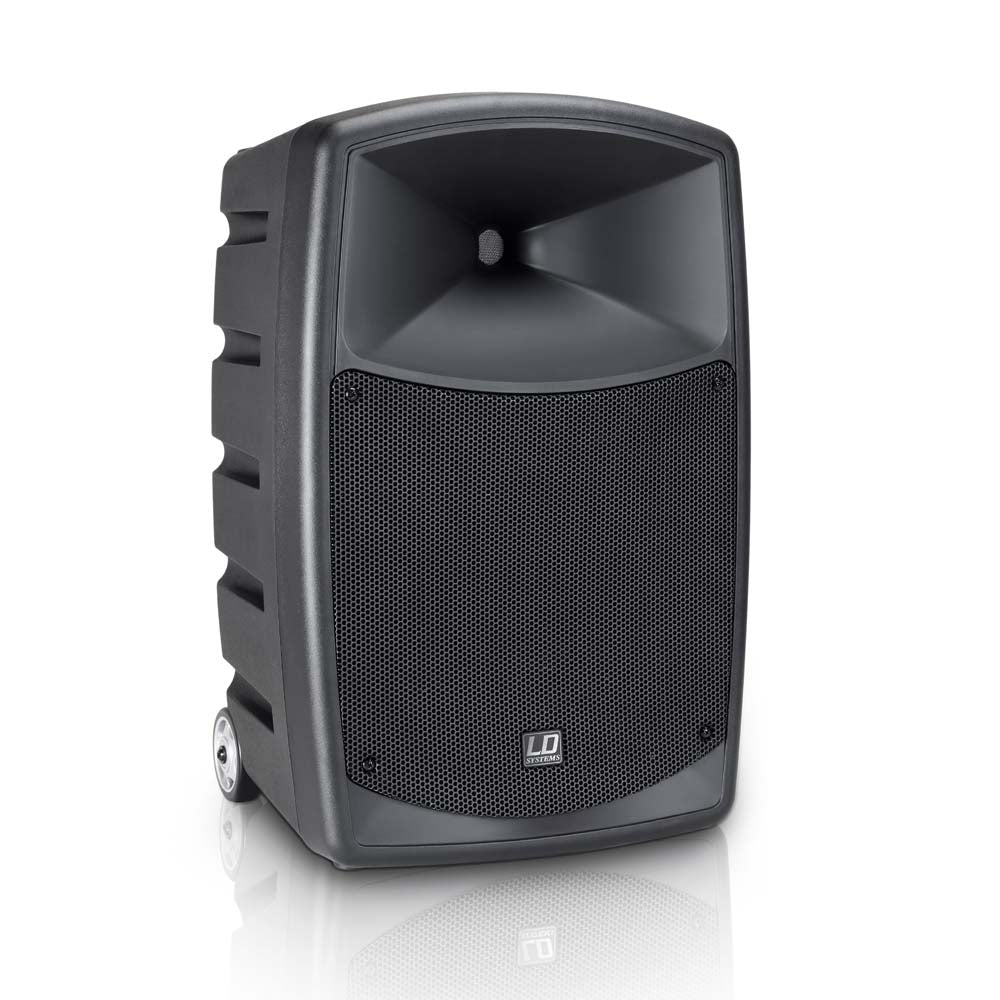

The LD Systems Road Buddy 10 is an elegant solution for voice and music transmission on the go. The 2-way speaker with a 10" custom woofer and a 1" compression driver is operated with a rechargeable battery for up to 8 hours and is powered by a class D power amplifier with a highly efficient switching power supply and 480 watts of peak power.

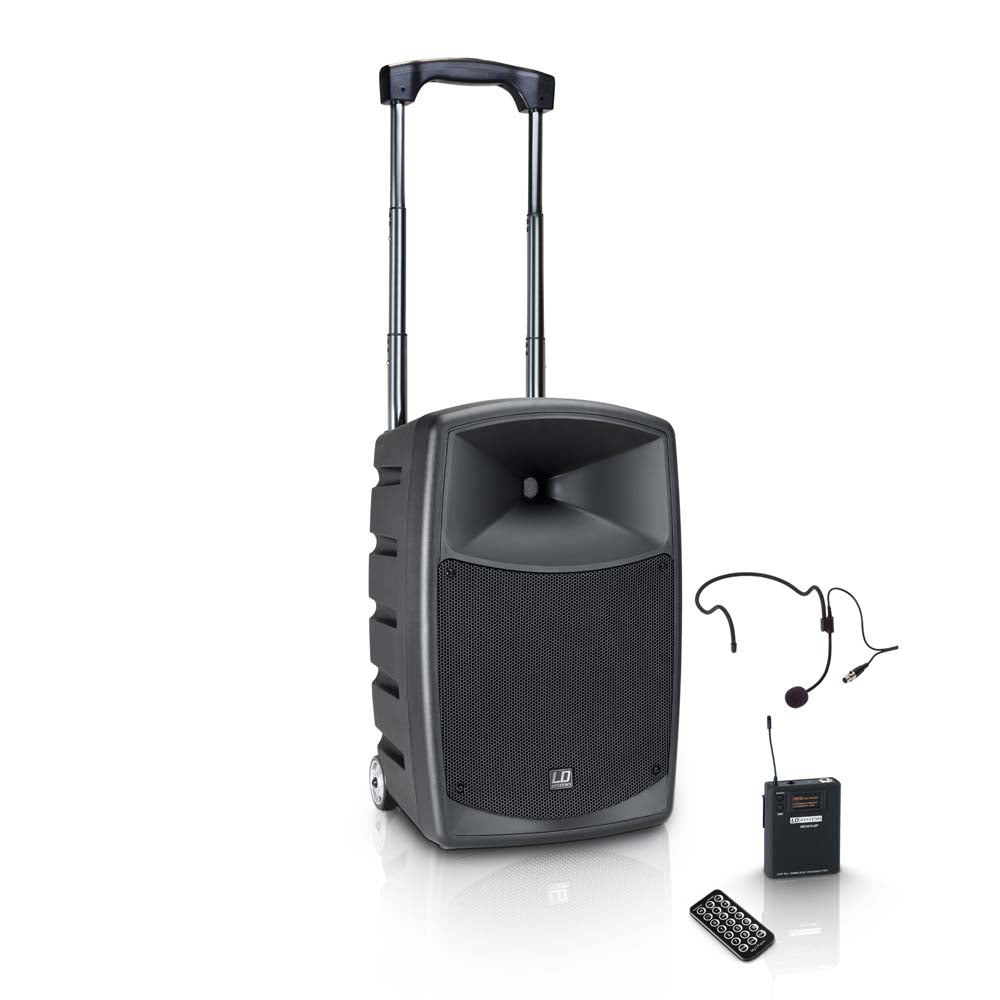

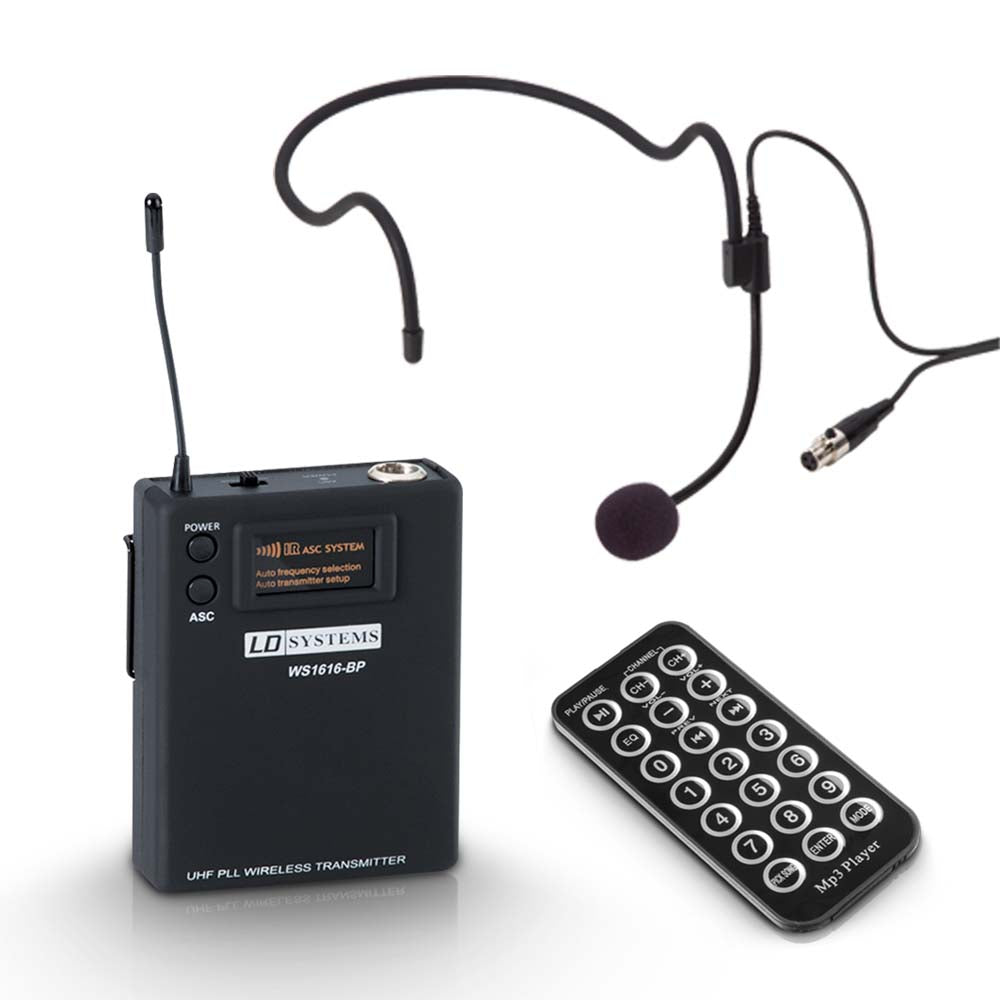

The Road Buddy relies fully on wireless transmission: it has an UHF radio receiver which operates in the license-free 863 - 865 MHz range, and can be expanded with an additional system. The on-board Bluetooth player with backlit multifunction display ,equalizer, USB port and SD card slot supports the mp3, wma and wav formats. A handheld microphone with 10 mW output power(LDRBUD10) or as an alternative a headset microphone with belt pack (LDRBUD10HS) and an IR-remote control for the player are included.

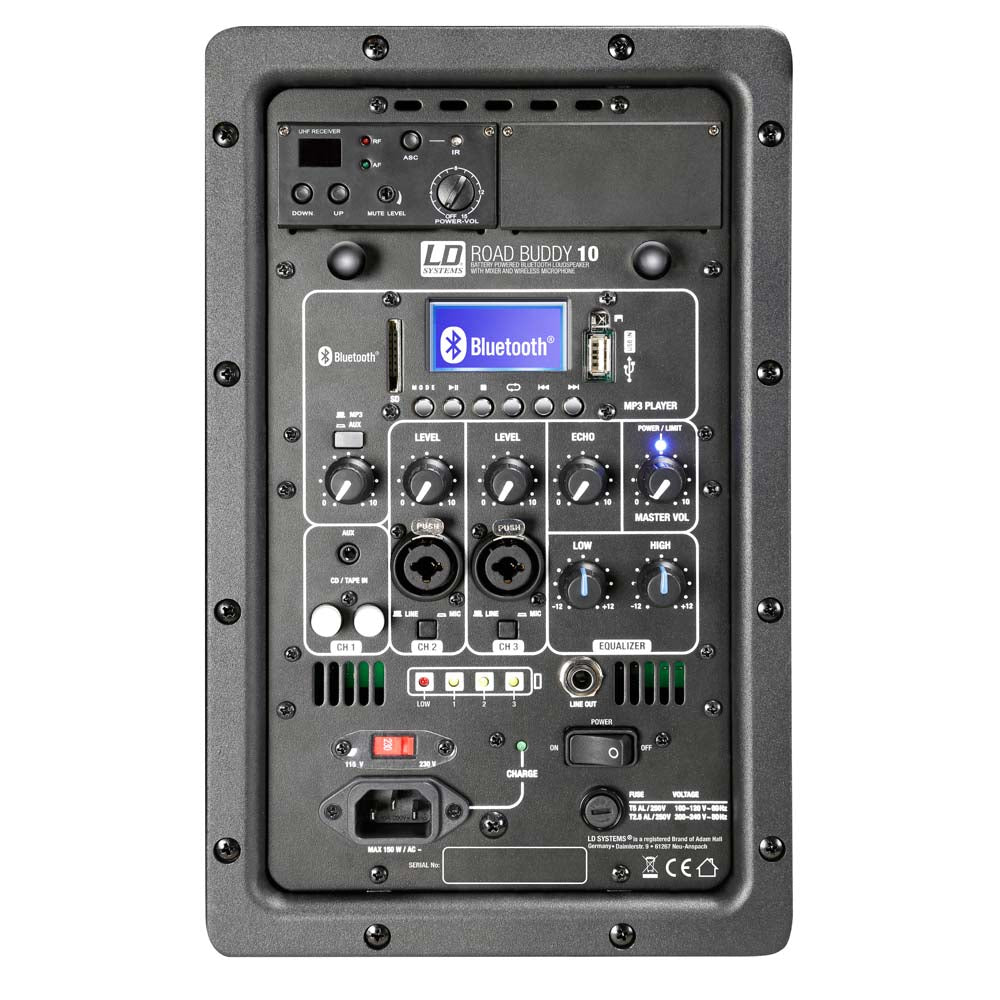

For wired devices, the Road Buddy has two channels with combo jacks and individual volume controllers that are switchable for microphone and line level, a stereo input via RCA (Cinch) sockets (mono summed) and a 3.5 mm Aux input. Treble, Bass, Echo and Master volume controllers complete the control panel.

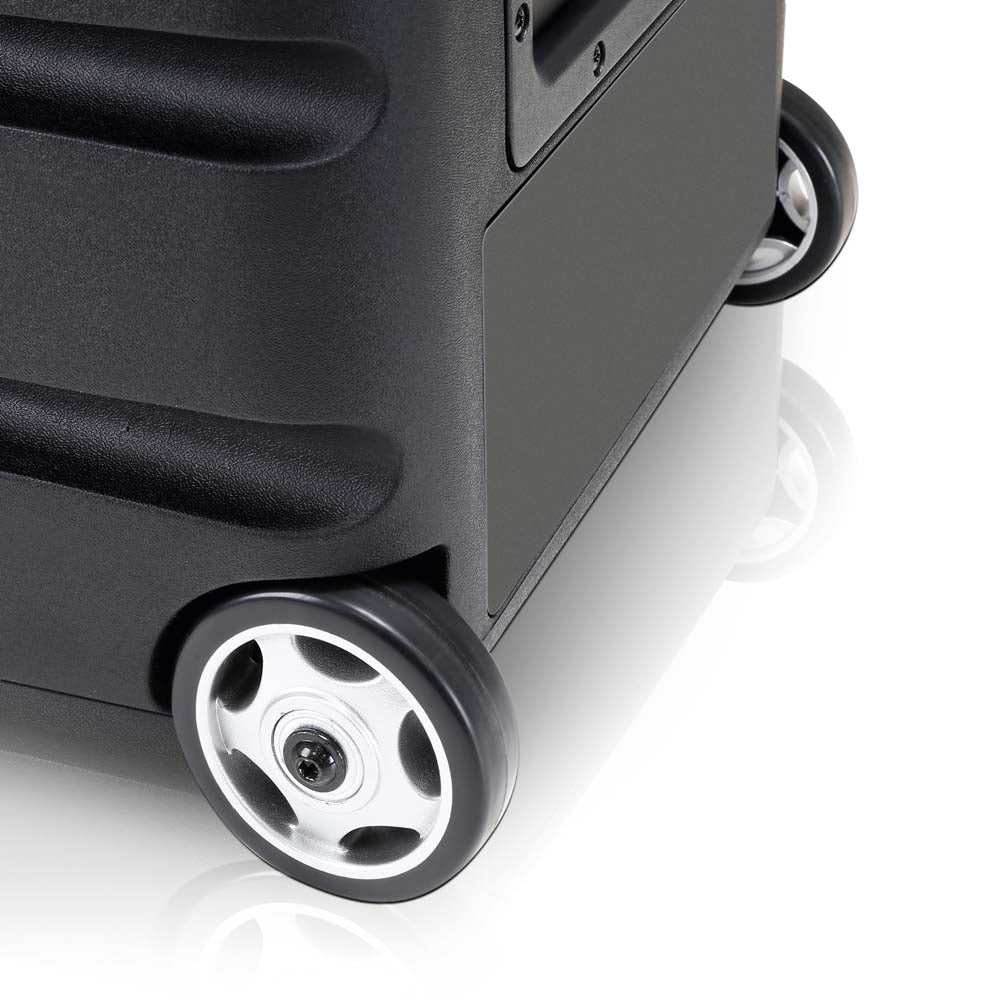

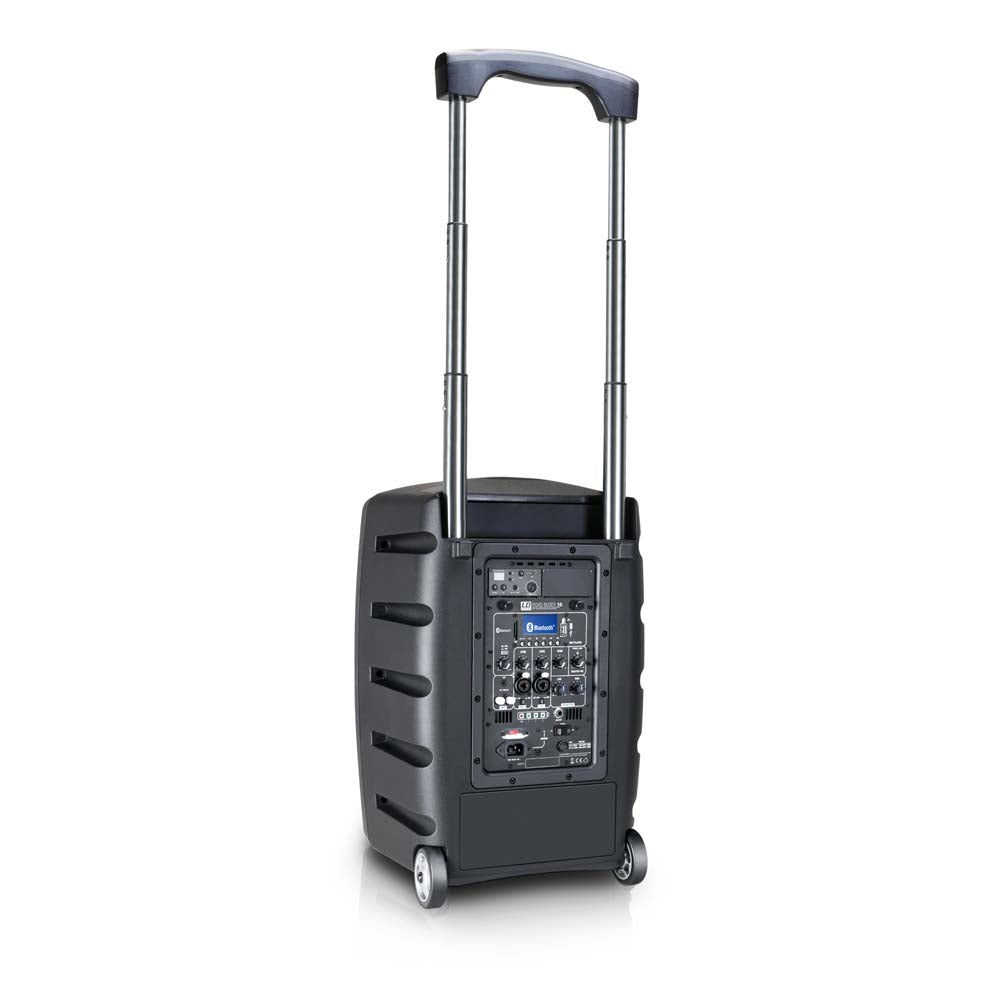

The LD Systems Road Buddy is easily transportable thanks to built-in castor wheels and a pull-out handle. On the top, there is a handy storage compartment for up to two hand-held transmitter microphones. The plastic housing of this lightweight device has been designed to accommodate a 35 mm tripod mount.
Spezifikationen
Spezifikationen
-
Weight (kg)
More specifications
More specifications
Specifications | |
|---|---|
| Product number: | LDRBUD10HS |
| Product type: | Portable PA Speaker |
| Type: | active |
| Low/mid driver dimensions: | 10" |
| Low/mid driver dimensions (mm): | 254mm |
| Woofer magnet: | Ferrite |
| Woofer brand: | Custom-made |
| HF driver dimensions: | 1" |
| HF driver dimensions (mm): | 25.4mm |
| HF driver magnet: | Ferrite |
| HF driver brand: | Custom-made |
| Amplifier: | Class D |
| RMS: | 120W |
| Peak power: | 480W |
| Frequency response: | 55 - 18000Hz |
| SPL (1W/1m): | 96dB |
| Max. SPL: | 115dB |
| Protection circuits: | short circuit, over-current, overload protection |
| Controls: | low, Mic 2 Level, CD / Tape IN Level, Echo, Master Volume, high, AUX / MP3 switch, Mic 1 Level |
| Indicators: | Charge/battery status, Power |
| Media player | |
| Supported media: | USB stick, Bluetooth, SD Card |
| Supported formats: | WAV-CD, WMA file, MP3 file |
| Media player controls: | Play / Pause, equalizer, Stop, Repeat, Mode (Menu / Bluetooth /SD / USB), Previous Track, Next Track |
| Media player display elements: | Lighted multifunctional LC display |
| Line inputs: | 1 |
| Line input connectors: | 3.5 mm jack, 2 x XLR, 2 x RCA, 6.3 mm jack |
| Mic inputs: | 2, 2 x XLR, 6.3 mm jack |
| Wireless Unit | |
| Transmission frequency range: | 863.000 - 865.000MHz |
| Modulation Type: | FM |
| Channels: | 16 |
| Frequency Response Wireless Unit: | 50 - 17000Hz |
| Controllers Wireless Unit: | Value Down, Mute Level (Squelch), Power / Volume, Value Up, ASC |
| Indicators Wireless Unit: | RF (LED), AF (LED), LED Display |
| Connections Wireless Unit: | nTNC for receiver antenna |
| RF Transmitter Power Output: | 10mW |
| Bodypack weight: | 0.08kg |
| Bodypack material: | ABS plastic |
| Operating voltage: | Switching Power Supply, 100 V - 120 V / 60 Hz, 220 V - 240 V AC / 50 Hz |
| Rechargeable batteries: | 12 V / 5 Ah |
| Cabinet material: | polypropylene |
| Cabinet construction: | vented |
| Width: | 415mm |
| Height: | 525mm |
| Depth: | 328mm |
| Weight: | 16.5kg |
| Other features: | transport handle, extendable handle, Stand mount 36 mm, Transport casters, IR Remote for Media Player |
