Yamaha DBR12
Beschreibung
Beschreibung
- 4 year Yamaha warranty
- Active 2-way speaker with 1000W
- Frequency range: 52 Hz - 20 kHz
- Built-in fan cooler
- 1.4" cone
- Versatile speaker

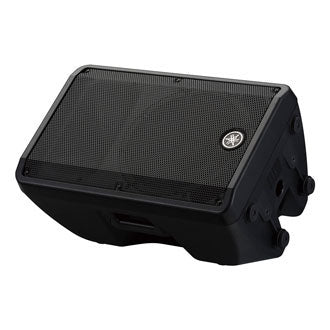

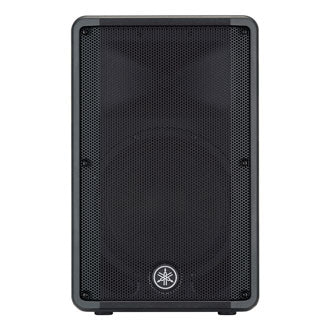

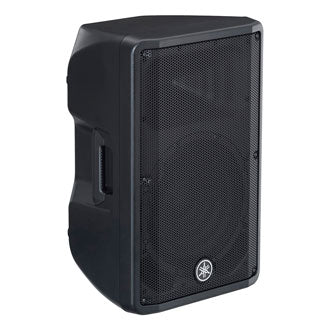

Yamaha DBR12 Active Speaker
Yamaha The DBR12 is an active 2-way speaker with 1.4 diaphragm and 2.1 kHz crossover. The speaker has a frequency range of 52 Hz - 20 kHz and different types of I/O connectors. With a built-in fan cooler, the risk of overheating of the Yamaha DBR12 is significantly reduced.
Full peace of mind is part of the purchase, as Yamaha provides a full 4-year factory warranty on the Yamaha DBR 12 speaker, covering both the units and amplifier as well as other electronics in the speaker.
1000 W power output
The built-in amplifier of the DBR12 is very well performing and precisely tuned to the Yamaha DBR12 speaker.
Yamaha The DBR 12 has 1000 W (LF: 800 W, HF 200 W) power output and 465 W (LF: 400 W, HF: 65 W) continuous.
Versatile speaker
Yamaha The DBR12 can be used as a front speaker, floor monitor or side fills, and is ideal for virtually any music event.
Delivers great vocals, speech and music of all kinds. Can be mounted on speaker stand
Spezifikationen
Spezifikationen
-
Weight (kg)
Weitere Spezifikationen
Weitere Spezifikationen
Specifications
| Speaker type | 2-way, Bi-amp active speaker, bass reflex cabinet | |
|---|---|---|
| Frequency range (-10dB) | 52Hz - 20kHz | |
| Nominal coverage | H | 90° |
| V | 60° | |
| Components | LF | Diameter: 12" unit, voice coil:2", magnet:Ferrite |
| HF | Diaphragm:1.4", type: 1" throat compression unit, Magnet:Ferrite | |
| Crossover | 2.1kHz: FIR-X tuning (linear phase FIR filter) | |
| Output power | Dynamic:1000 W (LF: 800 W, HF: 200 W) / Continuous: 465 W (LF: 400 W, HF: 65 W) | |
| Maximum output level (1m; on axis) | 131dB SPL | |

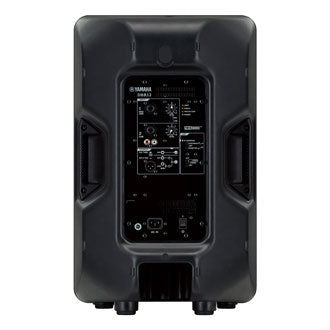

| I/O connectors | INPUT1: Combo x1, INPUT2: Combo x 1 + phono x 2 (unbalanced), OUTPUT: XLR3-32 x 1 (CH1 parallel pass through or CH1+CH2 Mix) | |
| Processors | D-CONTOUR: FOH/MAIN, MONITOR, OFF | |
| Heat dissipation | Fan-cooled, 4 speeds | |
| Power requirements | 100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz | |
| Power consumption | 74W(1/8 Power Consumption), 18W(Idle) | |
| Cabinet material | Plastic | |
| Finish | Black | |
| Handle | Side x 2 | |
| Flying and mounting hardware | Underside x 2, backside x 1 (fits M8 x 15 mm eyebolts) | |
| Pole socket | 35mm (underside x 1) | |
| Dimensions | W | 376mm (14.8") |
| H | 601mm (23.7") | |
| D | 348mm (13.7") | |
| Net weight | 15.8 kg (34.8 lbs) | |
| Accessories | BBS251, BCS251, BWS251-300, BWS251-400 (mounting bracket, optional accessory) | |
