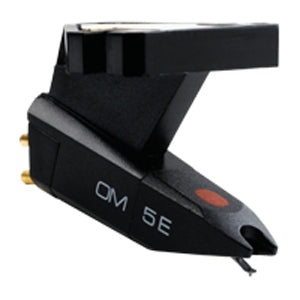

Ortofon OM 5E Pick-Up
€50,00
€56,00
Stückpreis
/
Nicht verfügbar
Beschreibung
Beschreibung
- OM 5E is a moving magnet pickup
- It has an elliptical shaped diamond
- Suitable for "ordinary" vinyl records
- Provides balanced and undistorted reproduction
Ortofon OM 5E Pick-Up
If your pick-up Stylus is wearing out, you don't need to buy a whole new pick-up.
You can simply replace the Stylus tip itself by purchasing this replacement Stylus.
It's quick and easy to replace and fit the replacement Stylus, giving your pickup a new lease of life and a boost to sound quality.
Spezifikationen
Spezifikationen
-
Weight (kg)
More specifications
More specifications
| Output voltage at 1000 Hz, 5cm/sec. | 4 mV |
| Channel balance at 1 kHz | 2 dB |
| Channel separation at 1 kHz | 22 dB |
| Channel separation at 15 kHz | 15 dB |
| Frequency range at - 3dB | 20-25.000 Hz |
| Frequency response | 20-20.000 Hz ± 2 dB |
| Tracking ability at 315Hz at recommended tracking force *) | 65 µm |
| Compliance, dynamic, lateral | 20 µm/mN |
| Stylus type | Elliptical |
| Stylus tip radius | r/R 8/18 µm |
| Tracking force range | 1.5-2.0 g (15-20 mN) |
| Tracking force, recommended | 1.75 g (17.5 mN) |
| Tracking angle | 20° |
| Internal impedance, DC resistance | 750 Ohm |
| Internal inductance | 450 mH |
| Recommended load resistance | 47 kOhm |
| Recommended load capacitance | 200-600 pF |
| Cartridge colour, body/stylus | Black/Black |
| Cartridge weight | 5 g |
| Replacement stylus unit | Stylus 5 E |
Brand: Ortofon
SKU: ORT-0130521
