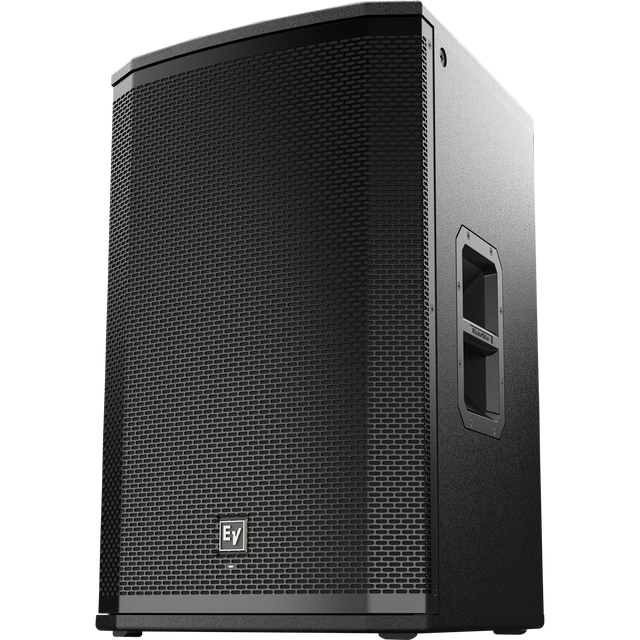

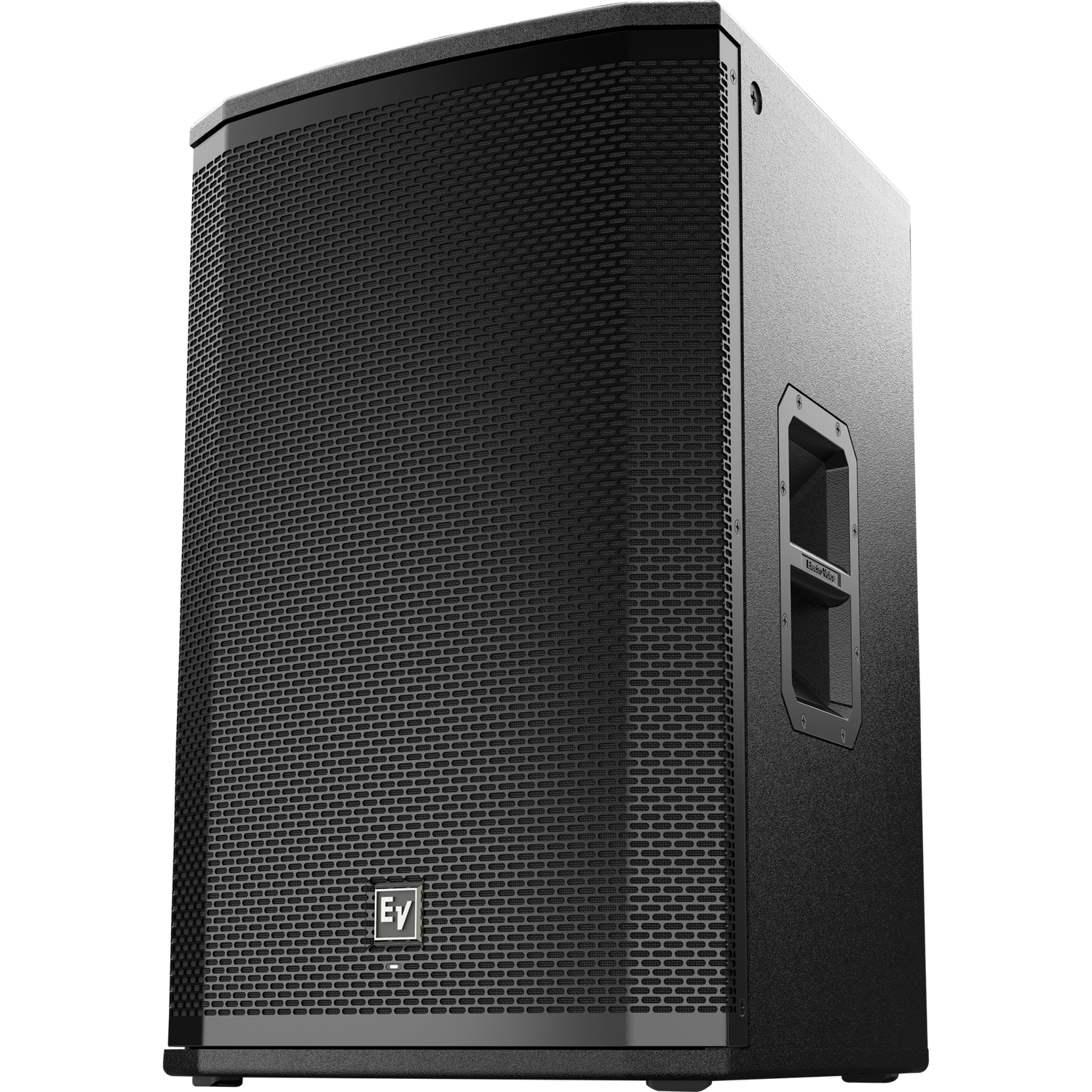

Electro Voice ETX-15P
€1.611,00
Stückpreis
/
Nicht verfügbar
Beschreibung
Beschreibung
- Active speaker with built-in 2000 Watt digital amplifier.
- Delivers 135 dB Max. SPL.
- Integrated FIR-Drive DSP system (Digital Signal Processor)
- 15" SMX bass unit and 1,25" HF titanium cpmpression driver.
- 90 x 60 degree horn.
- Built in 18mm plywood with EV Coating.
Electro Voice ETX-15P
Inside each low-profile, tour-grade wood enclosure are a range of unique new features that set ETX Powered Loudspeakers apart, combining intelligent technology and innovative industrial design for spectacular results across all applications. EV-engineered high-efficiency transducers and high-powered Class-D amplifiers, Signal Synchronized Transducers (SST) waveguide design and smart FIR-Drive DSP all work together to provide peerless EV sound quality and precise coverage at the highest SPLs

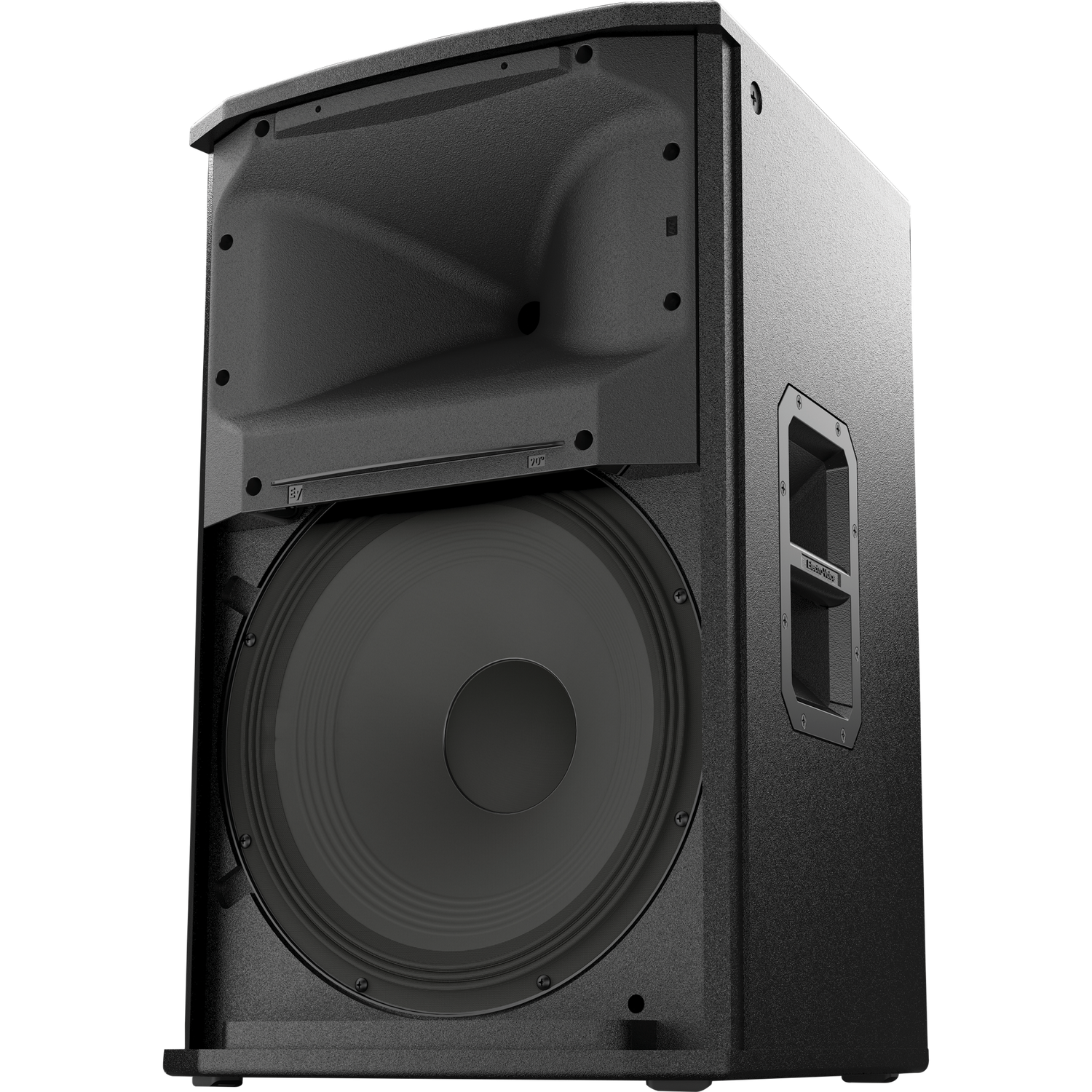

- 15-inch LF SMX woofer
- 1.25-inch HF titanium compression driver
- 2000 W Class-D power amplifier with integrated FIR-Drive DSP
- 135 dB peak SPL
Spezifikationen
Spezifikationen
-
Weight (kg)
More specifications
More specifications
| Frequency Range | 40 Hz - 20 kHz |
| Maximum SPL | 135 dB peak dB |
| Power Consumption | 100 - 240 V~, 50 - 60 Hz, 1.6 - 0.8 A |
| Power Rating | 2000 W |
| Frequency Response | 48 Hz - 20 kHz |
| Coverage (Nominal -6 dB) H | 90 ° |
| Coverage (Nominal -6 dB) V | 60 ° |
| LF Transducer | SMX2150 380 mm (15 in) |
| HF Transducer | DH3-B 1.25-in titanium compression driver |
| Crossover Frequency | 1500 Hz |

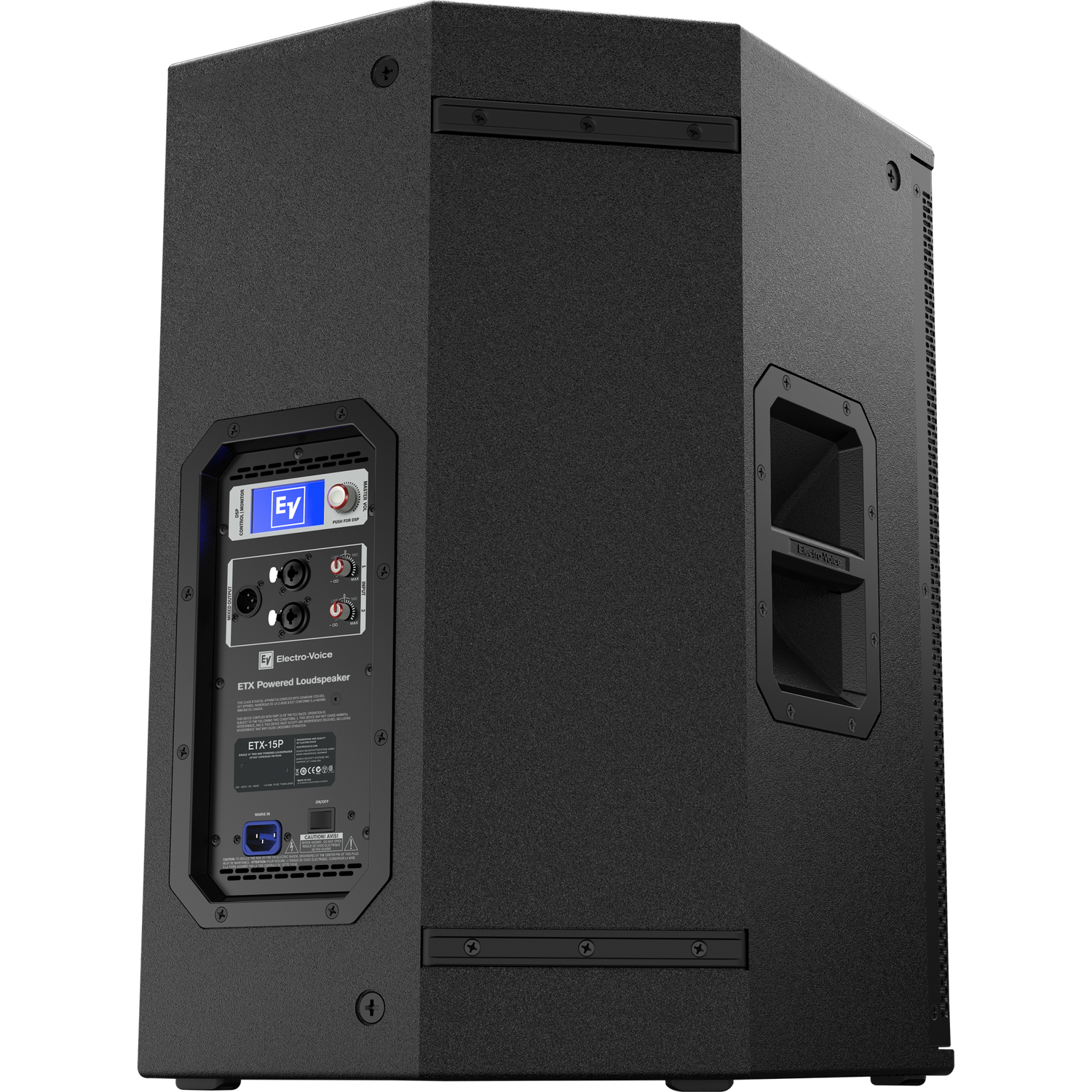

| Connector Type | (2) XLR/TRS combo jack and (1) XLR link output |
| Enclosure Material | 18-mm, 13-ply birch plywood with EVCoat |
| Grill | 16AWG steel with powdercoat |
| Suspension | (8) M10 suspension points |
| Height | 691 mm (27.2") |
| Width | 431 mm (16.97") |
| Depth | 447 mm (17.6") |
| Weight Net | 27.7 kg (61.07 lbs) |
| Shipping Weight | 31.5 kg (69.45 lbs) |
Brand: Electro-Voice
SKU: EV-ETX-15P
