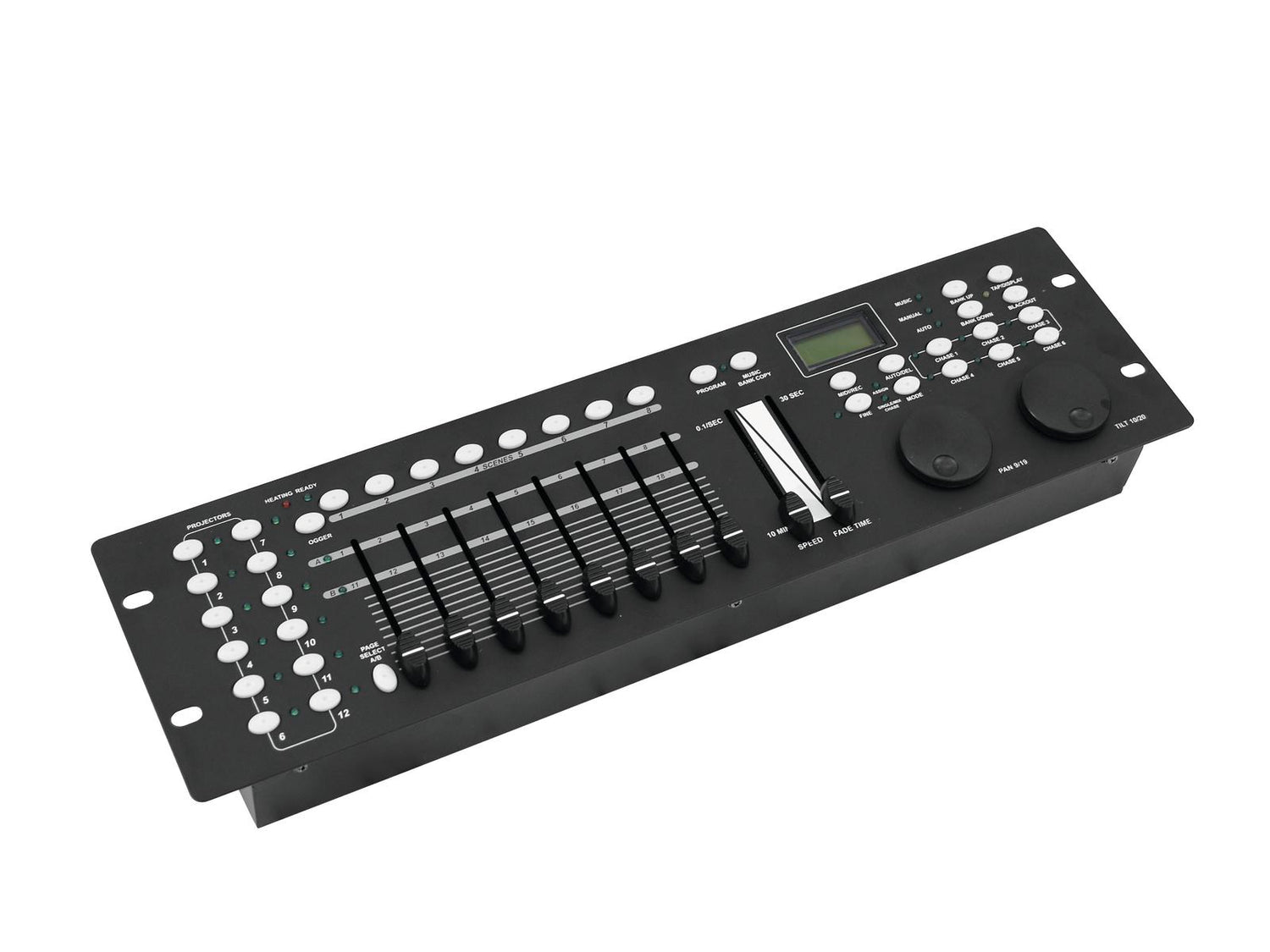

Eurolite Operator 240 DMX Controller
€226,00
Stückpreis
/
Nicht verfügbar
Beschreibung
Beschreibung
- DMX controller for 12 light effect units such as moving heads, scanners and LED spot lights
- 12 fixtures with up to 20 channels each can be controlled
- 240 DMX channels can be assigned and inverted as desired to 20 control channels (softpatch)
- USB port for storing program data
- 240 programmable scenes (30 banks x 8 scenes)
- 6 programmable chases with 240 scenes each can be stored
- Manual, time-controlled or sound-controlled chase running mode
- Fade between scenes adjustable between 0-30 s
- Copy function for scenes and banks
- 2 DMX fixture levels can be controlled, each with up to 10 channels
- 8 DMX channel faders
- 2 jog wheels for pan/tilt
- Blackout function
- Sound control via built-in microphone or line input with adjustable sensitivity
- Backlit LCD (2 x 8 characters)
- RDM support (DMX address setup and identify)
- Fog machine control possible
- Supports standard MIDI
- 3-pin XLR connector with polarity selector
- Firmware update via USB
- Desktop console
- Rack installation with 3 units
DMX controller for 12 light effect units
Spezifikationen
Spezifikationen
-
Weight (kg)
More specifications
More specifications
| Power supply: | 100-240 V AC, 50/60 Hz ~ |
|
| via power unit included in the delivery |
| Power consumption: | 2.7 W |
| Number of control channels: | 240 |
| Storable scenes: | 240 (8 each in 30 memory banks) |
| Storable chases: | 6 with 240 steps each |
| Sound control: | via built-in microphone or via audio input |
| Audio input: | RCA |
| Input sensitivity: | 0.1-1 V |
| DMX512/RDM output: | 3-pin XLR connector with polarity selector |
| MIDI input: | 5-pin DIN |
| Fog machine connector: | 5-pin DIN |
| Available storage media: | USB devices (FAT32) |
| Dimensions (LxWxH): | 483 x 135 x 71 mm |
|
| Rack installation with 3 U |
| Weight: | 2 kg |
| Shipping weight: | 2.820 kg |
Brand: Eurolite
SKU: EUR-70064518
