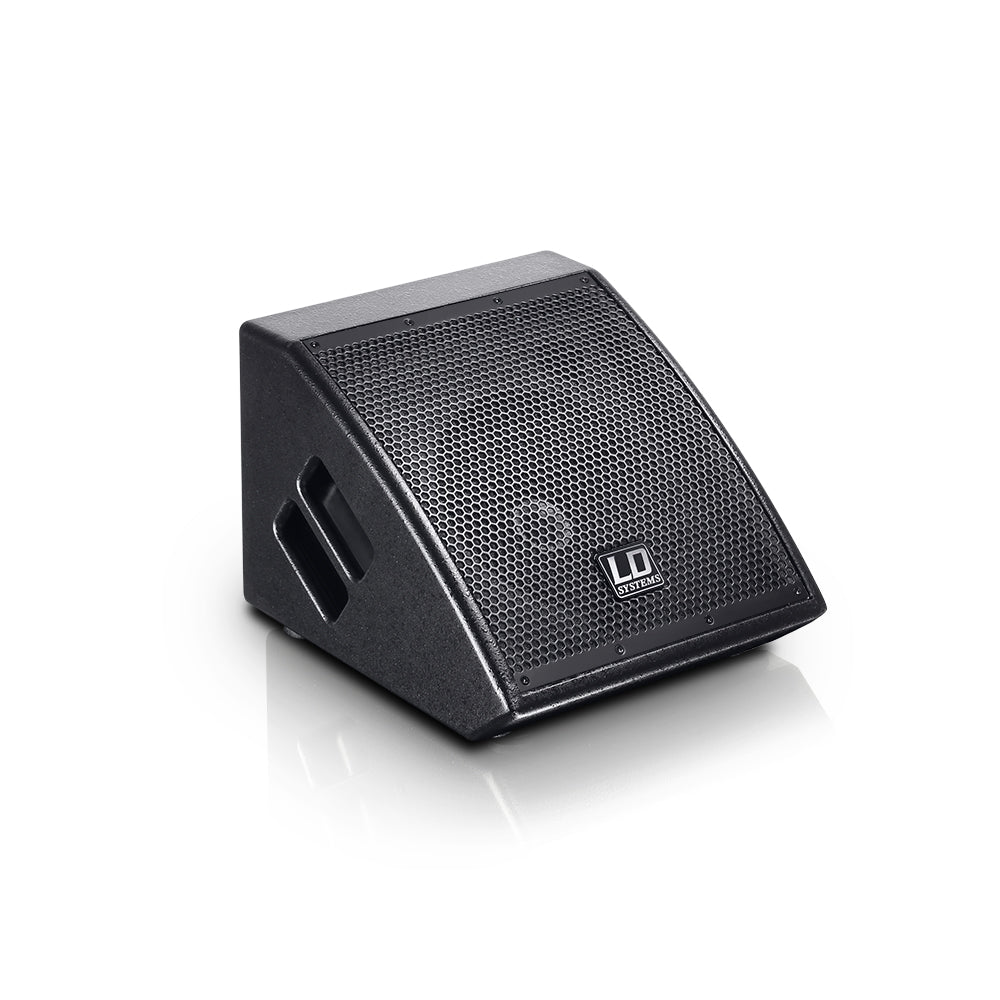

LD Systems MON-81A G2, Active Stage Monitor

• 80W. RMS.
• 97 SPL (1W/1m)
• 8" Coaxial speaker with an integrated 1" HF driver.
• Dispersion angle of 75° x75°
• Very low sensitivity for feedback.
• Short circuit protection and Limiter ensure reliable drift.
• Adjustable volume and power switch directly on the monitor.

LD Systems Stinger MON-81A G2

This is an extremely compact active monitor, with a very wide frequency range and a maximum sound level pressure of 116dB.

Product type

PA loudspeaker

Type

Active

Low/mid driver dimensions

8 "

Woofer size

203 mm

Woofer type

coaxial loudspeaker

Woofer magnet

Ferrite

Woofer brand

Custom-made

Woofer voice coil

2 "

Woofer voice coil (mm)

50.8 mm

HF driver dimensions

1 "

HF Driver Size

25.4 mm

HF driver magnet

Ferrite

HF driver brand

Custom-made

HF driver voice coil

1 "

HF Driver Voice Coil

25.4 mm

Amplifier

Class A/B

Dispersion (H x V)

75 x 75 °

RMS

80 W

Peak power

320 W

Frequency response

90 - 20000 Hz

Crossover frequency

2400 Hz

SPL (1W/1m)

97 dB

Max. SPL (continuous)

111 dB

Max. SPL (peak)

116 dB

Protection circuits

limiter , short circuit

Controls

On / Off , volume

Indicators

Limit , Power

Line Inputs

1

Line input connectors

6.3 mm jack , XLR

Line Outputs

1

Line output connectors

XLR

Operating voltage

transformer

Operating voltage

230 V AC / 50-60 Hz

Cabinet material

15 mm Birch Plywood

Cabinet construction

vented

Monitor angle

35 °

Width

320 mm

Depth

250 mm

Height

361 mm

Weight

10,6 kg

Features

ergonomically shaped insert handles
