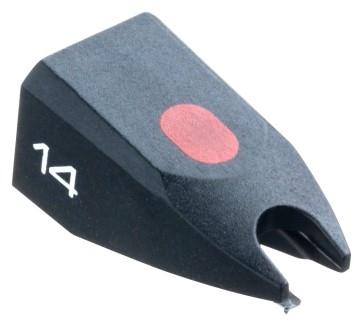

Ortofon 14 Stylus
€52,00
€53,00
Stückpreis
/
Nicht verfügbar
Beschreibung
Beschreibung
- This Ortofon 14 spare Stylus fits Ortofon TM 14U
- Elliptical Styli like this have a larger contact surface, which creates less pressure on the plates, which are not worn in the same way as with spherical Styli
- Not suitable for scratching
Ortofon 14 Stylus
Ortofon Stylus fpr TM 14U
If your pickup Stylus is getting worn, you don't need to buy a whole new pickup.
You can simply replace the Stylus tip itself by purchasing this replacement Stylus.
Replacing and fitting the replacement Stylus is quick and easy, giving your pickup a new lease of life and a boost to sound quality.
Spezifikationen
Spezifikationen
-
Weight (kg)
More specifications
More specifications
| Frequency range | 20-22.000 Hz |
| Frequency response | 20-20.000 Hz + 2 / - 2 dB |
| Tracking ability at 315Hz at recommended tracking force *) | 70 µm |
| Compliance, dynamic, lateral | 25 µm/mN |
| Stylus type | Elliptical |
| Stylus tip radius | r/R 8/18 µm |
| Equivalent stylus tip mass | 0.5 mg |
| Tracking force range | 1.0-1.5 g (10-15 mN) |
| Tracking force, recommended | 1.25 g (12.5 mN) |
| Tracking angle | 20° |
| Stylus colour | Black |
| Recommended for following cartridges | TM 14U |
Brand: Ortofon
SKU: ORT-0021431
