LD Systems XS 400 Amplifier 2x100W 8 Ohm
Beschreibung
Beschreibung
- Power amplifier providing 2 x 100 Watt in 8 Ohm.
- Class D digital amplifier stage.
- Protection circuit for overvoltage, short circuit, soft start etc.
- XLR, RCA and Jack inputs from audio sources.
- Speakon and terminal outputs for loudspeakers.
LD Systems XS 400 Amplifier 2x100W 8 Ohm

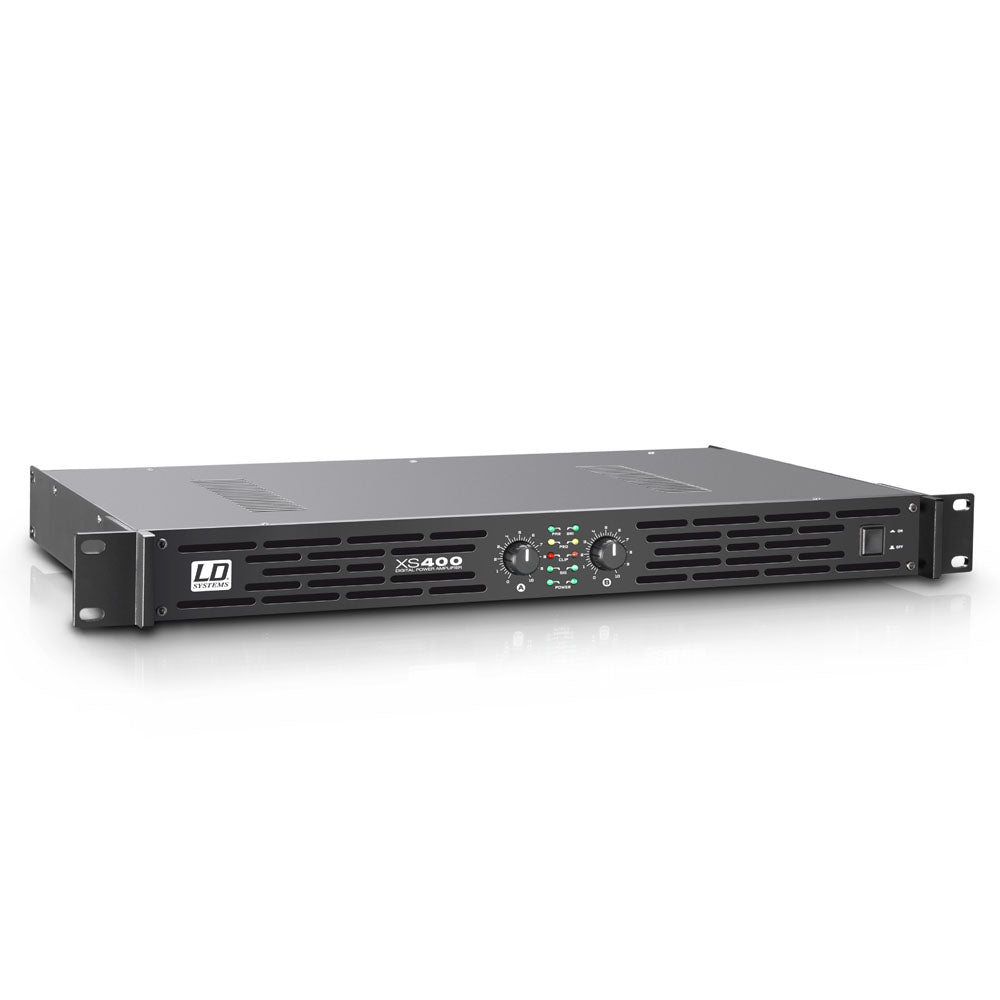

LD Systems XS400 Power Amplifier
The XS400 is an extremely compact, dependable Class D power amplifier with an output of 200W per channel at 4 ohms 400W in 8-ohm bridged mode, and a wide transmission range of 20Hz - 20kHz.
Our Class D power amplifier technology makes it possible to pack high performance into a minimum of space without generating unnecessary loss energy.
The XS400, at 1U and a weight of 3.4kg, is conceived for all professional applications in which ease of transport or space is important, whether mobile or in permanent installations.
The XS400 has all protection circuits against short-circuiting, DC, overheating, and overloading and has a soft-start delay.

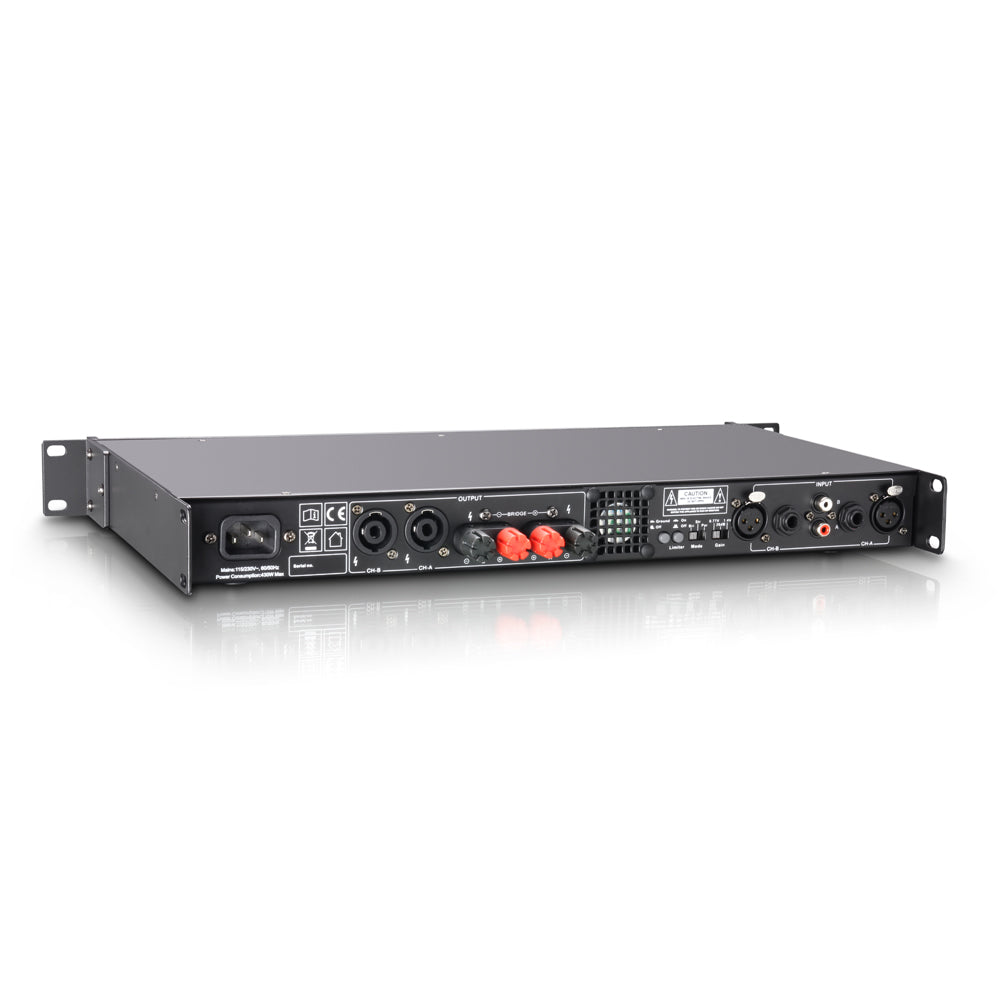

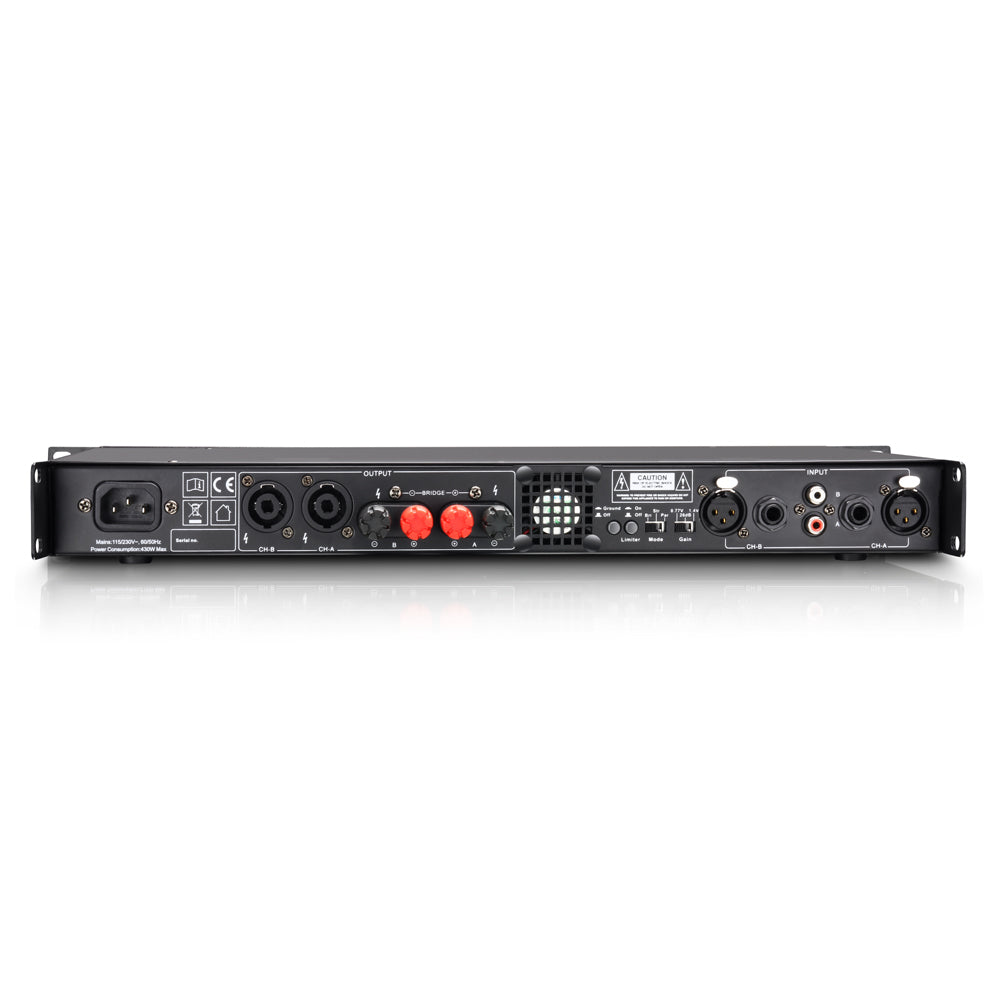

The amplifier features XLR, RCA and jack input connectors, with Speakon-compatible sockets and screw terminals as outputs.

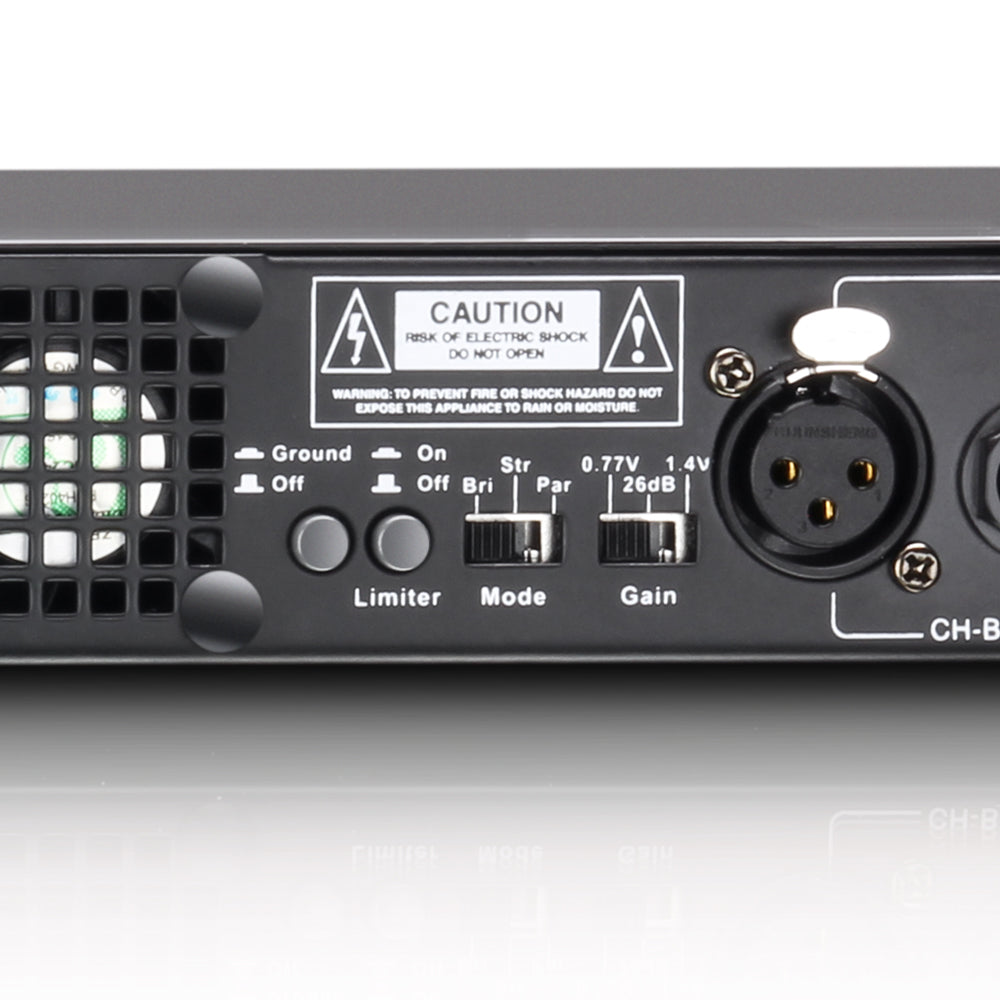

On the rear panel, it is possible to select the mode of operation and gain and activate the limiter and ground-lift function.

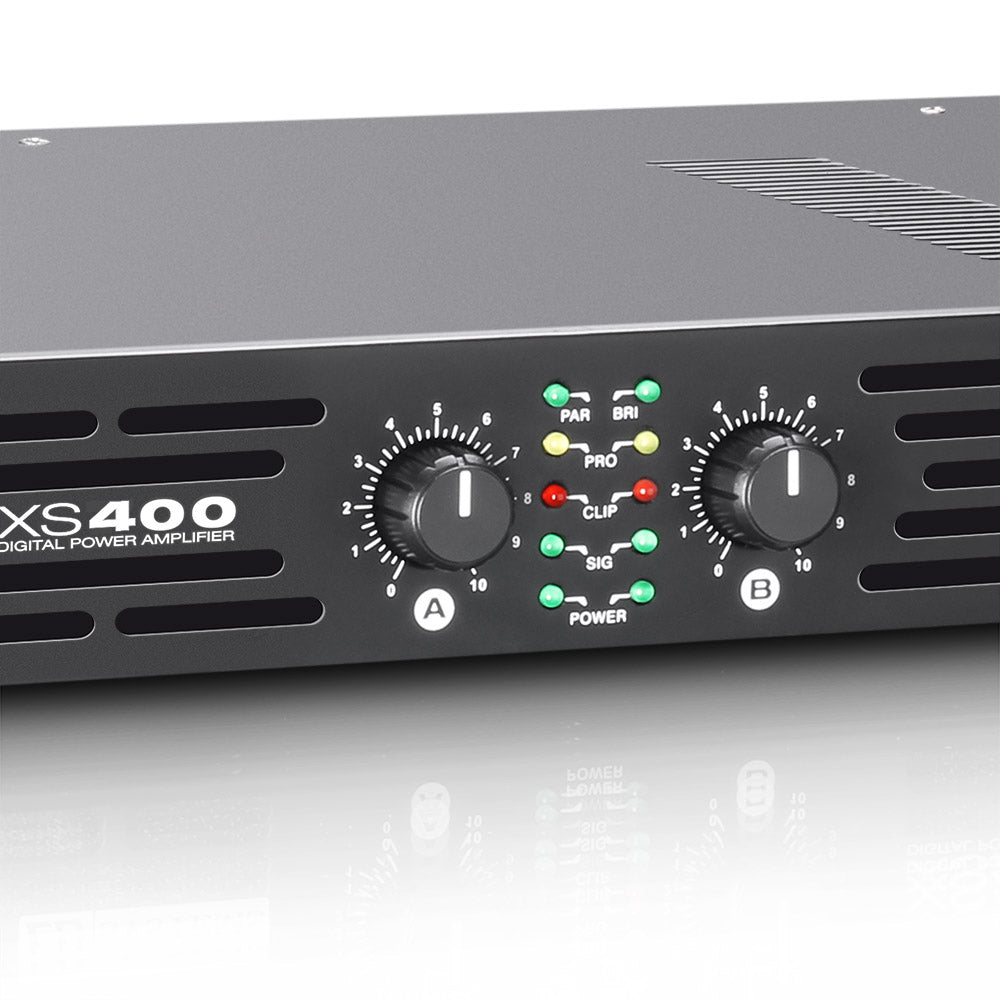

LEDs on the front indicate power, signal, clipping, triggering of the protection circuit, and the mode of operation.
The transparent sound of the XS400 stands out with high dynamics and impulse fidelity.
Spezifikationen
Spezifikationen
-
Weight (kg)
More specifications
More specifications
| Product number: | LDXS400 |
|---|---|
| Product type: | power amplifier |
| Type: | 2-channel |
| Rated output power (1kHz @ 4 Ohms): | 2 x 200W |
| Rated ouput power (1kHz @ 8 Ohms): | 2 x 100W |
| Rated output power (1kHz @ 8 Ohms, bridged): | 400W |
| Output circuitry: | Class D |
| Frequency response: | 20 - 20000Hz |
| THD: | < 0,1 % |
| Gain: | 32 dB / 26 dB / 28 dBdB |
| Input sensitivity: | 0.68 V / 1.4 V / 1.2 V (not passed) |
| Protection circuits: | over-current, thermal overload, soft start, short circuit, DC |
| Controls: | limiter, mode, ground lift, volume, On/Off, Gain |
| Display: | mode, signal, Power, protect (protection circuit engaged), clip |
| Line inputs: | 2 |
| Line input connectors: | 6.3 mm Jack, RCA |
| Loudspeaker outputs: | 2 |
| Speaker output connections: | Terminal posts, Speakon compatible |
| Cooling: | low-noise fan |
| Operating voltage: | Switching Power Supply, 115 V AC / 230 V AC (switchable) |
| Power consumption @ full load: | 470 |
| Width: | 482mm |
| Height: | 44mm |
| Depth: | 244mm |
| Weight: | 3.8kg |
