LD Systems X 223 Active parts filter
€121,00
€130,00
Stückpreis
/
Nicht verfügbar
Beschreibung
Beschreibung
- 2 way stereo and 3 way mono crossover.
- Used between 2 amplifiers where frequencies between subwoofer and full-range speakers are separated.
- High quality at low price.
- Adjustable crossover frequency for each channel, adjustable HF/LF, adjustable input and output signal etc.
- Simple operation where you don't need to be a trained user.
LD Systems X 223 Active parts filter

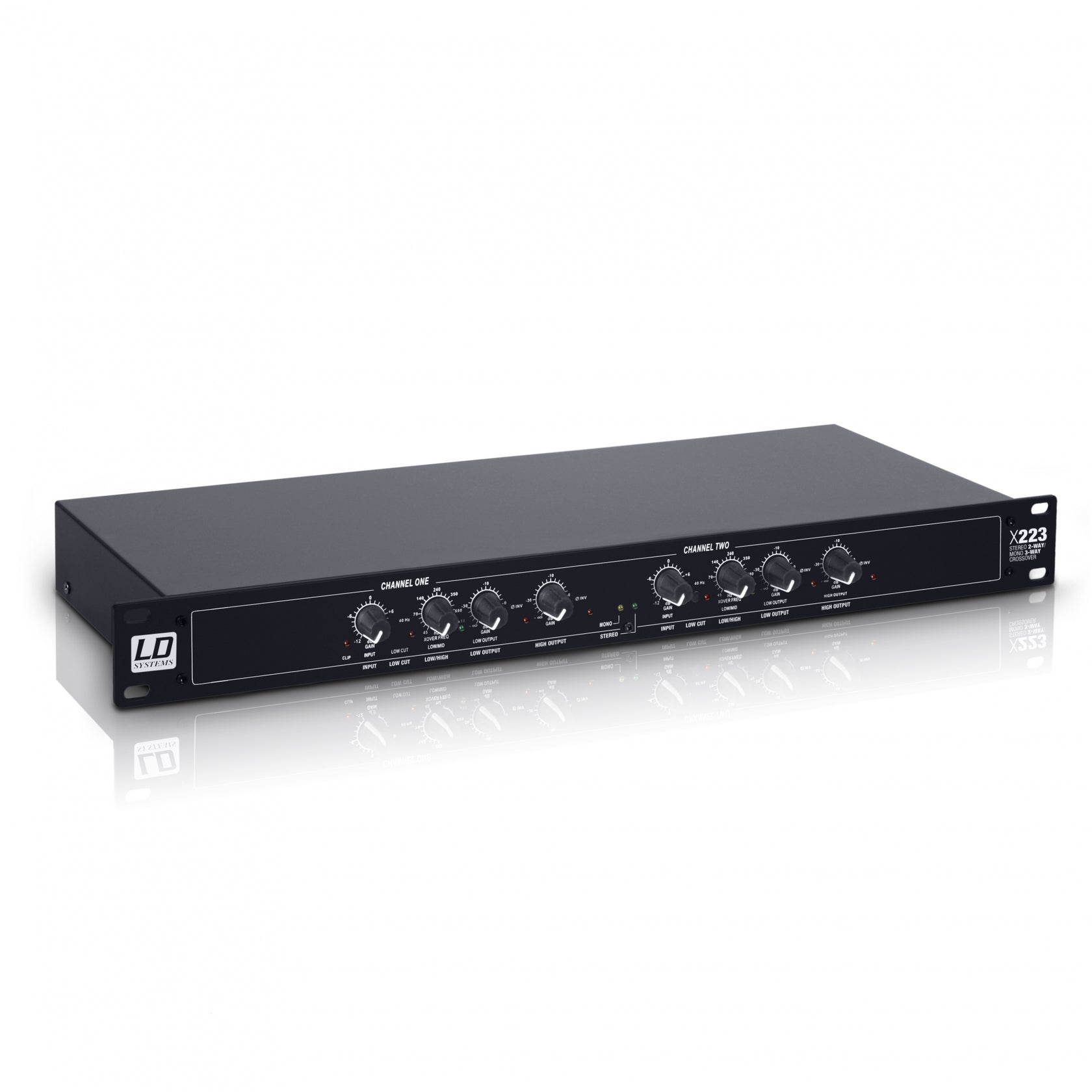

The LD Systems X223 is a stereo 2 way / mono 3 way crossover in standard 19"/1U rack format.
Its rugged construction, high quality and robust knobs as well as the integrated power unit are rarities in this price range.

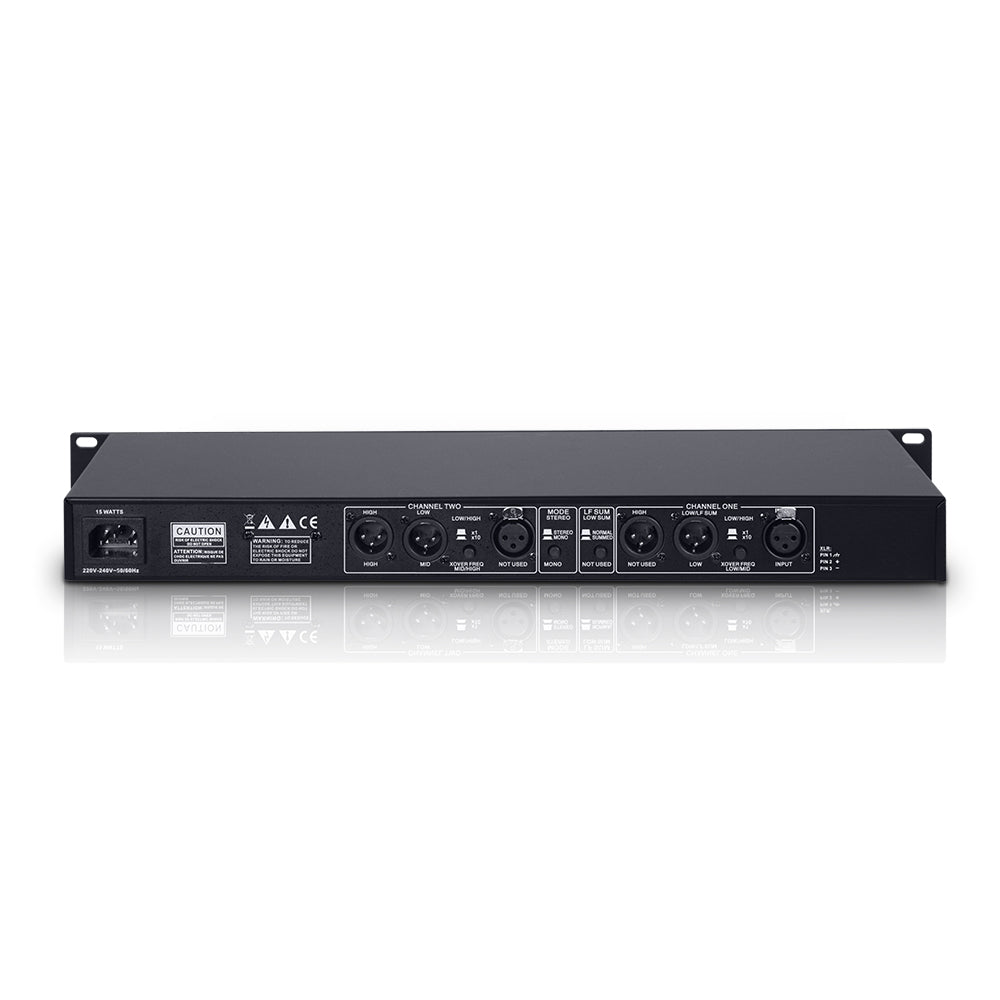

It provides a mono sub output, an adjustable crossover frequency for each channel, adjustable LF/HF and input gains, phase reverse controls, switchable 40 Hz High-Pass filters and symmetrical XLR In- and Outputs.
With the LD Systems X223 you get a crossover fulfilling the professional standards and offering great quality and sound characteristics.
Also known as: X223, X-223
Spezifikationen
Spezifikationen
-
Weight (kg)
More specifications
More specifications
| Product number: | LDX223 |
|---|---|
| Product type: | active crossover |
| Type: | analog, 2-way stereo/3-way mono |
| Frequency response: | 20 - 20,000Hz |
| Dynamic range: | 106dB |
| Signal-to-noise ratio: | > 93dB |
| THD: | < 0,004 % |
| Crosstalk: | < - 80 (20 - 20.000 Hz)dB |
| Max. input level: | +21 dBu (balanced or unbalanced) |
| Max. output level: | +21 dBu (balanced or unbalanced) |
| Input impedance (kOhms): | 50000 |
| Output impedance: | 200Ohm(s) |
| Controls: | 2x frequency switch x1/x10, 2 x low gain, 2 x highpass (40 Hz), mono/stereo mode, LF sum, 2 x crossover frequency low/high, 4 x inv switch, 2 x crossover low/mid, 2 x input gain, 2 x high gain |
| Display: | stereo, 2 x clip, 4 x inv, 2 x crossover x 10, mono, 2 x highpass |
| Line inputs: | 2 |
| Line input connectors: | XLR |
| Line outputs: | 4 |
| Line output connectors: | XLR |
| Mains connector: | IEC socket |
| Operating voltage: | 220 V AC - 240 V AC |
| Width: | 482mm |
| Height: | 44,5mm |
| Depth: | 153mm |
| Weight: | 2,9kg |
Brand: LD Systems
SKU: LDS-LDX223
